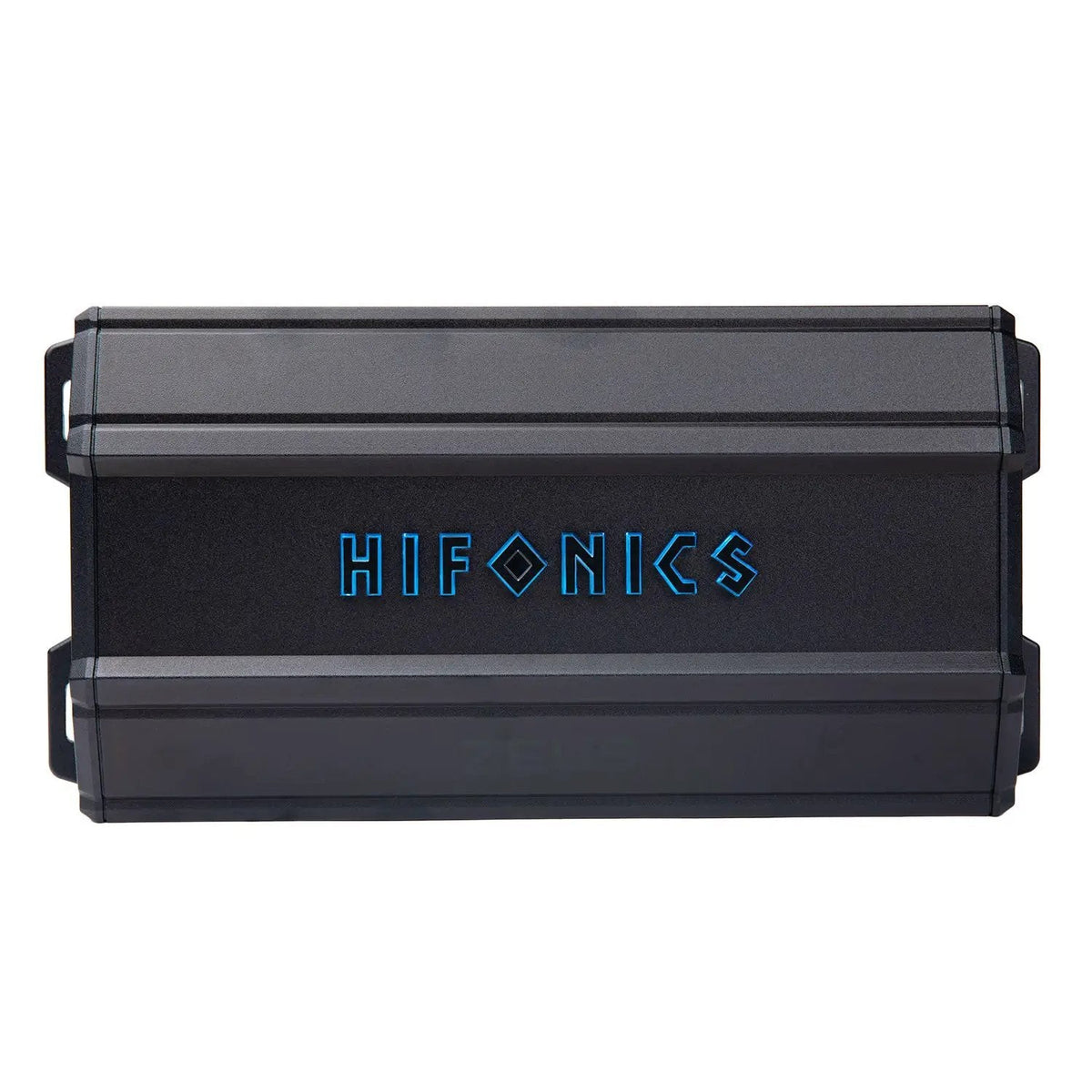

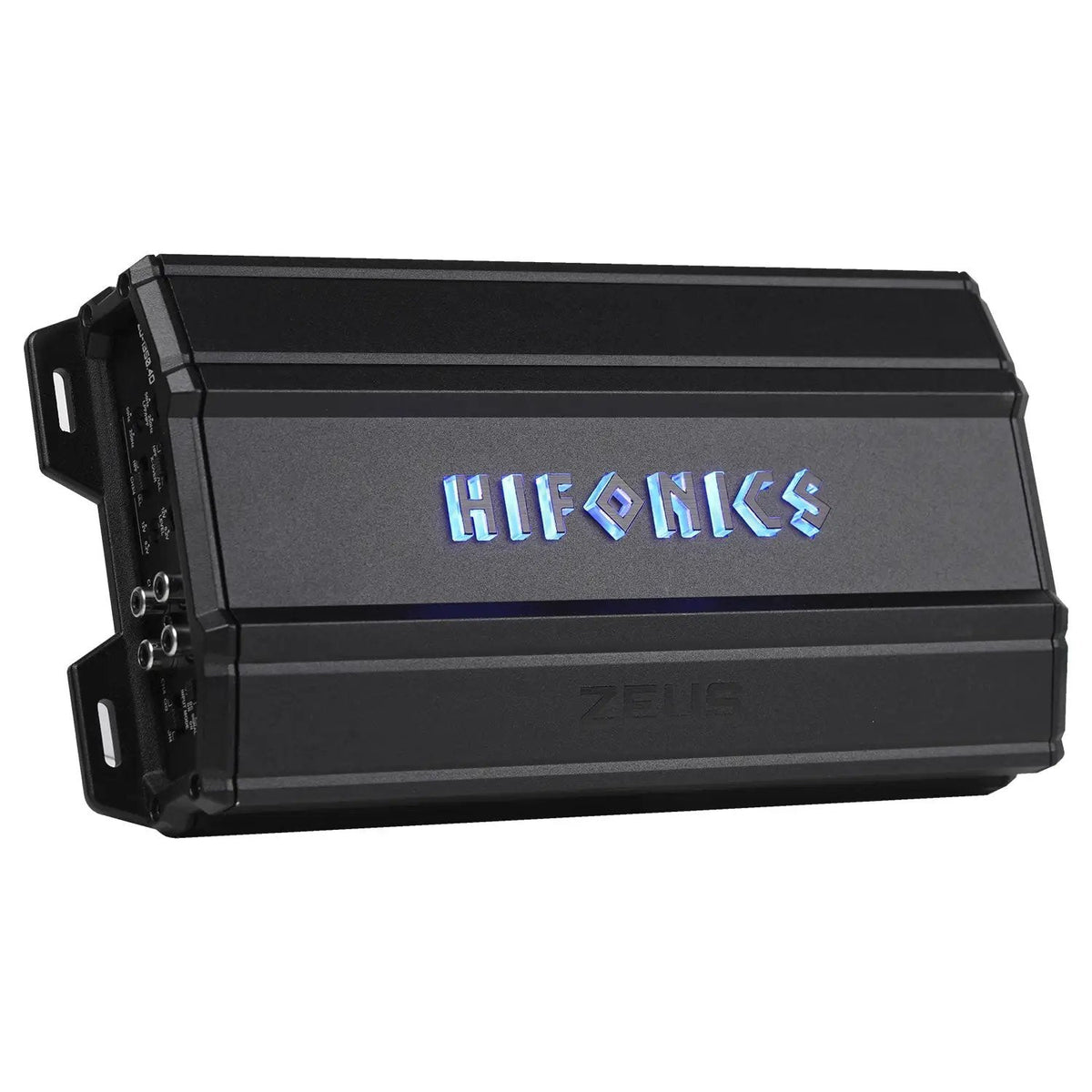

Hifonics ZD-1350.4D ZEUS DELTA 1300 Watt Four Channel Amplifier
Key features
- Amplifier channels: 4
- Amplifier class: Class D
- Frequency response: 10Hz-22kHz
- High-pass crossover (12 dB/octave): 50Hz-250Hz
- Low-pass crossover (12 dB/octave): 50Hz-250Hz
- Speaker-level inputs: Yes
Hifonics ZD-1350.4D ZEUS DELTA 1300 Watt Four Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring four-channel power and flexible system control to your 12V audio setup with the Hifonics ZD-1350.4D ZEUS DELTA Class D amplifier. It delivers up to 1350 W and can run four-channel stereo or two-channel bridged mono, with onboard crossovers to shape the signal for your speakers or subwoofers.
Key Features & Benefits
- Flexible channel modes: Use four-channel stereo or bridge the amplifier for two higher-power mono outputs.

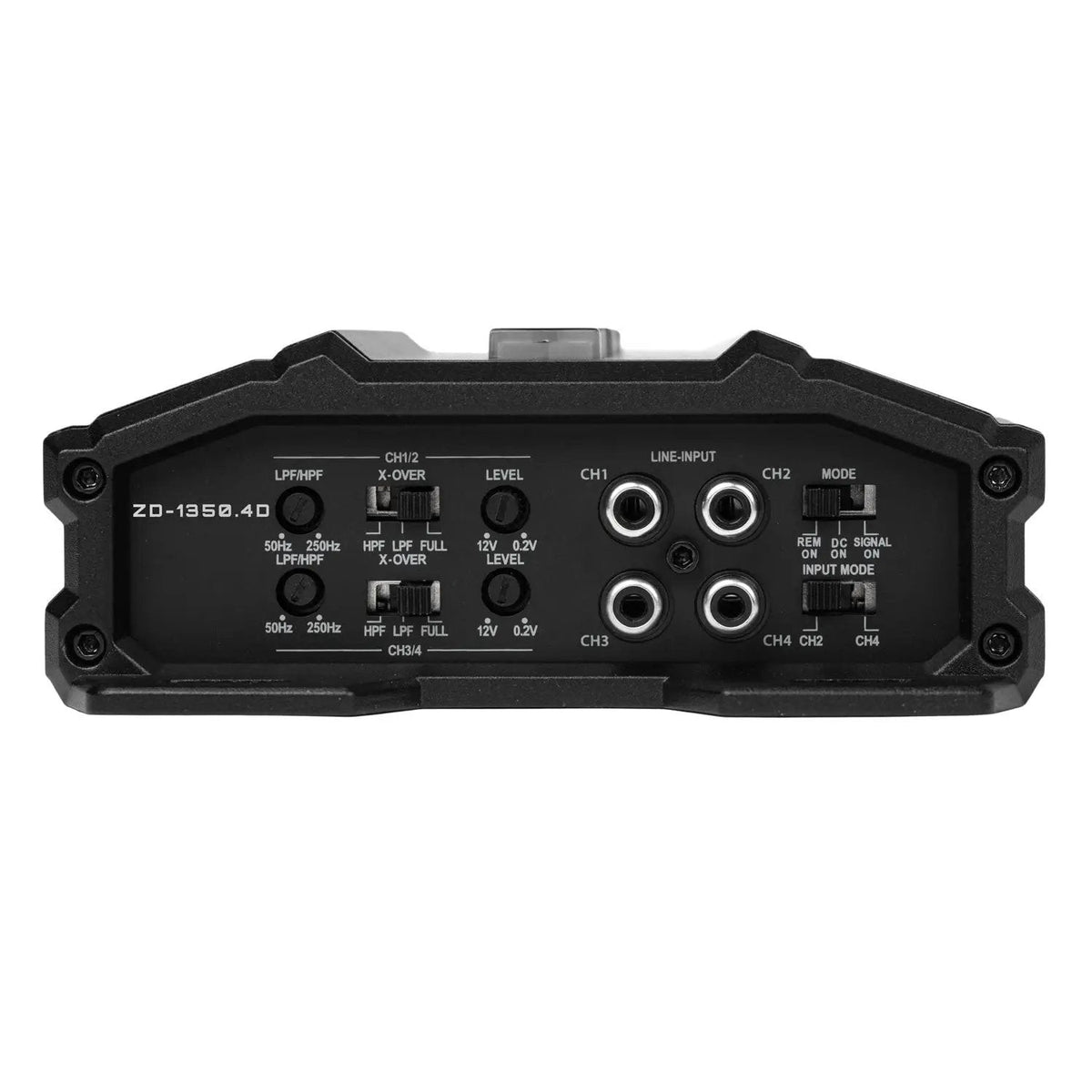

- Adjustable crossovers: High-pass and low-pass filters each adjust from 50Hz to 250Hz at 12dB per octave.
- DC Signal Sense: RCA signal detection enables auto turn-on without a dedicated remote turn-on wire.
- Class D design: The PWM MOSFET power supply and Simpatico dual coil design support high-efficiency output.
- Aluminum heatsink: The heatsink is designed to dissipate heat during operation.
- Flexible inputs: Connect through high-level speaker inputs or standard RCA inputs.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Model | ZD-1350.4D |
| Series | ZEUS DELTA |
| Product title rating | 1300 Watt |
| Amplifier class | Class D |
| Total channels | 4 |
| Maximum power | 1350 W |
| Power output @ 2 Ohms | 4 x 335 W |
| Power output @ 4 Ohms | 4 x 170 W |
| Mono bridged power @ 4 Ohms | 2 x 675 W |
| Frequency response | 10Hz-22kHz |
| Total harmonic distortion (THD) | < 0.5% |
| Variable high-pass crossover | 50Hz-250Hz (12dB per Octave) |
| Variable low-pass crossover | 50Hz-250Hz (12dB per Octave) |
| Variable voltage | 0.2-6V |
| Power terminal wire gauge | 4 AWG |
| Speaker terminal wire gauge | 12 AWG |
| External fusing | 60A |
| Dimensions | 29.6 x 14.6 x 5.5 cm |
| Weight | 2.3 kg |
| Package dimensions | 38.5 x 17.5 x 8.0 cm |
| Package weight | 2.7 kg |
| Heatsink material | Aluminum |
| Color | Black |
| Power supply and coil design | PWM MOSFET power supply; Simpatico dual coil design |
| Additional features | Variable electronic crossovers; bass control; nickel-plated RCA inputs; angled molded connection terminals; diagnostic LED protection circuitry; DC Signal Sense auto turn-on |
| Compatibility and connections | Universal vehicle fitment for 12V mobile audio systems; high-level speaker inputs or standard RCA inputs |
A Hifonics ZEUS DELTA Amplifiers (ZD) Quick Start Guide (Rev1) is listed for this amplifier.
Why Choose This Product?
The ZD-1350.4D gives you a choice between four-channel operation and bridged output, so you can select a configuration that matches your system plan. Its adjustable high-pass and low-pass crossovers help tailor the signal without relying on fixed filter settings.
Class D circuitry, an aluminum heatsink, and diagnostic LED protection circuitry are part of its design. RCA and high-level input options also provide two connection methods for a 12V audio system.
Installation & Compatibility Notes
This amplifier is specified for 12V mobile audio systems and universal vehicle fitment. Check your system’s configuration and available installation space against the amplifier’s dimensions before purchase.

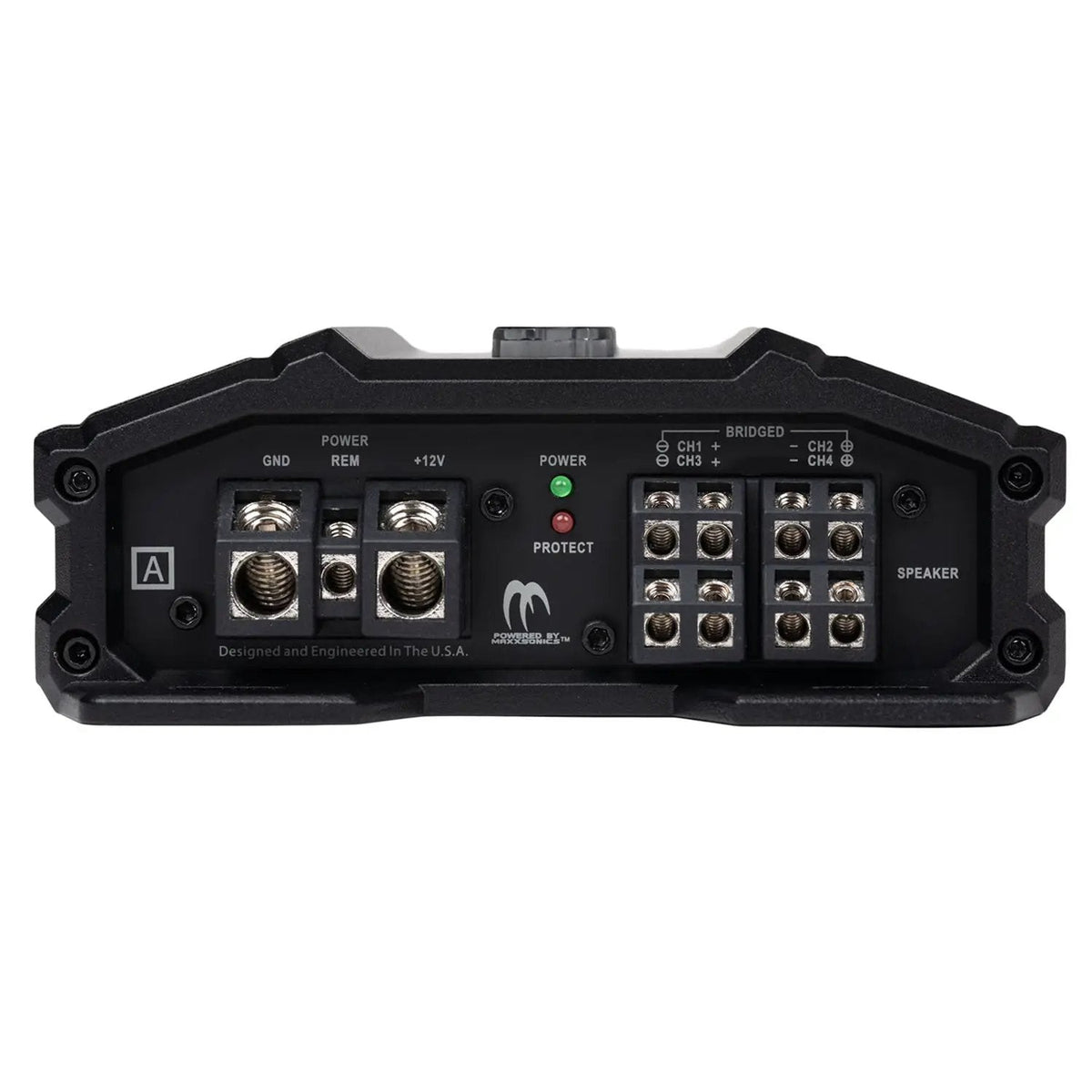

The power terminals accommodate 4 AWG wire, and the speaker terminals accommodate 12 AWG wire. External fusing is specified at 60A. The DC Signal Sense auto turn-on feature detects audio signals on the RCA connections; the source lists this function as eliminating the need for a dedicated remote turn-on wire.
Frequently Asked Questions
Can the Hifonics ZD-1350.4D be bridged?
Yes. It supports two-channel bridged mono operation, rated at 2 x 675 W at 4 Ohms.
What power does it deliver in four-channel mode?
The listed outputs are 4 x 335 W at 2 Ohms or 4 x 170 W at 4 Ohms.
Does it need a remote turn-on wire?
DC Signal Sense auto turn-on detects input signals on the RCA connections, so a dedicated remote turn-on wire is not required for that mode.
What crossover adjustments are available?
The variable high-pass and low-pass crossovers each adjust from 50Hz to 250Hz at 12dB per octave.
What inputs can I connect?
The amplifier accepts high-level speaker inputs or standard RCA inputs. Confirm which connection suits your source unit before installation.
How much installation space should I allow?
The amplifier measures 29.6 x 14.6 x 5.5 cm. Compare these dimensions with your intended mounting location.
Explore More
Shop the Hifonics ZD-1350.4D at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Model | ZD-1350.4D |
| Series | ZEUS DELTA |
| Amplifier Class | Class D |
| Total Channels | 4 |
| Max Power | 1350 W |
| Power Output @ 2 Ohms | 4 x 335 W |
| Power Output @ 4 Ohms | 4 x 170 W |
| Mono Bridged Power @ 4 Ohms | 2 x 675 W |
| Frequency Response | 10Hz-22kHz |
| Total Harmonic Distortion (THD) | < 0.5% |
| Variable High Pass Crossover | 50Hz-250Hz (12dB per Octave) |
| Variable Low Pass Crossover | 50Hz-250Hz (12dB per Octave) |
| Variable Voltage | 0.2-6V |
| Power Terminal Wire Gauge | 4 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| External Fusing | 60A |
| Dimensions | 29.6 x 14.6 x 5.5 cm |
| Weight | 2.3 kg |
| Package Dimensions | 38.5 x 17.5 x 8.0 cm |
| Package Weight | 2.7 kg |
| Heatsink Material | Aluminum |
| Color | Black |
