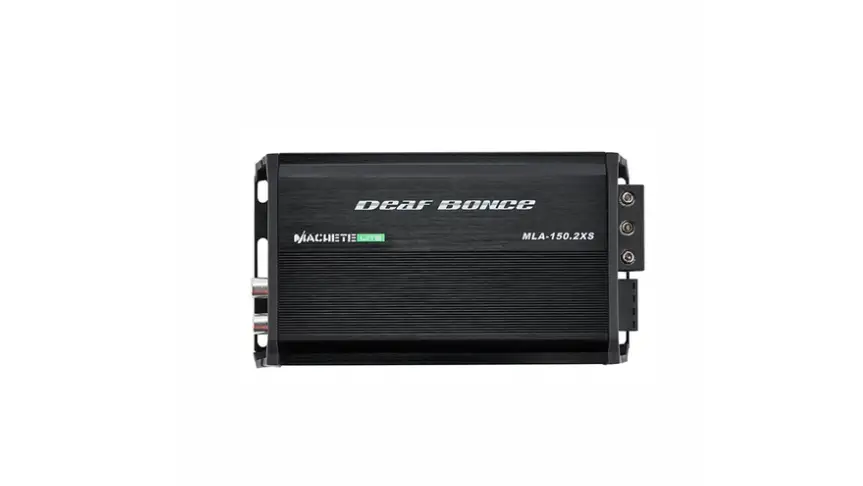

Deaf Bonce MACHETE MLA-150.2 XS | 150 Watt 2-channel amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 150 W
- RMS per channel at 2 ohms: 225 W
- Amplifier class: Class D
- Frequency response: 20 Hz - 20 kHz
- Crossover slope: 12 dB/octave
Deaf Bonce MACHETE MLA-150.2 XS | 150 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Deaf Bonce MACHETE MLA-150.2 XS | 150 Watt 2-channel amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a two-channel car audio system with the Deaf Bonce MACHETE MLA-150.2 XS amplifier. It delivers 225 W x 2 at 2 ohms or 150 W x 2 at 4 ohms, and can be bridged for a 450 W x 1 output at 4 ohms.
Key Features & Benefits
- Two-channel Class D design: Use it for stereo speaker power or a bridged mono subwoofer channel.
- Selectable load options: Choose between its listed 2-ohm and 4-ohm stereo power ratings to match your system design.

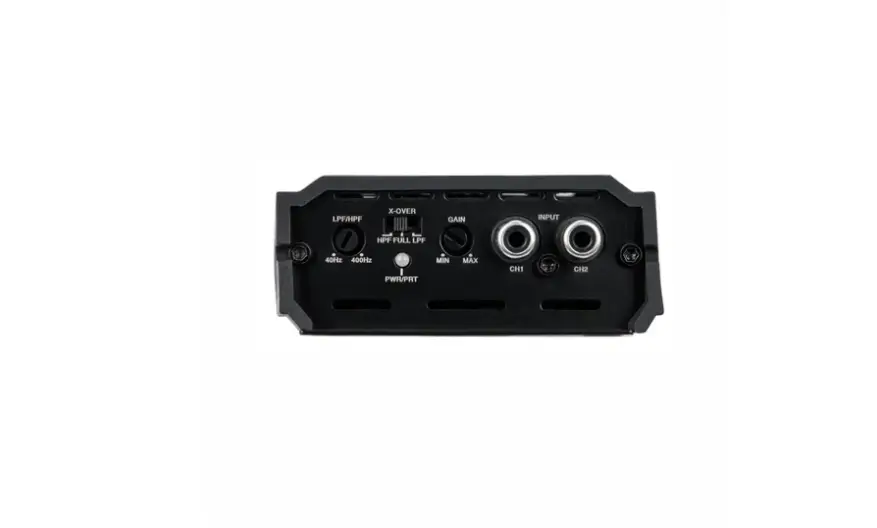

- Adjustable filters: Set the high-pass and low-pass filters within their 40–400 Hz ranges to shape speaker and subwoofer output.
- Simultaneous filter operation: Run the LPF and HPF together when setting up separate front-stage and subwoofer channels.
- Compact dimensions: Its 6 x 3.3 x 1.4 inch size helps when planning an installation with limited space.
Technical Specifications
| Model | MLA-150.2 XS |
| Class | D |
| Number of the channels | 2 |
| Frequency response | 20-20000 Hz |
| 2 Ohm RMS Power (14.4 V) | 225 W x 2 |
| 4 Ohm RMS Power (14.4 V) | 150 W x 2 |
| 4 Ohm RMS Power (Bridge) | 450 W x 1 |
| Minimum permissible load on the channel | 2 Ohm |
| Minimum permissible load in a bridge connection | 4 Ohm |
| Low pass filter | 40-400 Hz |
| High pass filter | 40-400 Hz |
| LPF and HPF simultaneous operation | True |
| Crossover | 12 dB/Oct |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Working voltage | 9 - 15V |
| Signal-to-noise ratio | ��� 85 dB |
| Size (WxLxH) | 6 x 3.3 x 1.4 inch |
Why Choose This Product?
The MLA-150.2 XS gives you two setup options in one compact amplifier: stereo power for speakers or bridged output for a subwoofer at 4 ohms. Its adjustable high-pass and low-pass filters, with 12 dB/Oct crossover, let you shape the transition between speaker and subwoofer frequencies.
Installation & Compatibility Notes

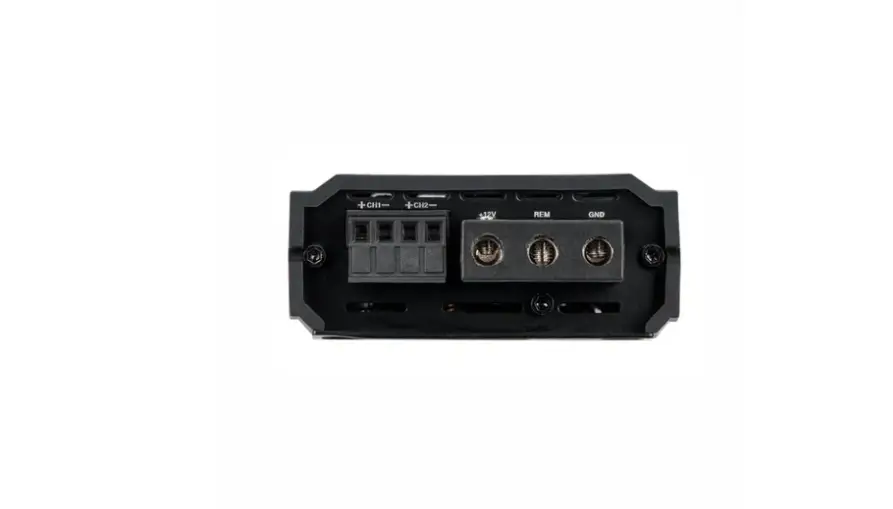

Plan your system around a minimum 2-ohm load per channel, or a minimum 4-ohm load when bridged. The listed input terminal is 4 Ga, the output terminal is 8 Ga, and the working voltage is 9 - 15V.
Check available mounting space against the amplifier’s 6 x 3.3 x 1.4 inch dimensions before installation. Match the selected speaker or subwoofer load to the corresponding operating mode and power rating.
Frequently Asked Questions
How much power does the MLA-150.2 XS provide?
It is rated at 225 W x 2 RMS at 2 ohms or 150 W x 2 RMS at 4 ohms, at 14.4 V. In bridged mode, it is rated at 450 W x 1 RMS at 4 ohms.
What is the minimum load for bridged operation?
The minimum permissible load in a bridge connection is 4 ohms.
Can the high-pass and low-pass filters operate at the same time?
Yes. The specifications list simultaneous LPF and HPF operation as True. Both filter ranges are 40–400 Hz.
What space should I allow for the amplifier?
The listed dimensions are 6 x 3.3 x 1.4 inches. Check the intended mounting location against these measurements before installation.
