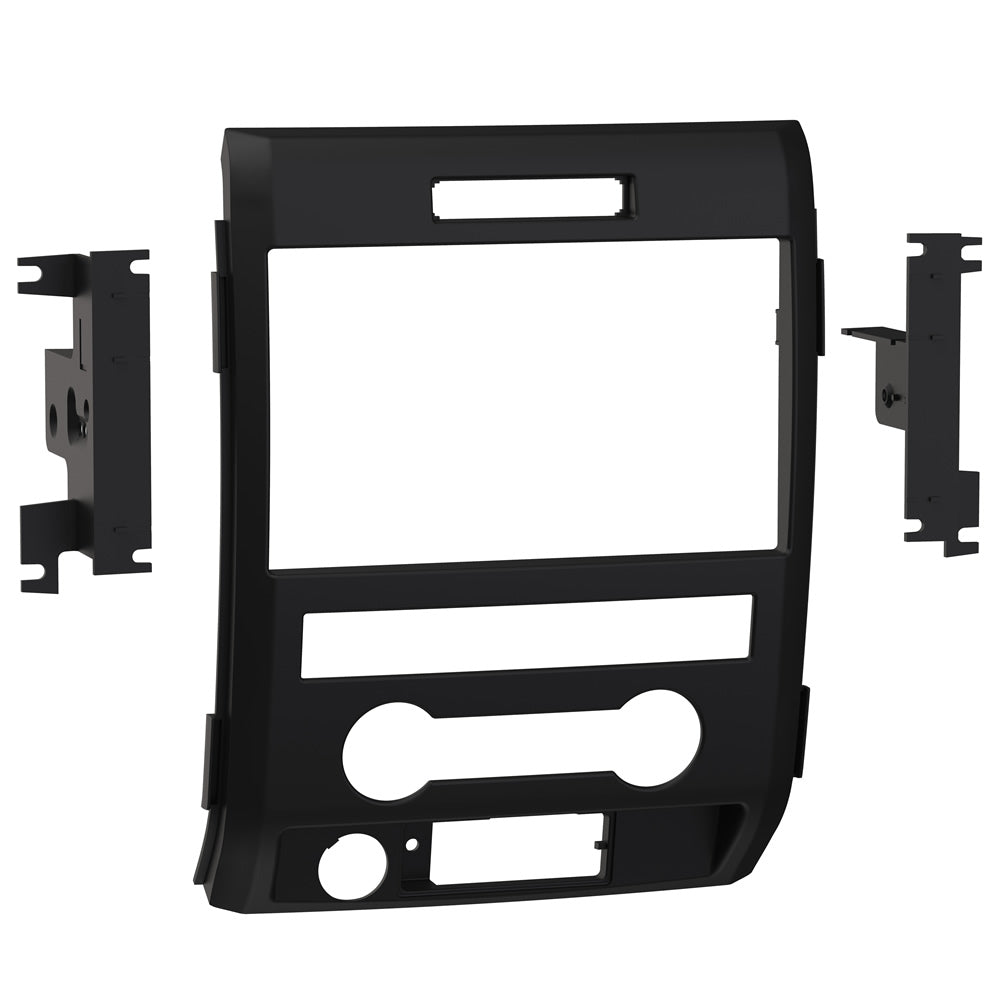

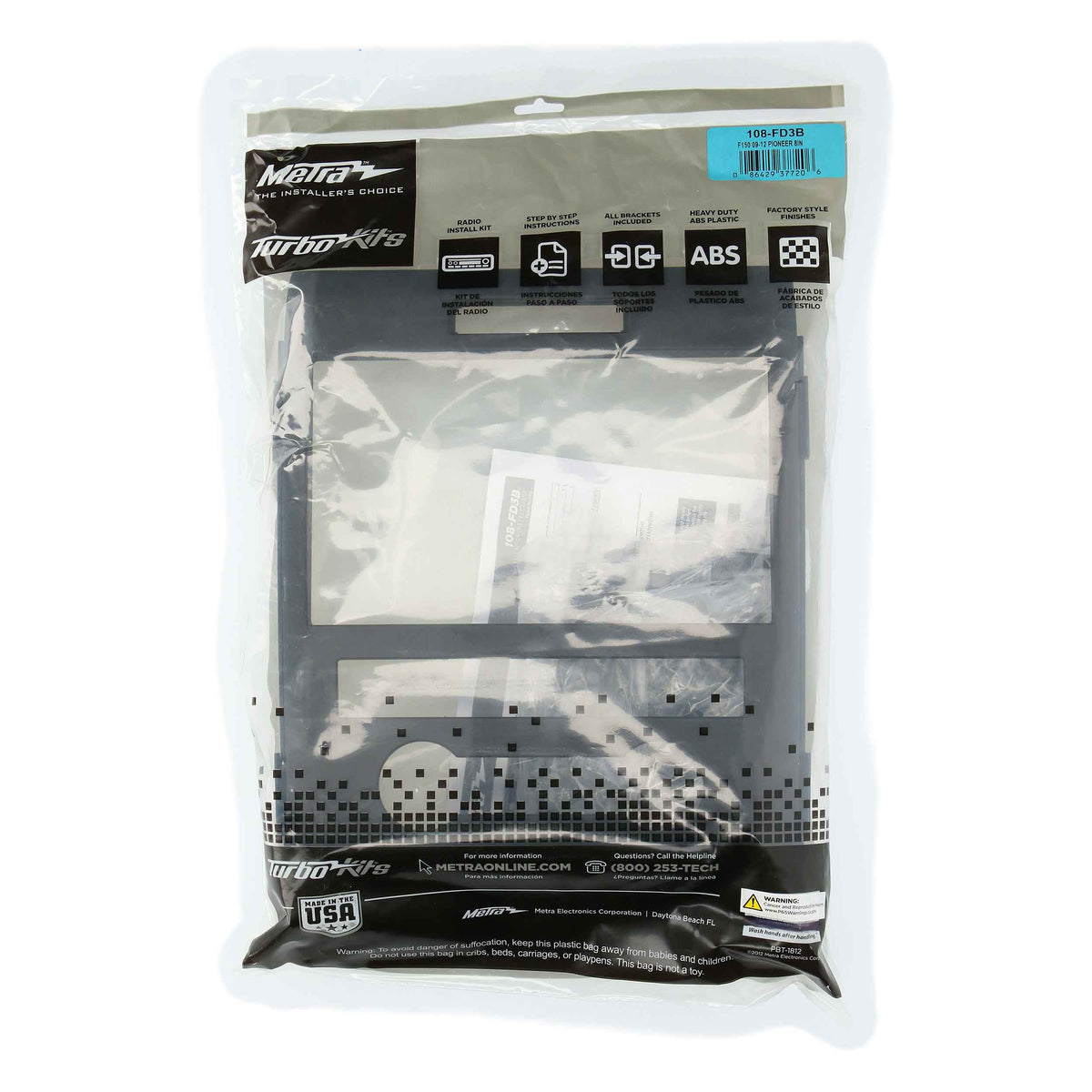

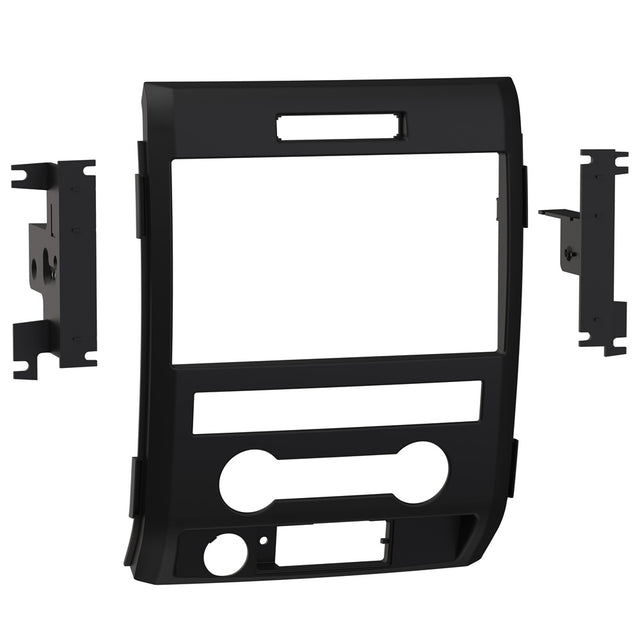

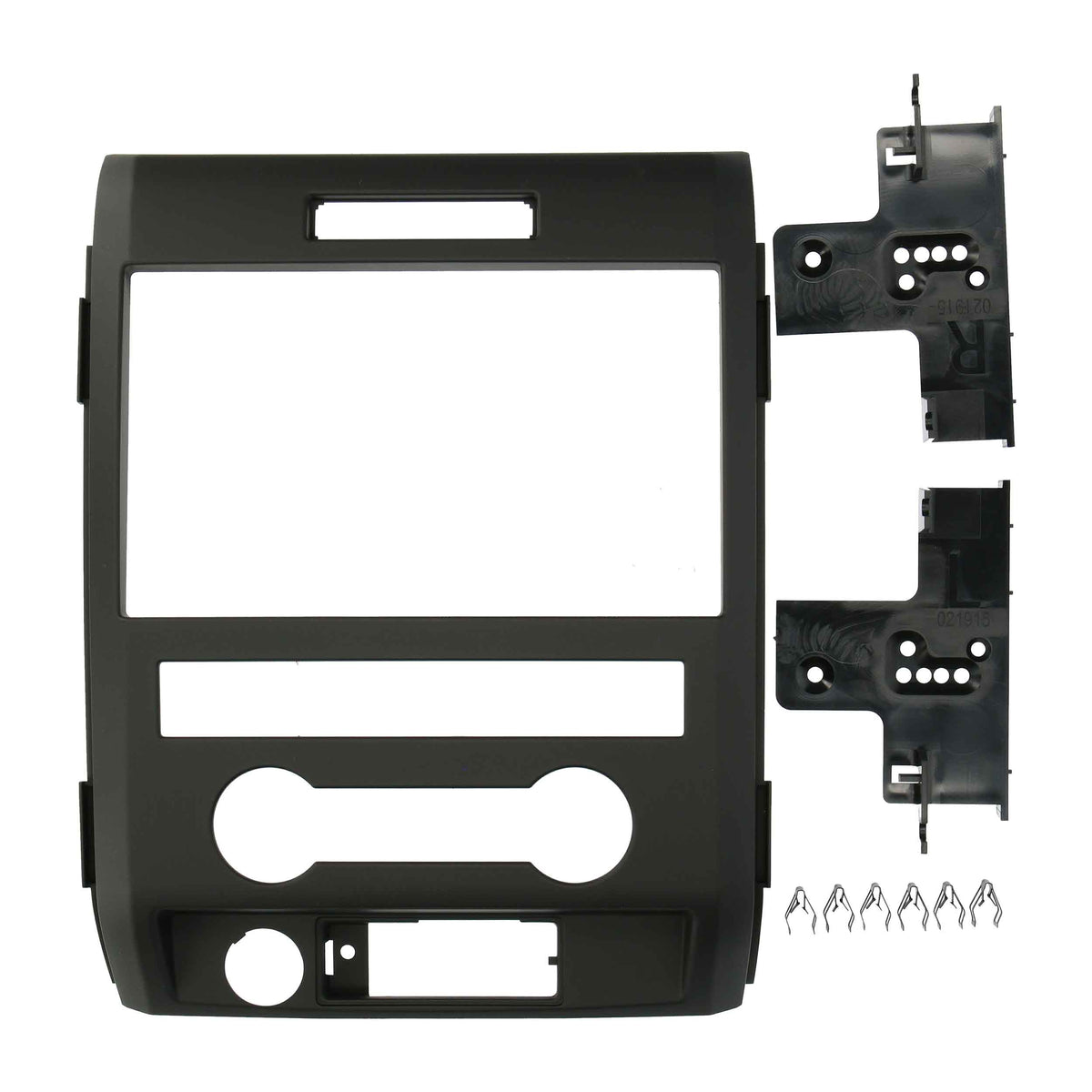

Ford F-150 2009-2014 - Fits Pioneer 8" Radios — 108-FD3B
Key features
- Application: Ford F-150 2009-2014 - Fits Pioneer 8" Radios
- Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
- Harness XSVI-5521-NAV (sold separately); Antenna Adapter 40-CR10 (sold separately)
- Includes provisions for the factory hazard switch, airbag light, and cigarette lighter
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
Ford F-150 2009-2014 - Fits Pioneer 8" Radios — 108-FD3B is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

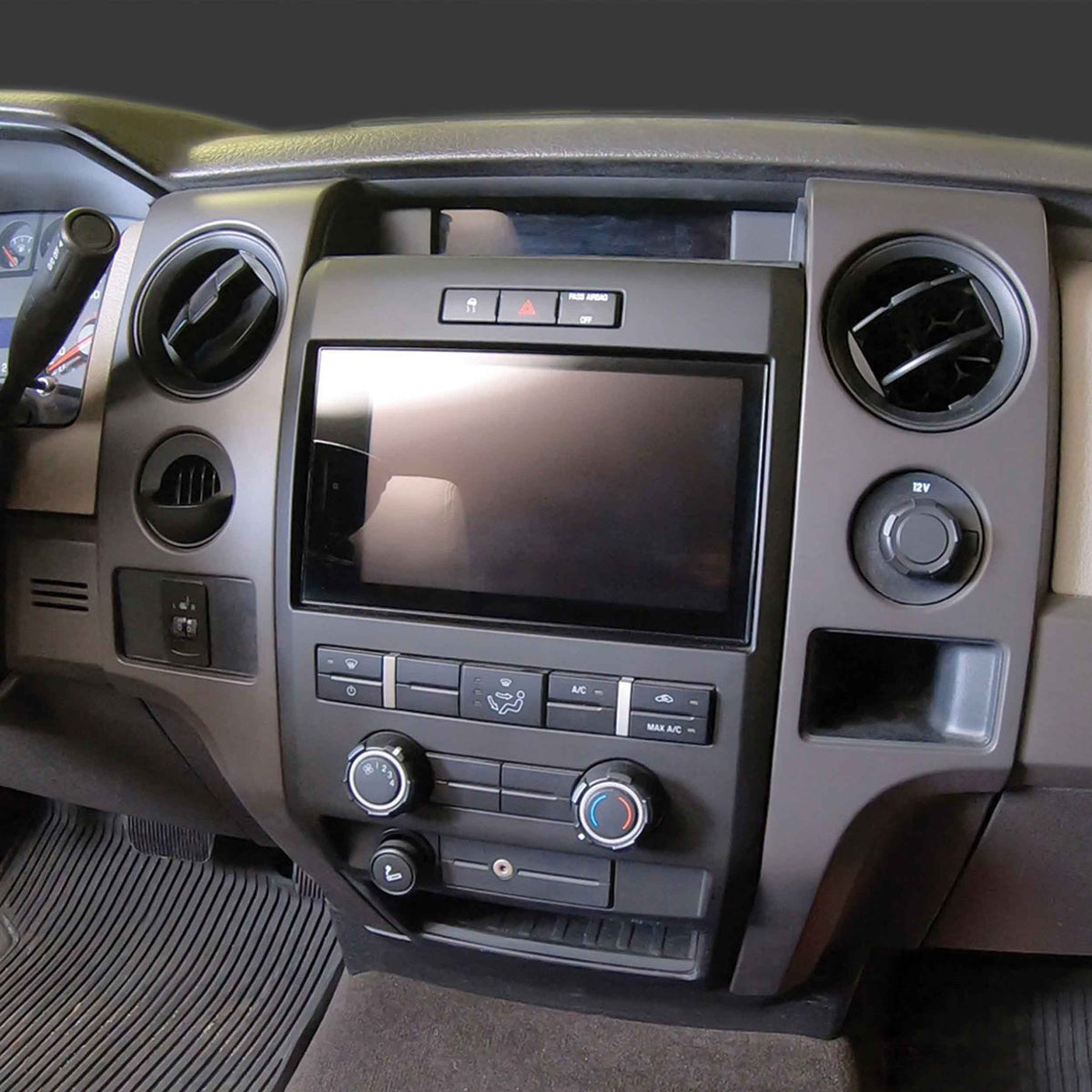

Keep select factory functions while installing a Pioneer 8-inch radio in your 2009–2014 Ford F-150. The 108-FD3B is designed specifically for the Pioneer DMH-C5500NEX and includes provisions for the factory hazard switch, airbag light, and cigarette lighter.
Key Features & Benefits
- Retained controls: Keep steering wheel audio controls, SYNC, the factory AUX-IN jack, and balance and fade functions.
- Navigation outputs: Parking brake, reverse, and speed-sense outputs support the listed navigation connections.
- Camera input: Connect an aftermarket backup camera through the provided input.
- Factory amplifier flexibility: Use the interface in amplified and non-amplified models.
- Finished appearance: The scratch-resistant matte-black finish complements the installation.
Technical Specifications
| Product model | 108-FD3B |
|---|---|
| Vehicle fitment | Ford F-150, 2009–2014 |
| Radio compatibility | Pioneer DMH-C5500NEX 8-inch radio |
| Factory switch and indicator provisions | Hazard switch and airbag light |
| Other factory provision | Cigarette lighter |
| Finish | Painted scratch-resistant matte black |
| Accessory power | 12-volt, 10-amp |
| Retained accessory power | R.A.P. |
| Navigation outputs | Parking brake, reverse, speed sense |
| Retained functions | Steering wheel audio controls, SYNC, factory AUX-IN jack, balance and fade |
| Camera input | Aftermarket backup camera input |
| Amplifier compatibility | Can be used in amplified and non-amplified models |
| Update connection | Micro-B USB updatable |
| Patent | U.S. Patent D902,916 |
| Separately sold harness | XSVI-5521-NAV |
| Separately sold antenna adapter | 40-CR10 |
Why Choose This Product?
This interface is tailored to the named F-150 model years and Pioneer radio, while preserving several listed factory controls and connections. Its provisions for the hazard switch, airbag light, and cigarette lighter help accommodate those factory components during the radio installation.
Installation & Compatibility Notes
Confirm that your vehicle is a 2009–2014 Ford F-150 and that your radio is the Pioneer DMH-C5500NEX 8-inch model. The XSVI-5521-NAV harness and 40-CR10 antenna adapter are sold separately.
Frequently Asked Questions
Which radio is this interface designed for?
It is designed specifically for the Pioneer DMH-C5500NEX 8-inch radio.
What vehicle years does it fit?
The listed application is the 2009–2014 Ford F-150.
Does it retain steering wheel audio controls?
Yes. Steering wheel audio controls are among the retained functions.
Can it be used with an aftermarket backup camera?
Yes. It provides an input for an aftermarket backup camera.
Which parts are sold separately?
The XSVI-5521-NAV harness and 40-CR10 antenna adapter are sold separately.
