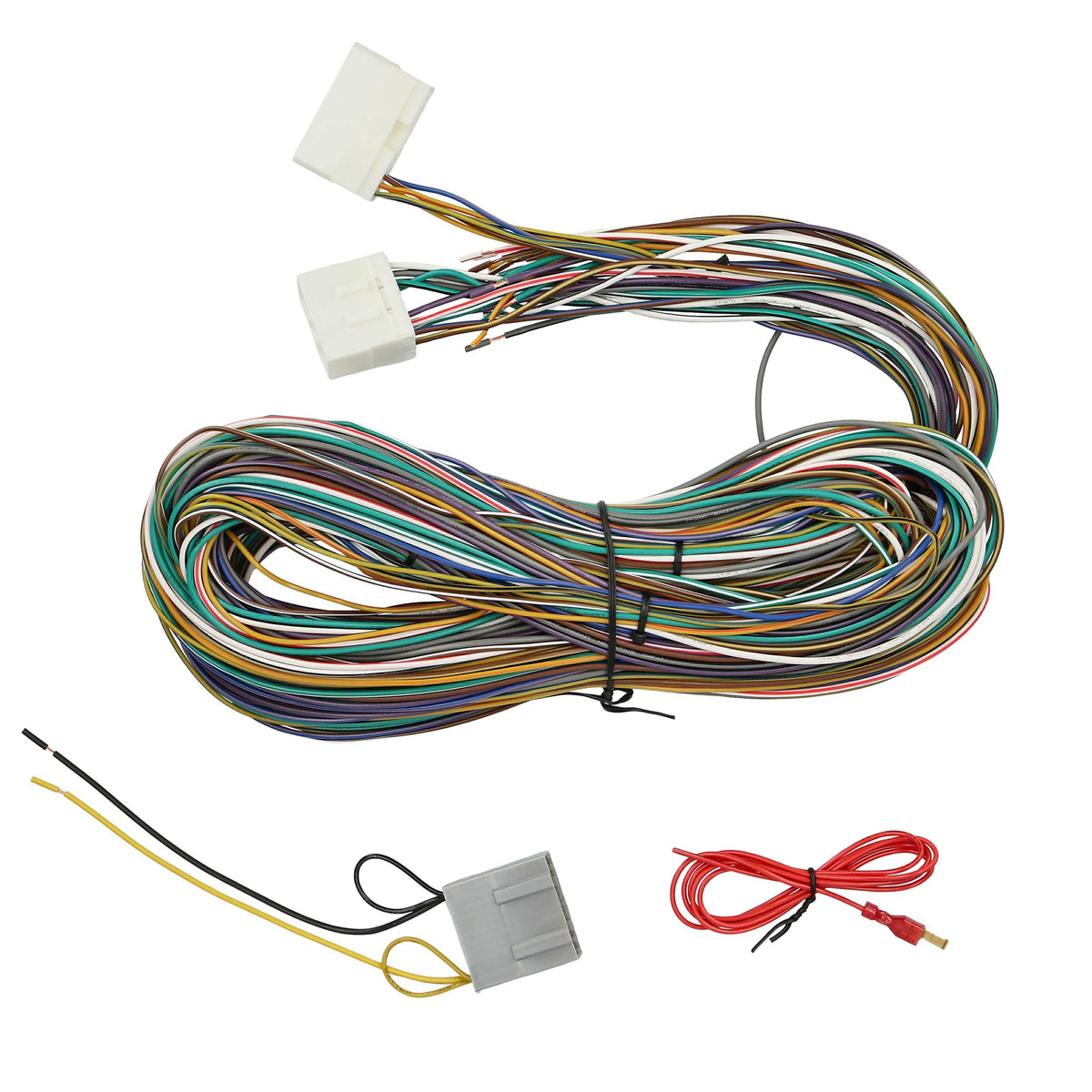

Amp Bypass Harness - Chrysler 2005-2009 — 70-6504
Key features
- For select Chrysler 2005-2009
- Factory subwoofer is not retained in select vehicles

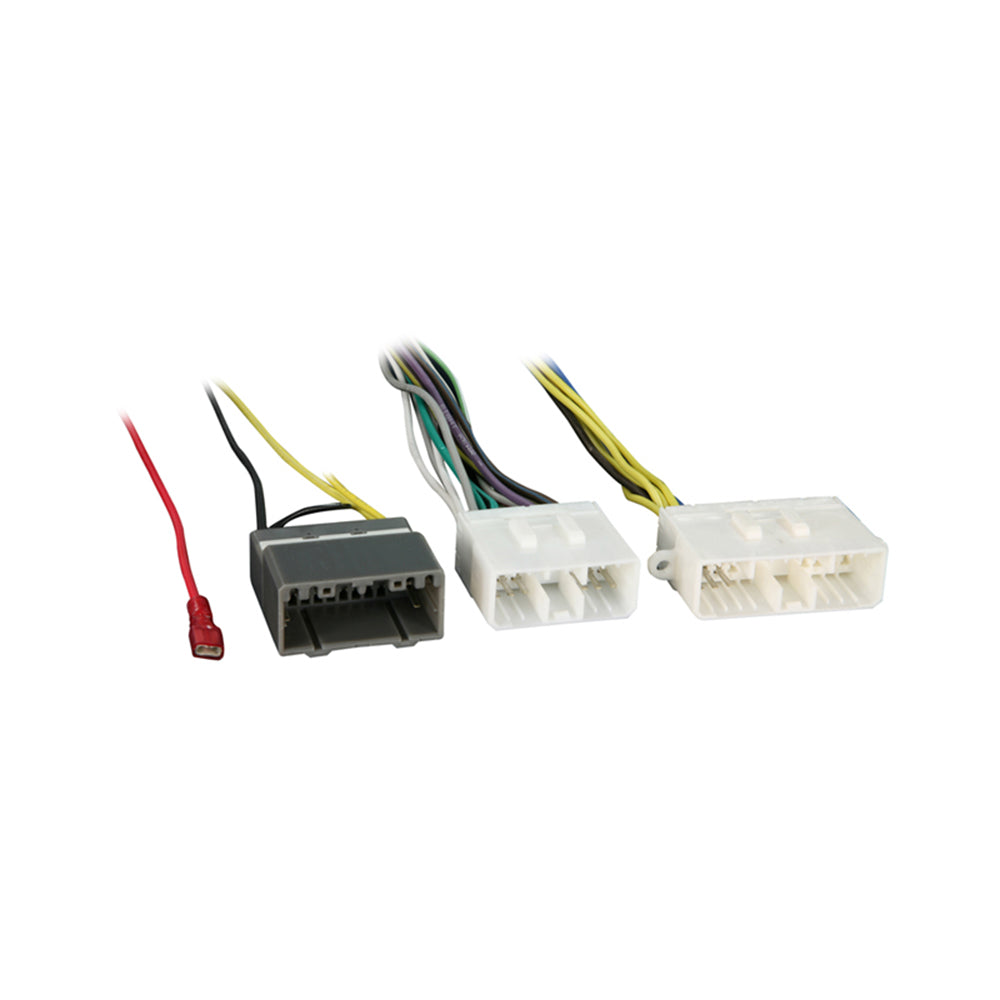

- Plugs into the car's original radio connectors on one side as well as the factory amplifier
- Harness length is 204"
- No wire cutting needed for factory radio connectors

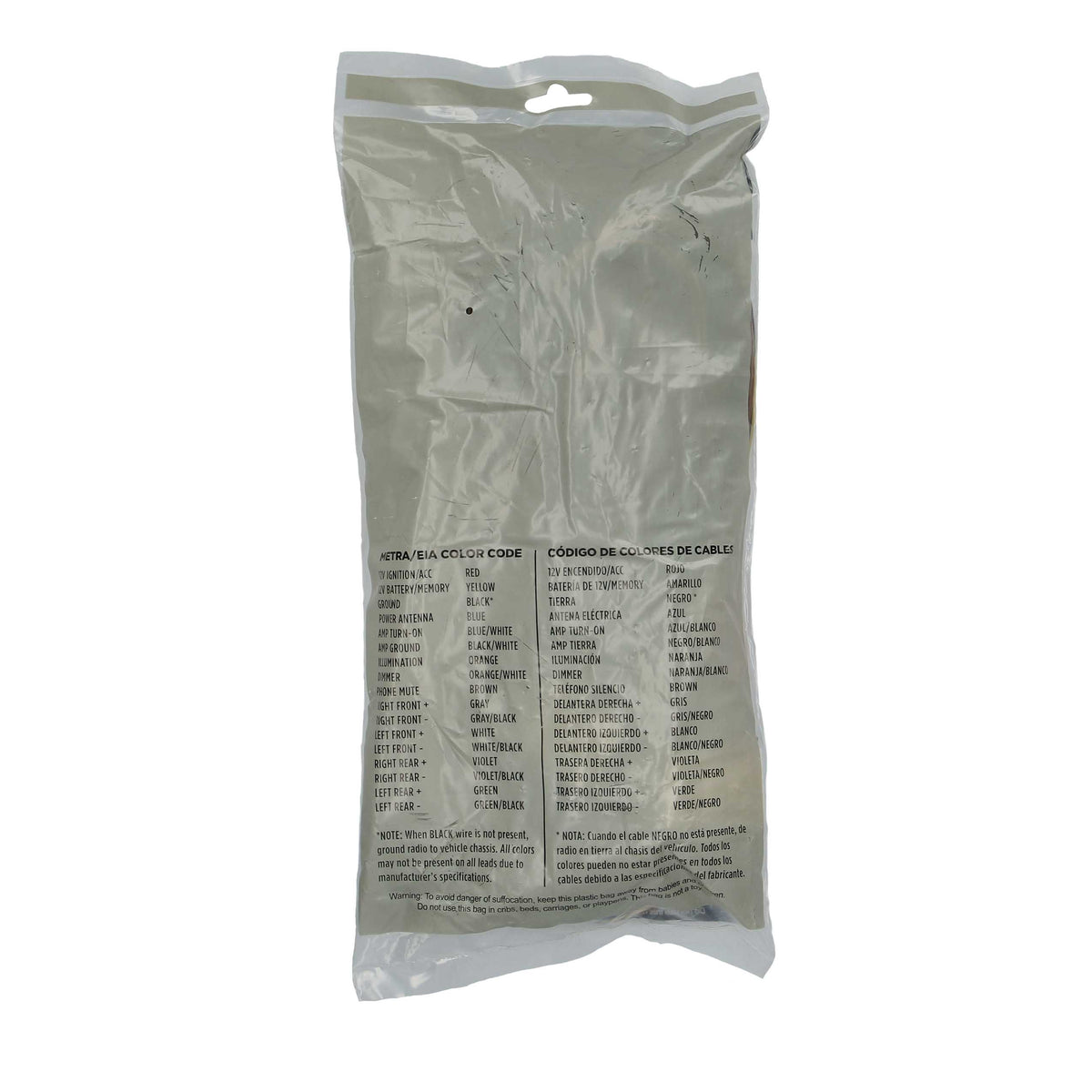

- Color-coded wires on the other side are connected to the aftermarket radio
Amp Bypass Harness - Chrysler 2005-2009 — 70-6504 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Install an aftermarket radio in a Chrysler from 2005–2009 with the 70-6504 amp bypass harness. Its vehicle-specific connectors and color-coded radio wires help simplify the connection between the vehicle and your new receiver.
Key Features & Benefits

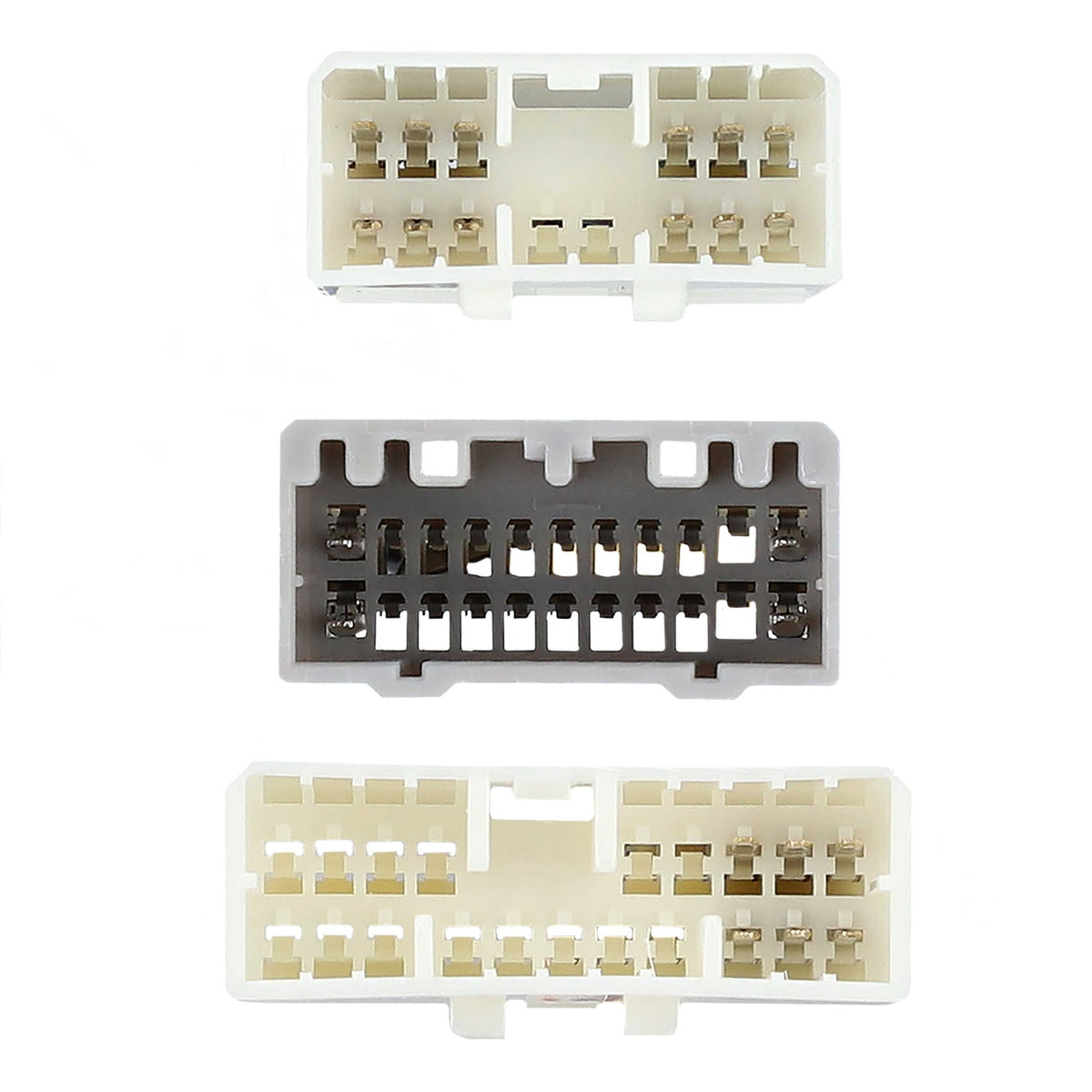

- Vehicle-specific connections: The adapter plugs into the original radio connectors, so you do not need to cut those factory wires.
- Color-coded radio wires: Connect or solder these wires to your aftermarket radio as needed.
- Factory amplifier bypass: The harness connects with the factory amplifier as part of the installation.
- Extended reach: The 204-inch harness length gives you a long wiring run for installation.
Technical Specifications
| Product | Amp Bypass Harness - Chrysler 2005-2009 |
|---|---|
| Model | 70-6504 |
| Application | Chrysler vehicles, 2005–2009 |
| Harness length | 204" |
| Vehicle-side connection | Vehicle-specific adapter for original radio connectors; connects to the factory amplifier |
| Radio-side wiring | Color-coded wires for connection or soldering to an aftermarket radio |
| Radio power | Provides electrical power to the radio |
| Factory subwoofer | Not retained in select vehicles |
Why Choose This Product?
This harness gives you a vehicle-specific connection for an aftermarket radio while avoiding cuts to the original radio connectors. Its color-coded radio-side wires provide a clear starting point for connecting the new receiver.
Keep the factory subwoofer limitation in mind when planning your upgrade. The subwoofer is not retained in select vehicles, so confirm how the harness applies to your vehicle before choosing it.
Installation & Compatibility Notes
Connect the vehicle-specific adapter to the original radio connectors and factory amplifier. Connect or solder the color-coded wires to the aftermarket radio according to the receiver’s instructions.
Your installation may also require a dash kit, antenna adapter, or a special interface to retain steering-wheel audio controls or other vehicle functions, such as navigation or video. Check the requirements for your vehicle and radio before installation. A technical support number is available seven days a week for installation help.
Frequently Asked Questions
Which vehicles is the 70-6504 listed for?
It is listed for Chrysler vehicles from 2005–2009. Check the vehicle application before ordering.
Do I need to cut the factory radio connectors?
No. The vehicle-specific adapter plugs into the original radio connectors.
Does this harness retain the factory subwoofer?
The factory subwoofer is not retained in select vehicles.
What else might I need for the installation?
Depending on your vehicle and radio, you may need a dash kit, antenna adapter, or special interface for steering-wheel controls or other vehicle functions.
