Camera Data Interface - Chrysler | Dodge | Jeep 2007-2018 — AXAC-CH4
Key features
- For select Chrysler / Dodge / Jeep 2007-2018
- Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)
- Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
- Four (4) programmable camera control wires (configured via the Axxess Updater program)

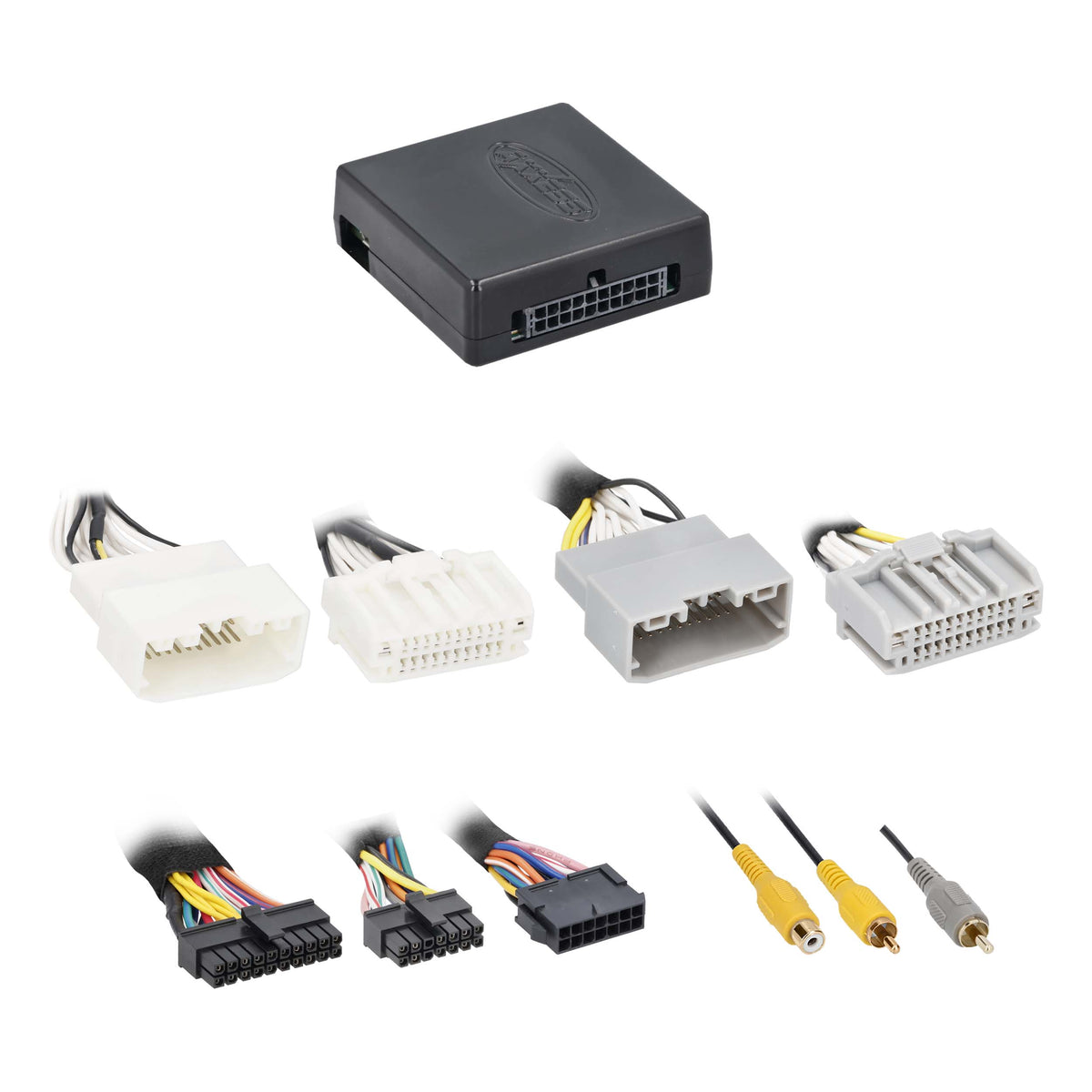

- Includes: Interface; Interface harness; (2) Vehicle harness
- Includes AXAC camera interface and vehicle-specific harness
Camera Data Interface - Chrysler | Dodge | Jeep 2007-2018 — AXAC-CH4 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep your factory backup camera while adding front and side camera views with the AXAC-CH4 camera data interface. Designed for Chrysler, Dodge, and Jeep vehicles from 2007–2018, it supports up to four camera inputs and uses CAN bus signals to switch views based on vehicle functions.
Key Features & Benefits
- Four camera inputs: Retain the factory backup camera and add up to three additional cameras.
- CAN-activated switching: Reverse and turn signal triggers can automatically bring up the relevant camera view.
- Programmable output: Configure the switched 12-volt, 5-amp output for your setup using the Axxess Updater program.
- Manual control: Control cameras manually, including when the interface is used with an aftermarket radio.
- Programmable control wires: Set up four camera control wires through the Axxess Updater program.
- Updatable connection: The Micro “B” USB port supports interface updates.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AXAC-CH4 |
| Vehicle application | Chrysler | Dodge | Jeep 2007–2018 |
| Camera inputs | Up to four total, including the factory camera |
| Additional cameras | Up to three CAN-activated cameras |
| Switched output | Programmable 12-volt, 5-amp |
| Reverse trigger | Generated through CAN bus communication |
| Turn signal trigger | Generated through CAN bus communication |
| Camera control wires | Four programmable wires |
| Vehicle Speed Sense | Input and output |
| Update connection | Micro “B” USB |
| Warranty | 1-year limited warranty |

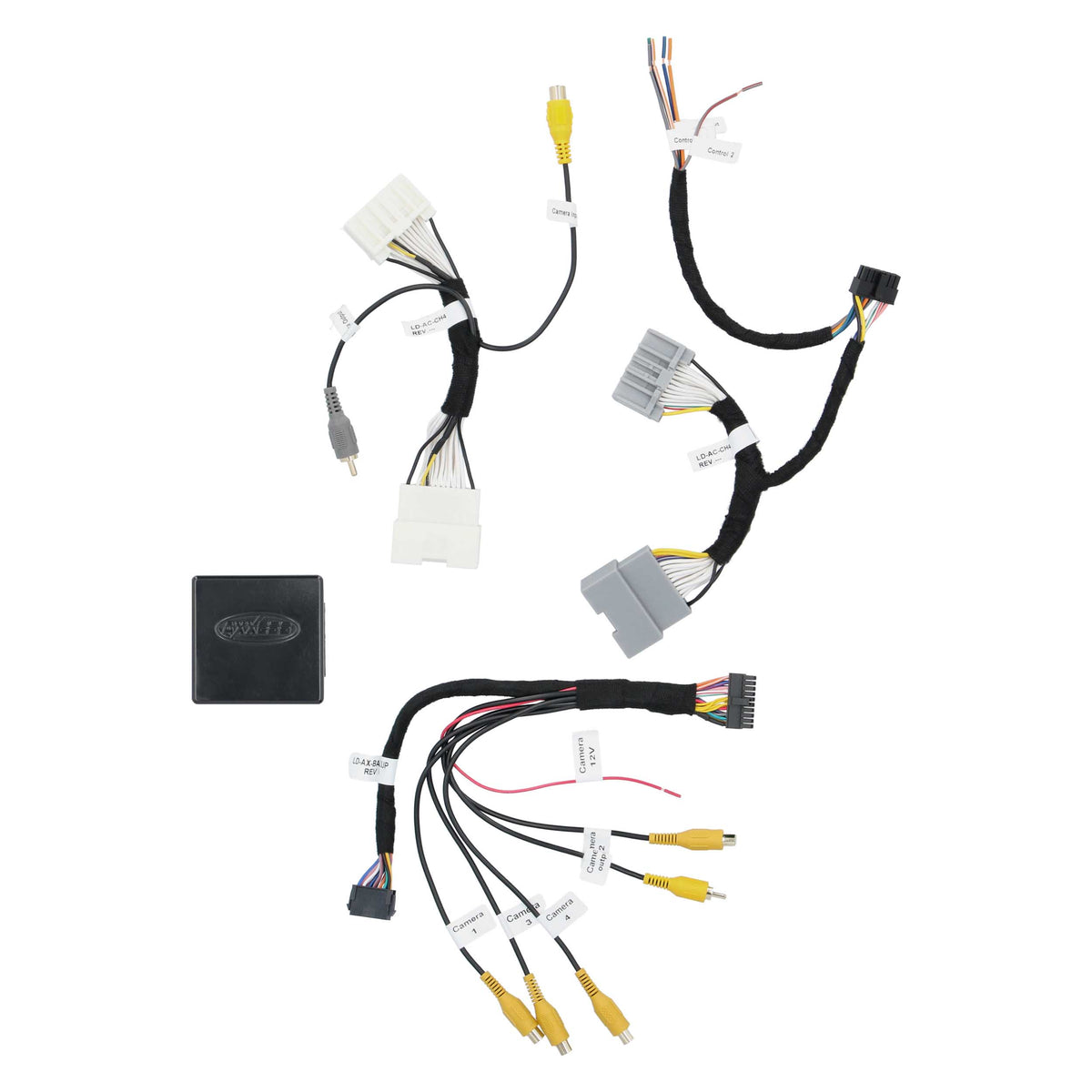

| Included | Interface, interface harness, (2) vehicle harness |
Why Choose This Product?
The AXAC-CH4 lets you add camera views while retaining the factory backup camera, rather than giving it up when expanding your system. CAN bus triggering ties camera switching to reverse and turn signal functions, while manual control offers another way to select views.
Its programmable output, control wires, and Vehicle Speed Sense input and output provide additional connection options for a camera installation. Check the requirements of your cameras and radio when planning your setup.
Installation & Compatibility Notes
The listed vehicle application is Chrysler, Dodge, and Jeep models from 2007–2018. Confirm the interface and harness application for your specific vehicle and factory radio before purchase. Configuration of the switched output and camera control wires uses the Axxess Updater program.
The package includes the interface, interface harness, and two vehicle harnesses. The interface can also be manually controlled and used with an aftermarket radio.
Frequently Asked Questions
How many cameras can the AXAC-CH4 support?
It supports up to four camera inputs total, including the factory backup camera. That leaves up to three additional camera inputs.
Does it retain the factory backup camera?
Yes. Retaining the factory backup camera while adding other camera views is a stated function of the interface.
How does automatic camera switching work?
CAN bus communication generates reverse and turn signal triggers for camera switching.
Can I control the cameras manually?
Yes. The interface can also be manually controlled and used with an aftermarket radio.
What is included in the package?
The package includes the interface, one interface harness, and two vehicle harnesses.
What vehicle years are listed for this interface?
The product title lists Chrysler, Dodge, and Jeep vehicles from 2007–2018. Confirm application for your specific vehicle and radio.
