Camera Data Interface - Ford 2011-2023 — AXAC-FD1
Key features
- For select Ford 2011-2023
- Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)
- Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
- Four (4) programmable camera control wires (configured via the Axxess Updater program)

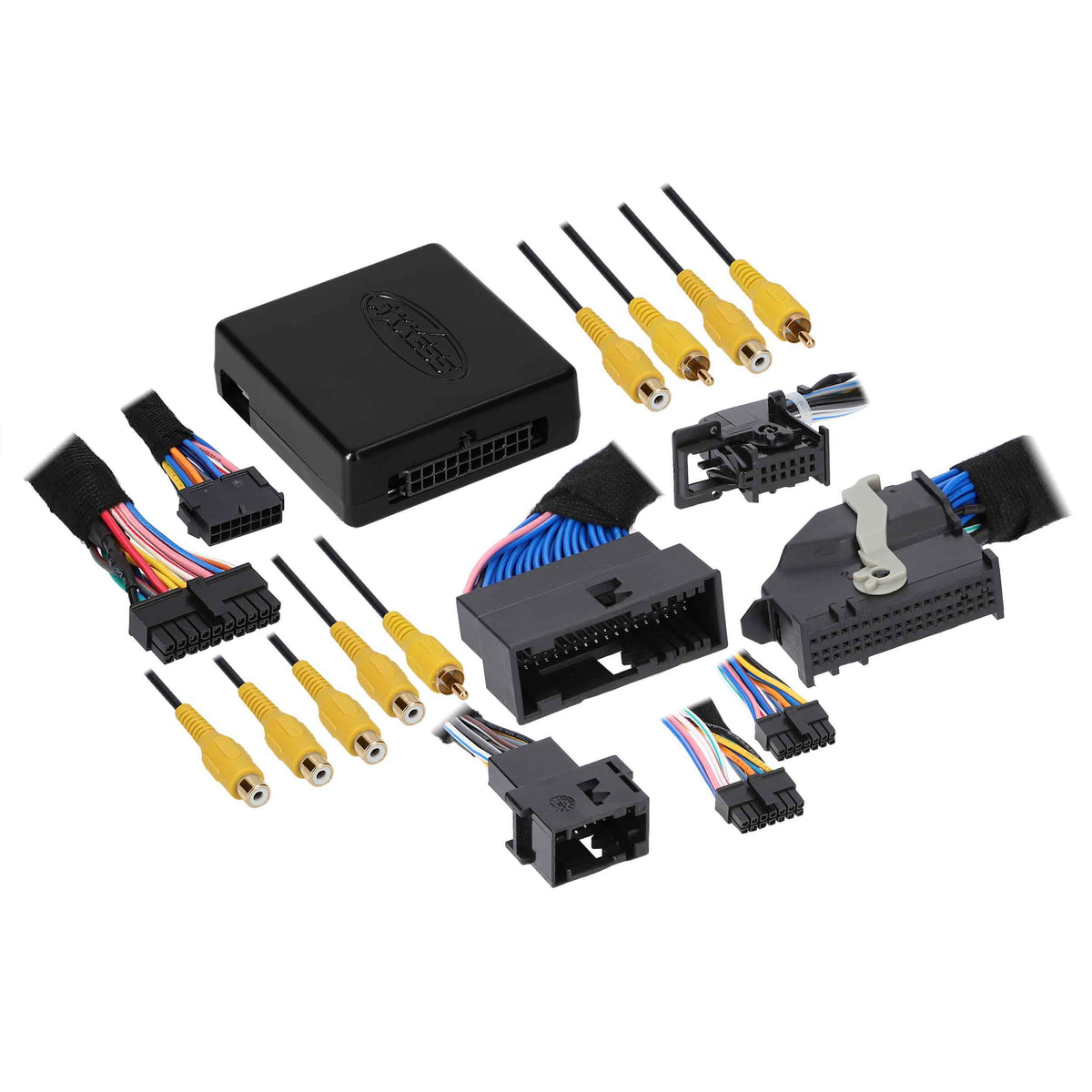

- Includes: Interface; Interface harness; (2) Vehicle harness
- Includes AXAC camera interface and vehicle-specific harness
Camera Data Interface - Ford 2011-2023 — AXAC-FD1 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep your Ford’s factory backup camera while adding aftermarket camera views with the AXAC-FD1 camera data interface. Designed for Ford vehicles from 2011–2023, it supports up to four camera inputs and uses CAN bus signals to switch views according to vehicle functions.
Key Features & Benefits
- Factory camera retention: Keep the original backup camera while adding up to three additional cameras.
- Automatic camera switching: CAN bus reverse and turn-signal triggers can bring the relevant camera view into use.
- Programmable controls: Four camera control wires and a switched 12-volt, 5-amp output can be configured with the Axxess Updater program.
- Manual control option: The interface can also be controlled manually and used with an aftermarket radio.
- Vehicle-speed connection: VSS input and output connections provide vehicle speed sense integration.
- Updatable interface: A Micro “B” USB connection supports updates.
Technical Specifications
| Model | AXAC-FD1 |
|---|---|
| Vehicle application | Ford 2011–2023 |
| Camera inputs | Up to four total, including the factory camera; supports up to three additional cameras |
| Automatic triggers | Reverse and turn signal, generated through CAN bus communication |
| Switched output | Programmable 12-volt, 5-amp output; configured via the Axxess Updater program |
| Camera control wires | Four programmable wires; configured via the Axxess Updater program |
| Vehicle Speed Sense | Input and output |
| Update connection | Micro “B” USB |
| Warranty | 1-year limited warranty |

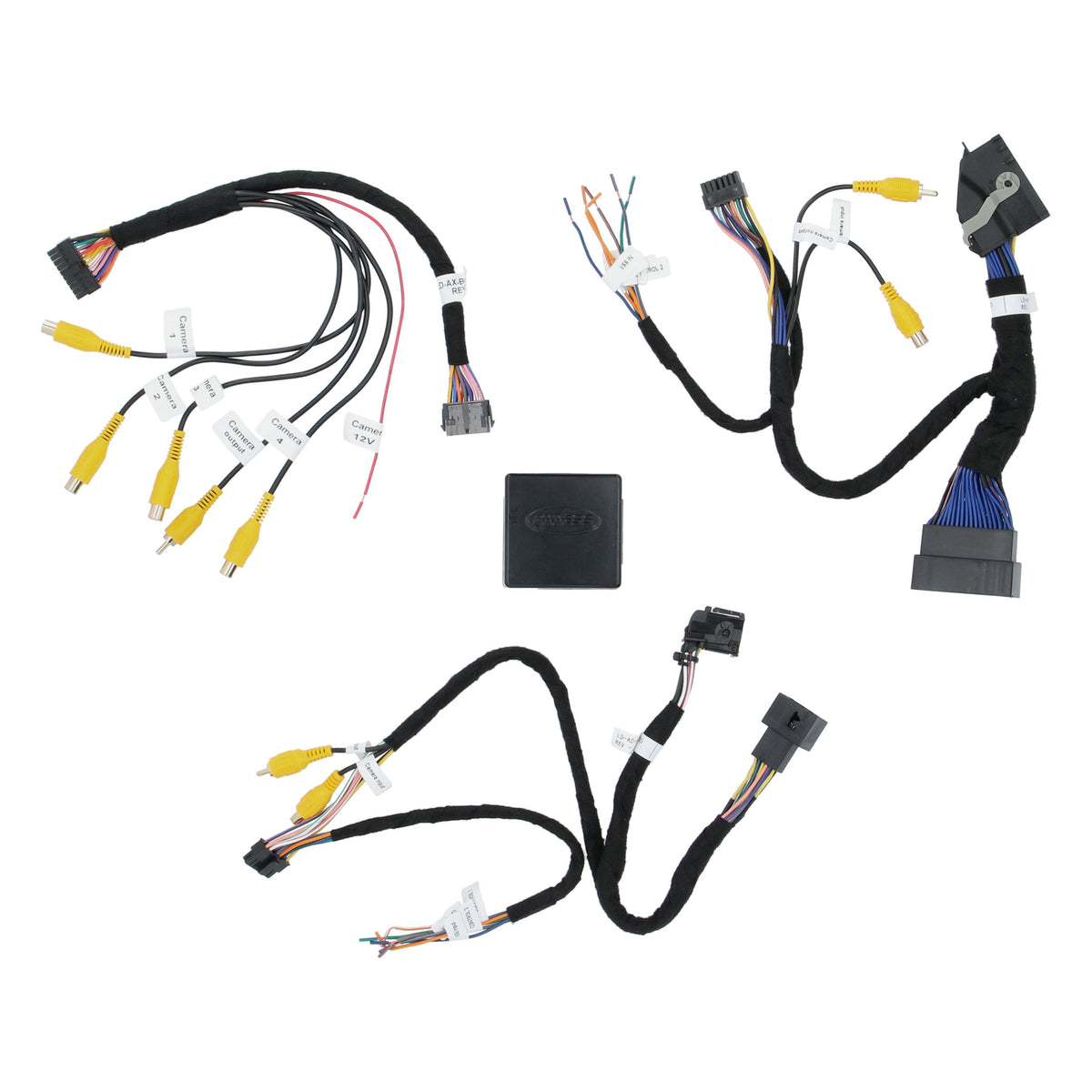

| Included items | Interface, interface harness, and (2) vehicle harness |
Why Choose This Product?
The AXAC-FD1 brings additional camera views into a factory radio system while retaining the factory backup camera. Automatic reverse and turn-signal triggers let the interface respond to vehicle functions, while programmable controls and manual operation provide additional ways to manage camera views.
Installation & Compatibility Notes
This interface is listed for Ford vehicles from 2011–2023 and includes an interface harness and two vehicle harnesses. Confirm that the AXAC-FD1 matches your specific vehicle and factory radio before installation. The switched output and camera control wires are configured using the Axxess Updater program.
Frequently Asked Questions
How many cameras can the AXAC-FD1 support?
It supports up to four camera inputs total, including the factory backup camera. That allows for up to three additional cameras.
Does it retain the factory backup camera?
Yes. The interface is designed to retain the factory backup camera while allowing additional cameras to be added.
How does automatic camera switching work?
CAN bus communication generates reverse and turn-signal triggers for switching camera views.
Can I control the cameras manually?
Yes. The interface can also be controlled manually and used with an aftermarket radio.
What comes with the interface?
The package includes the interface, an interface harness, and two vehicle harnesses.
Does the Ford year range confirm fitment for every vehicle?
The listed application is Ford 2011–2023. Confirm compatibility with your specific vehicle and factory radio before installation.
