Data Interface - Jeep | RAM 2014-2023 — AXDI-6524
Key features
- For select Jeep / RAM 2014-2023
- Designed for non-amplified systems
- Pre-wired SWC harness (Axxess SWC sold separately)
- Note: If your vehicle is equipped with steering wheel controls and you wish to retain them, the required steering wheel control interface must be purchased separately
- Retains R.A.P. (Retained Accessory Power); Retains the factory backup camera, if equipped (not retained in Wrangler or Gladiator); Retains factory 3.5mm AUX-IN + balance & fade
- Provides accessory power (12-volt 10-amp)
Data Interface - Jeep | RAM 2014-2023 — AXDI-6524 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

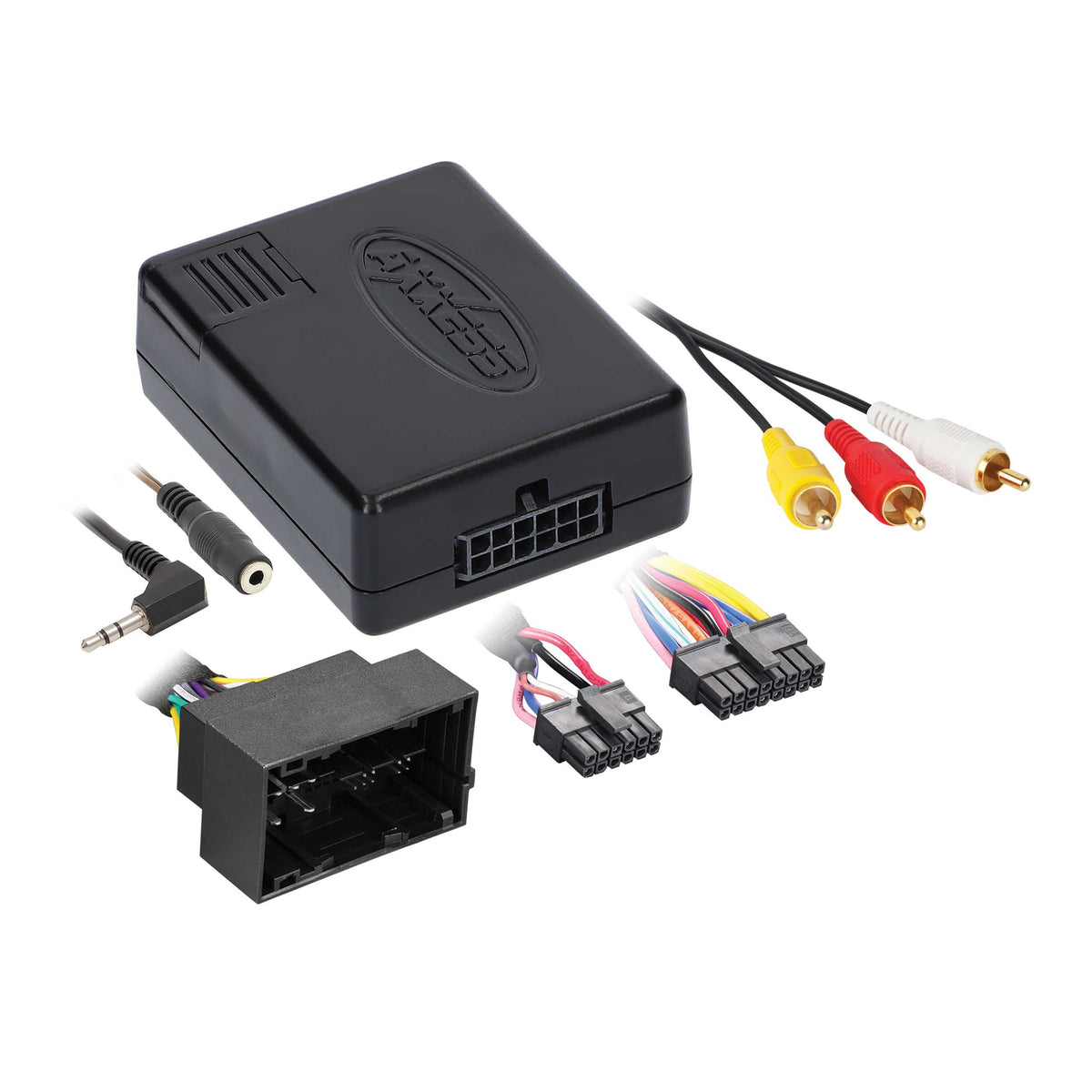

The AXDI-6524 data interface lets you install an aftermarket radio in supported Jeep and RAM vehicles from 2014–2023 while retaining select factory features. Designed for non-amplified systems, it provides accessory power and navigation outputs, with additional retained features depending on the vehicle.
Key Features & Benefits
- Retained accessory power: Keeps R.A.P. and 12-volt, 10-amp accessory power available through the interface.
- Navigation outputs: Supplies parking brake, reverse, and speed-sense outputs for compatible radio connections.
- Factory feature retention: Can retain factory chimes and blind spot detection in supported vehicles.
- Backup camera support: Retains the factory backup camera if equipped, except in Wrangler and Gladiator.
- Factory audio connections: Retains the 3.5mm AUX-IN, balance, and fade.
- Update and customization options: Offers Micro “B” USB updates and customization settings through the AX-CUSTOM-BT app for smartphones and tablets.
Technical Specifications
| Model | AXDI-6524 |
|---|---|
| Vehicle range in product title | Jeep | RAM 2014–2023 |
| System type | Designed for non-amplified systems |
| Accessory power | 12-volt, 10-amp |
| Retained power | Retained Accessory Power (R.A.P.) |
| NAV outputs | Parking brake, reverse, speed sense |

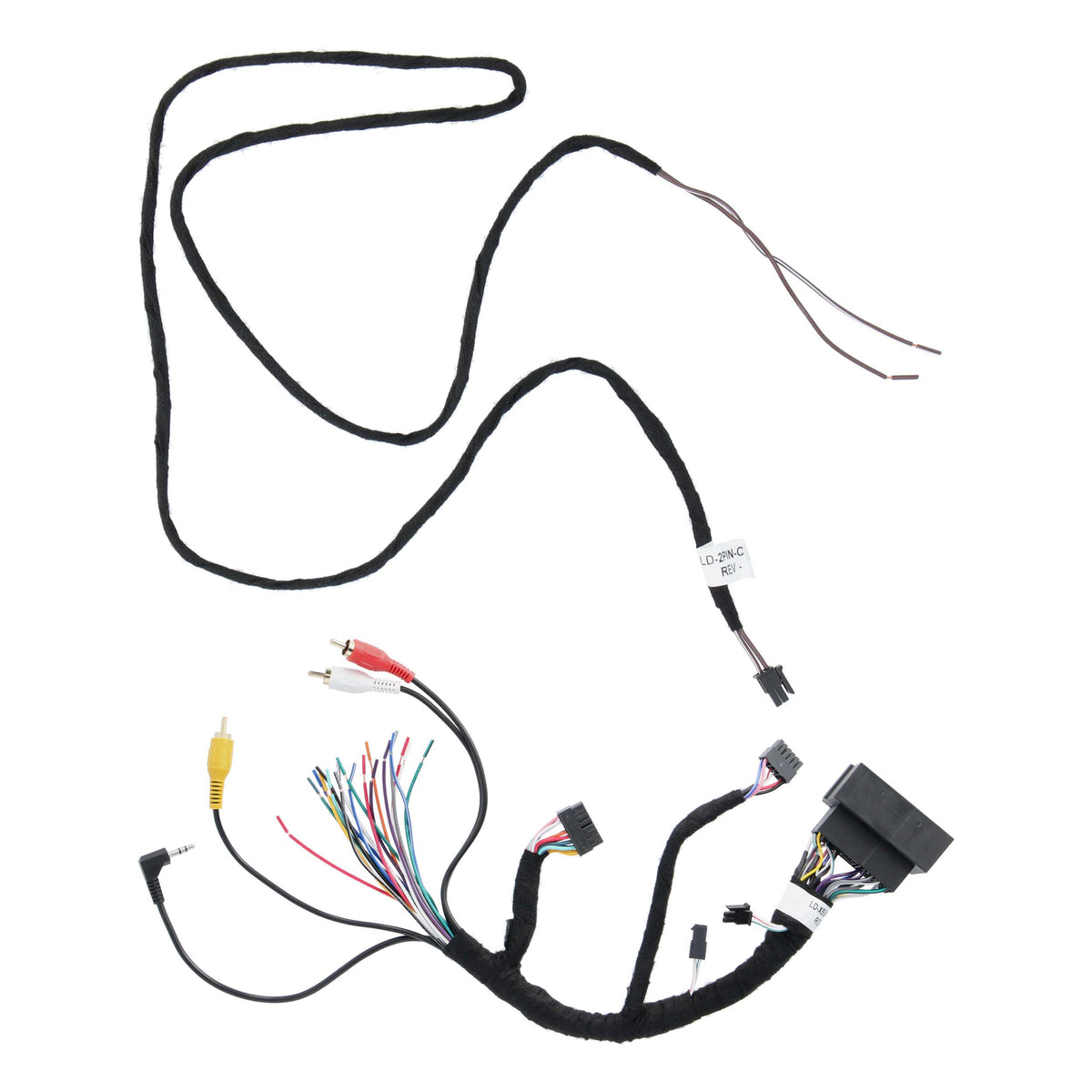

| Steering wheel control connection | Pre-wired for an Axxess steering wheel control (SWC) interface; sold separately |
| Backup camera | Retains the factory backup camera if equipped; not retained in Wrangler or Gladiator |
| Other retained features | Factory 3.5mm AUX-IN, balance, and fade; factory chimes and blind spot detection in supported vehicles |
| Customization | Settings can be adjusted through the AX-CUSTOM-BT app for smartphones and tablets |
| Update connection | Micro “B” USB port |
| Warranty | 1-year limited warranty |
Why Choose This Product?
Replacing a factory radio can affect vehicle features you use beyond audio. The AXDI-6524 combines radio-installation connections with select retained features, while its plug-n-play connectivity helps simplify the interface connection.
Its pre-wired SWC harness is ready for a separately purchased Axxess steering wheel control interface. This gives you the option to retain steering wheel controls when your vehicle has them.
Installation & Compatibility Notes
This interface is designed for non-amplified systems. Check your vehicle’s year, model, and audio-system configuration against the interface’s supported applications before purchase.
If you want to retain steering wheel controls, purchase the required steering wheel control interface separately. The factory backup camera is not retained in Wrangler or Gladiator.
Frequently Asked Questions
Does the AXDI-6524 retain steering wheel controls?
It has a pre-wired SWC harness. The required Axxess steering wheel control interface is sold separately.
Will it retain my factory backup camera?
It retains the factory backup camera if equipped, except in Wrangler and Gladiator.
What factory features can it retain?
Depending on the supported vehicle, features include factory chimes and blind spot detection. It also retains factory 3.5mm AUX-IN, balance, and fade.
Does the interface provide navigation-related outputs?
Yes. It provides parking brake, reverse, and speed-sense outputs.
Can I update or customize the interface?
Updates use the Micro “B” USB port. Customization settings can be adjusted through the AX-CUSTOM-BT app for smartphones and tablets.
