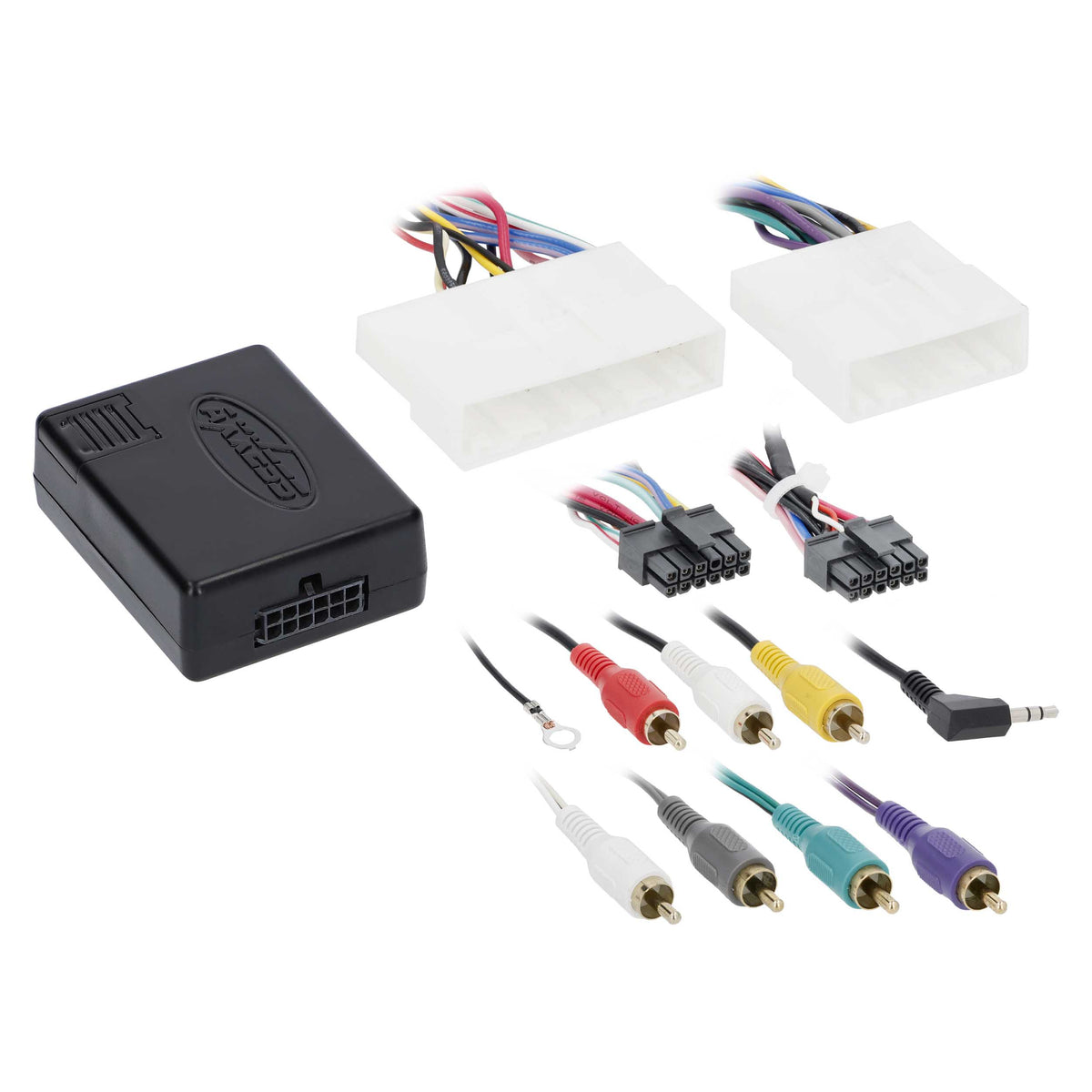

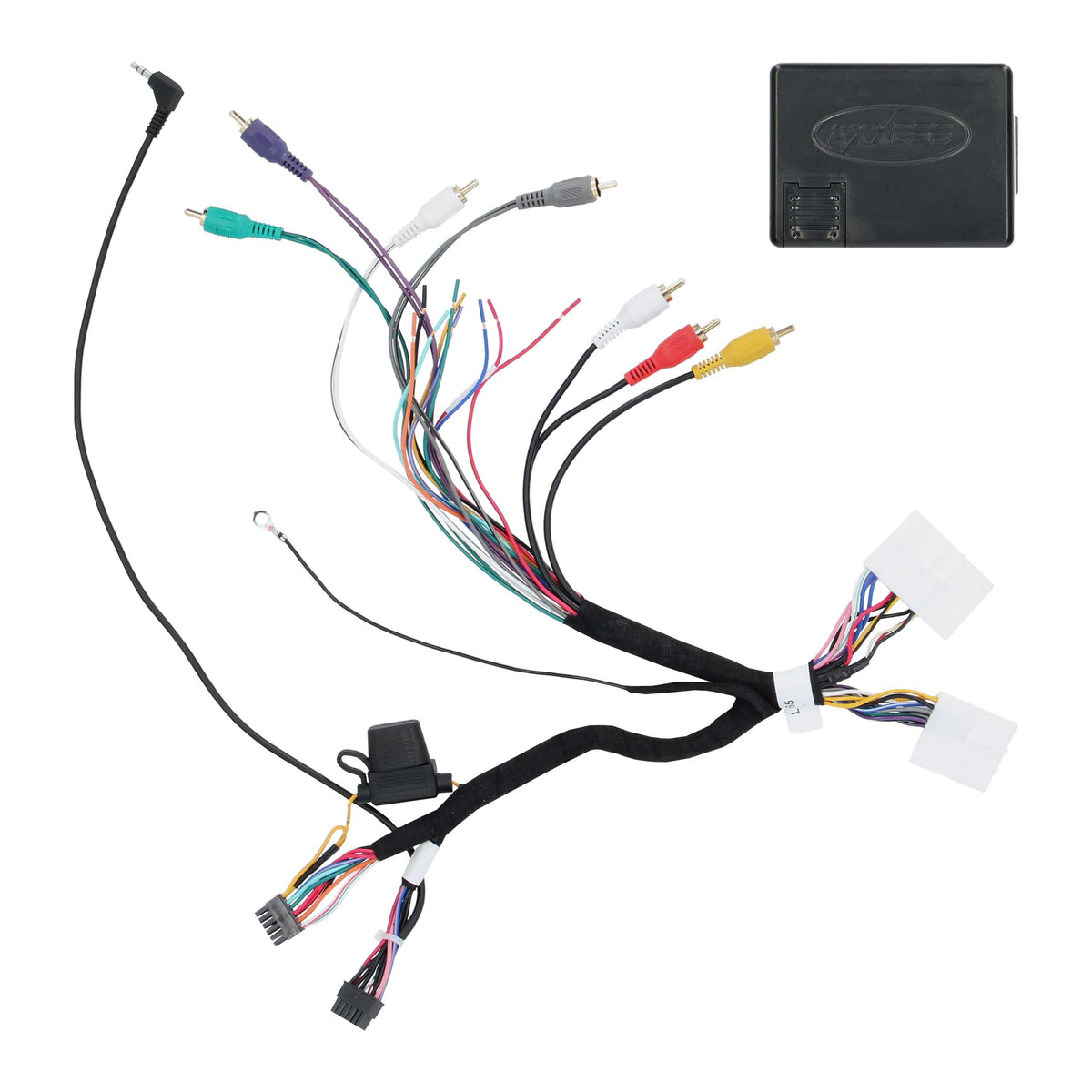

Data Interface - Nissan Sentra | Rogue 2020-Up — AXDI-NIS2

Product Overview

Keep select factory features when installing an aftermarket radio in a supported 2020-up Nissan Sentra or Rogue with the AXDI-NIS2 data interface. It provides retained accessory power, accessory power, and navigation outputs, with additional factory feature retention available in supported vehicles.

Key Features & Benefits

• Retained accessory power: Keeps R.A.P. available after the radio installation.
• Accessory power: Supplies 12-volt, 10-amp accessory power.
• Navigation outputs: Provides parking brake, reverse, and speed-sense outputs.
• Factory feature retention: Can retain factory chimes and blind spot detection in supported vehicles.

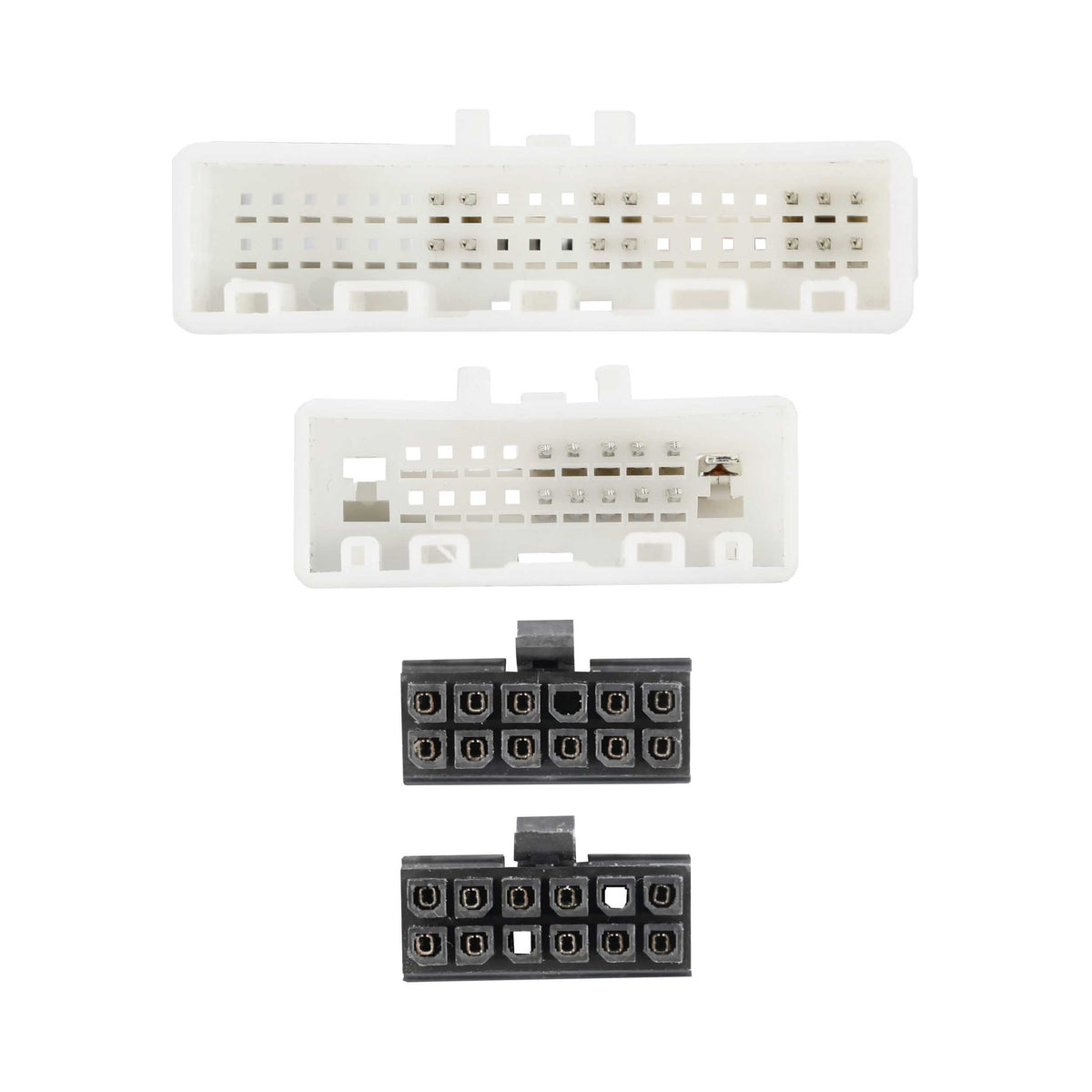

• Plug-and-play connectivity: Helps connect the interface during an aftermarket radio installation.
• Updateable design: The Micro “B” USB port supports updates to the latest vehicle applications.

Technical Specifications

• Model: AXDI-NIS2
• Vehicle application: Nissan Sentra and Rogue, 2020-up
• Model support: Designed for amplified and non-amplified models
• Accessory power: 12-volt, 10-amp
• Outputs: Parking brake, reverse, and speed sense
• Speaker input: High-level
• Backup camera retention: Requires AXCSD-6V, sold separately
• Steering wheel control connection: Pre-wired for an Axxess SWC interface, sold separately
• USB port: Micro “B”
• Warranty: 1-year limited warranty

Why Choose This Product?

The AXDI-NIS2 combines aftermarket radio installation support with connections for several factory functions. Its outputs cover key navigation signals, while high-level speaker input supports installation in amplified and non-amplified models.

For vehicles with supported factory features, the interface can also retain functions such as chimes and blind spot detection. Its USB port allows updates to vehicle applications.

Installation & Compatibility Notes

Confirm your vehicle and audio system configuration before installation. The interface is designed for Nissan Sentra and Rogue models from 2020-up, including amplified and non-amplified models.

If you want to retain steering wheel controls, purchase the required Axxess steering wheel control interface separately. Factory backup camera retention requires the AXCSD-6V, also sold separately.

Frequently Asked Questions

Does the AXDI-NIS2 provide accessory power?

Yes. It provides 12-volt, 10-amp accessory power and retained accessory power.

Which navigation outputs does this interface provide?

It provides parking brake, reverse, and speed-sense outputs.

Can I retain my factory backup camera?

Backup camera retention requires the AXCSD-6V, which is sold separately.

Is a steering wheel control interface included?

No. The AXDI-NIS2 is pre-wired for an Axxess SWC interface, but that interface must be purchased separately to retain steering wheel controls.

Can the interface retain factory chimes and blind spot detection?

It can retain these features in supported vehicles.
