Add-A-Sub 2-Channel Line Output Converter - Chrysler 2013-Up — AXLOC-CH5
Key features
- For select Chrysler 2013-Up
- Designed for non-amplified vehicles
- Allows for the installation of an amplifier for speakers or subwoofers
- Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers
- Designed to provide (2) channels of low-level audio output from the factory system
- 12v-500mA remote wire activated with signal sense
Add-A-Sub 2-Channel Line Output Converter - Chrysler 2013-Up — AXLOC-CH5 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add the AXLOC-CH5 Add-A-Sub 2-Channel Line Output Converter to a compatible factory audio system when you want to connect an amplifier for subwoofers or speakers. Its T-harness is designed for Chrysler vehicles from 2013 onward with a non-amplified factory system.
Key Features & Benefits
- T-harness connection: Helps installers connect the converter to the factory system.
- Gain Controller: Lets you adjust the overall output.
- Signal-sense activation: Provides a 12V-500mA remote wire activated with signal sense.
- Two-channel output: Supplies low-level audio from the factory system for an amplifier.
Technical Specifications
| Model | AXLOC-CH5 |
|---|---|
| Product type | 2-channel line output converter |
| Vehicle application | Chrysler 2013-Up; designed for non-amplified vehicles |
| Low-level audio output | 2 channels |
| Power per channel | 55 watts |
| Remote wire | 12v-500mA, activated with signal sense |

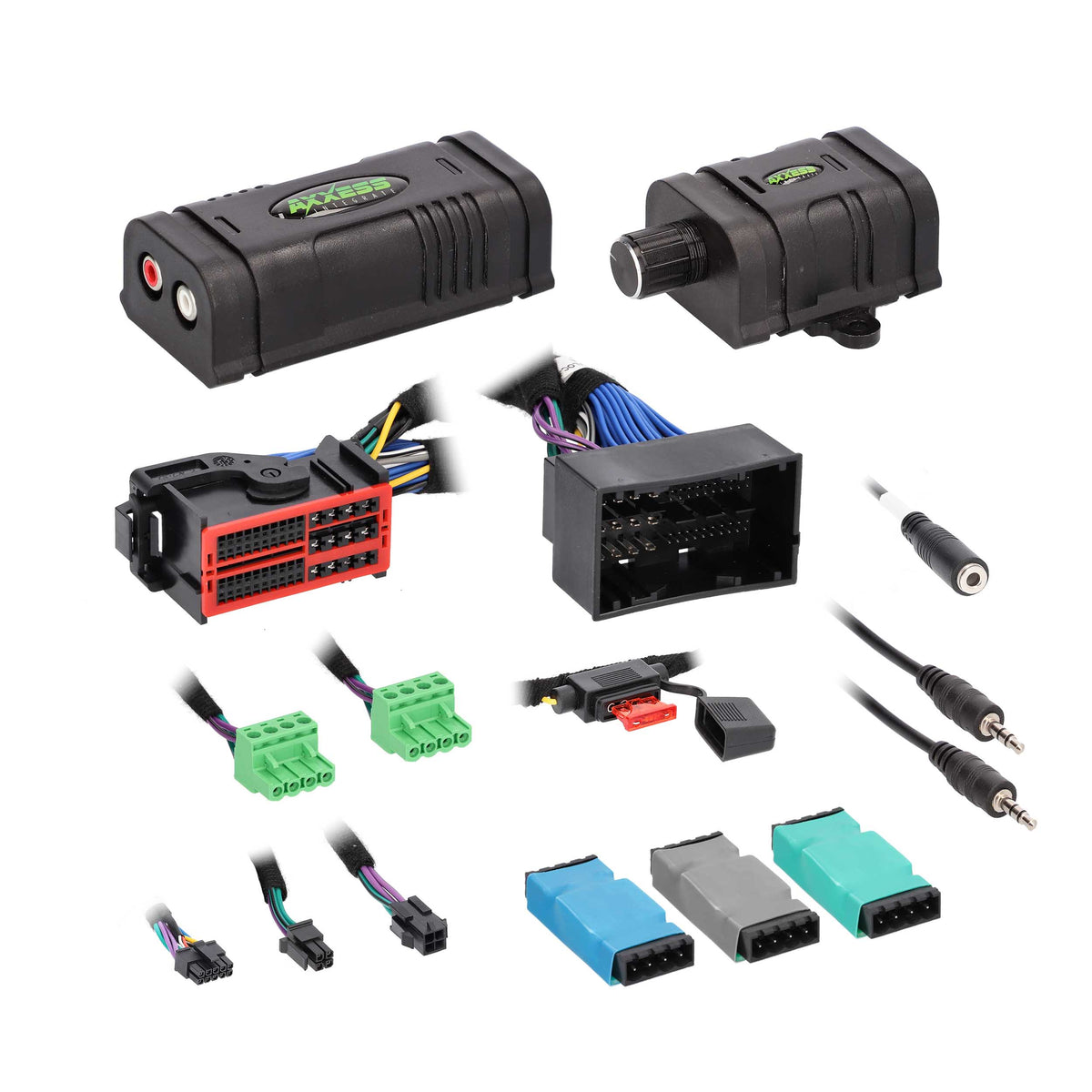

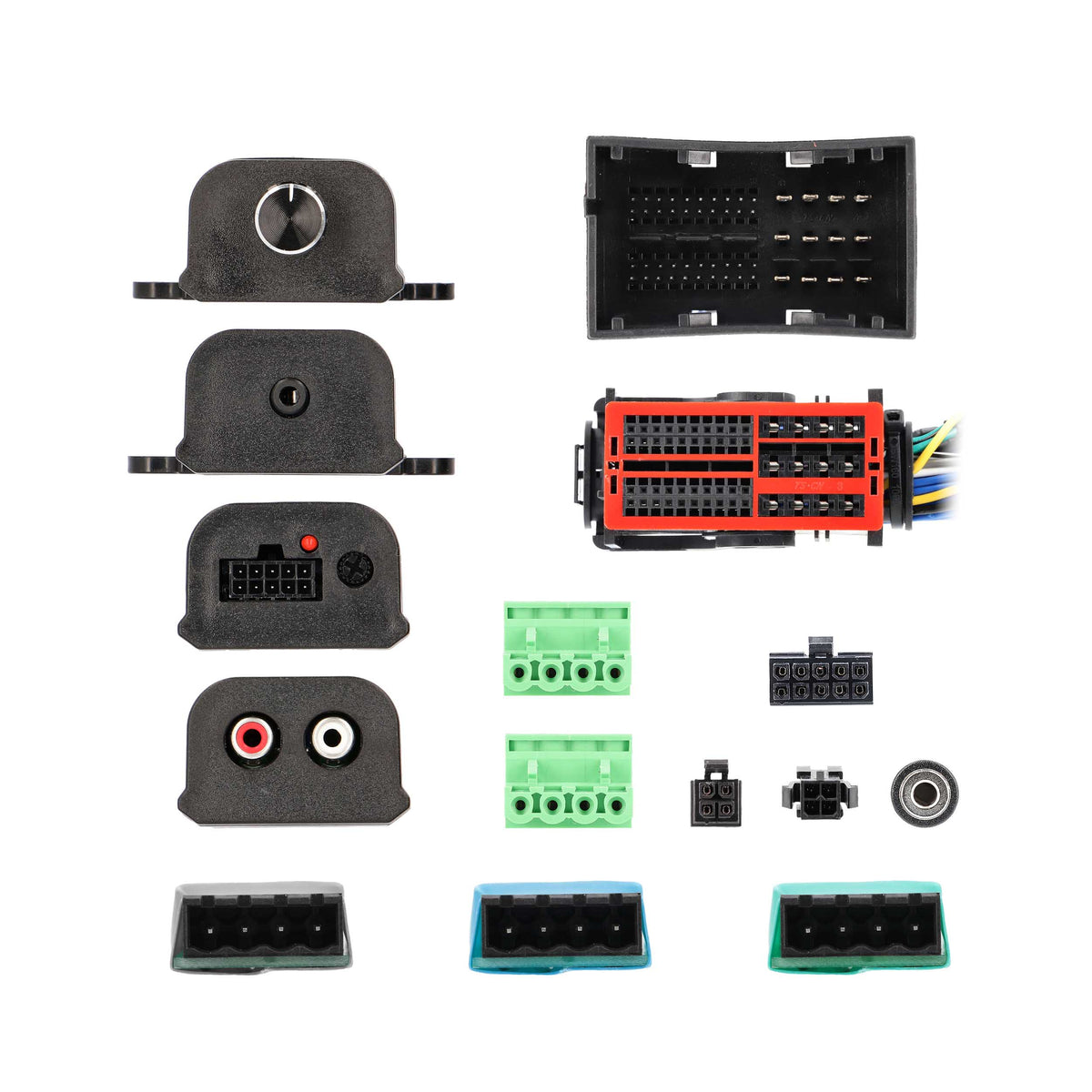

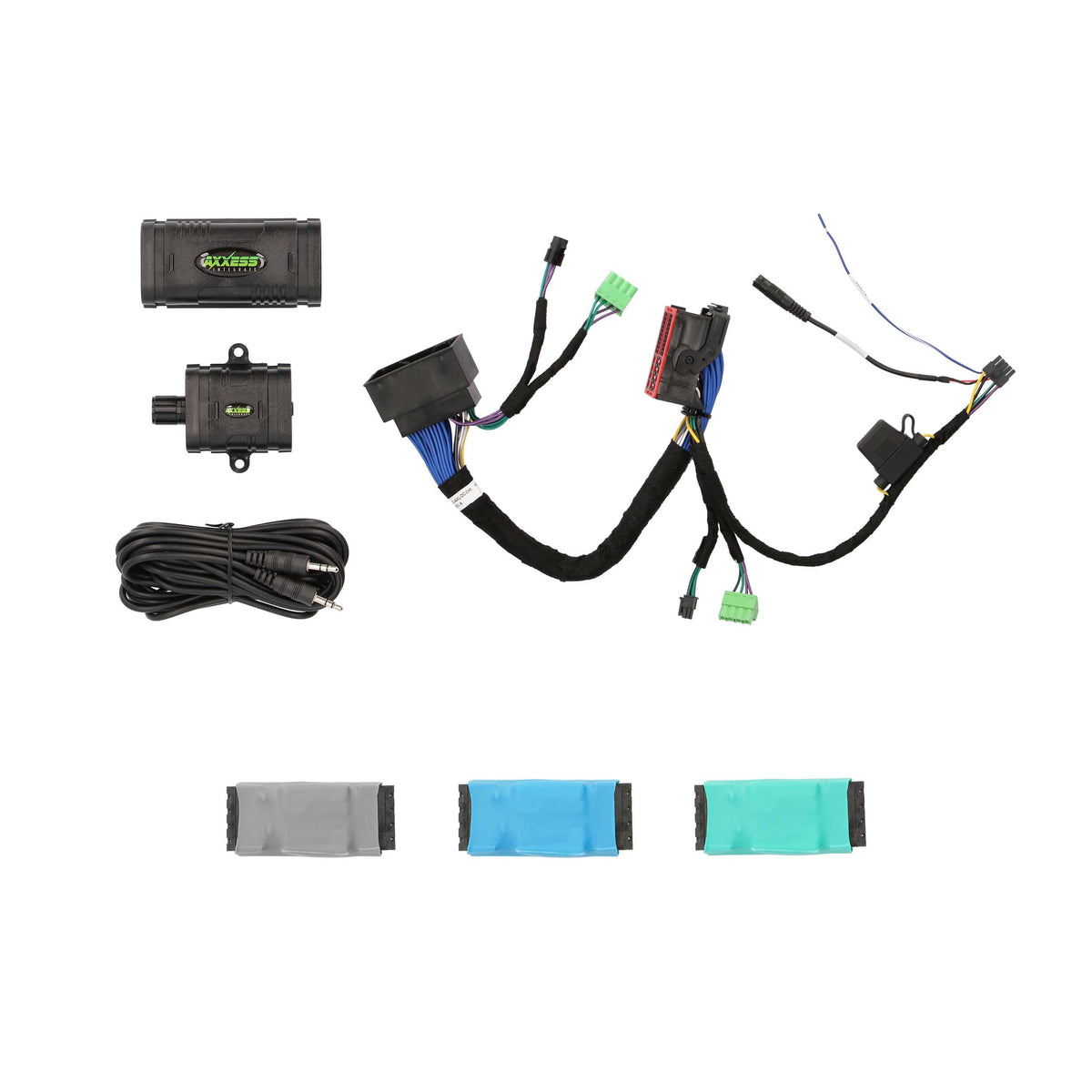

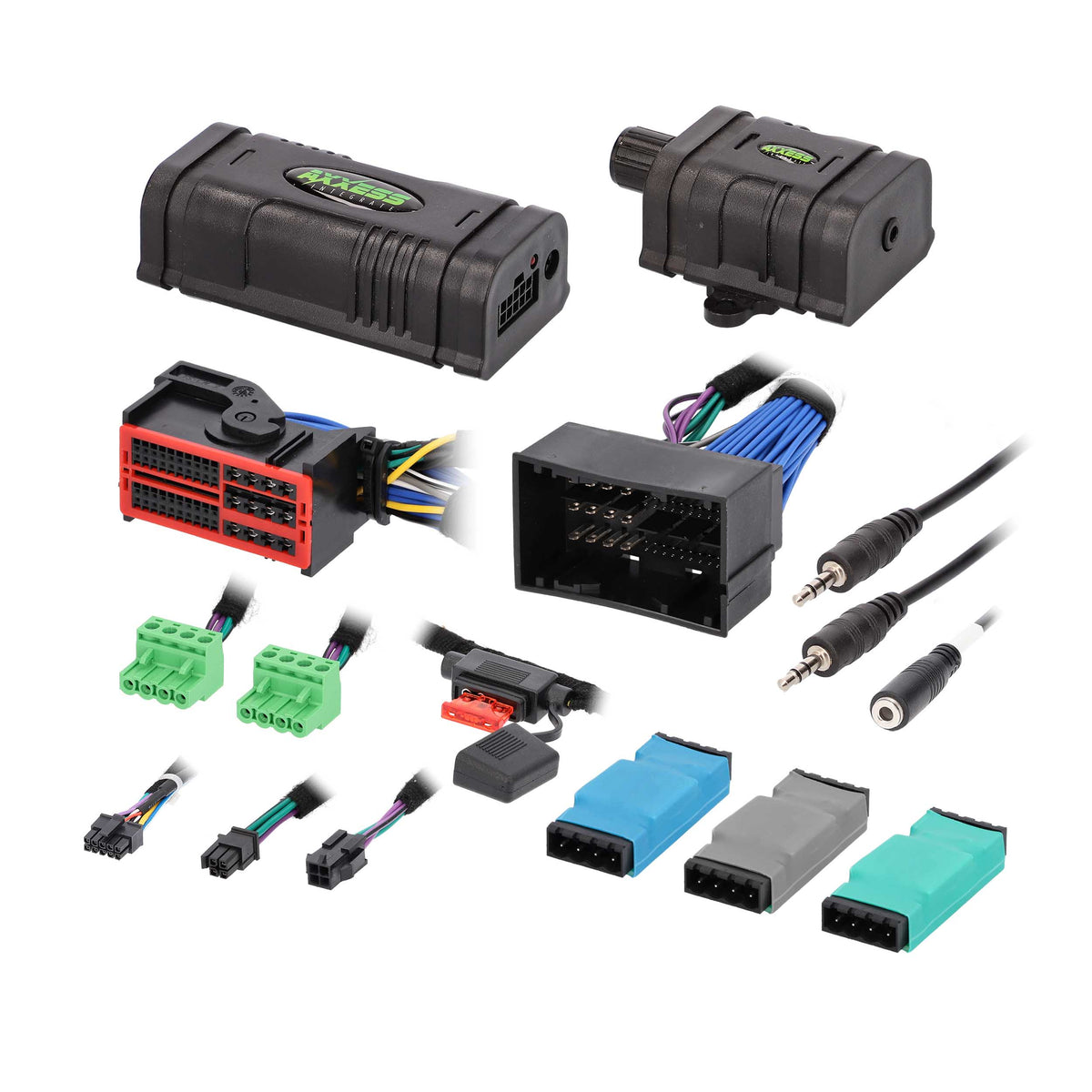

| Included components | AXLOC-CH5 Wiring Harness, Gain Controller, 12v-500mA Remote Wire, Auxiliary Cable |
| Installation note | A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers. |
Why Choose This Product?
The AXLOC-CH5 provides a two-channel low-level audio connection for adding an amplifier to a compatible factory system. The included Gain Controller gives you a way to adjust overall output, while signal-sense activation supports remote-wire operation.
Installation & Compatibility Notes
This converter is designed for non-amplified Chrysler vehicles from 2013 onward. Check your vehicle’s factory audio configuration before installation. When installing multiple amplifiers, a single pole double throw (SPDT) relay is recommended.
Frequently Asked Questions
What does the AXLOC-CH5 do?
It provides two channels of low-level audio output from a factory system for connecting an amplifier for speakers or subwoofers.
Is this converter intended for factory-amplified vehicles?
No. It is designed for non-amplified vehicles.
What is included with the converter?
The package includes the AXLOC-CH5 Wiring Harness, Gain Controller, 12v-500mA Remote Wire, and Auxiliary Cable.
Do I need a relay for installation?
A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.
