Data Interface with SWC - Chrysler 2013-2023 — AXTC-CH5
Key features
- For select Chrysler 2013-2023
- Designed for amplified and non-amplified systems
- Retains R.A.P. (Retained Accessory Power); Retains backup sensor chimes through onboard speaker; Retains settings, even after battery disconnection
- Provides accessory power (12-volt 10-amp)
- Provides 12-volt illumination output

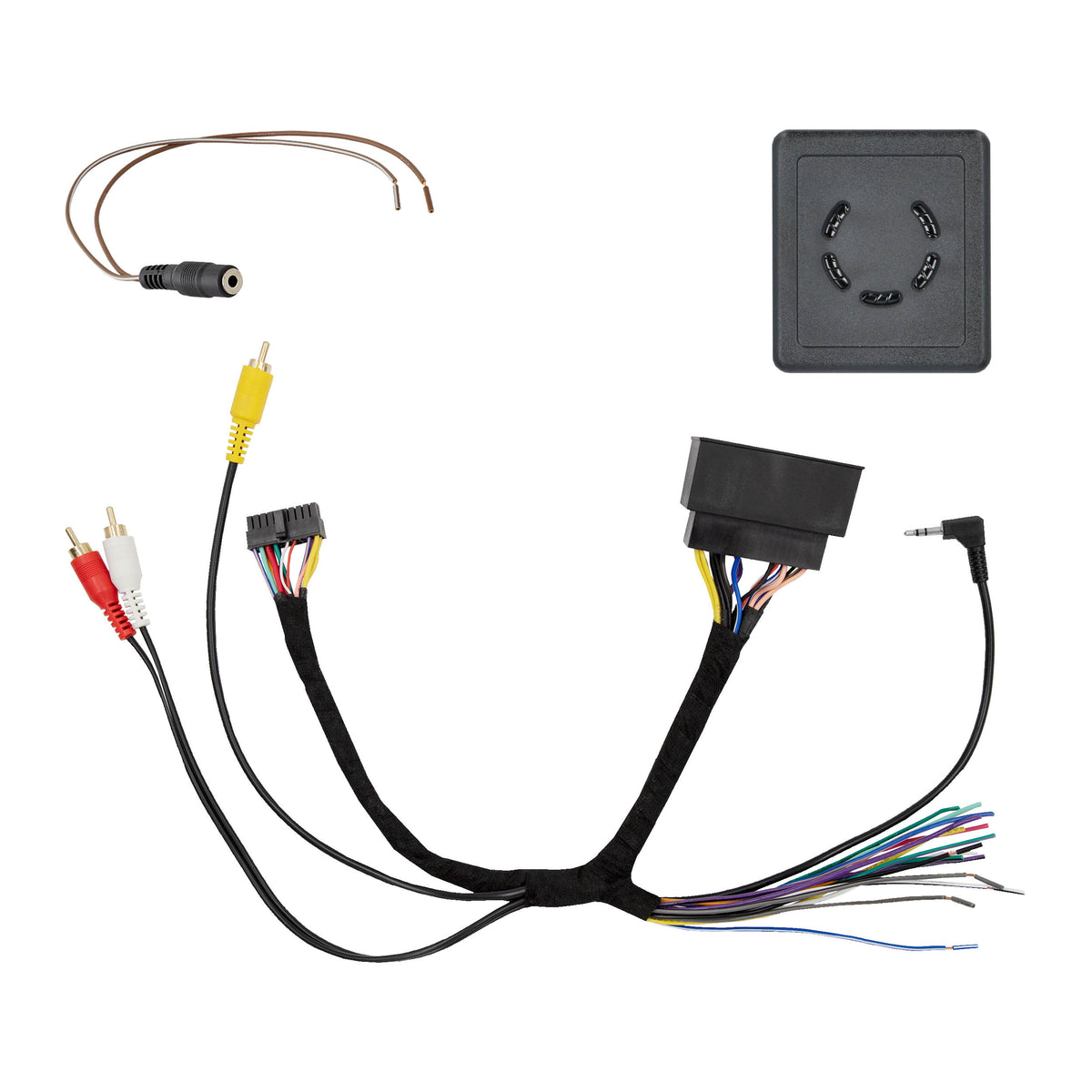

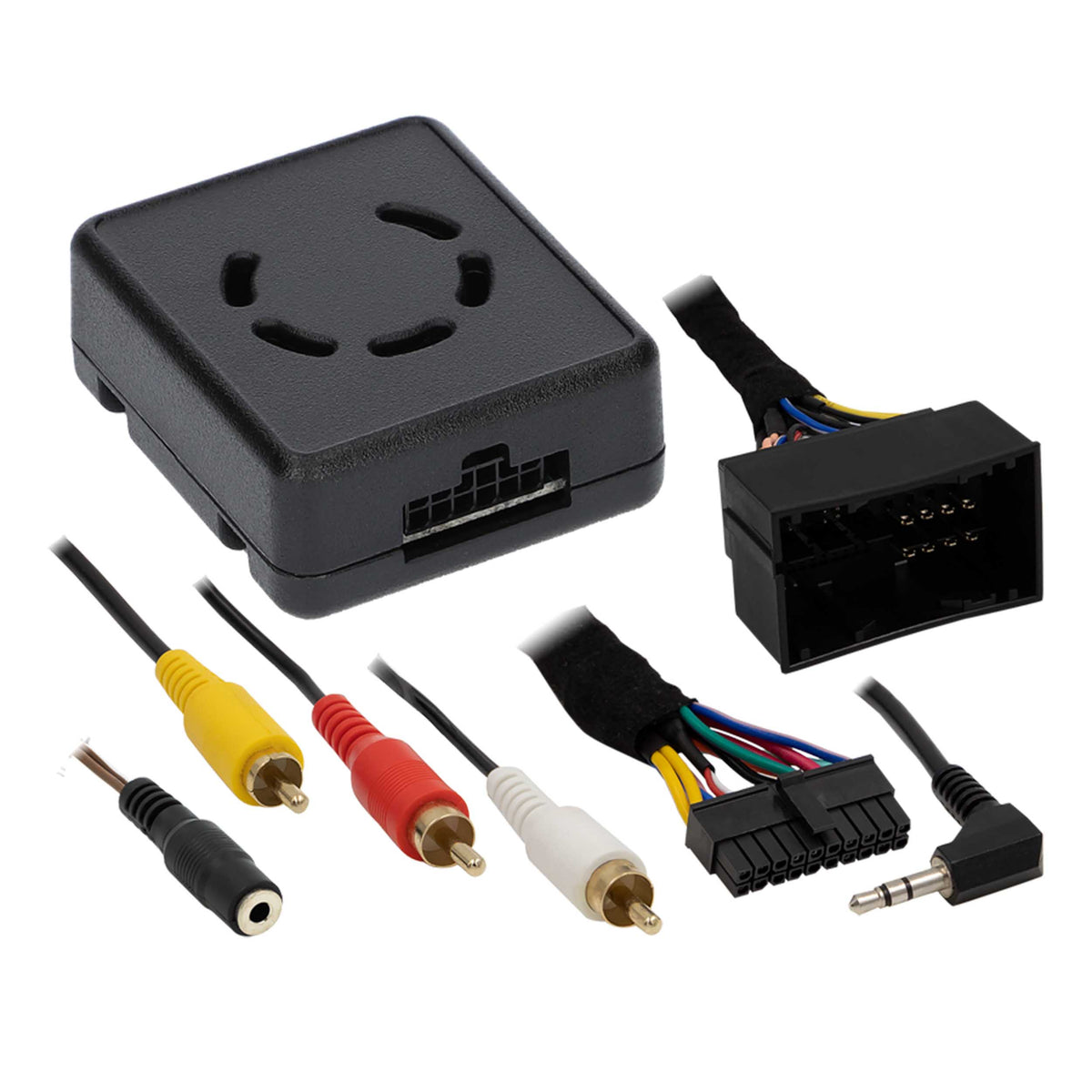

- Includes: Interface; Harness; 3.5mm adapter
Data Interface with SWC - Chrysler 2013-2023 — AXTC-CH5 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep key factory functions when replacing the radio in a supported Chrysler vehicle with the Axxess AXTC-CH5 data interface with steering wheel control retention. Its auto-detect feature identifies the vehicle type, radio connection, and preset controls, while supporting steering wheel control retention and dual assignment.
Key Features & Benefits
- Factory feature retention: Keeps R.A.P., balance, and fade during radio replacement.
- Steering wheel controls: Retains controls and allows buttons to be dual-assigned.
- Radio connections: Provides accessory power, a 12-volt illumination output, and NAV outputs.
- Backup sensor chimes: Retains chimes through the interface’s onboard speaker.
- Flexible setup: Works with amplified and non-amplified systems and can be manually programmed for most vehicles.
Technical Specifications
| Model | AXTC-CH5 |
|---|---|
| Vehicle application | Chrysler 2013-2023 |
| System compatibility | Amplified and non-amplified systems |
| Accessory power | 12-volt 10-amp |
| Retained functions | R.A.P. (Retained Accessory Power), balance, fade, steering wheel controls, and backup sensor chimes through onboard speaker |
| NAV outputs | Parking brake, reverse, and speed sense |
| Illumination output | 12-volt |
| Programming and updates | Auto-detect; manual programming for most vehicles; Micro “B” USB updatable |
| Settings retention | Retains settings after battery disconnection or interface removal |
| Included | Interface, harness, and 3.5mm adapter |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 8,527,147 |
Why Choose This Product?
The AXTC-CH5 brings several factory-radio replacement connections and retained functions into one interface. Auto-detection helps identify the vehicle and radio connection, while manual programming provides another setup option for most vehicles. Settings remain stored even if the vehicle battery is disconnected or the interface is removed.
Installation & Compatibility Notes
This interface is listed for Chrysler vehicles from 2013 through 2023. Confirm the specific vehicle, replacement radio, and system configuration before installation, especially if the vehicle has an amplified system. The package includes an interface, harness, and 3.5mm adapter.
Frequently Asked Questions
What does the AXTC-CH5 retain when replacing the factory radio?
It retains R.A.P., balance, fade, steering wheel controls, and backup sensor chimes through its onboard speaker.
Does it support amplified and non-amplified systems?
Yes. The interface is designed to work with both system types.
What NAV outputs does the interface provide?
It provides parking brake, reverse, and speed sense outputs.
What is included with the AXTC-CH5?
The package includes the interface, harness, and 3.5mm adapter.
