Data Interface with SWC - Ford 2011-2019 — AXTC-FOC

The Axxess AXTC-FOC radio replacement interface is listed for Data Interface with SWC - Ford 2011-2019 applications.

Compatibility and connections

• System requirement: non-amplified systems.
• Accessory-power output: 12 volts, 10 amps.
• Retained accessory power (RAP) support.
• Navigation trigger outputs (parking brake, reverse, and speed sense).
• Built-in features like SWC & Auto-Detect.
• Auto-detect feature - automatically detects the vehicle type, radio connection, and preset controls.
• Ability to dual-assign steering wheel control buttons.
• Designed to work with major radio brands.
• Can be manually programmed for most vehicles.
• Retains settings, even after battery disconnection.
• Retains factory backup camera if equipped.
• Provides 12-volt illumination output.
• Firmware updates through Micro-B USB.

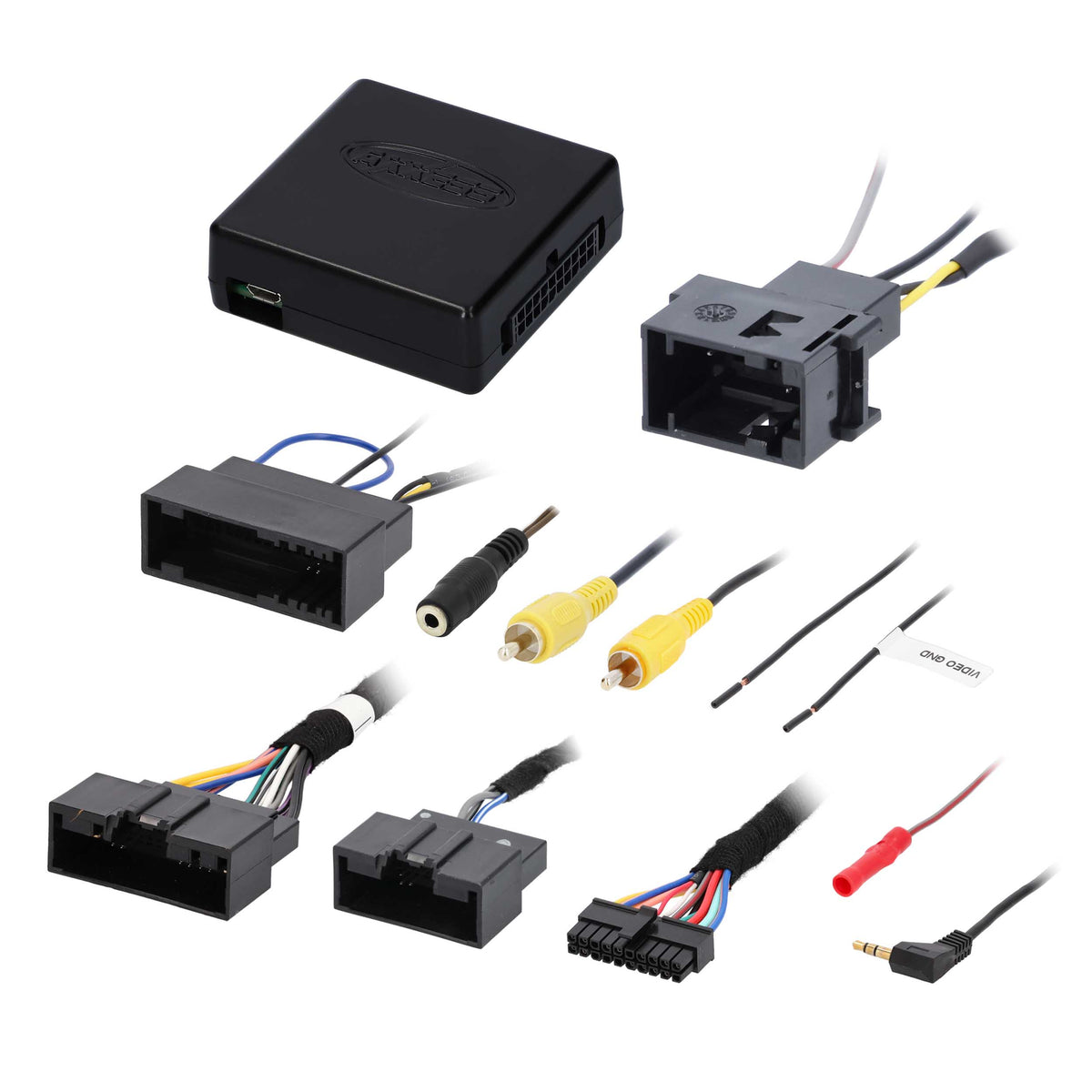

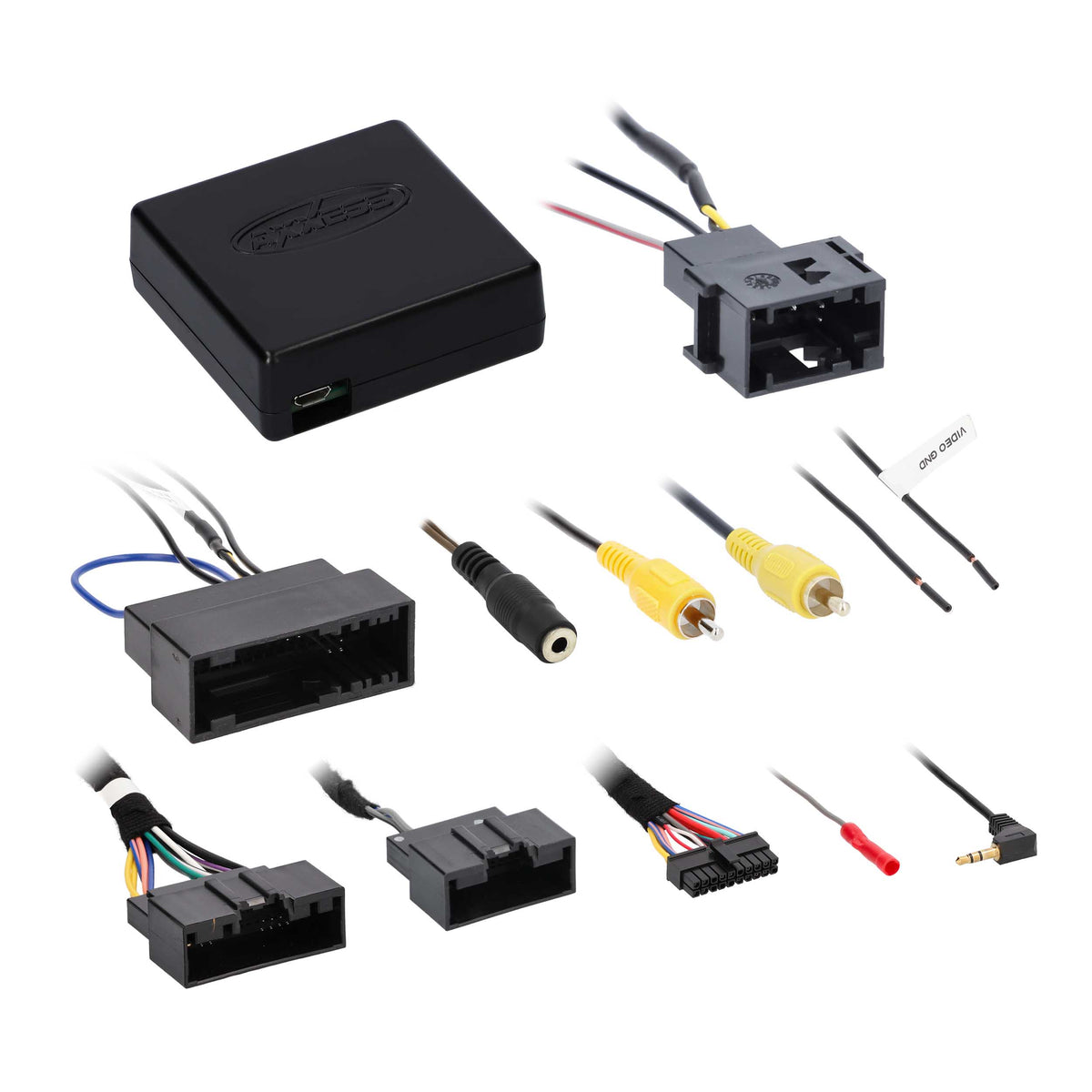

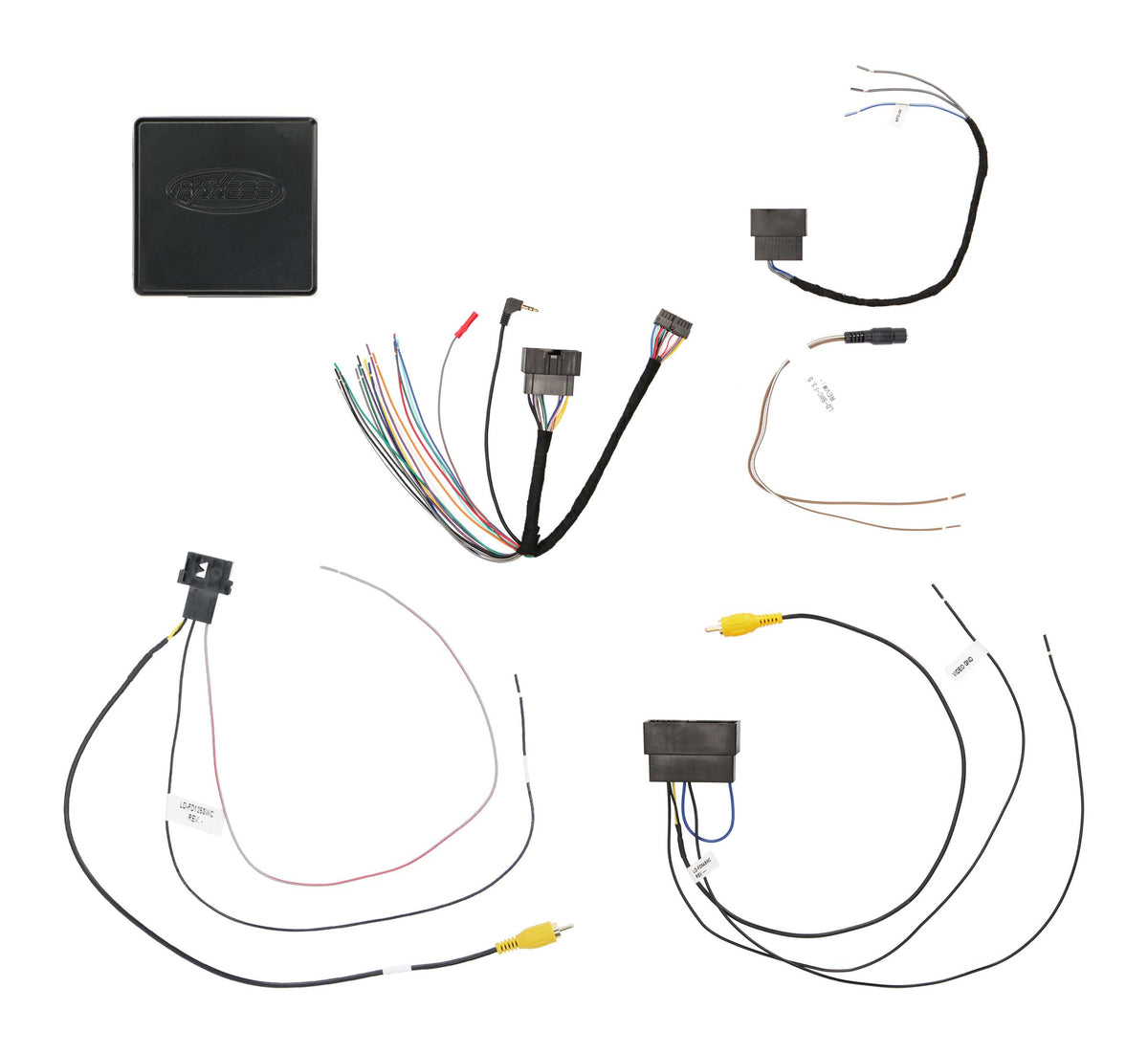

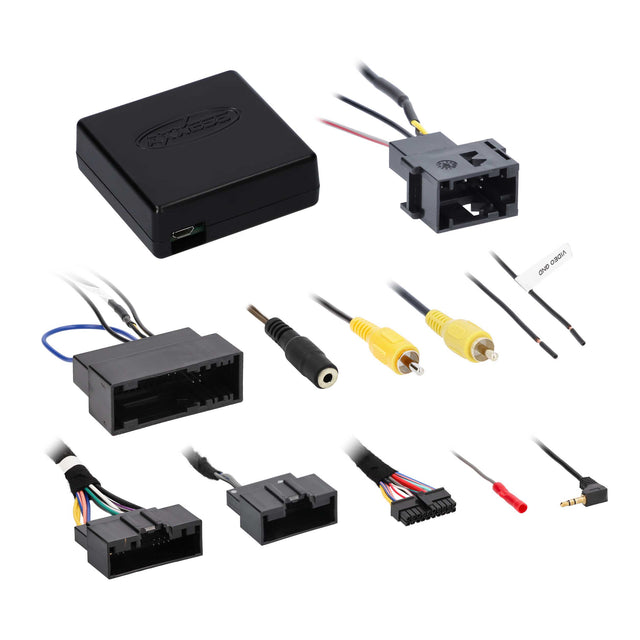

• Interface.

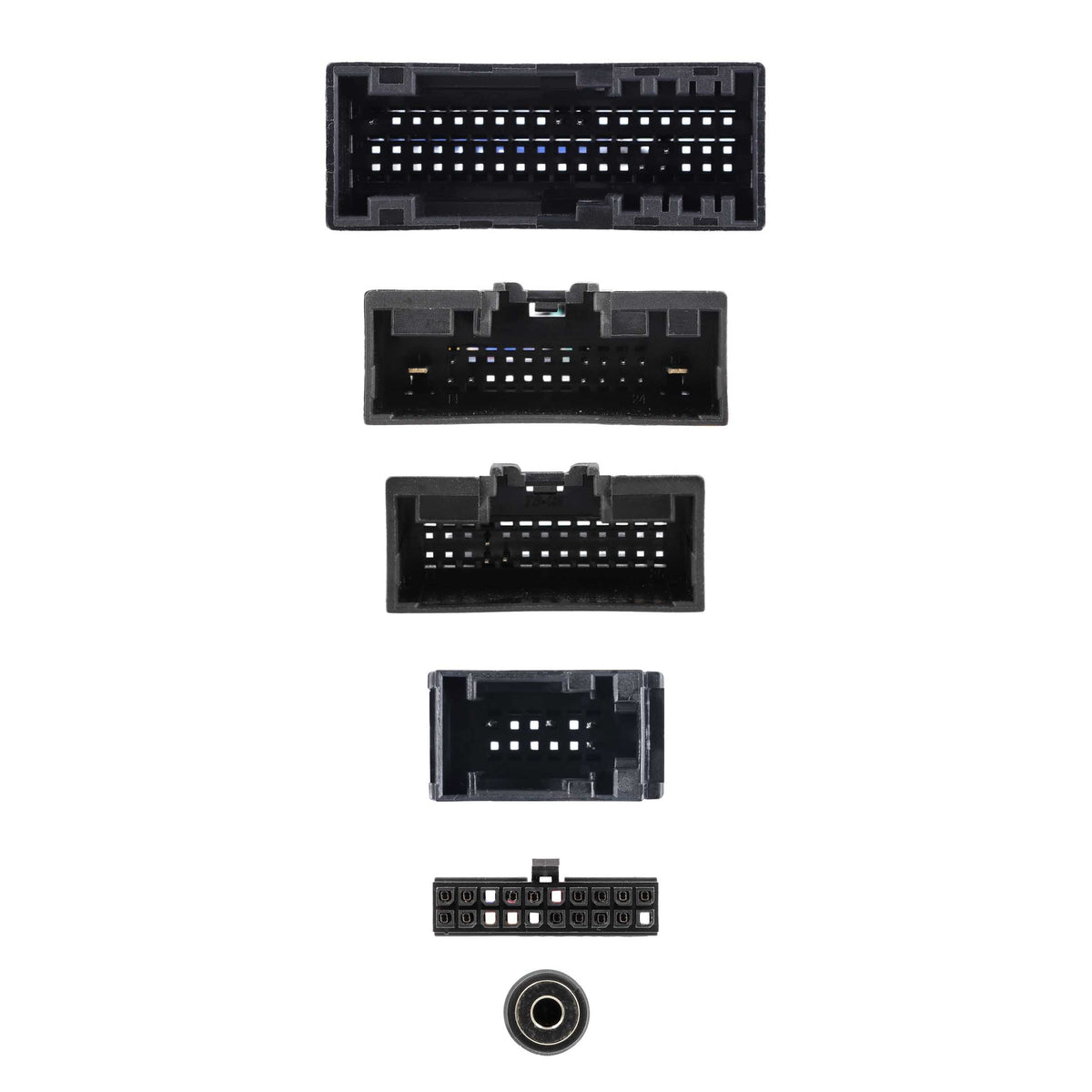

• Vehicle-specific harness.
• (2) SWC harnesses.
• 3.5mm adapter.
• Transit and Transit Connect applications with a 4.2-inch screen must also have a CD player.

Verify the vehicle, factory amplifier and replacement radio before ordering. Retained features and excluded functions depend on the listed configuration; do not assume every original vehicle function is retained.
