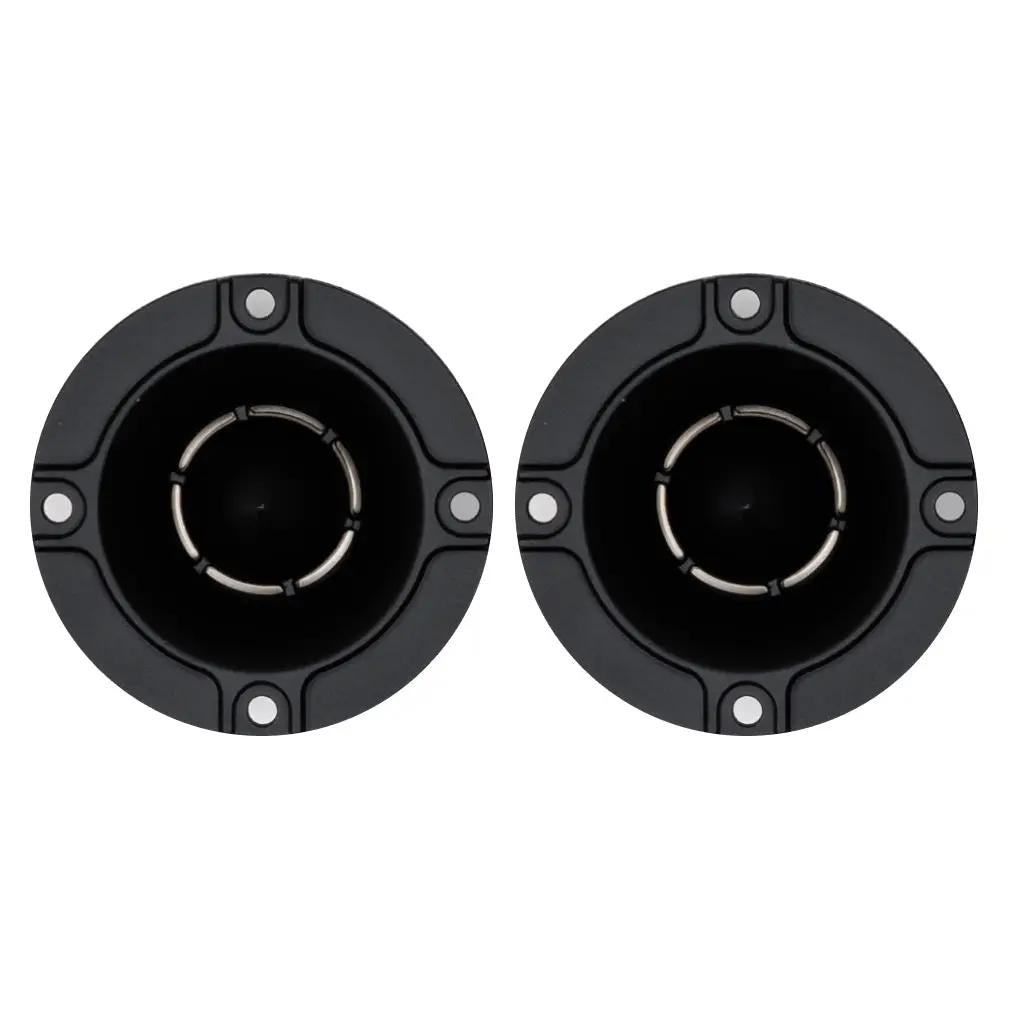

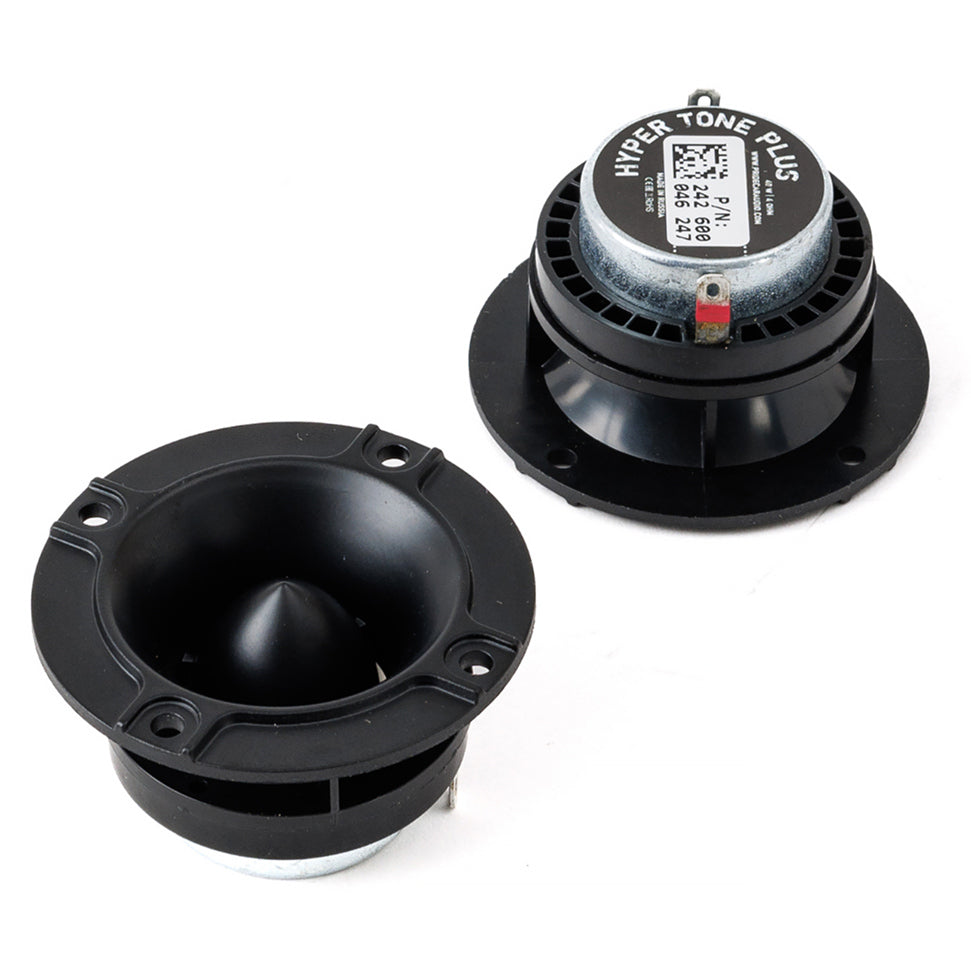

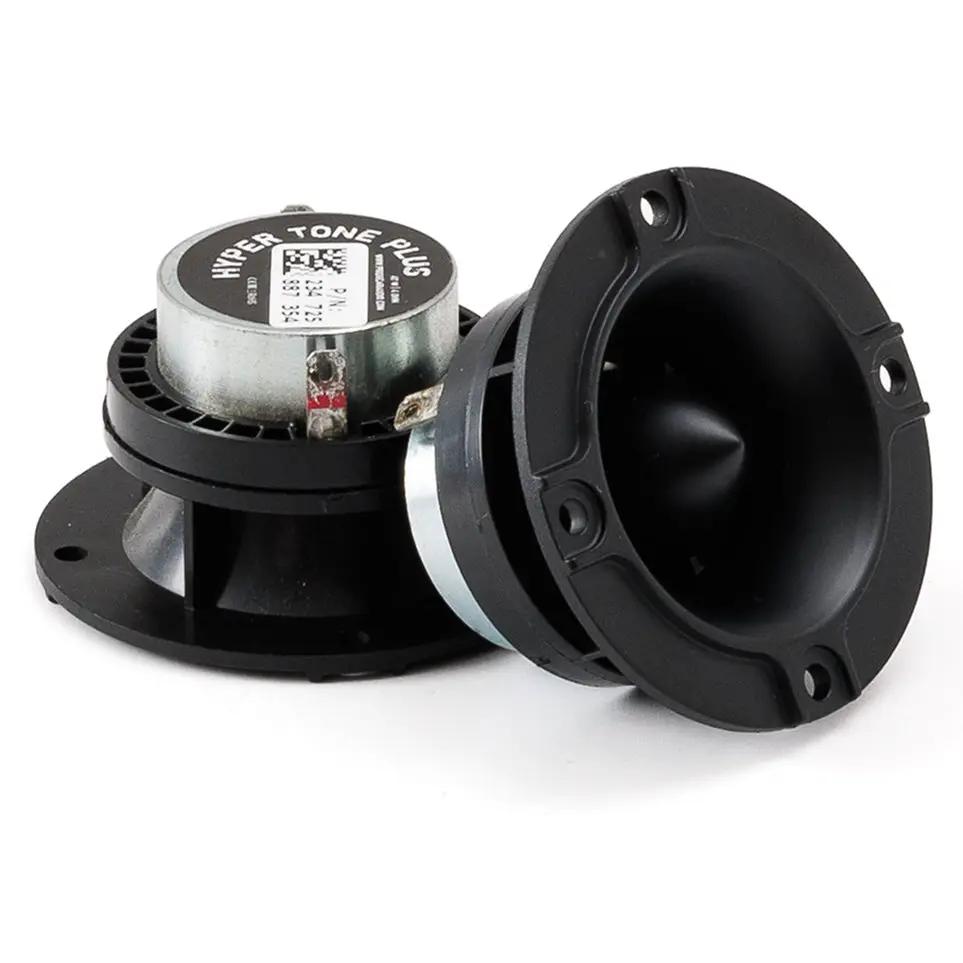

Pride Hyper Tone Plus 2.5" Horn Tweeters, 40W RMS (Pair)
Key features
- Speaker size: 2.5″
- Speaker impedance: 4.0 ohms
- Power handling: 40 W with a 6.3 kHz high-pass filter at 12 dB/octave
- Frequency response: 4.5–20 kHz (−3 dB)
- Magnet material: High-temperature neodymium
- Package quantity: One pair (2 tweeters)
Pride Hyper Tone Plus 2.5" Horn Tweeters, 40W RMS (Pair) is backordered and will ship as soon as it is back in stock.
Pride Hyper Tone Plus 2.5" Horn Tweeters, 40W RMS (Pair) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add high-frequency output to a custom car audio setup with the Pride Hyper Tone Plus 2.5-inch horn tweeters. This pair combines copper-wire voice coils, high-temperature neodymium magnets and a published 4.5–20 kHz frequency response.
Key Features & Benefits

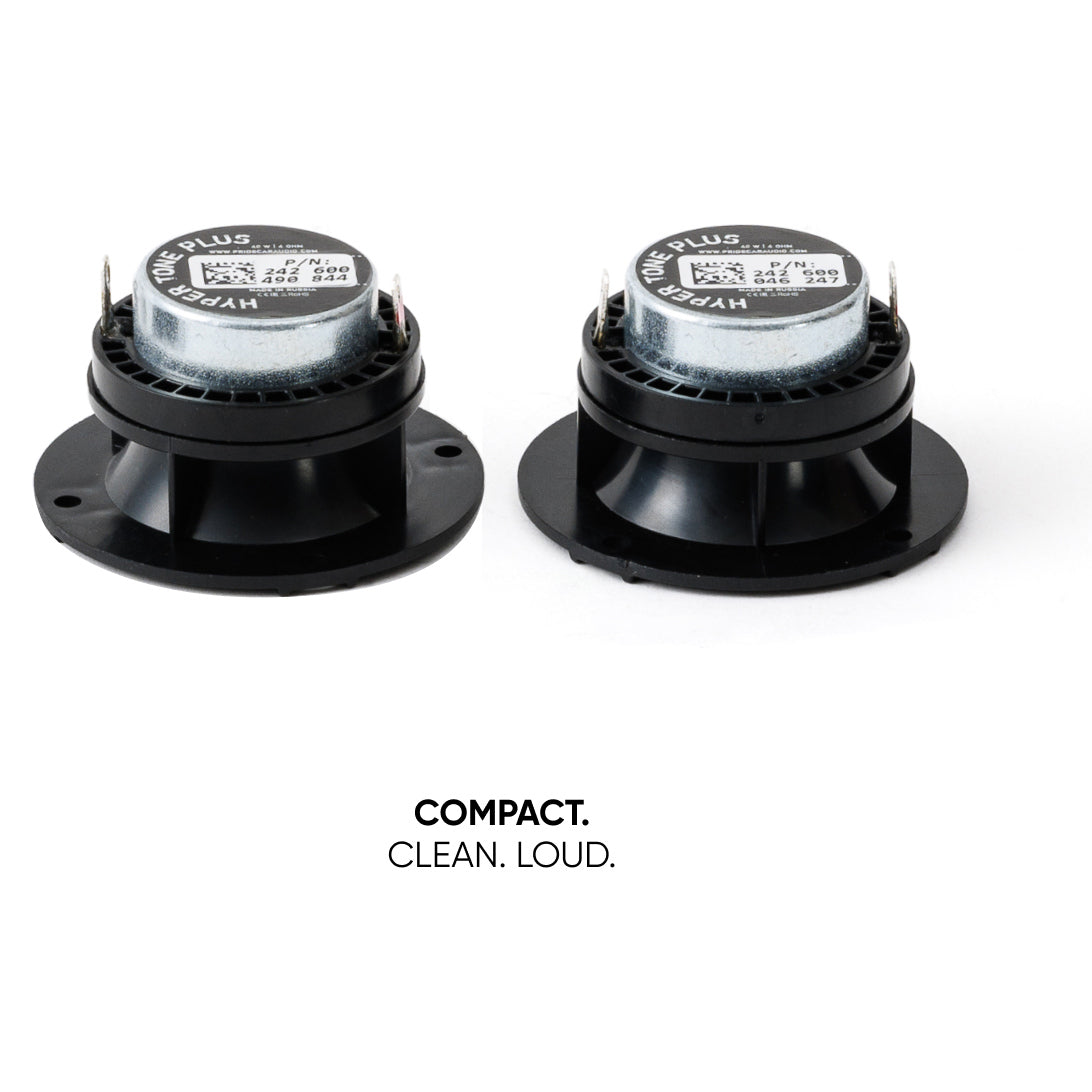

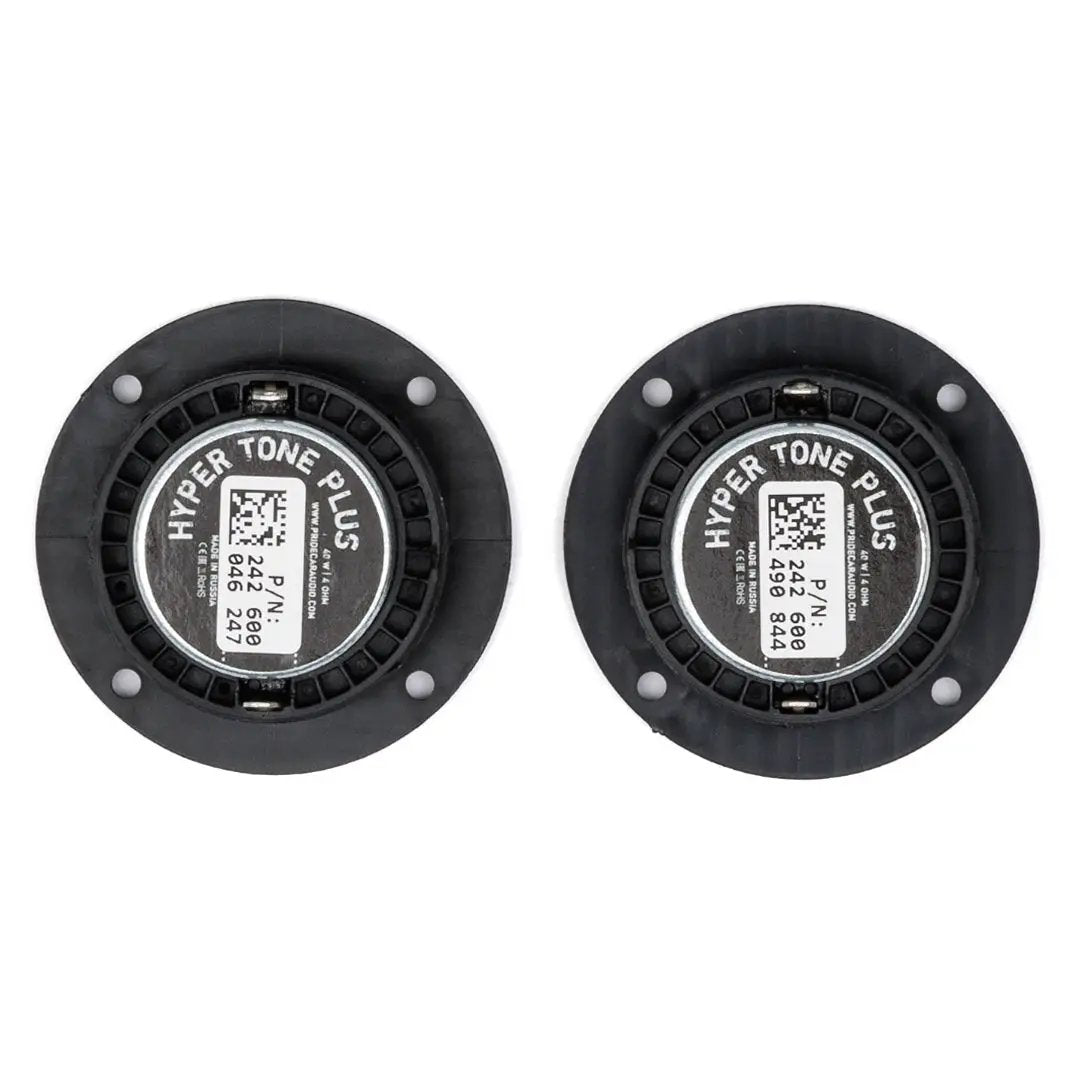

- Pair of horn tweeters: The 2.5-inch format gives you two tweeters for a stereo installation.
- Copper-wire voice coils: Copper winding is part of the tweeter’s specified construction.

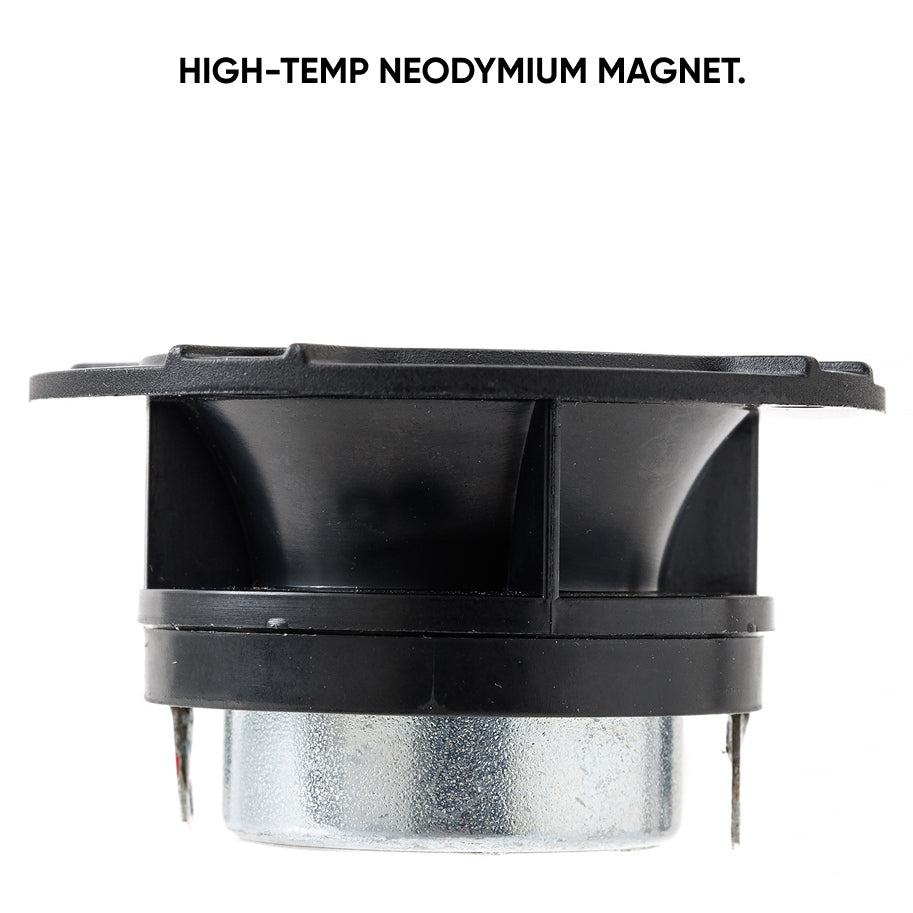

- Neodymium magnets: High-temperature neodymium magnets and an electrical-steel core make up the magnetic assembly.

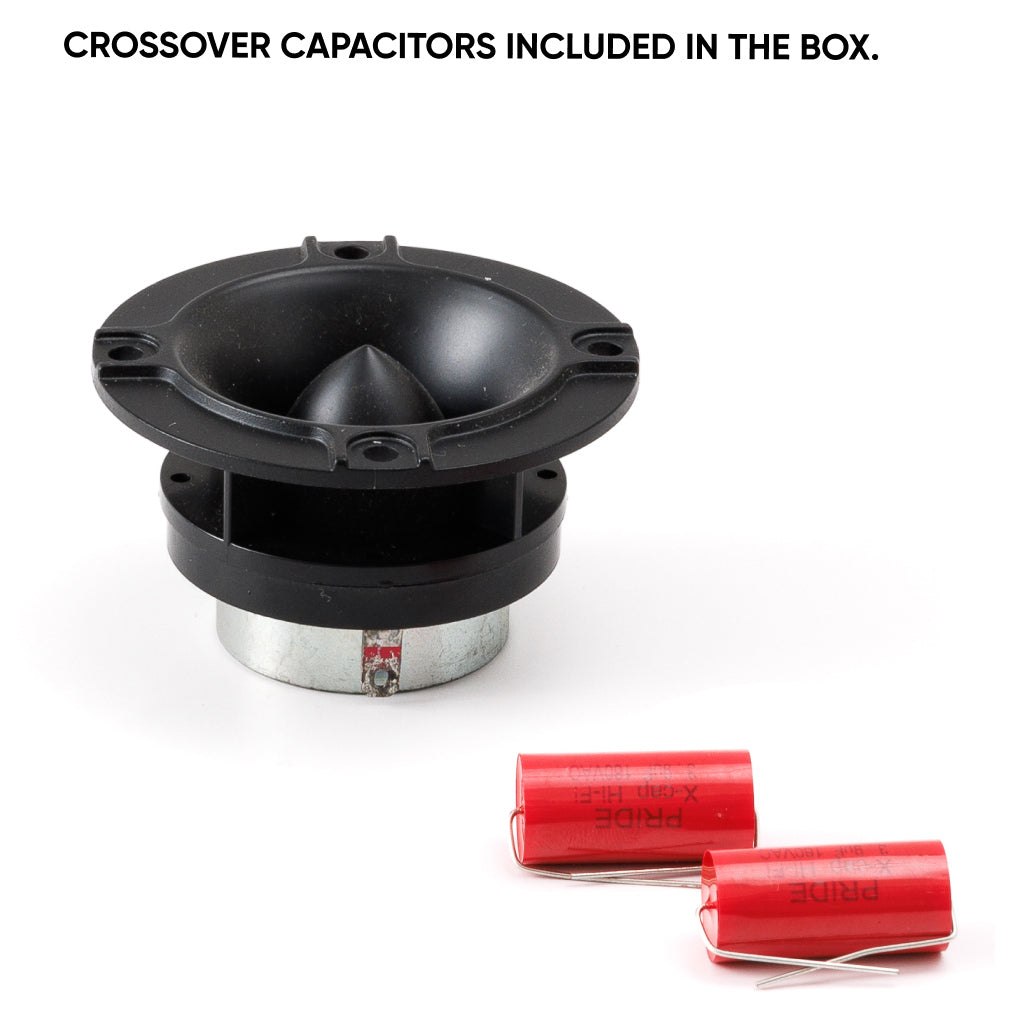

- Included capacitors: Two X-Cap Hi-Fi film capacitors come in the carton.

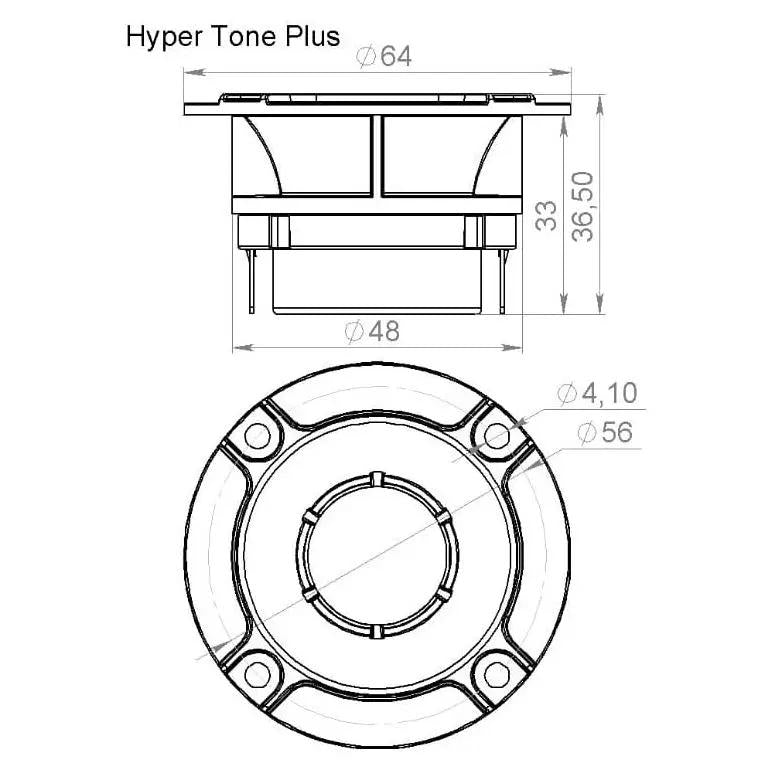

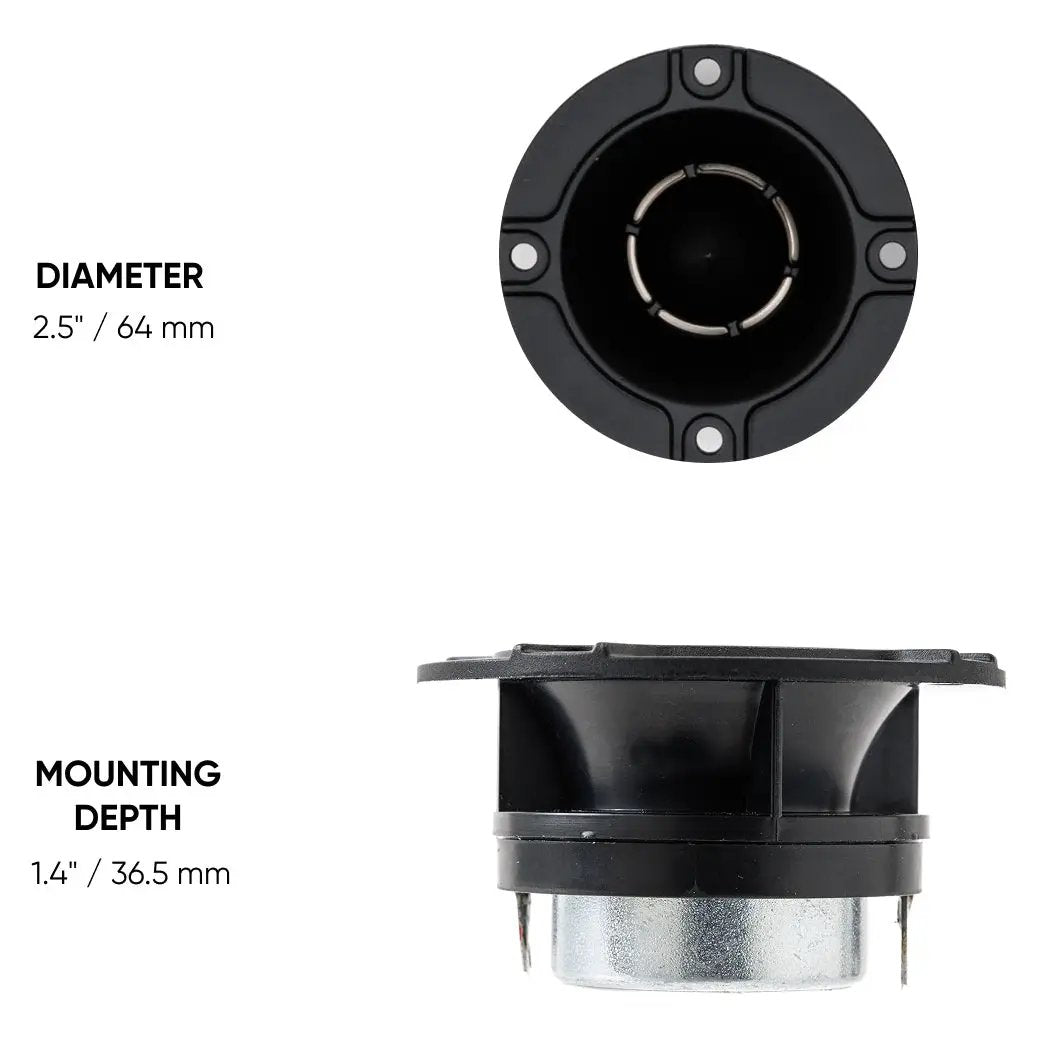

- Installation measurements: The 64 mm housing diameter and 36.5 mm overall height help you plan a custom mounting location.
Technical Specifications
| Specification | Value |
|---|---|
| Model / manufacturer SKU | Hyper Tone Plus / HTP.25 |
| Format | 2.5-inch horn tweeter |

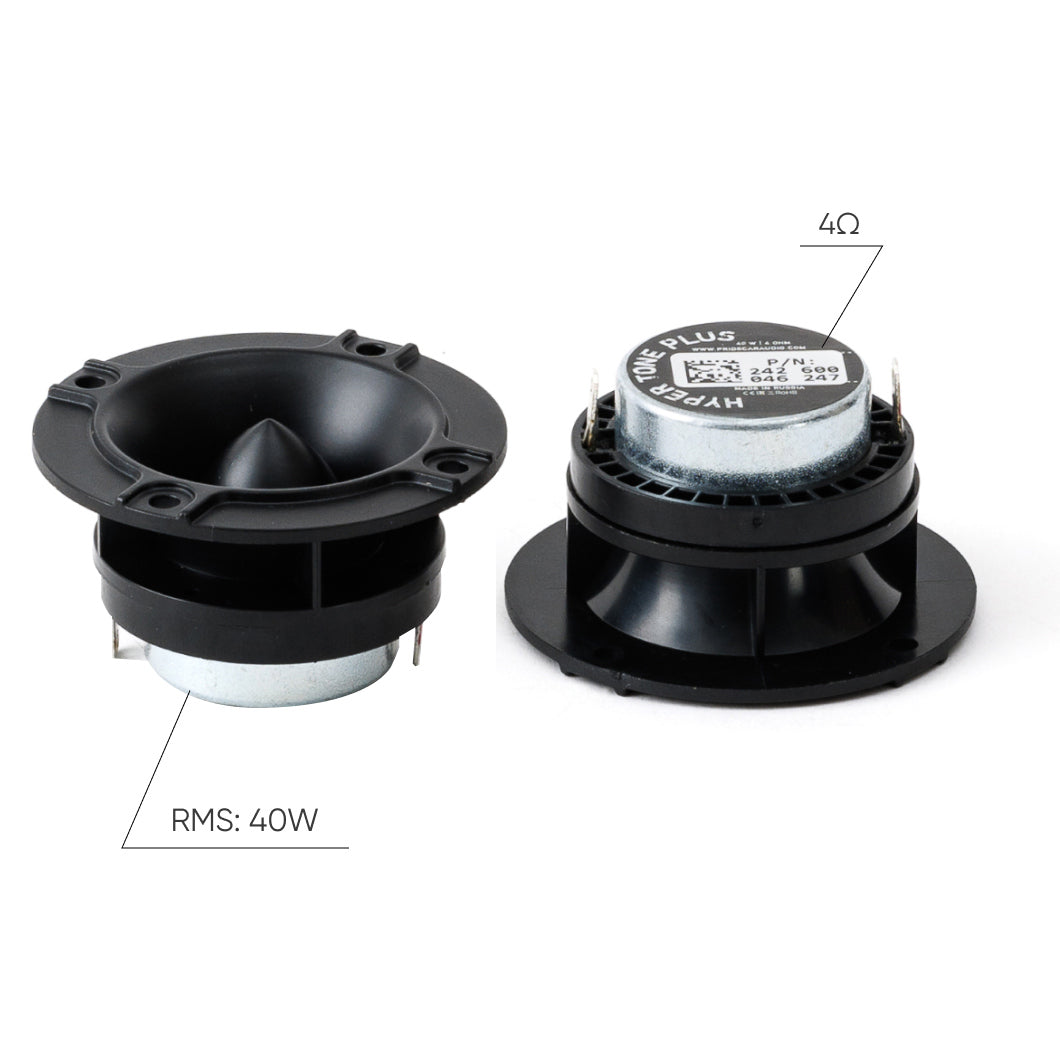

| Nominal impedance | 4 Ω |
| Power handling | 40 W with a 6.3 kHz high-pass filter at 12 dB/octave |
| Frequency response | 4.5–20 kHz (−3 dB) |
| Voice-coil winding material | Copper wire |
| Magnet material | High-temperature neodymium |
| Magnetic core material | Electrical steel |
| Outer diameter | 64 mm |
| Overall height | 36.5 mm |

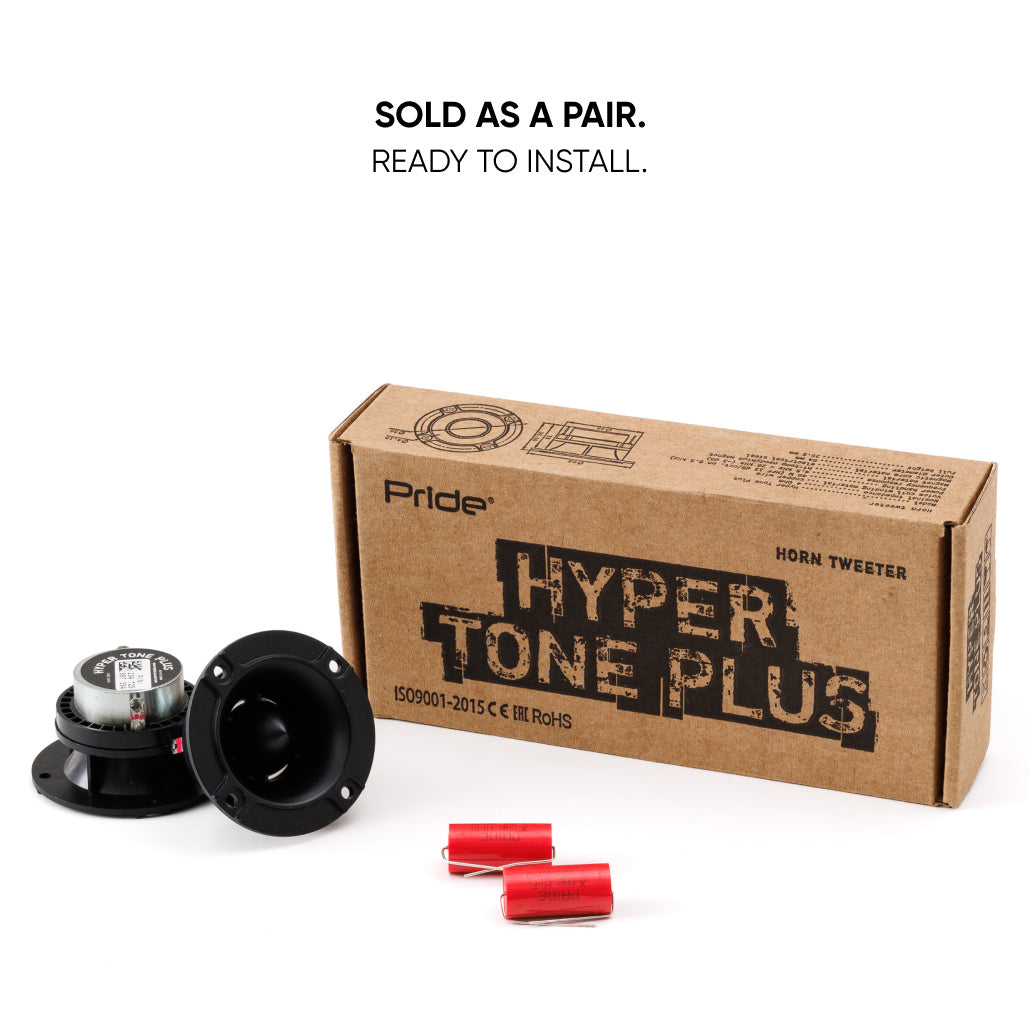

| In the box | One pair of Pride Hyper Tone Plus horn tweeters, two X-Cap Hi-Fi film capacitors and a carton |
Why Choose This Product?
The Hyper Tone Plus brings together a compact horn-tweeter format and clearly stated installation dimensions. Its copper-wire voice coils, neodymium magnets and electrical-steel core give you specific construction details to consider when choosing tweeters for a custom system.
The rated 40 W power handling is tied to a particular high-pass filter setting. That condition helps you plan the signal filtering around the tweeters rather than relying on the frequency-response range alone.
Installation & Compatibility Notes
Use a 6.3 kHz high-pass filter with a 12 dB/octave slope for the stated 40 W power handling. The 4.5 kHz response limit is not a full-power crossover recommendation.
Before installation, check the mounting opening, rear clearance and filter slope against your setup. The 64 mm outer diameter and 36.5 mm overall height are useful planning measurements.
Frequently Asked Questions
What filter is specified for the 40 W power handling?
The rating is specified with a 6.3 kHz high-pass filter at 12 dB per octave.
Does the 4.5 kHz response limit mean I should cross over there?
No. The 4.5 kHz limit describes the published frequency response; it is not a full-power crossover recommendation.
What are the tweeter’s mounting measurements?
The outer diameter is 64 mm, and the overall height is 36.5 mm. Check the mounting opening and rear clearance for your installation.
What comes with the pair?
The carton contains one pair of Pride Hyper Tone Plus horn tweeters and two X-Cap Hi-Fi film capacitors.
