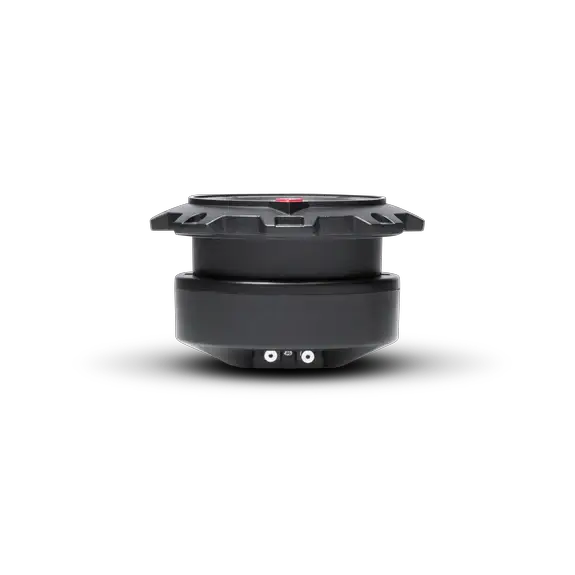

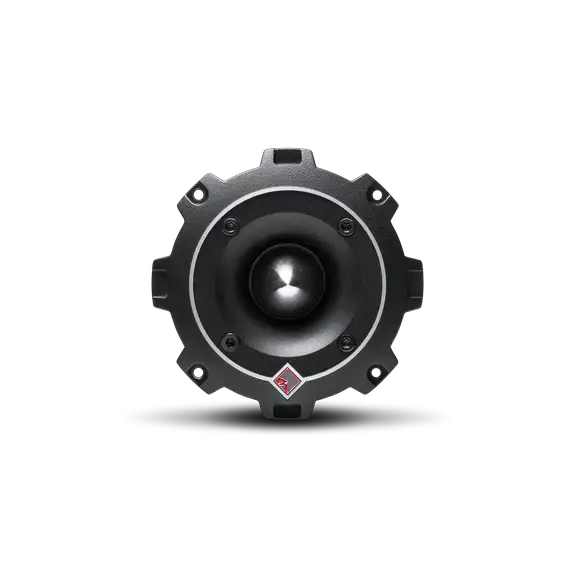

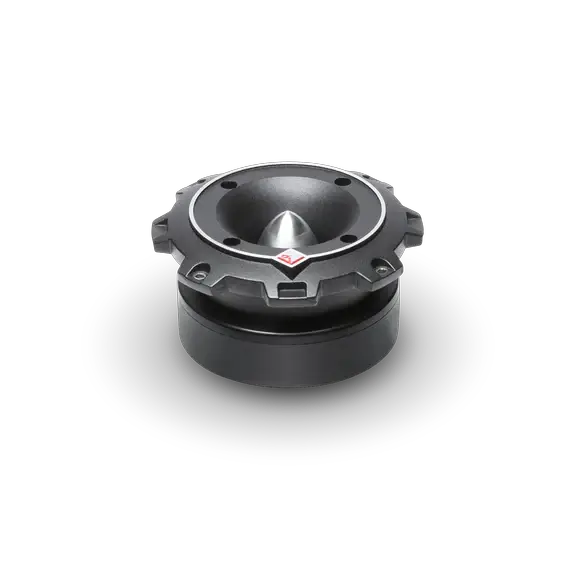

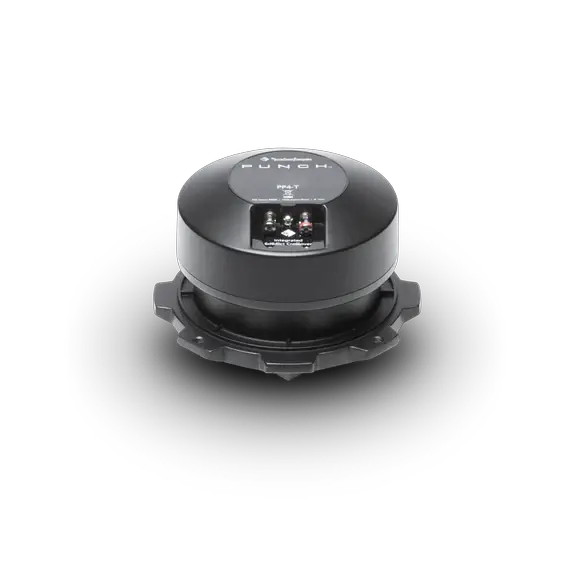

Rockford Fosgate Punch PP4-T 1.5" Super Tweeter (each)
Key features
- Speaker size: 1.5″
- RMS power per speaker: 50 W
- Speaker impedance: 4.0 ohms
- Frequency response: 4.5–20 kHz
- Sensitivity: 105 dB (1 W/1 m)
- Mounting depth: 2.59 inches
Rockford Fosgate Punch PP4-T 1.5" Super Tweeter (each) is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch PP4-T 1.5" Super Tweeter (each) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add clear, high-output treble to a car audio system with the Rockford Fosgate Punch PP4-T 1.5-inch super tweeter. Its aluminum diaphragm, billet-machined aluminum phase plug, and integrated 4.5kHz high-pass crossover are designed for high-SPL applications.
With 105 dB sensitivity and a 4-ohm nominal impedance, the PP4-T brings strong top-end output to a multi-speaker front stage or a two-way setup.
Key Features & Benefits
- Integrated crossover: The 4.5kHz, 6dB/octave high-pass crossover routes high frequencies to the tweeter without requiring a separate crossover component for that function.
- High sensitivity: The 105 dB rating at 1W/1M supports strong output from the power applied.
- Power handling: The 50W RMS and 100W maximum ratings help you compare the tweeter with your system’s amplifier output.
- Aluminum construction: The aluminum diaphragm and die-cast aluminum housing give the driver a purpose-built structure for automotive audio.
- Machined phase plug: The billet aluminum phase plug supports phase and frequency response control at high output.

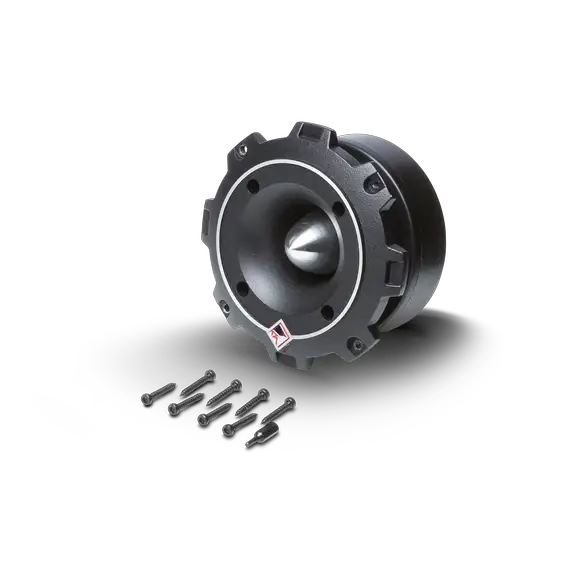

- Mounting hardware included: The PP4-T comes with mounting hardware, but no grille or trim ring.
Technical Specifications
| Specification | Details |
|---|---|
| Product type | 1.5-inch super tweeter |
| Nominal impedance | 4 Ohms |
| Power handling | 50W RMS / 100W max |
| Sensitivity | 105 dB @ 1W/1M |
| Built-in crossover | 4.5kHz @ 6dB/Octave |
| Frequency response | 4kHz–20kHz |
| Nominal diameter | 1.5" |
| Mounting diameter | 4.33" (110 mm) |
| Mounting depth | 2.59" (65.8 mm) |
| Diaphragm | Aluminum |
| Voice coil diameter | 1.475" (37.5 mm) |
| Voice coil former | High Temp Kapton |
| Housing | Die Cast Aluminum |
| Input terminal connection | All-Metal |
| Phase plug | Billet stock machined aluminum |
| Mounting hardware | Included |
| Grille/trim ring | Not included |
| Warranty | 1 Year |
| Quantity | Sold individually |
Why Choose This Product?
The Punch PP4-T combines high sensitivity with an integrated high-pass crossover, making it a considered option when planning a system’s high-frequency output. Its 4-ohm impedance and stated power ratings help you assess how it fits your amplifier and speaker configuration.
The aluminum diaphragm, die-cast housing, and machined phase plug provide specific construction details to consider for a high-SPL car audio installation. Each unit is sold individually.
Installation & Compatibility Notes
Check the installation location against the 4.33-inch (110 mm) mounting diameter and 2.59-inch (65.8 mm) mounting depth before fitting. The product is a 4-ohm tweeter with a built-in 4.5kHz, 6dB/octave high-pass crossover. No grille or trim ring is included.
Frequently Asked Questions
What is the Rockford Fosgate Punch PP4-T’s power handling?
It is rated for 50W RMS and 100W maximum power handling.
What impedance should I account for?
The PP4-T has a nominal impedance of 4 Ohms. Check that your system’s amplifier and speaker configuration are appropriate for this load.
Does this tweeter include a crossover?
Yes. It has an integrated 4.5kHz high-pass crossover with a 6dB/octave slope.
How much installation space does it need?
Allow for a 4.33-inch (110 mm) mounting diameter and 2.59-inch (65.8 mm) mounting depth.
Are a grille and mounting hardware included?
Mounting hardware is included. A grille or trim ring is not included.
How many tweeters are included?
The PP4-T is sold individually.
