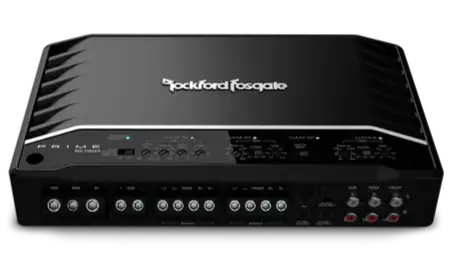

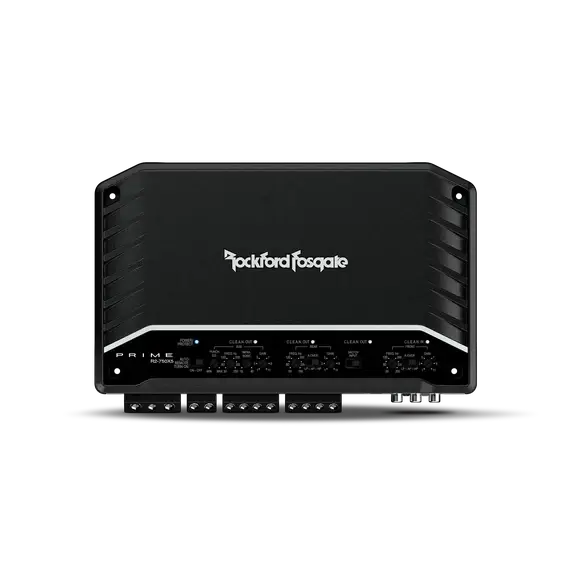

Rockford Fosgate Prime R2-750X5 5-Channel Amplifier
Key features
- Amplifier channels: 5
- Speaker-channel RMS at 4 ohms: 50 W per channel
- Speaker-channel RMS at 2 ohms: 100 W per channel
- Subwoofer-channel RMS at 4 ohms: 200 W
- Subwoofer-channel RMS at 2 ohms: 350 W
Rockford Fosgate Prime R2-750X5 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Prime R2-750X5 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Run your front speakers, rear speakers, and subwoofer from one compact car audio amplifier with the Rockford Fosgate Prime R2-750X5 5-channel amplifier. Its Class-D design delivers 750 watts total, with adjustable crossovers, individual input gain controls, and factory-signal inputs for flexible system setup.
Use the R2-750X5 in a factory or aftermarket build when you want five channels of amplification in a single chassis. The top-mounted controls keep adjustments accessible during installation and tuning.
Key Features & Benefits
- Five-channel output: Power front, rear, and subwoofer channels from one amplifier.
- Factory-signal inputs: High-level inputs accept factory signals, while RCA pass-through outputs let you branch signals to additional gear.
- Flexible input selection: Choose 2-, 4-, or 5-channel input routing to suit the system signal layout.
- Separate gain controls: Adjust front, rear, and sub input levels independently for a balanced system.
- Tunable sound: Variable infrasonic filtering, adjustable Butterworth crossovers, and onboard Punch EQ help shape the system’s response.
- Accessible, protected operation: Top-mounted controls simplify adjustments, while short-circuit, over-current, and rollback protection support safe operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | R2-750X5 |
| Product category | 5-channel amplifier |
| Number of channels | 5 |
| Total power (sum of rated power) | 750 Watts |
| Rated power | 50 watts × 4 + 200 watts × 1 @ 4Ω; 100 watts × 4 + 350 watts × 1 @ 2Ω |
| Bridged/Mono | Yes |
| Bridged/Mono dynamic power | 70 watts × 4 + 241 watts × 1 @ 4Ω; 114 watts × 4 + 426 watts × 1 @ 2Ω |
| Frequency response | 20 Hz – 20 kHz |
| Input sensitivity | Low-Level 150 mV – 4 V; High-Level 450 mV – 12 V |
| Circuit topology | Class-D |
| Operating voltage | 9 – 16 VDC |
| Recommended fuse | 120 A |
| Power and speaker wiring | Power input uses 4 AWG; speaker output uses 8 AWG via compression terminal blocks |

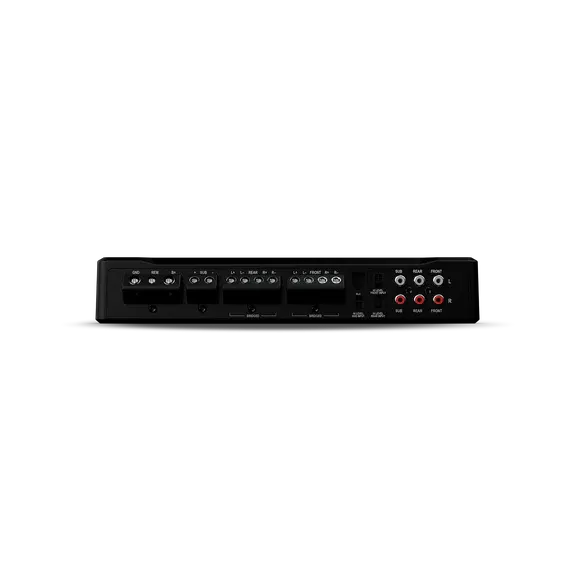

| Inputs | Front Low-Level (2 RCA), Front High-Level (4-Pin Molex), Rear Low-Level (2 RCA), Rear High-Level (4-Pin Molex), Sub Low-Level (2 RCA), Sub High-Level (4-Pin Molex) |
| Input selection | 2/4/5 channel |
| Visual indicators | POWER (Blue) / PROTECT (Red) with C.L.E.A.N. IN/OUT indicators |
| Cooling | Convection heatsink for passive cooling |
| Heat sink | Cast aluminum |
| Input features | Balanced differential inputs; high-level input capable; RCA pass-through outputs |
| RAP feature | Auto-Sense bypass switch for Retained Accessory Power systems |
| Setup and level controls | C.L.E.A.N. setup; variable front, rear, and sub input gain |
| Filters and equalization | Variable infrasonic filter; continuously variable onboard Punch EQ |
| Crossovers | Fully adjustable 12 dB/octave high- and low-pass Butterworth crossovers |

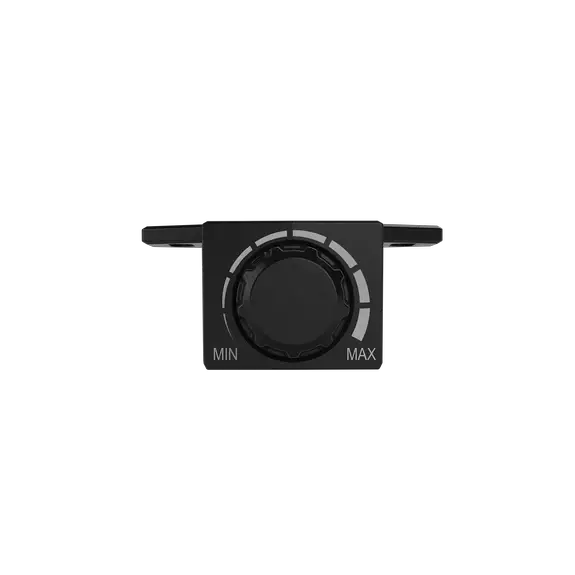

| Remote level control | RLC Remote Level Control included for sub level adjustment |
| Protection | Short Circuit & Over Current Protection; Rollback Protection |
| Compliance | CEA-2006 Compliant & CE Compliant |
Why Choose This Product?
The R2-750X5 brings front, rear, and subwoofer amplification together in one space-efficient unit. Its Class-D circuit topology and convection-cooled cast aluminum heat sink make it suited to installations where a single amplifier is preferred, including under-seat or dash-mount locations.
Adjustable crossovers and the variable infrasonic filter give you control over channel bandwidth and ultra-low bass. The onboard Punch EQ adds tonal adjustment without requiring an external processor. Use the included RLC Remote Level Control to change sub level from a convenient location.
Installation & Compatibility Notes
- Power planning: The stated operating voltage is 9 – 16 VDC, and the recommended fuse is 120 A. Power input uses 4 AWG wiring.
- Speaker connections: Speaker output uses 8 AWG via compression terminal blocks.
- Signal connections: Plan for RCA or 4-Pin Molex inputs as appropriate for your front, rear, and sub signals.
- Mounting: Under-seat and dash-mount installations are identified as use cases. Check available mounting space and installation requirements for your vehicle.
Frequently Asked Questions
How is the R2-750X5’s rated power listed?
At 4Ω, rated power is 50 watts × 4 + 200 watts × 1. At 2Ω, it is 100 watts × 4 + 350 watts × 1.
Can this amplifier power front and rear speakers plus a subwoofer?
Yes. Its five-channel configuration is designed to power front, rear, and subwoofer channels from one amplifier.
Can I connect factory audio signals?
The amplifier has high-level inputs for front, rear, and sub signals, along with low-level RCA inputs. Its input selection switch supports 2-, 4-, or 5-channel input configurations.
What wiring does installation require?
The stated power input is 4 AWG, and speaker output uses 8 AWG via compression terminal blocks. The recommended fuse is 120 A.
Is a remote control included?
An RLC Remote Level Control is included for adjusting sub level from a convenient location.
How do I check whether it will fit my vehicle?
Compare the amplifier’s dimensions with your available mounting space and review your vehicle’s installation requirements before choosing an under-seat or dash-mount location.
