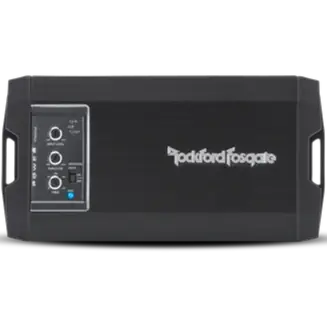

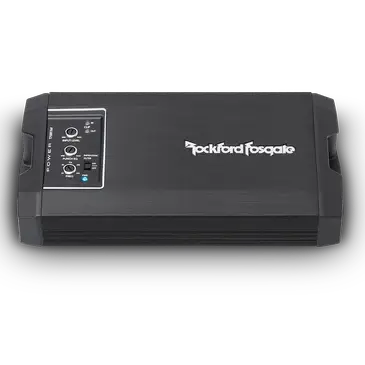

Rockford Fosgate Power Series T750X1bd 750 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 500.0 W
- RMS output at 2 ohms: 750 W
- RMS output at 1 ohm: 750 W
Rockford Fosgate Power Series T750X1bd 750 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Power Series T750X1bd 750 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add 750-watt mono amplification to a tight vehicle install with the compact Rockford Fosgate Power Series T750X1bd monoblock amplifier. Its patented Class-BD design combines Class D efficiency with Class B topology, while differential inputs and flexible turn-on features support a range of system integrations.
Key Features & Benefits
- Class-BD architecture: Combines Class D efficiency with Class B fidelity to reduce electrical load on the vehicle’s charging system while maintaining sound quality.
- Configurable inputs: The Molex-style harness accepts RCA or speaker-level signals, and differential inputs help keep noise out of the signal path.
- Flexible system control: High-level input auto turn-on and Remote-Out can simplify integration and help drive additional amplifiers without a separate remote signal.
- Onboard tuning: Top-mounted low-pass crossover, Punch EQ, and C.L.E.A.N. clip-detection indicators provide accessible tuning and signal monitoring.
- Thermal management: Dual-fan cooling, real-time thermal sensing, and rollback technology help protect against overheating or shorts.
- Remote-ready design: 2013 PLC2 remote-ready compatibility supports use with the Punch PLC2 remote level controller.
Technical Specifications
| Specification | Details |
|---|---|
| Brand and series | Rockford Fosgate Power Series |
| Model | T750X1bd |
| Amplifier type | Monoblock; single channel |
| Power | 750 watts |
| Amplifier architecture | Patented Class-BD technology; blends Class D efficiency with Class B topology |
| Power behavior | Constant Power behavior as impedance changes |
| Input connections | Configurable Molex-style harness; accepts RCA and speaker-level signals; differential inputs |
| Turn-on and remote output | High-level input auto turn-on; Remote-Out can drive additional amplifiers without a separate remote signal |
| Controls and detection | Built-in low-pass crossover, Punch EQ boost circuit, and C.L.E.A.N. input/output clip detection with indicator LEDs; top-mounted controls |
| Thermal management | 3-stage thermal lock extrusion; dual-fan forced induction; real-time thermal sensing with rollback technology |
| Connectors | 8 AWG Power/Ground connector; 10 AWG speaker connector |
| Remote compatibility | 2013 PLC2 remote-ready; compatible with Punch PLC2 remote level controller |
| Compliance | CEA-2006 and CE compliant |
| Warranty | 2-Year Warranty |
Why Choose This Product?
The T750X1bd brings mono power, signal monitoring, and tuning controls together in an ultra-compact package. Its Constant Power behavior supports consistent output as impedance changes, while the built-in crossover and Punch EQ let you adjust the amplifier without adding a separate processor.
For a multi-amplifier setup, Remote-Out can reduce remote-signal wiring complexity. Dual heat sinks and fan cooling support thermal management in space-constrained installations.
Installation & Compatibility Notes
Plan the installation around the amplifier’s 8 AWG Power/Ground connector and 10 AWG speaker connector. Confirm that your subwoofer load and wiring configuration are suitable for the amplifier before connecting it; the product details do not specify an impedance range.
The configurable input harness accepts RCA or speaker-level signals. High-level input auto turn-on is available, and the amplifier’s Remote-Out can drive additional amplifiers. The Punch PLC2 remote level controller is compatible.
Frequently Asked Questions
Is the T750X1bd a mono amplifier?
Yes. It is a single-channel monoblock amplifier rated at 750 watts.
Can I connect a head unit with speaker-level outputs?
Yes. The configurable Molex-style input harness accepts speaker-level signals as well as RCA signals.
Does the amplifier include built-in tuning controls?
Yes. It has a low-pass crossover and Punch EQ, with top-mounted controls and C.L.E.A.N. input/output clip-detection indicators.
Can it turn on without a separate remote signal?
High-level input auto turn-on is supported. Remote-Out can also drive additional amplifiers without a separate remote signal.
What should I check before connecting a subwoofer?
Match the subwoofer’s impedance and wiring configuration to the amplifier’s requirements before installation.
