5"x7" Replacement Speakers for Harley-Davidson® Speaker Lids
5"x7" Replacement Speakers for Harley-Davidson® Speaker Lids is backordered and will ship as soon as it is back in stock.
5"x7" Replacement Speakers for Harley-Davidson® Speaker Lids is backordered and will ship as soon as it is back in stock.
Description
Description

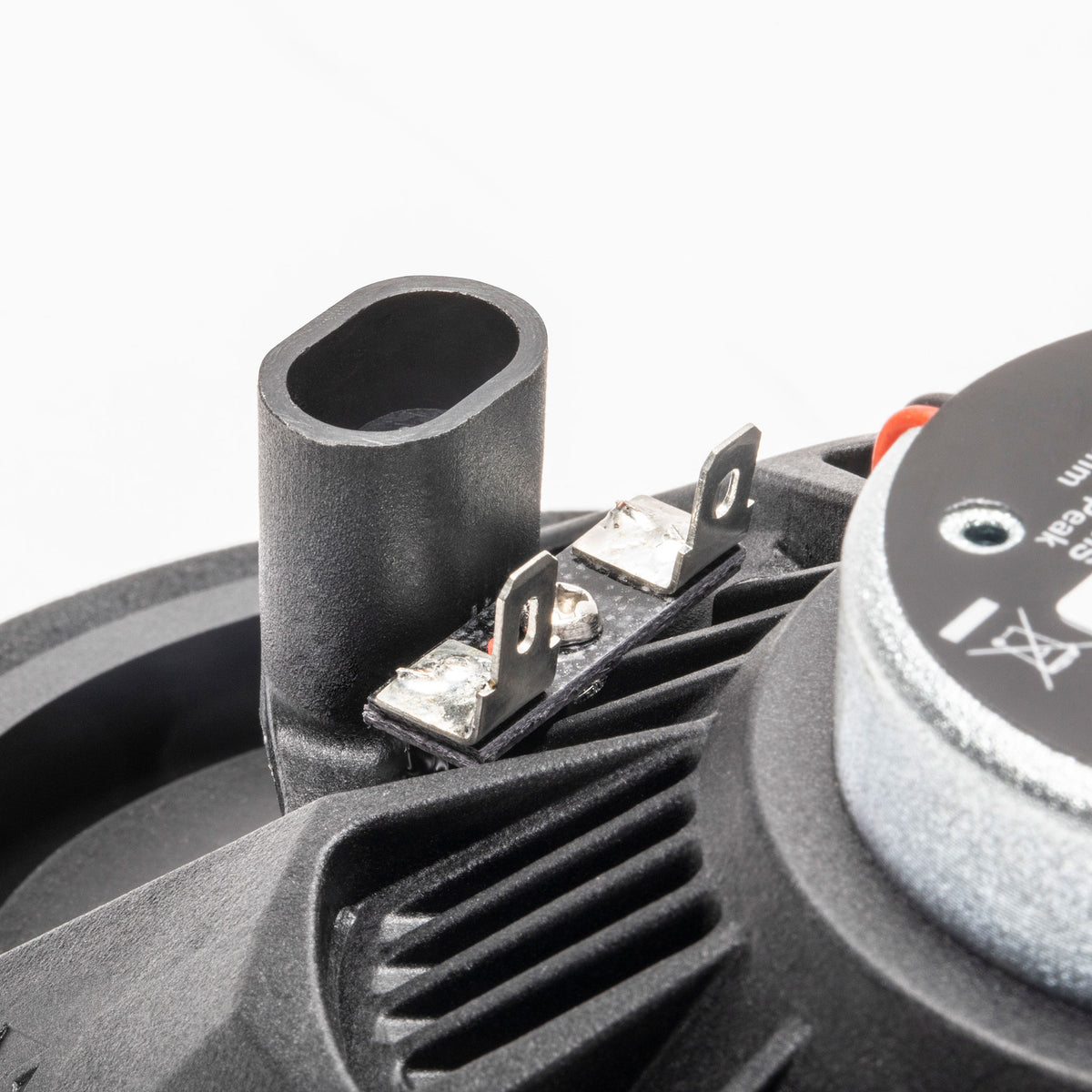

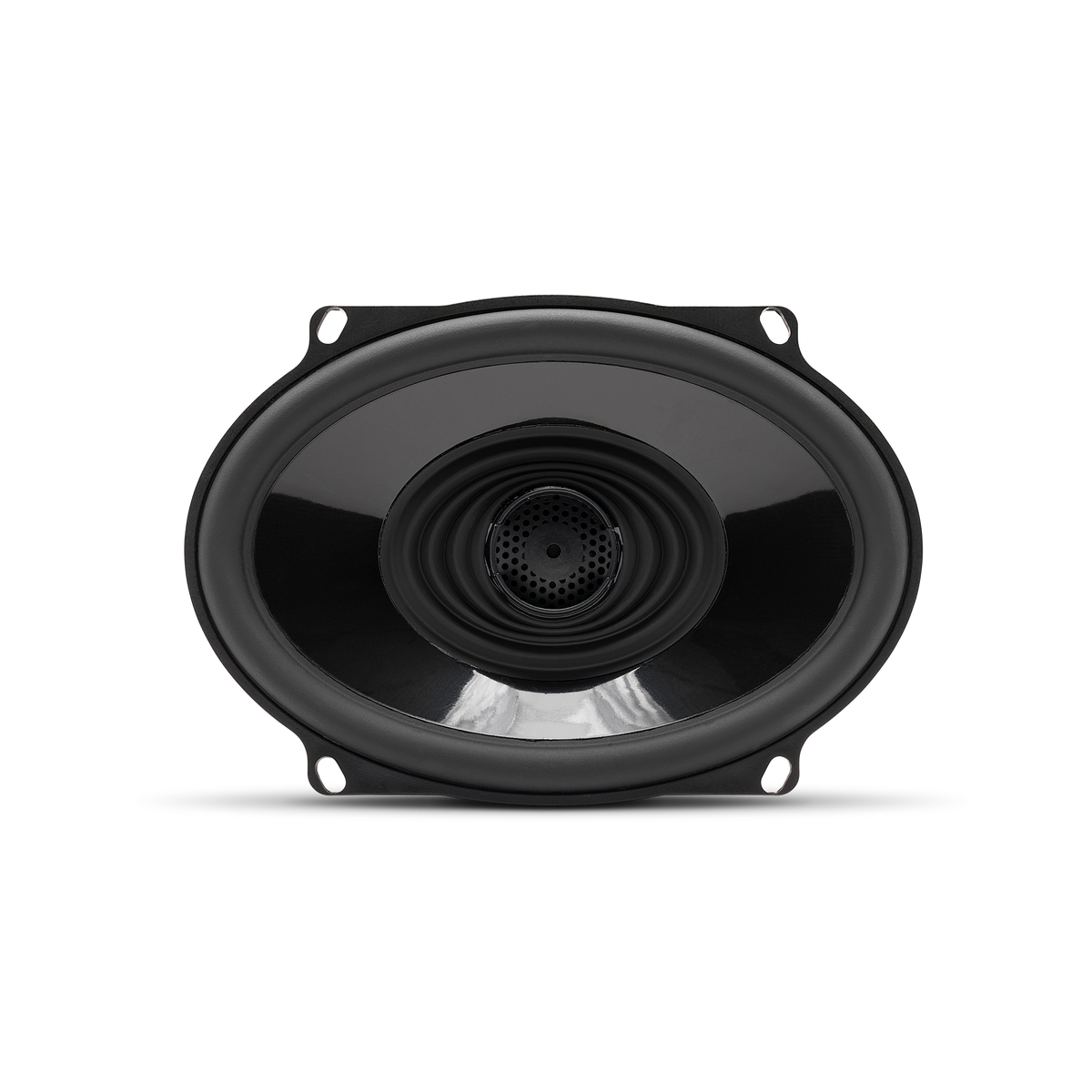

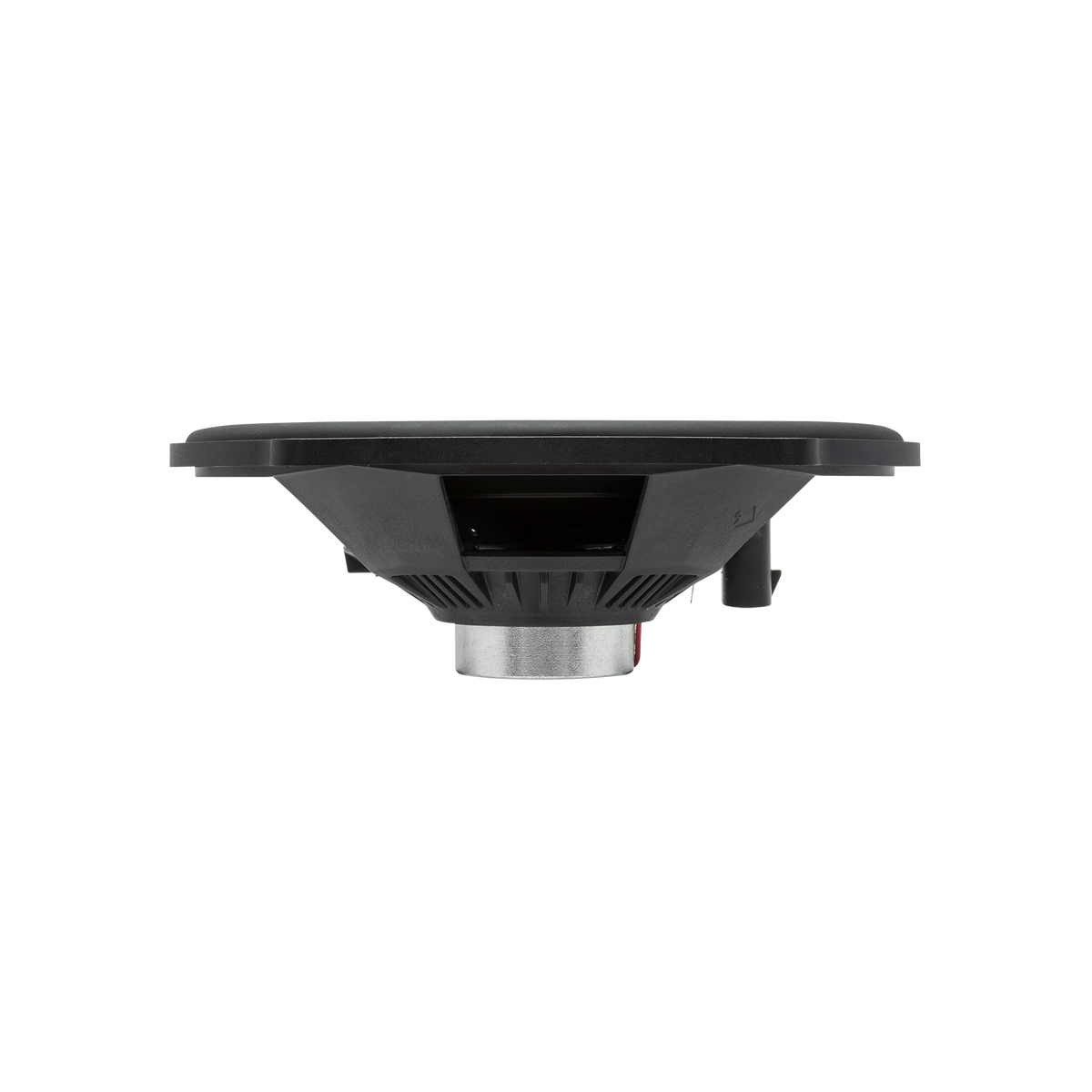

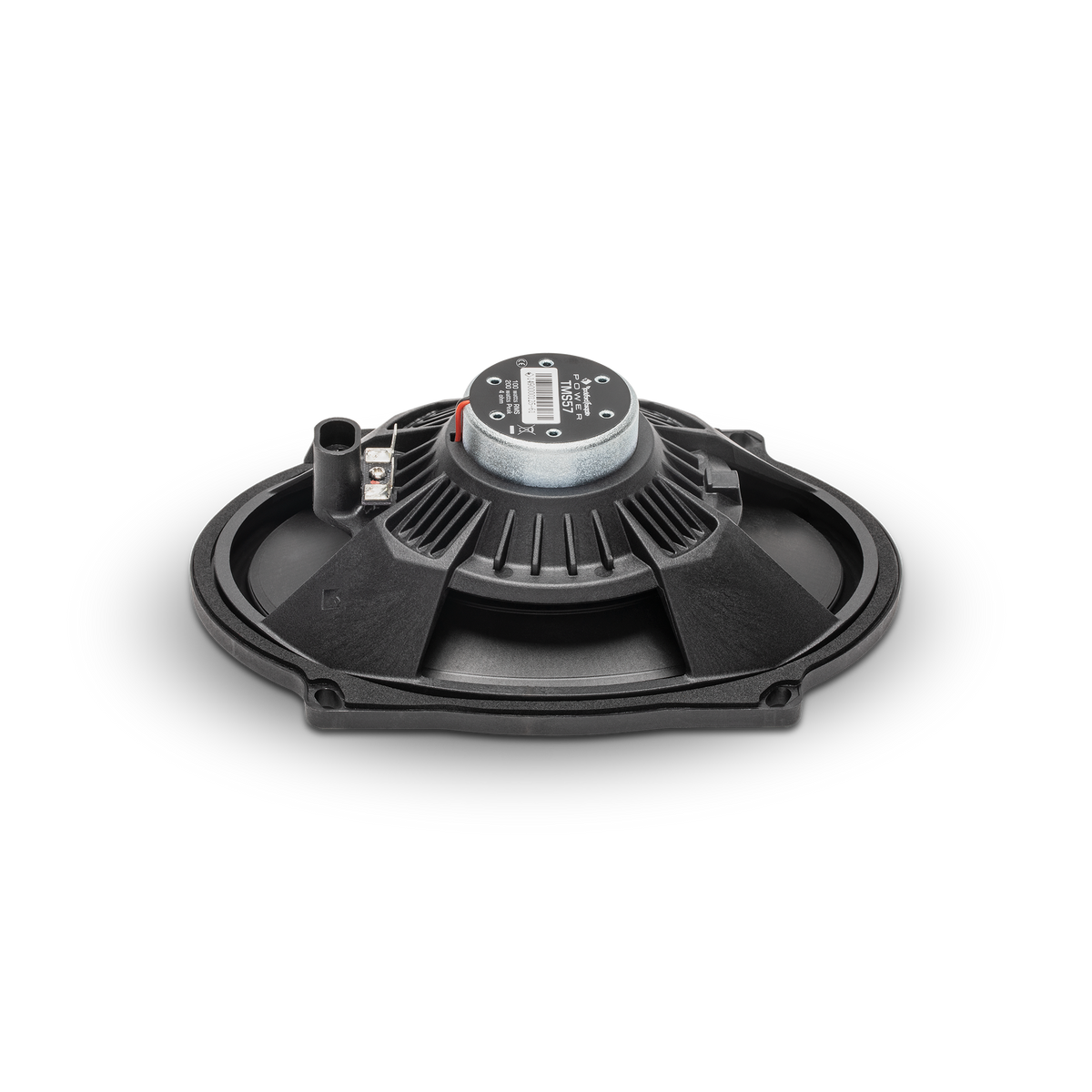

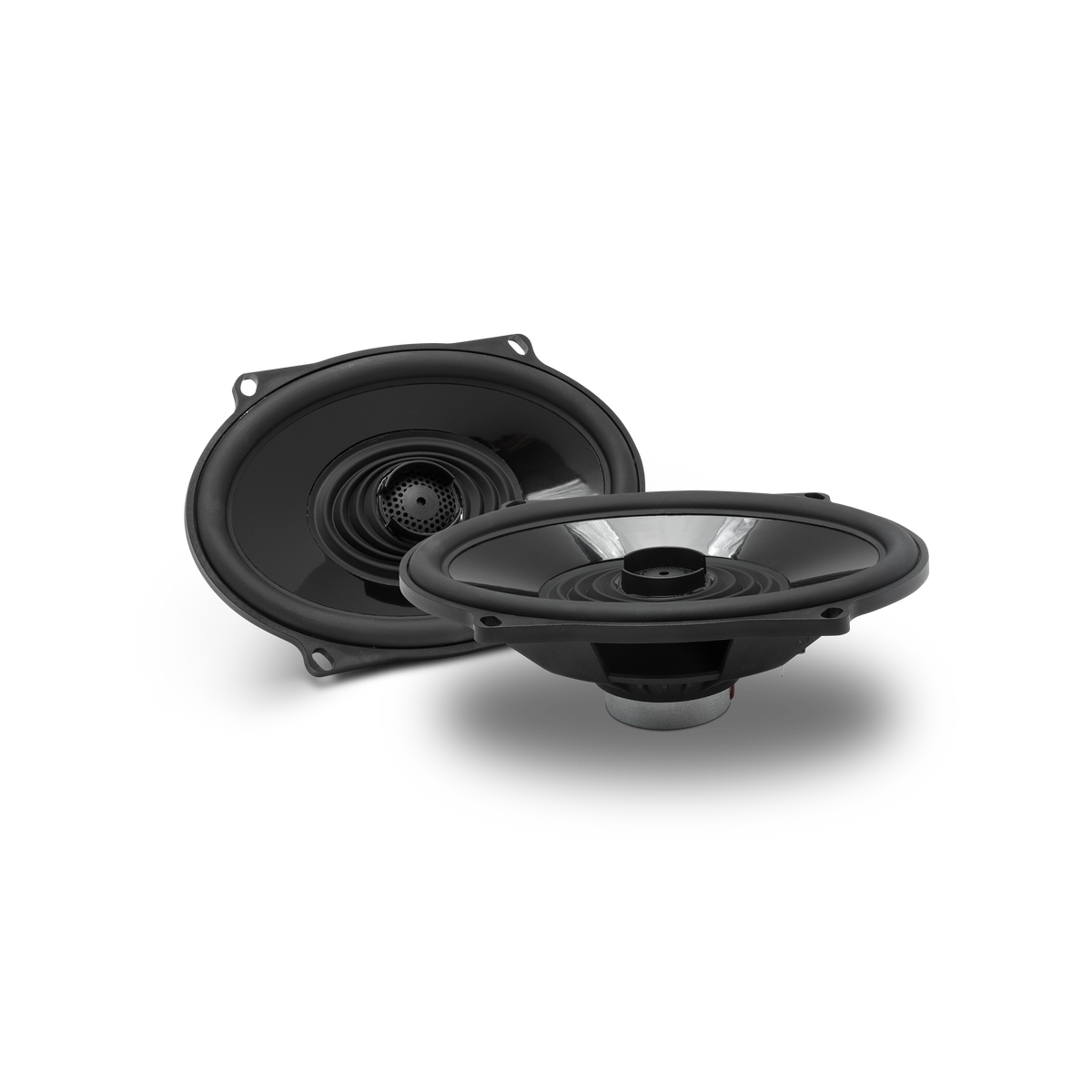

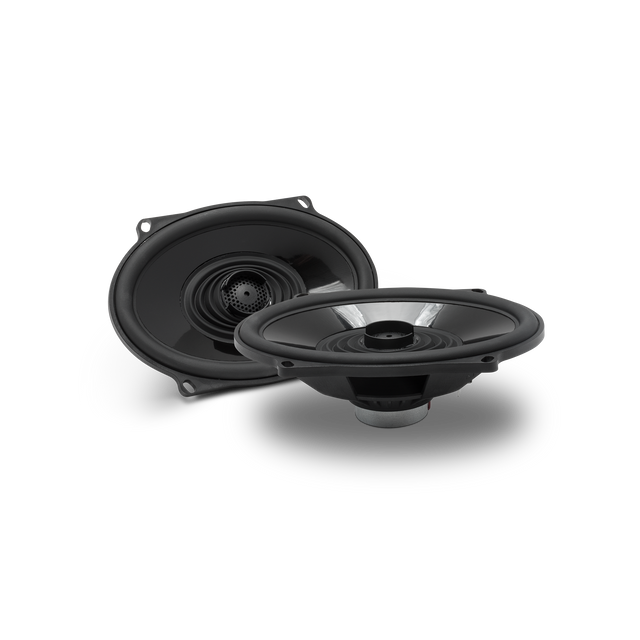

The TMS57 full range coaxial speaker is designed to replace existing 5"x7" 2-way coaxial speakers in factory equipped Harley-Davidson® "Boom!™ Audio" and "Boom!™ Audio Stage-I" bag lids. The TMS57 features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.
Compatibility Chart: Please review below tab for fitment before purchasing.
H-D® M5 Audio Kits | Product Launch
H-D® M5 Audio Kits | Product Overview
2014+ CVO Street Glide / 2015+ CVO Road Glide Stage-2 | Installation
H-D® M5 2014+ Amp Tuning Guide

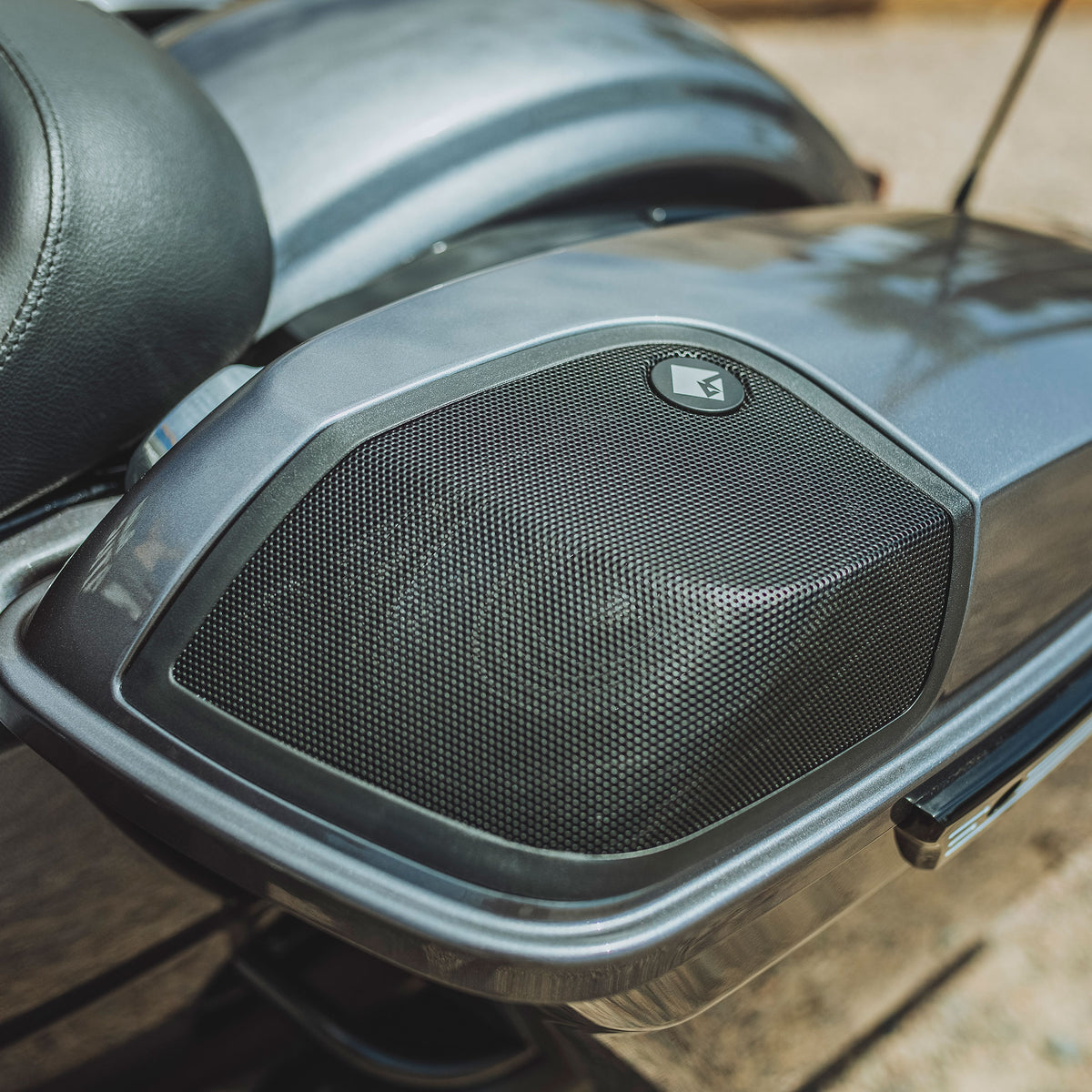

Do you enjoy hitting the road on your motorcycle but are tired of not enjoying your music because you can't hear it when riding? The Rockford Fosgate TMS series of motorcycle speakers solve that problem. The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® "Boom!™ Audio" and "Boom!™ Audio Stage-I" bag lids. NOTE: This is NOT compatible with "Boom!™ Audio Stage-II" systems, nor do we recommend modifying the speaker to fit on Stage-II systems. See Compatibility Tab for complete motorcycle fit guide.
Boom!™ is a trademark and Harley-Davidson® are registered trademarks of H-D U.S.A., LLC.
FEATURES AT A GLANCE
- Factory H-D® connector for plug-n-play operation
- Poly‐Cotton Spider
- High Power 35mm Voice Coil
- Santoprene front isolation spider
- Co‐Molded Cone and Surround
- Santoprene VAST Surround
- Element Ready design that is weather and water resistant
- Carbon Fiber Reinforced Polypropylene Cone
- Ultra‐high temperature glass reinforced polymer frame
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Integrated Spade Terminals
- Ultra-efficient 25mm proprietary film dome tweeter
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Includes self-adhesive aluminum Diamond-R badges
- Discreet (Hidden) Tweeter Wire
- Low Profile Coaxial Tweeter Design
- Manufacturer warranty: 2 years
- Ultra‐Efficient Neodymium Dual Magnet Motor Structure
Specifications
| Sensitivity | 89 dB (1w/1m) 92 dB (2.8V @ 1m) |
|---|---|
| Impedance | 4Ω |
| CEA-2031 |  |
| Speaker Type | 2-Way |
| Midrange Size (Nominal Diameter) | 5" x 7" |
| Midrange Mounting Depth | 2.2" (55 mm) |
| Frequency Response | 61 Hz - 20 kHz |
| Power Handling | 100 Watts RMS |
| Grille/Trim Ring Included | No |
| Mounting Hardware | Yes |

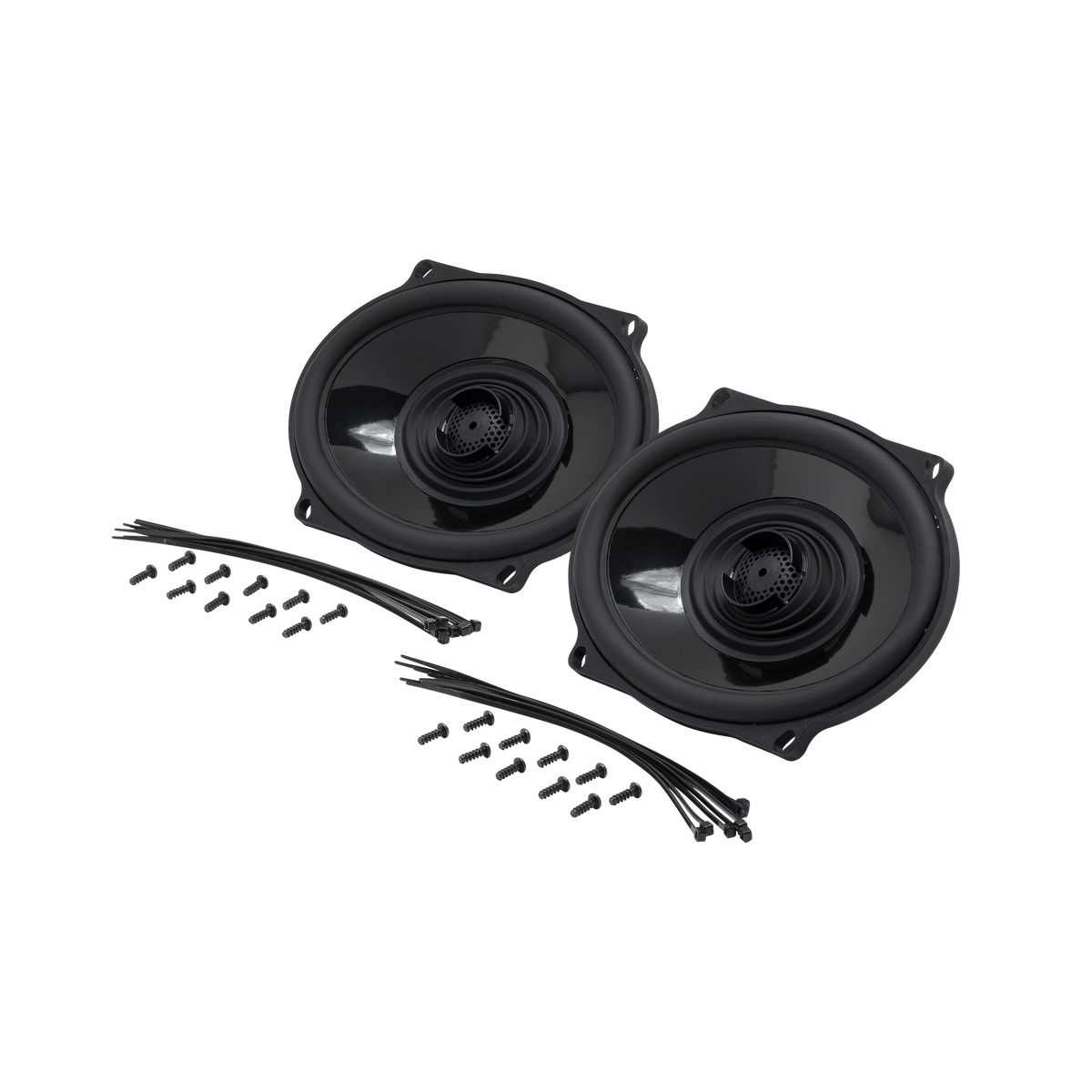

| Included In The Box | (2) TMS57 (2) Aluminum Diamond-R Badges |
| Shipping Weight | 2.95 Lbs. (1.34 Kg) |
Compatibility
| YEAR | MAKE | MODEL | OPTION |
|---|---|---|---|
| 2014 - Current | Harley-Davidson® | Electra Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 - Current | Harley-Davidson® | Ultra Limited | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 - Current | Harley-Davidson® | Street Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 - Current | Harley-Davidson® | Road Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Road King | Boom!™ Audio Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Electra Glide | Boom!™ Audio Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Street Glide | Boom!™ Audio Saddlebag Speaker |
| 2006 - 2013 | Harley-Davidson® | Road Glide | Boom!™ Audio Saddlebag Speaker |
* NOTE: This is NOT compatible with Boom!™ Audio Stage-II systems.
