Harley-Davidson® 6.5" Full Range Upper/Lower Fairing and Tour-Pak Speakers (2014+)
Harley-Davidson® 6.5" Full Range Upper/Lower Fairing and Tour-Pak Speakers (2014+) is backordered and will ship as soon as it is back in stock.
Harley-Davidson® 6.5" Full Range Upper/Lower Fairing and Tour-Pak Speakers (2014+) is backordered and will ship as soon as it is back in stock.
Description
Description

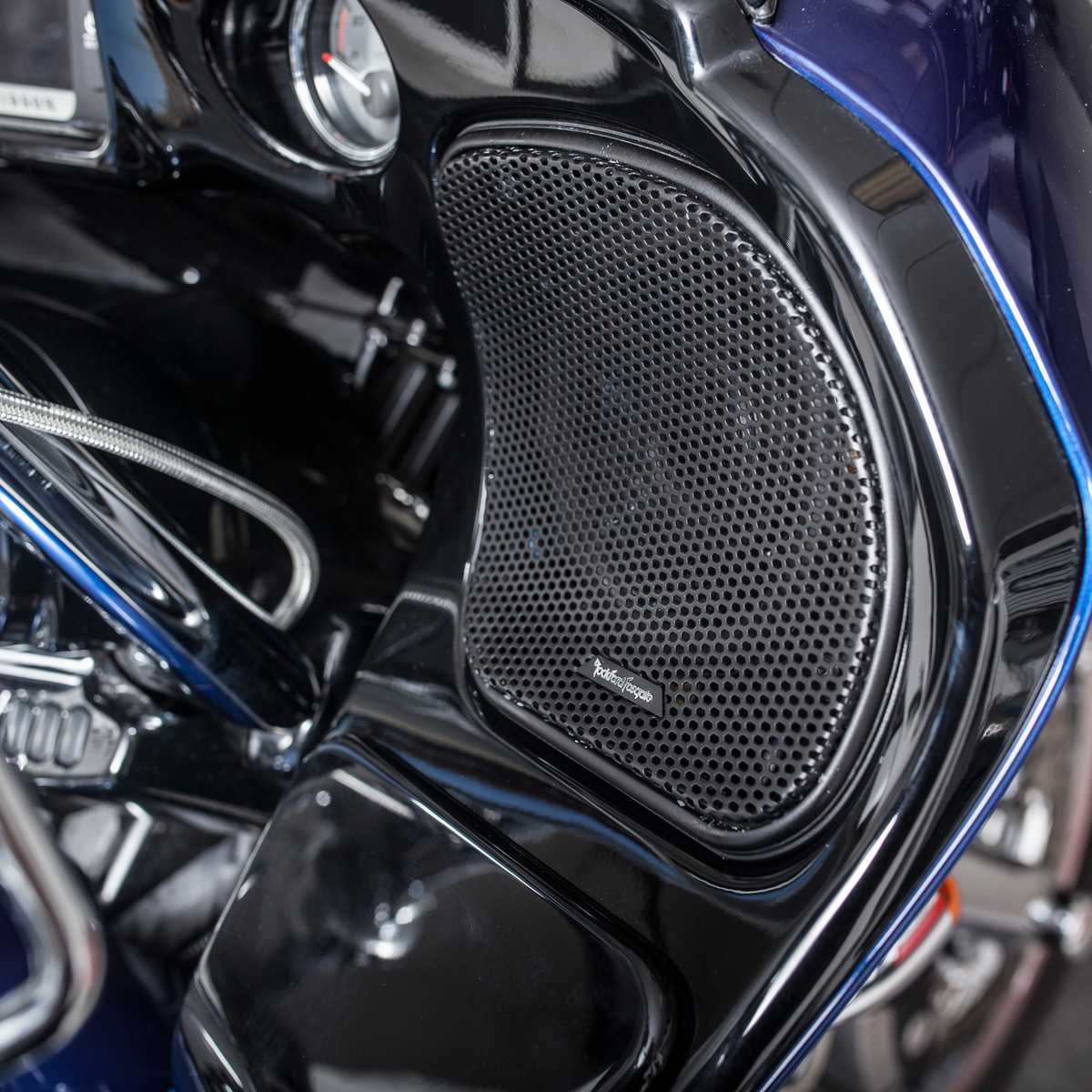

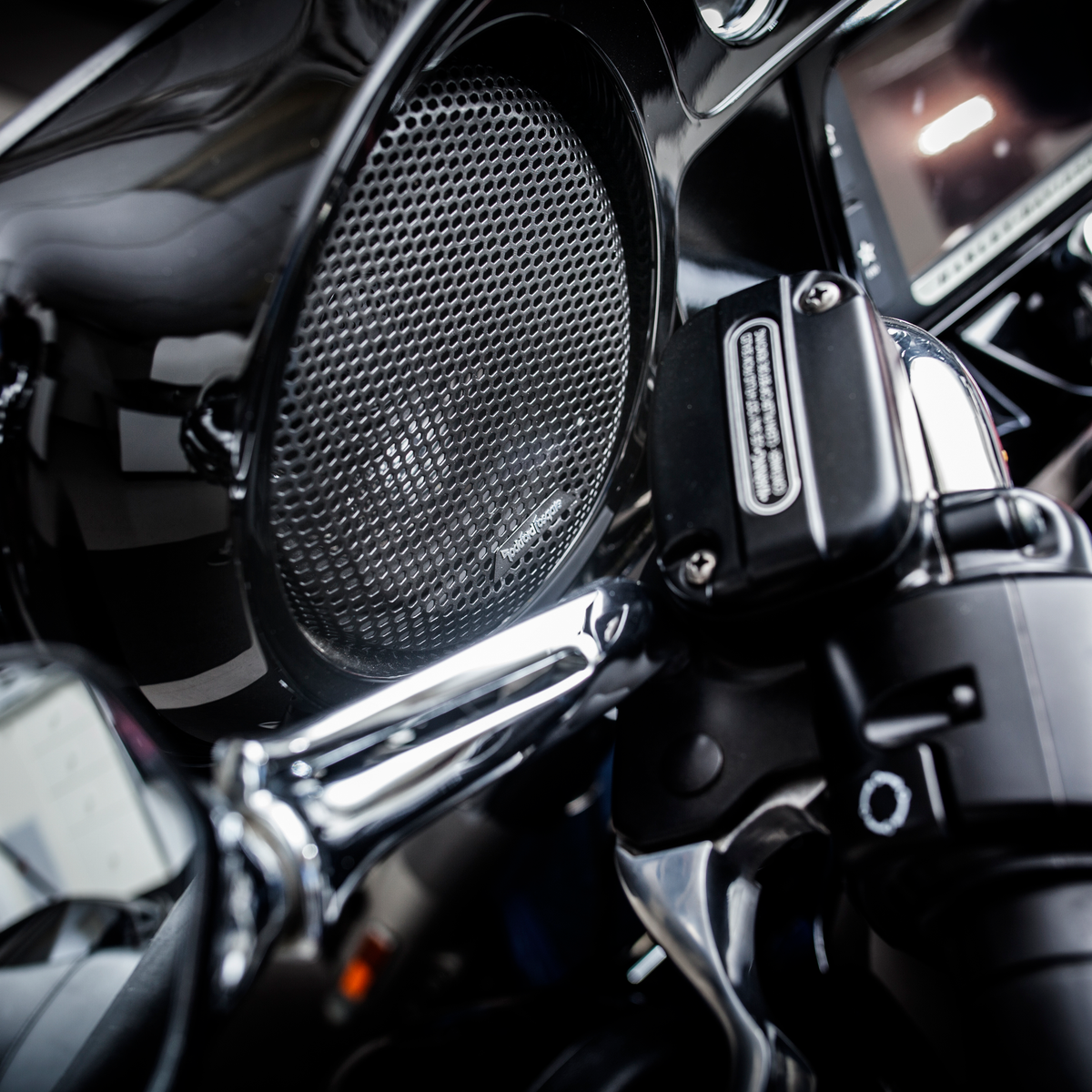

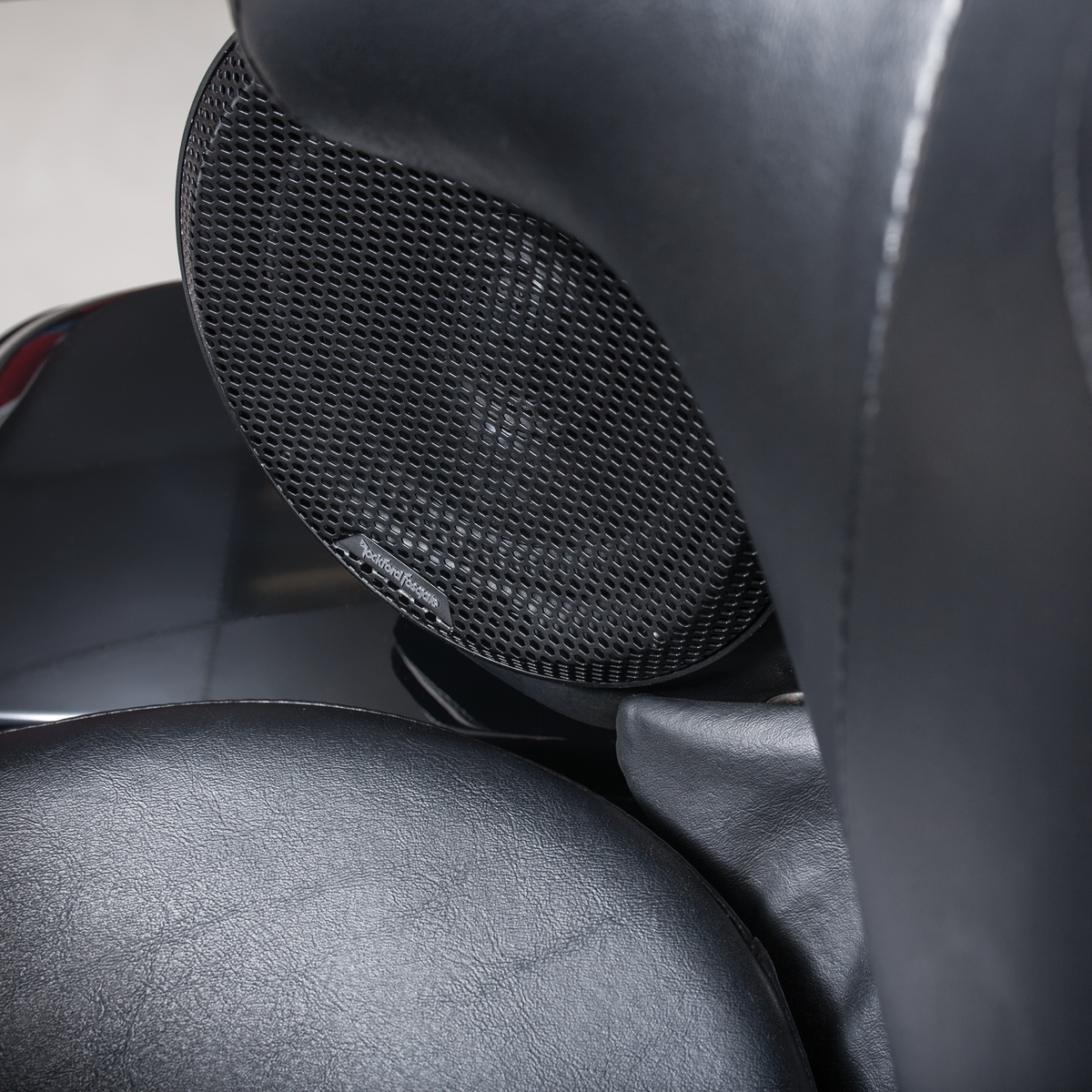

The TMS65 is a full range coaxial speaker designed to fit the upper fairing, lower fairing (non-cooled), and TourPak locations on 2014+ Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-I systems. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with three grille assemblies for Sharknose, Batwing and TourPak installations.

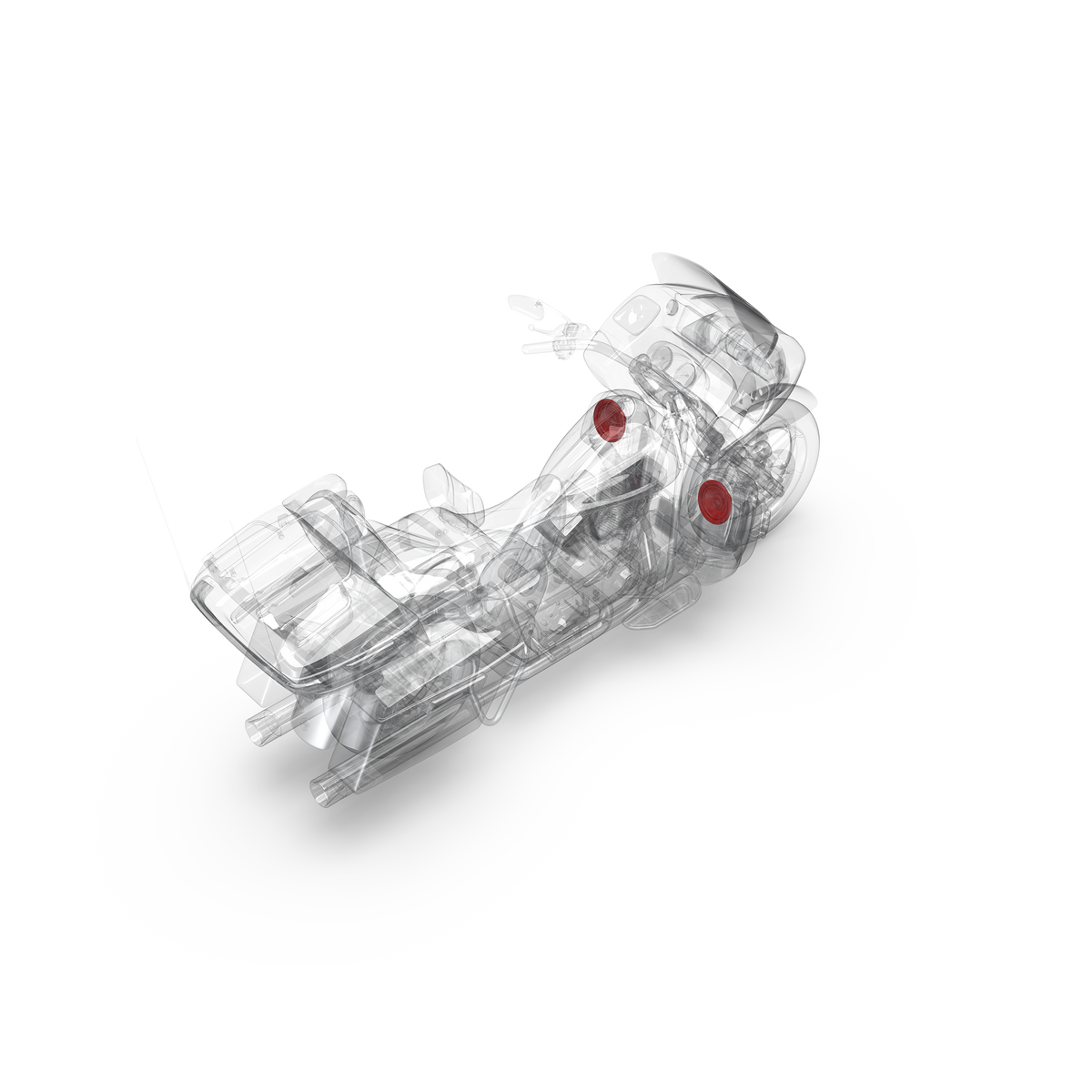

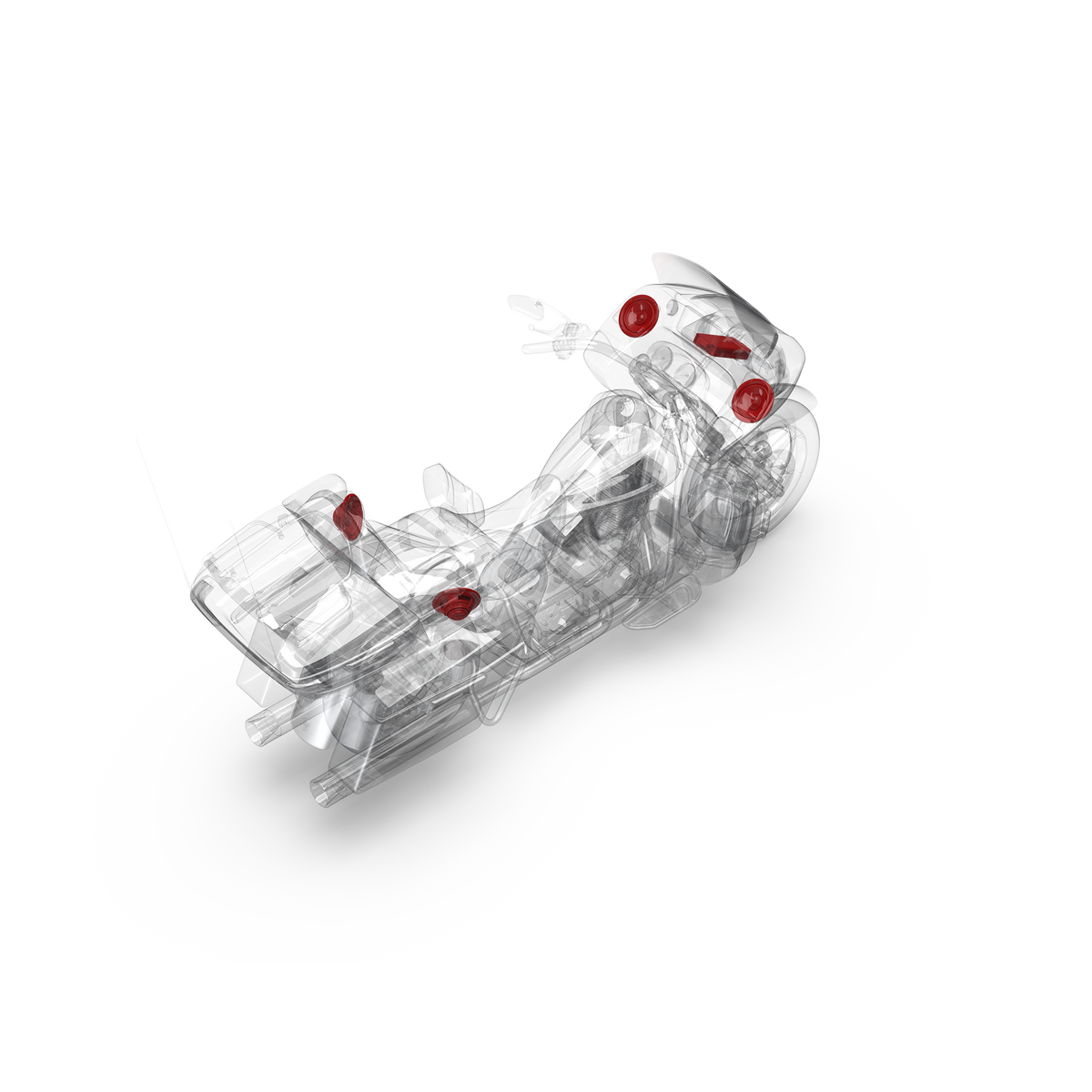

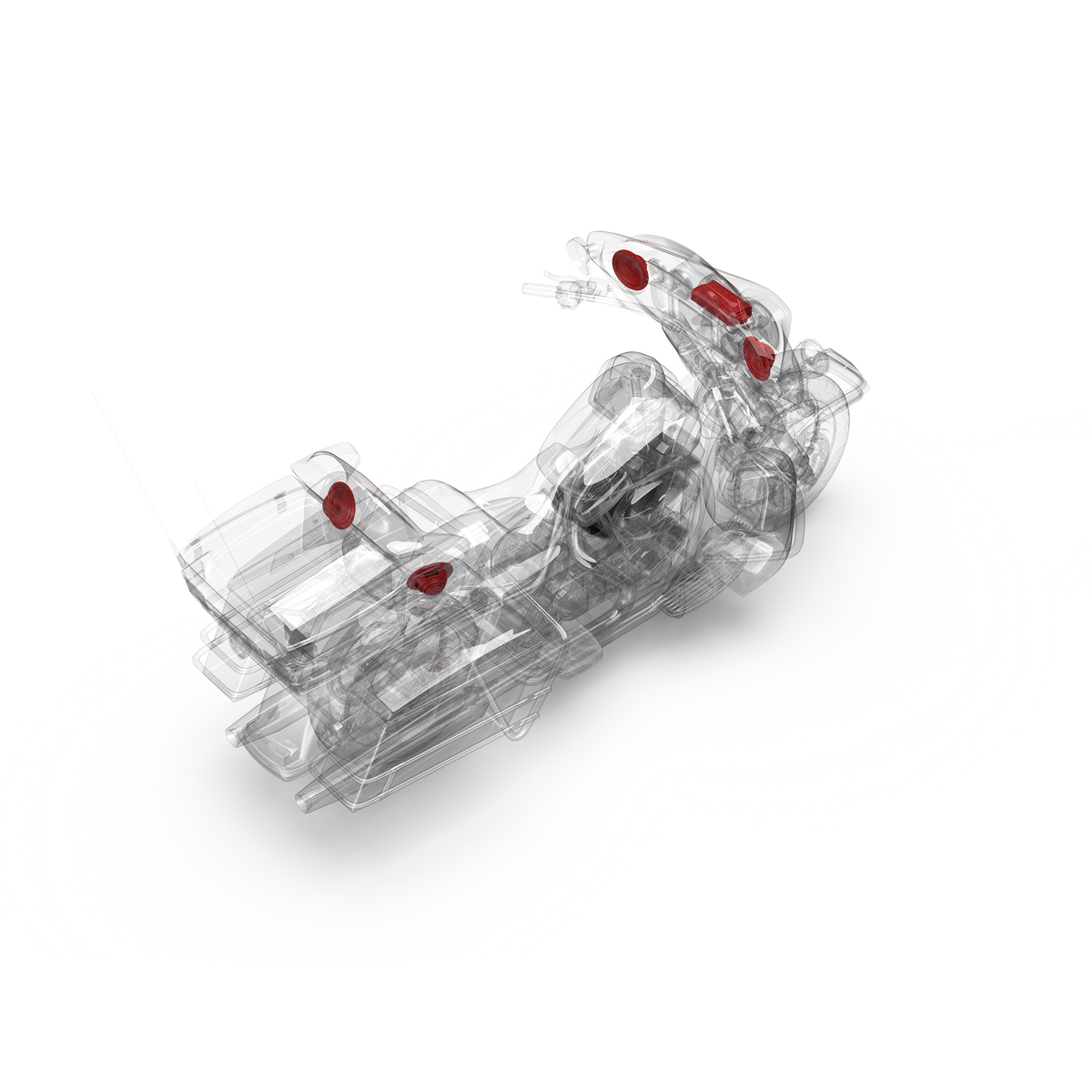

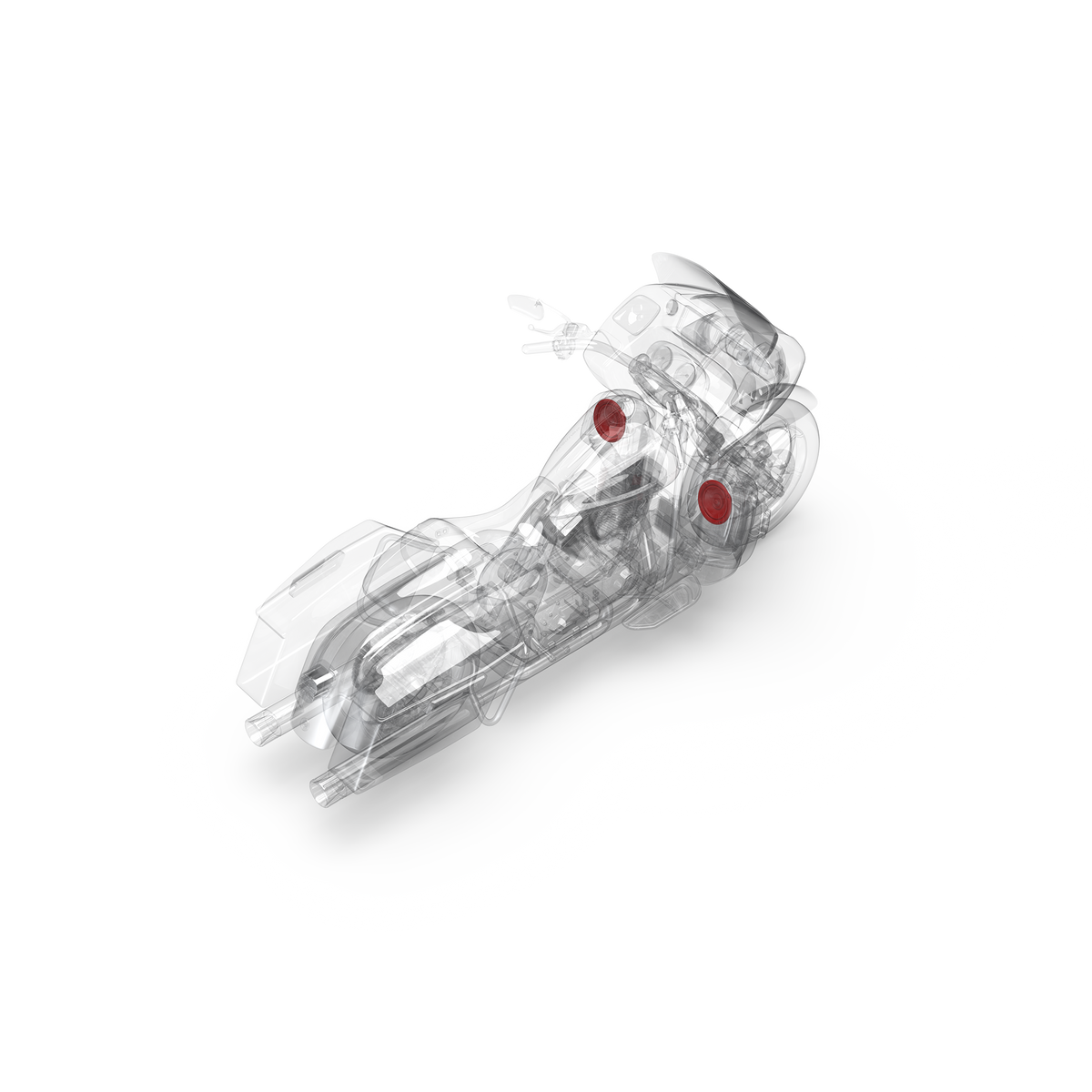

The TMS65 full range coaxial speaker is designed for direct fitment application in 2014 and newer Harley-Davidson® motorcycle in the upper fairing, lower fairing (non-cooled), and TourPak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with three grille assemblies for Sharknose, Batwing and TourPak installations.
Harley-Davidson® is a registered trademark of Harley-Davidson Motor Company
FEATURES AT A GLANCE
- Manufacturer warranty: 2 years
- Grilles for upper fairing, lower fairing (non cooled) and Tour-Pak® included
- High Power 35mm Voice Coil
- Santoprene front isolation spider
- Poly‐Cotton Spider
- Co‐Molded Cone and Surround
- Santoprene VAST Surround
- Carbon Fiber Reinforced Polypropylene Cone
- Ultra‐Efficient Neodymium Ring Magnet Motor
- Ultra-efficient 25mm proprietary film dome tweeter
- Integrated 6dB Crossover with High Power Polyester Capacitor
- Integrated Spade Terminals
- Ultra‐high temperature glass reinforced polymer frame
- Neodymium Tweeter with Integrated Phase Plug and ASA Grill
- Discreet (Hidden) Tweeter Wire
- Low Profile Coaxial Tweeter Design
- Element Ready design that is weather and water resistant
- Designed for 2014+ Harley-Davidson® Street Glide®/Road Glide® and Tour-Pak®
Specifications
| CEA-2031 Compliant |  |
|---|---|
| Midrange Size (Nominal Diameter) | 6.5" |
| Speaker Type | 2-Way Coaxial |
| Nominal Impedance (Ohms) | 4-Ohm |
| Voice Coil Diameter (in/mm) | 1.40" 35.56 mm |
| Power Handling (MAX) | 150 Watts MAX |
| Sensitivity (dB @ 2.83V/1M) | 94 dB |
| Sensitivity (dB @ 1W/1M) | 91 dB |
| Frequency Response (Hz) | 56 Hz - 20 kHz |
| Power Handling (RMS) | 75 Watts RMS |
| Crossover | Built-in tweeter crossover |
| Mounting Hardware | Yes |
| Grille/Trim Ring Included | Yes |

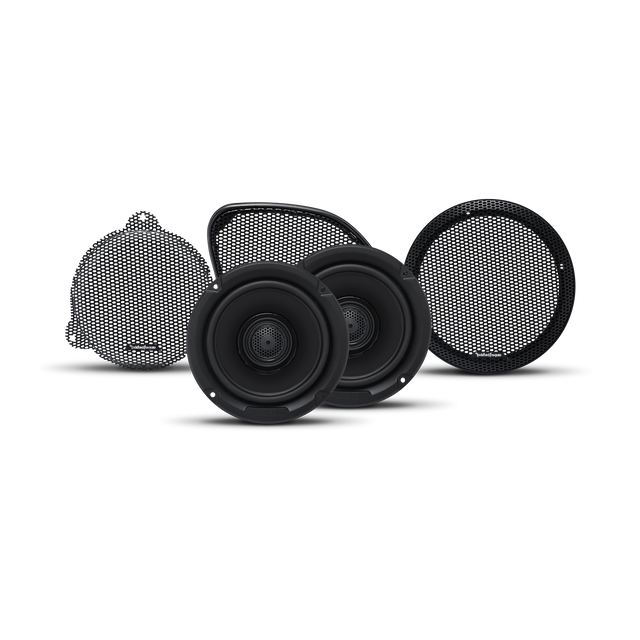

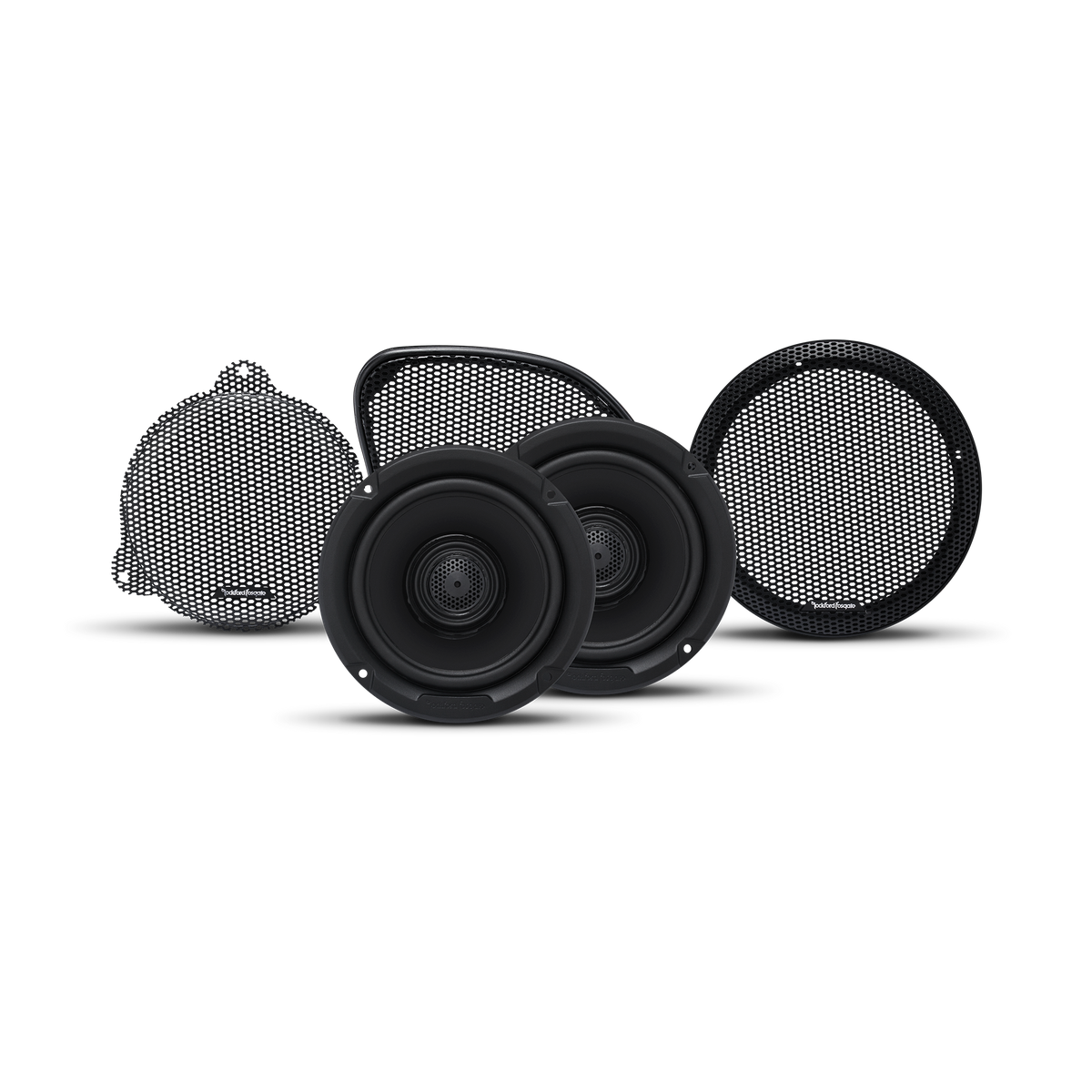

| Included In The Box | (2) Speakers (2) 2015+ Road Glide Grilles (2) 2014+ Street Glide Grilles (2) 2014+ Tour-Pak Grilles (1) Hardware Pack |
Compatibility
| YEAR | MAKE | MODEL |
|---|---|---|
| 2014-current | Harley Davidson® | Street Glide® 1,2 |
| 2015-current | Harley Davidson® | Road Glide® 1,2 |
1 Compatible with factory Boom! Audio & Boom! Audio Stage-1 systems (non-biamp speakers)
2 Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
