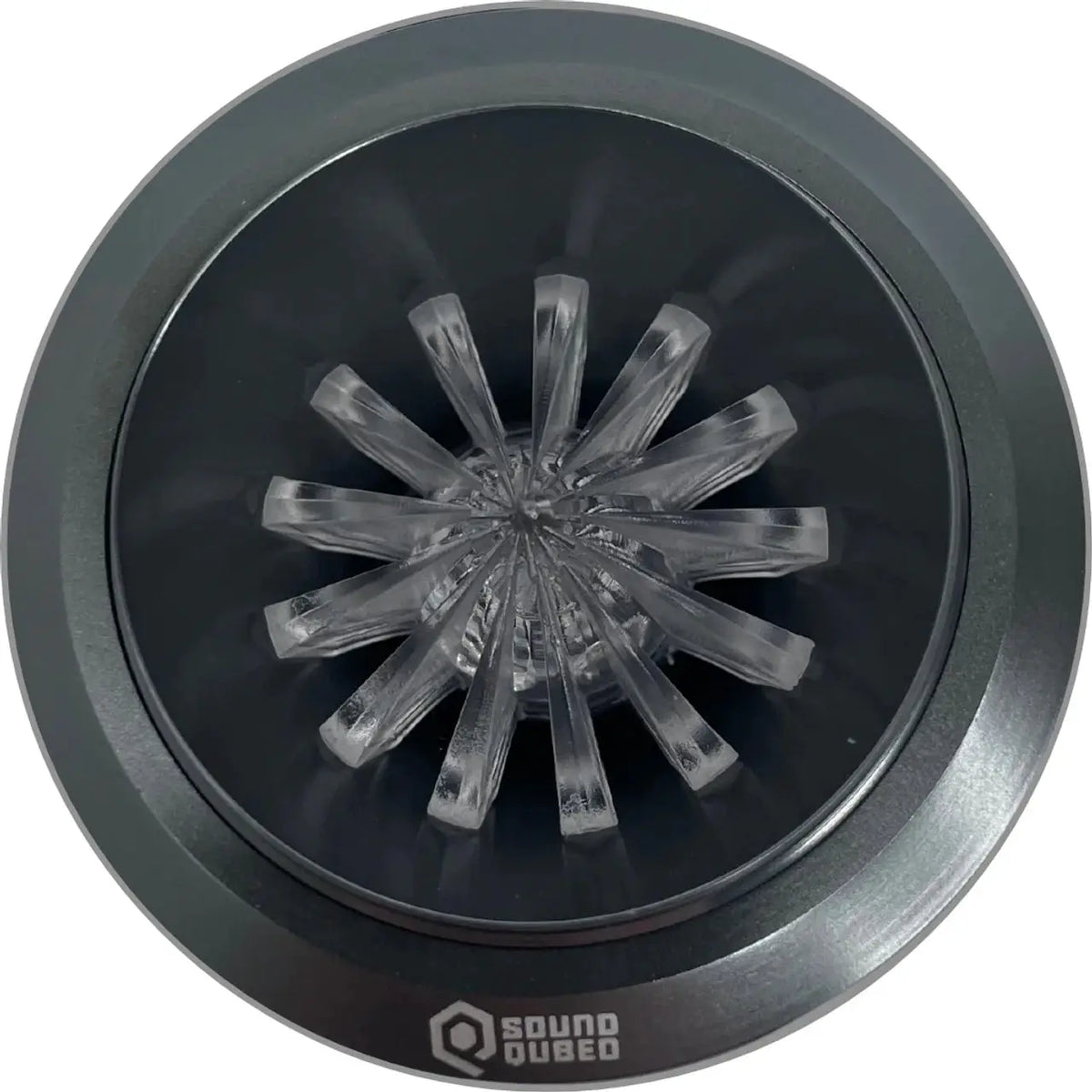

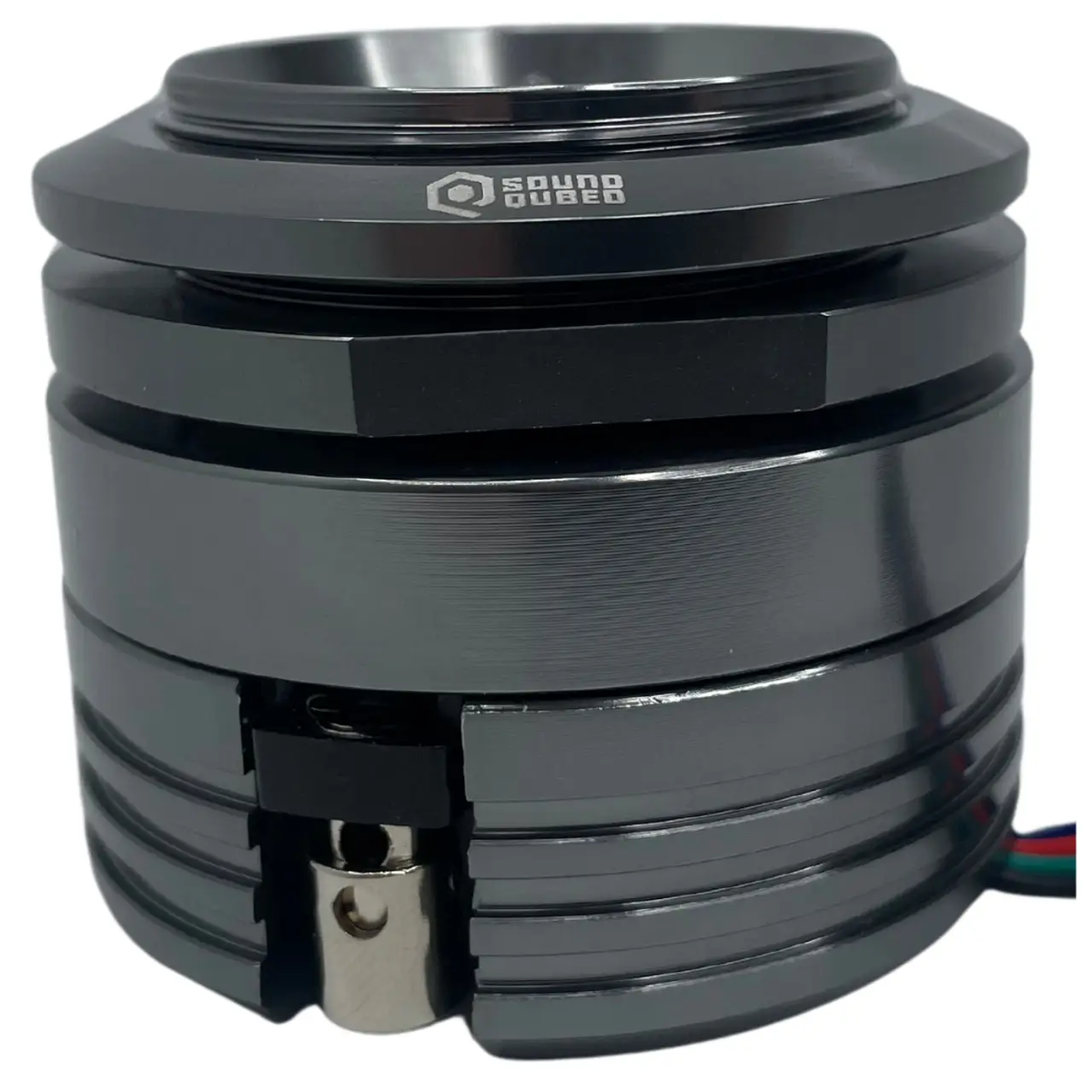

SoundQubed 1.6" HDX-PT2N Compression Neodymium Super Bullet Tweeter with RGB LED Light (each)
Key features
- Speaker size: 1.6″
- RMS power per speaker: 45 W
- Speaker impedance: 4.0 ohms
- Frequency response: 2–20 kHz
- Sensitivity (1 W / 1 m): 103 dB
- Diaphragm material: Polyether ether ketone (PEEK)
SoundQubed 1.6" HDX-PT2N Compression Neodymium Super Bullet Tweeter with RGB LED Light (each) is backordered and will ship as soon as it is back in stock.
SoundQubed 1.6" HDX-PT2N Compression Neodymium Super Bullet Tweeter with RGB LED Light (each) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add high-frequency output and RGB lighting to your car, bagger, or motorcycle audio system with the SoundQubed HDX-PT2N 1.6" compression super tweeter. Its PEEK diaphragm, 103 dB sensitivity, neodymium magnet, and built-in bass blocker bring a compact combination of treble performance and installation flexibility.
Key Features & Benefits
- PEEK diaphragm: The lightweight, stiff diaphragm is designed for crisp, detailed high-frequency reproduction.
- 103 dB sensitivity: High sensitivity provides strong output relative to input power.
- Built-in bass blocker: The 3.3μF filter provides passive high-pass filtering at approximately 3 kHz.
- RGB-lit bullet: The translucent ABS bullet adds customizable lighting, with an RGB wire and fast connector included.
- Adjustable mounting depth: The 32–45mm range helps with installation in locations where space is limited.
- Sold individually: Order two tweeters if you need a stereo pair.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Diameter | 1.6" / 42mm |
| Nominal Impedance | 4 Ohms |
| Continuous Power Handling | 30W |
| RMS Power Handling | 45W |
| MAX Power Handling | 90W |
| Sensitivity (1W/1m) | 103 dB |
| Frequency Response | 2 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 3 kHz |
| Sold In | Single |
Body and included components
| Specification | Value |
|---|---|
| Filter (Bass Blocker) | 3.3μF |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black |
| Bullet Material | Translucid ABS with RGB LED |
| Rubber Gaskets | Yes — 1x 5mm + 1x 1.9mm |
| Locknut Ring | Yes — 2x Aluminum 4.7mm |
| RGB Wire | Yes, with fast connector |
Motor specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1" / 25.4mm |
| VC Former Material | KSV |
| Winding Material | Aluminum Round Wire |
| Diaphragm Material | Polyether Ether Ketone (PEEK) |
| Magnet Material | Neodymium |
| Magnet Size | 0.96"x0.27"x0.27" / 24.5x7x7mm |
Measurements
| Dimension | Value |
|---|---|
| Overall Diameter | 2.28" / 58mm |
| Overall Depth | 1.93" / 49mm |
| Front Mount Baffle Cutout | 1.73" / 44mm |
| Mounting Depth (Adjustable) | 1.77"–1.26" / 45–32mm |
Why Choose This Product?
The PT2N combines a compact 1.6" compression design with 103 dB sensitivity and 45W RMS power handling. Its adjustable mounting depth can be useful when planning a tight fairing, A-pillar, or motorcycle audio installation. The aluminum body and included rubber gaskets and aluminum locknuts give you the specified mounting hardware for the installation.
Installation & Compatibility Notes
Plan for a 1.73" / 44mm baffle cutout and an adjustable mounting depth of 1.26"–1.77" / 32–45mm. Check the available space against the 2.28" / 58mm overall diameter and 1.93" / 49mm overall depth.
The built-in 3.3μF bass blocker provides passive high-pass filtering at approximately 3 kHz. For competition or high-output systems, the source recommends an active crossover or DSP set to a 3 kHz high-pass filter. The RGB LED is independent of the audio signal and needs a separate power connection; the included RGB wire has a fast connector.
The tweeter is rated at 45W RMS and 4 Ohms. Its 103 dB sensitivity may make its output louder than other system components, so account for level balance when planning your amplifier channels and system settings.
Frequently Asked Questions
Is the SoundQubed HDX-PT2N sold as a pair?
No. Each order is for one tweeter; order two for a stereo pair.
Does the PT2N need a separate crossover?
It has a built-in 3.3μF bass blocker for passive high-pass filtering at approximately 3 kHz. For competition or high-output builds, an active crossover or DSP set to a 3 kHz high-pass filter is recommended in the supplied installation guidance.
What space is needed to mount this tweeter?
Allow for a 1.73" / 44mm baffle cutout, 1.26"–1.77" / 32–45mm adjustable mounting depth, 2.28" / 58mm overall diameter, and 1.93" / 49mm overall depth.
How is the RGB LED connected?
The included RGB wire has a fast connector. The LED operates independently of the audio signal and needs a separate power connection.
What are the PT2N’s power and impedance ratings?
It is rated at 4 Ohms, 45W RMS, and 90W maximum power handling. The specification table also lists 30W continuous power handling.
