SoundQubed 3.8" HDS-PAT1 Q-Shaped Pro Audio Tweeter (pair)

Product Overview

Bring clear, high-output treble to your car audio system with the SoundQubed HDS-PAT1 3.8-inch pro audio compression tweeter. Its aluminum diaphragm, 103.5 dB sensitivity, and black machined faceplate with Q logo give this pair a distinctive look and a design made for high-frequency reproduction.

Key Features & Benefits

• Aluminum diaphragm: The rigid, low-mass diaphragm is designed for crisp, bright treble across the stated frequency range.
• 103.5 dB sensitivity: This high sensitivity means the tweeters can produce strong output with comparatively little amplifier power.
• 8 oz ferrite motor: The ferrite motor supplies magnetic force for the tweeter’s high-sensitivity design.
• CCAW voice coil on a Kapton former: This lightweight winding and former combination supports sustained high-power use.

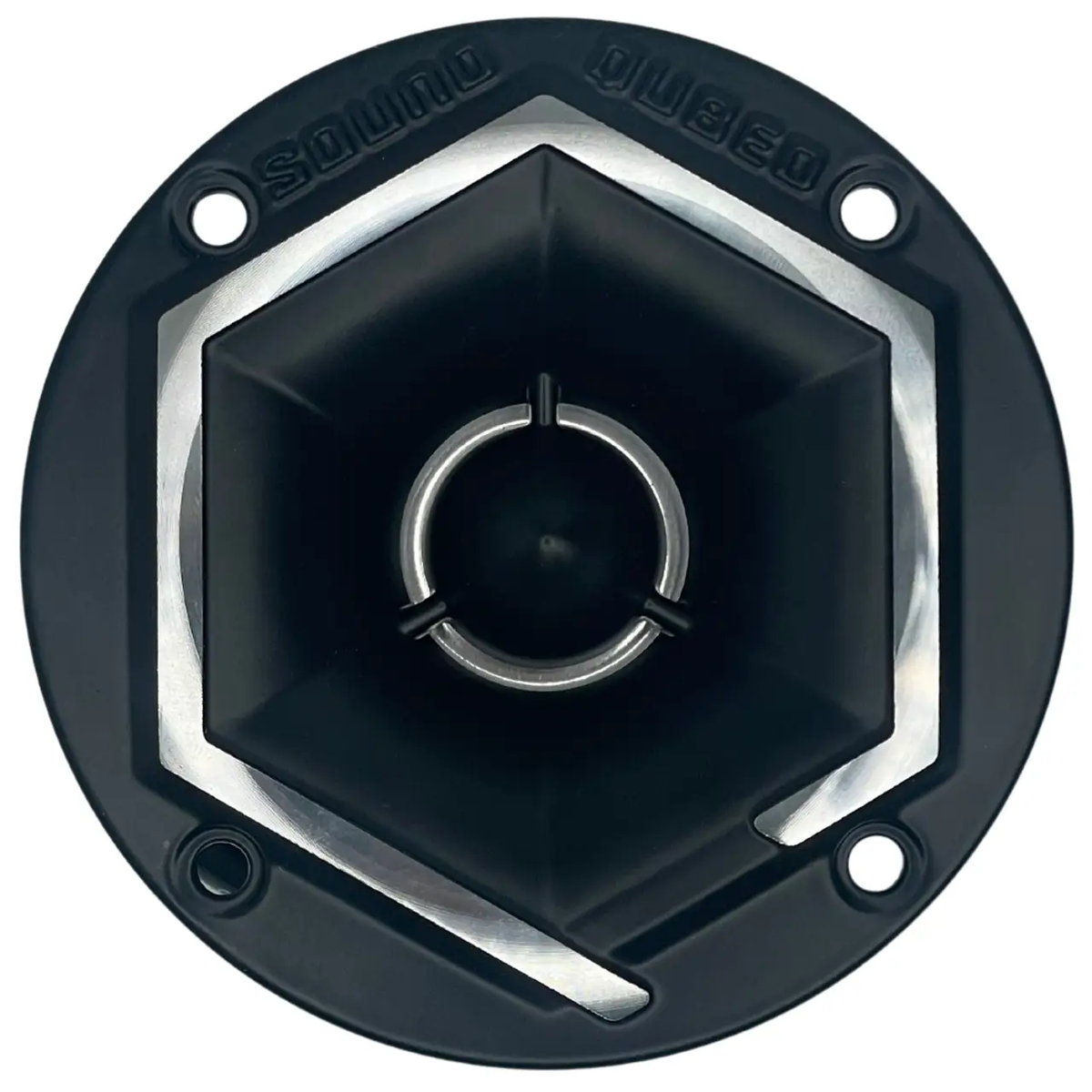

• Machined aluminum faceplate: The black and machined finish with Q logo adds a distinctive detail to your installation.
• Pair included: Two tweeters are supplied for a stereo installation.

Technical Specifications

Why Choose This Product?

The HDS-PAT1 is built for car audio setups that call for dedicated high-frequency output from a compression tweeter. Its stated 3.5 kHz–20 kHz response and 103.5 dB sensitivity suit systems where treble output needs to be considered alongside the levels of the other speakers.

For a two-way active front stage, the product details identify the SoundQubed PA6B-4 and PA65M-8 6.5-inch pro audio midranges as pairing options. The machined faceplate and Q logo also make the tweeter’s appearance part of the installation.

Installation & Compatibility Notes

The HDS-PAT1 has no built-in bass blocker. Use an active crossover or DSP with a 3.5 kHz high-pass filter, or a passive crossover set to 3.5 kHz. Do not run the tweeter full-range.

Its sensitivity is 103.5 dB, so its output may be significantly louder than that of many woofers at the same power level. The product guidance recommends a separate amplifier channel or level adjustment through a DSP or crossover. For the named two-way midrange pairing, set the midrange low-pass and tweeter high-pass at 3.5 kHz; use a DSP for level matching.

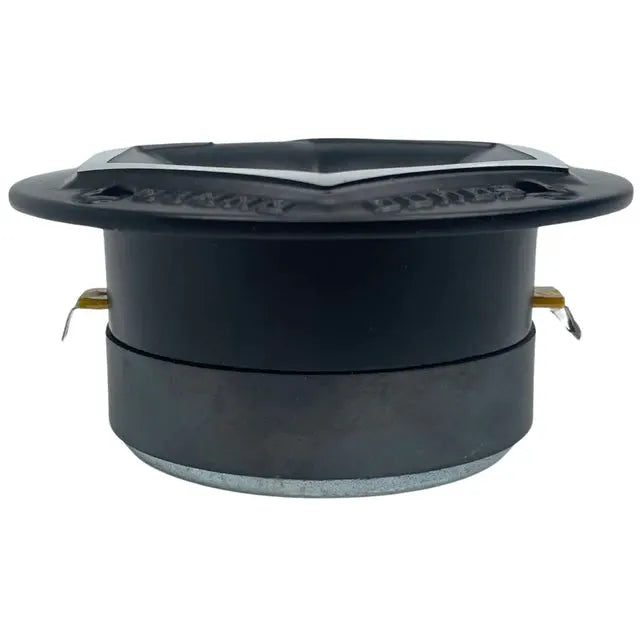

Allow for the 2.83-inch / 72mm front baffle cutout and 2.56-inch / 65mm mounting depth. Check the installation location for clearance, including the 2.78-inch / 70.5mm overall depth.

Frequently Asked Questions

Does the SoundQubed HDS-PAT1 include a crossover or bass blocker?

No. Use an active crossover, DSP, or passive crossover set to a 3.5 kHz high-pass frequency. Do not operate it full-range.

What do the AES, program, and peak power ratings mean?

The ratings are 60W AES, 120W program, and 240W peak. The product information describes AES as sustained power handling, program as music power handling, and peak as short-transient power handling. It recommends matching the amplifier to the AES or program rating for long-term use.

What mounting space does each tweeter need?

Allow for a 2.83-inch / 72mm front baffle cutout and 2.56-inch / 65mm mounting depth. Overall dimensions are 3.78 inches / 96mm in diameter and 2.78 inches / 70.5mm deep.

Which SoundQubed midranges are named as pairing options?

The product information names the PA6B-4 and PA65M-8 6.5-inch pro audio midranges. For a two-way active setup, it specifies a 3.5 kHz low-pass filter for the midrange and a 3.5 kHz high-pass filter for the tweeter.

Is the HDS-PAT1 sold individually?

No. The HDS-PAT1 is sold as a pair, with two tweeters included.
