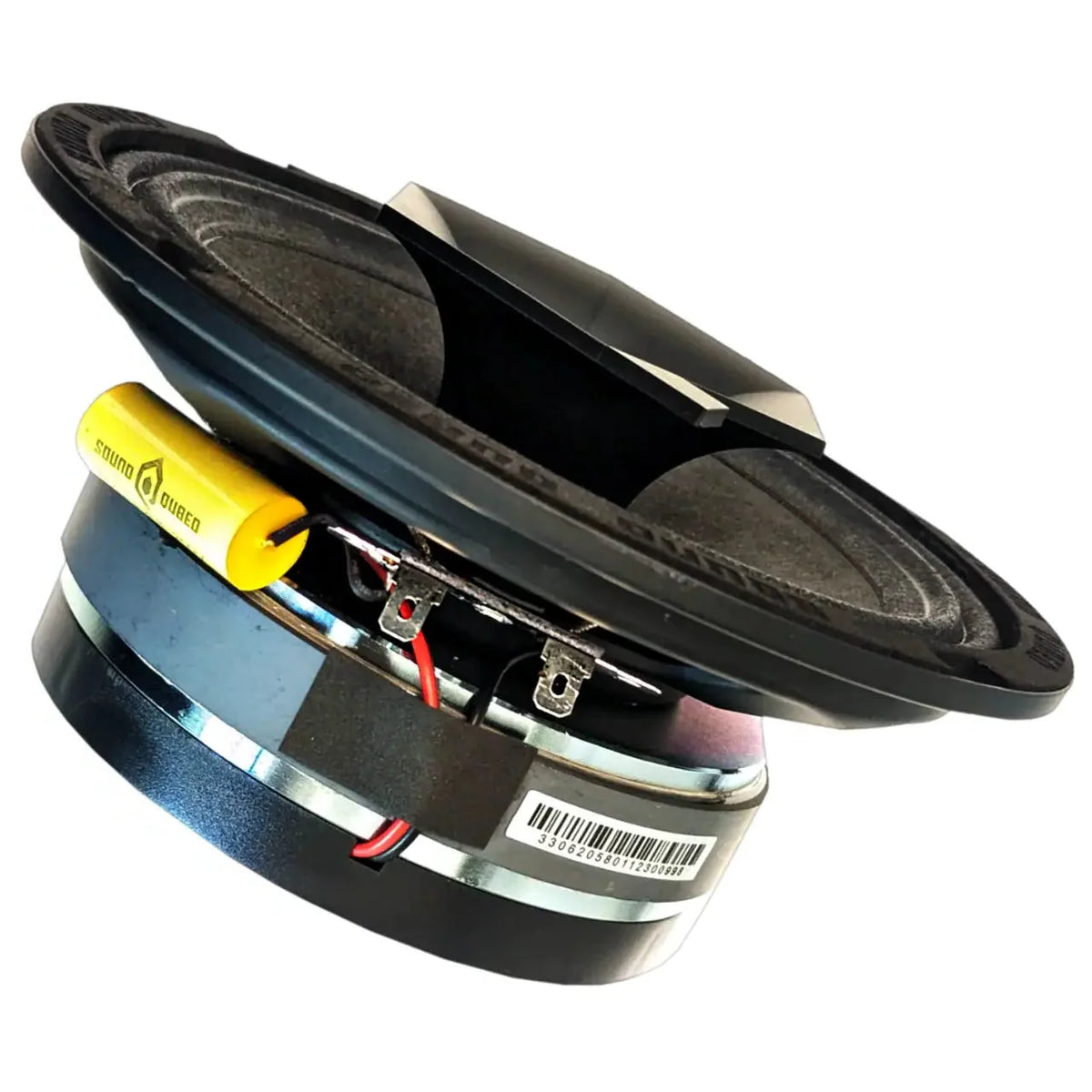

SoundQubed BGS-CX64SL Coaxial Slim Loudspeaker w/ 1" Compression Driver (each)
Key features
- Speaker size: 6.5″
- RMS power per speaker: 150 W
- Speaker impedance: 4.0 ohms
- Mounting depth: 3 in / 77 mm
- Frequency response: 120 Hz–20 kHz
- Sensitivity (1 W / 1 m): 97 dB
SoundQubed BGS-CX64SL Coaxial Slim Loudspeaker w/ 1" Compression Driver (each) is backordered and will ship as soon as it is back in stock.
SoundQubed BGS-CX64SL Coaxial Slim Loudspeaker w/ 1" Compression Driver (each) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

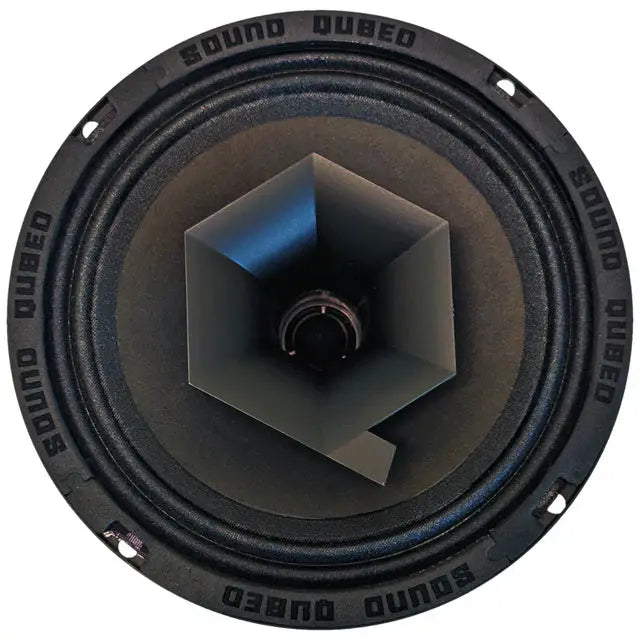

Get clear, high-output sound in a tight mounting space with the SoundQubed BGS-CX64SL 6.5-inch slim coaxial loudspeaker. Its integrated 1-inch titanium compression driver and shallow profile are designed for car, UTV, and motorcycle audio applications.
Key Features & Benefits
- Slim profile: The 3-inch mounting depth helps with installations where space behind the mounting surface is limited.
- Titanium compression driver: The integrated 1-inch driver handles high frequencies without a separate tweeter.
- High sensitivity: The 97 dB sensitivity rating supports strong output with modest amplification.
- Paper cone and cloth surround: These woofer materials shape the speaker’s midrange design.
- Spade terminals: The connection type supports a straightforward speaker hookup.

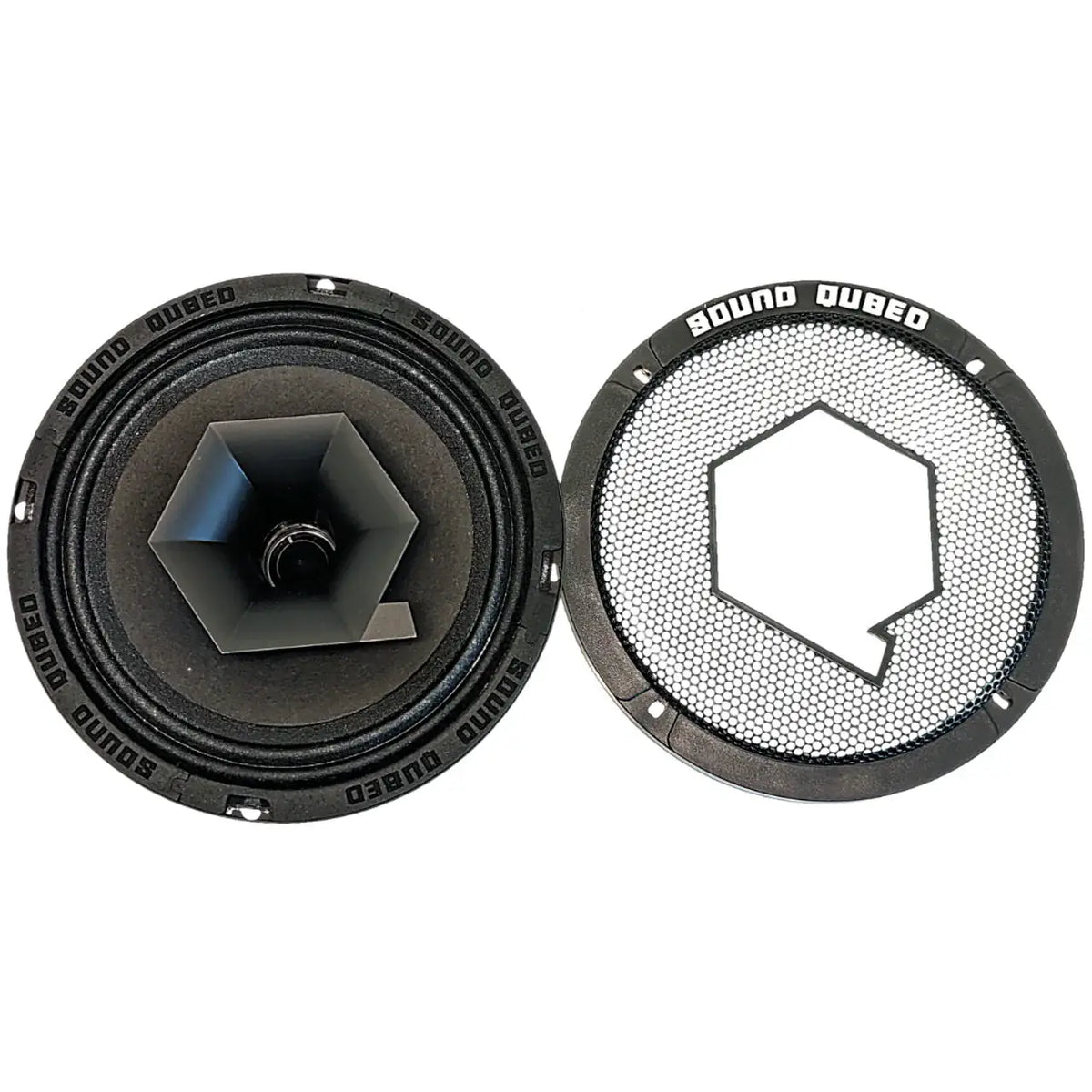

- Single speaker with grille: A grille is included; order two speakers for a stereo pair.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Response | 120 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 140 Hz |
| Number of Ways | 2-Way |
| Sold In | Single |
| Grill Included | Yes |
Woofer specifications
| Voice Coil Diameter | 1.5" / 38.6mm |
| VC Former Material | KSV |
| Winding Material | CCAW |
| Cone Material | Paper |
| Cone Shape | Curvilinear |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 19.5 oz |
| Speaker Terminals | Spade |
Thiele & Small parameters
| Equivalent Volume (Vas) | 3.424L |
| Excursion One Way (Xmax) | 6.5mm |
| Free Air Resonance (Fs) | 130 Hz |
| Mechanical Factor (Qms) | 5.378 |
| Electrical Factor (Qes) | 0.97 |
| Total Factor (Qts) | 0.822 |
| Mechanical Mass (Mms) | 7.9g |
| Mechanical Compliance (Cms) | 0.125mm/N |
| BL Factor (BL) | 4.96 |
| Voice Coil Inductance (Le) | 2.695mH |
| Cone Area (Sd) | 136.848cm² |
| DC Resistance (Re) | 3.2 Ohms |
| Mechanical Mass w/o Air (Mmd) | 6.965g |
Compression driver specifications
| Voice Coil Diameter | 1" / 25.4mm |
| VC Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Weight | 3" / 76.2mm |
Speaker measurements
| Overall Diameter (Without Grill) | 6.47" / 165mm |
| Overall Diameter (With Grill) | 7" / 178mm |
| Overall Depth (Without Grill) | 3.25" / 83mm |
| Overall Depth (With Grill) | 4" / 103mm |
| Front Mount Baffle Cutout | 5.57" / 142mm |
| Mounting Depth | 3" / 77mm |
| Motor Diameter | 4.3" / 110mm |
Why Choose This Product?
The BGS-CX64SL combines a slim 6.5-inch woofer with an integrated compression driver for installations that need both shallow mounting depth and a two-way speaker design. Its paper cone, cloth surround, and titanium diaphragm give you distinct component details to consider when choosing speakers for a compact vehicle audio setup.
Installation & Compatibility Notes
Measure the mounting location before purchase. The speaker requires a 5.57-inch / 142mm baffle cutout and 3 inches / 77mm of mounting depth. Allow for its larger overall diameter and depth when installing the grille: 7 inches / 178mm across and 4 inches / 103mm deep.
The speaker is rated at 150W RMS and 4 Ohms. The recommended high-pass crossover is 140 Hz. The supplied installation guidance names 75–150W RMS per channel at 4 Ohms as an amplifier pairing range, and identifies the SoundQubed S4-100 and Q4-150ABv2 as example models. Confirm your mounting location’s clearance and your amplifier’s requirements before installation.
Frequently Asked Questions
What distinguishes this from a standard 6.5-inch coaxial speaker?
Its 3-inch mounting depth and integrated 1-inch titanium compression driver make it a slim two-way option for tight mounting locations.
Can I use it in a motorcycle or UTV installation?
It is intended for car, UTV, and motorcycle audio applications. Check the mounting cutout and available depth at your specific location before buying.
What amplifier power and crossover settings are recommended?
The speaker handles 150W RMS at 4 Ohms, and its recommended high-pass crossover is 140 Hz. The supplied pairing guidance lists 75–150W RMS per channel at 4 Ohms.
Is the BGS-CX64SL sold as a pair?
No. It is sold as a single speaker. Order two for a stereo pair.
Is a grille included?
Yes, one grille is included with the speaker.
