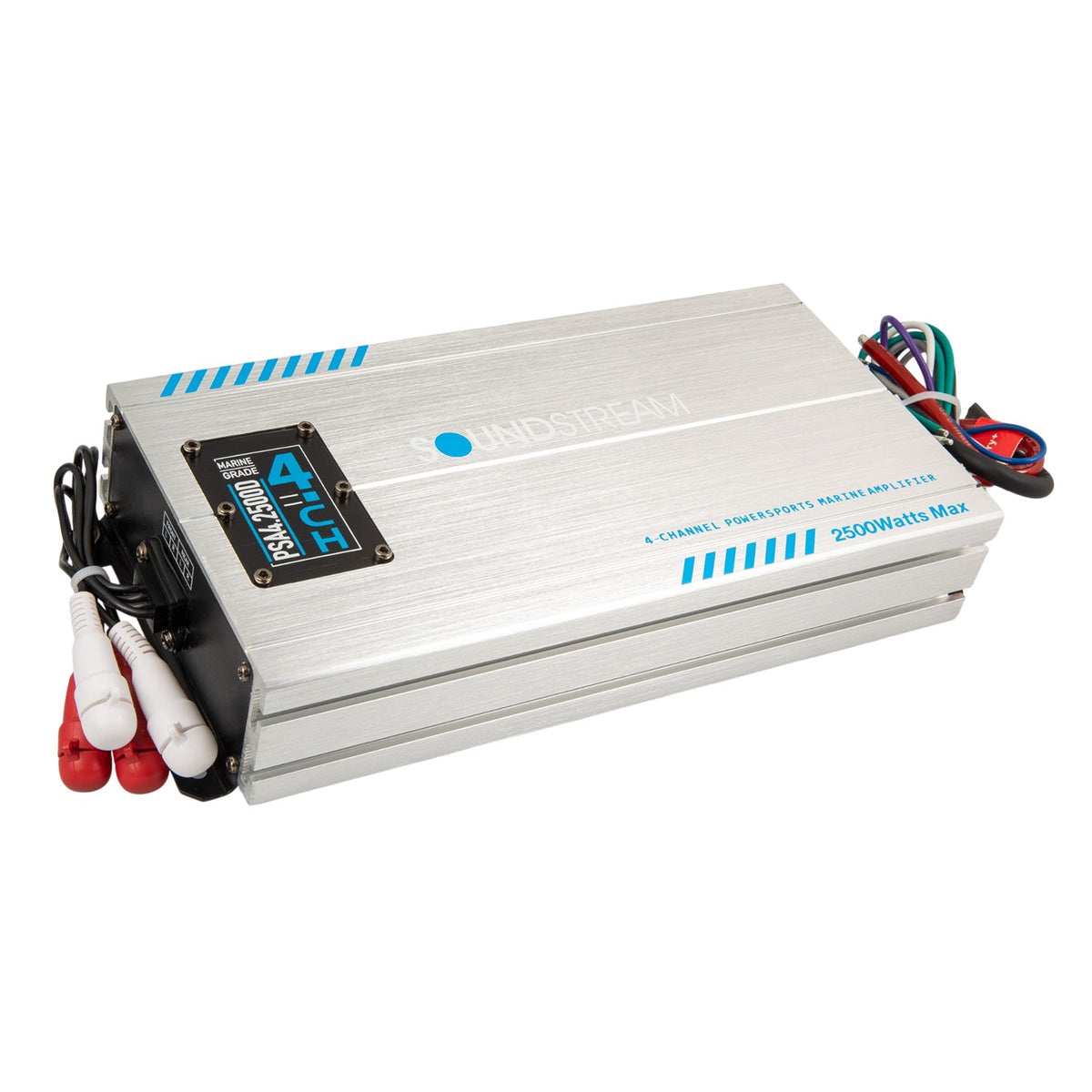

Soundstream PSA4-2500D Marine 4-Channel Amplifier

Product Overview

The Soundstream PSA4-2500D is a four-channel amplifier designed for marine, motorcycle and powersport audio installations. Its IP66-rated enclosure and built-in protection circuits address use in demanding environments, while adjustable filtering helps match the amplifier to the connected speakers or subwoofers.

Key Features & Benefits

• IP66-rated housing

Technical Specifications

• IP66-rated enclosure; not a submersion rating
• PWM MOSFET power supply
• Short-circuit, thermal and overload protection
• Full-range operation at 2-ohm stereo or 4-ohm bridged
• RMS at 4 ohms: 140W × 4
• Bridged RMS at 4 ohms: 400W × 2
• Low-level RCA input range: 200mV–8V
• 12dB high-pass and low-pass filters: 50–500Hz
• 8-gauge power/ground and 18-gauge speaker terminals
• Dimensions: 5.25 inches W × 2 inches H × 10.25 inches L

Why Choose This Product?

The PSA4.2500D is a starting point for a multi-channel speaker layout, where channel arrangement and output at the actual connected load matter more than a headline maximum-power number. Compare the ratings above with the continuous requirements of the speakers you plan to use. Keeping those decisions together helps avoid buying an amplifier that is powerful on paper but wrong for the installation. For this model, the listed feature set includes IP66-rated housing. Check how that feature fits your intended system rather than substituting specifications from a similar model.

Installation & Compatibility Notes

Match the amplifier to the final impedance of your wired speakers or subwoofers. Compare continuous RMS ratings at that load rather than treating maximum power as continuous output. Plan appropriate power wire, fusing, grounding and ventilation for the installation. Use installation methods appropriate for the manufacturer’s specified water resistance; water resistance does not make every wiring connection waterproof.

Design and installation details

The Soundstream PSA4-2500D is a four-channel amplifier designed for marine, motorcycle and powersport audio installations. Its IP66-rated enclosure and built-in protection circuits address use in demanding environments, while adjustable filtering helps match the amplifier to the connected speakers or subwoofers.

• IP66-rated enclosure; not a submersion rating
• PWM MOSFET power supply
• Short-circuit, thermal and overload protection
• Full-range operation at 2-ohm stereo or 4-ohm bridged
• RMS at 4 ohms: 140W × 4
• Bridged RMS at 4 ohms: 400W × 2
• Low-level RCA input range: 200mV–8V
• 12dB high-pass and low-pass filters: 50–500Hz
• 8-gauge power/ground and 18-gauge speaker terminals
• Dimensions: 5.25 inches W × 2 inches H × 10.25 inches L

Plan the power and ground paths, circuit protection and mounting location before connecting the amplifier. Leave the controls accessible, protect wiring where it passes through panels and allow ventilation around the chassis. Set input sensitivity to the source signal rather than treating the gain control as extra volume. For a marine installation, use suitable corrosion-resistant connections and protected mounting; a marine product label is not permission to submerge it.

Frequently Asked Questions

What continuous output is listed for the PSA4.2500D?

RMS at 4 ohms: 140W × 4. Match the connected load to the stated rating and distinguish continuous RMS output from maximum power.

What input feature is specified for the PSA4.2500D?

Low-level RCA input range: 200mV–8V. Confirm that the source’s connection type and signal level meet the requirements of this model before wiring it.

What filtering feature does the PSA4.2500D offer?

12dB high-pass and low-pass filters: 50–500Hz. Use that control as part of a complete crossover and gain setup for the connected equipment.

What environmental rating is listed for the PSA4.2500D?

The model lists an IP66-rated housing. Install it with protected connections and appropriate ventilation; do not treat that rating as permission for submersion.

How should I choose speakers for the PSA4.2500D?

Match the amplifier’s documented RMS rating and supported load to the combined speaker wiring. Do not assume a bridged or lower-impedance configuration is supported unless it is explicitly specified for this model.
