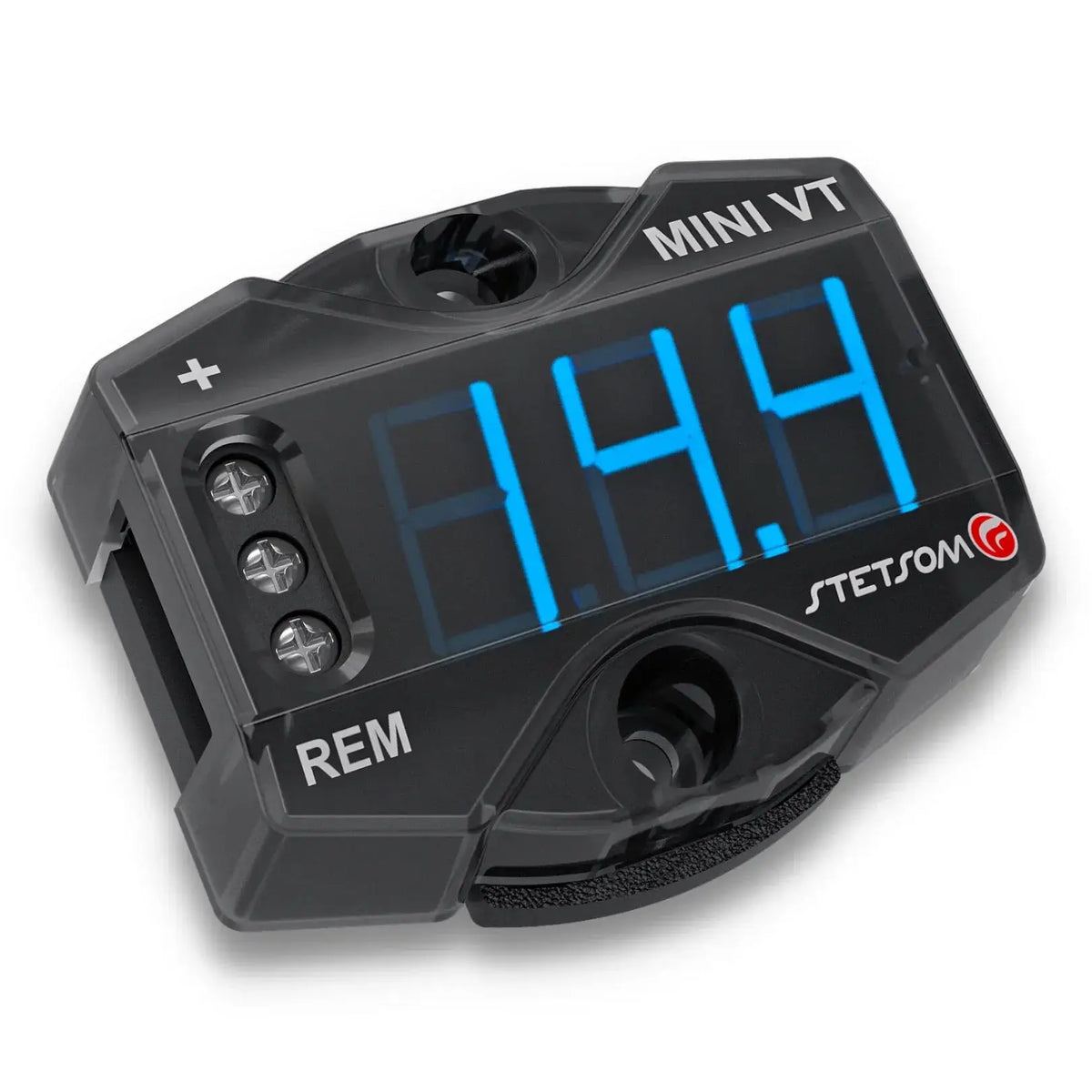

Stetsom MiniVT Digital Voltmeter Mini Automotive Battery VT Blue LED
Key features
- Display: blue LED voltage readout
- Power control: remote activation
- Current consumption: 15 mA
- Standby consumption: 0.2 mA
Stetsom MiniVT Digital Voltmeter Mini Automotive Battery VT Blue LED is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep an eye on battery voltage in your car audio system with the blue-LED Stetsom MiniVT Digital Voltmeter. This compact automotive voltmeter is available as a regular 7–30 V DC model or a High Voltage version rated up to 455 V.
Remote Power supports integration with a separate power circuit. For high-voltage systems with multiple batteries, the supplied guidance recommends individual monitoring for each battery.
Key Features & Benefits
- Two voltage options: Choose the regular 7–30 V DC version or the High Voltage variant, with a maximum scale voltage of 455 V.
- Blue LED: The blue readout is intended to remain legible in dark cockpit environments.
- Remote Power: A separate power circuit allows integration with your audio system.
- Low current draw: Both versions list 15 mA current consumption; the High Voltage model specifies 15 mA maximum.
- Compact regular model: Its 1.89 x 0.79 x 0.31-inch dimensions suit tight dash or panel spaces.
- Individual battery monitoring: The product guidance suggests monitoring each battery in high-voltage, multi-battery systems.
Technical Specifications
| Specification | Regular MINIVT | High Voltage MINIVT-HV |
|---|---|---|
| Voltage range | 7–30 V DC | |
| Scale voltage | 7–30 V DC | Up to 455 V (max) |
| Current consumption | 15 mA | 15 mA (max.) |
| Standby consumption | 0.2 mA | 0.2 mA |
| Dimensions | 1.89 x 0.79 x 0.31 inches | 2.1 x 1.8 x 0.31 inches |
| Weight | 0.03 lb (12.8 g) | 0.05 lb (24 g) |
| Remote Power | Provides power via a separate circuit | Provides power via a separate circuit |
| LED color | Blue | Blue |
Why Choose This Product?
The MiniVT gives you a dedicated voltage readout in a small format for automotive audio installations. Its regular and High Voltage versions cover different stated measurement ranges, so you can select the model that matches the voltage you need to monitor.
The High Voltage model has a larger footprint than the regular version. Both are lightweight, and both list 0.2 mA standby consumption.
Installation & Compatibility Notes
Check the selected model’s voltage range and dimensions against your installation location and system before purchase. The regular MINIVT measures 1.89 x 0.79 x 0.31 inches; the MINIVT-HV measures 2.1 x 1.8 x 0.31 inches.
Remote Power uses a separate circuit. Refer to the installation guide for product-specific installation information. In a high-voltage system with multiple batteries, the product guidance suggests monitoring each battery individually.
Frequently Asked Questions
What voltage does the regular Stetsom MiniVT measure?
The regular MINIVT has a voltage range and scale voltage of 7–30 V DC.
What is the maximum scale voltage of the MINIVT-HV?
The High Voltage version has a scale voltage of up to 455 V (max).
How much space does each version need?
The regular model measures 1.89 x 0.79 x 0.31 inches. The MINIVT-HV measures 2.1 x 1.8 x 0.31 inches.
Does the MiniVT use a separate power circuit?
Remote Power provides power via a separate circuit.
How should I monitor batteries in a high-voltage system?
The product guidance suggests individual monitoring per battery in high-voltage, multi-battery systems.
