Stetsom STX 2448 DSP Crossover & Equalizer 4 Channel Full Digital Signal Processor (Sequencer)
Key features
- Signal routing: 2 inputs and 4 independent outputs
- Input assignment: A, B or A+B selectable for each output
- Graphic equalizer: 15 bands
- Parametric equalization: 1 input EQ and 1 EQ per output
- Time alignment: adjustable delay from 0 to 8 ms
- Limiter: automatic attack and release control
Stetsom STX 2448 DSP Crossover & Equalizer 4 Channel Full Digital Signal Processor (Sequencer) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

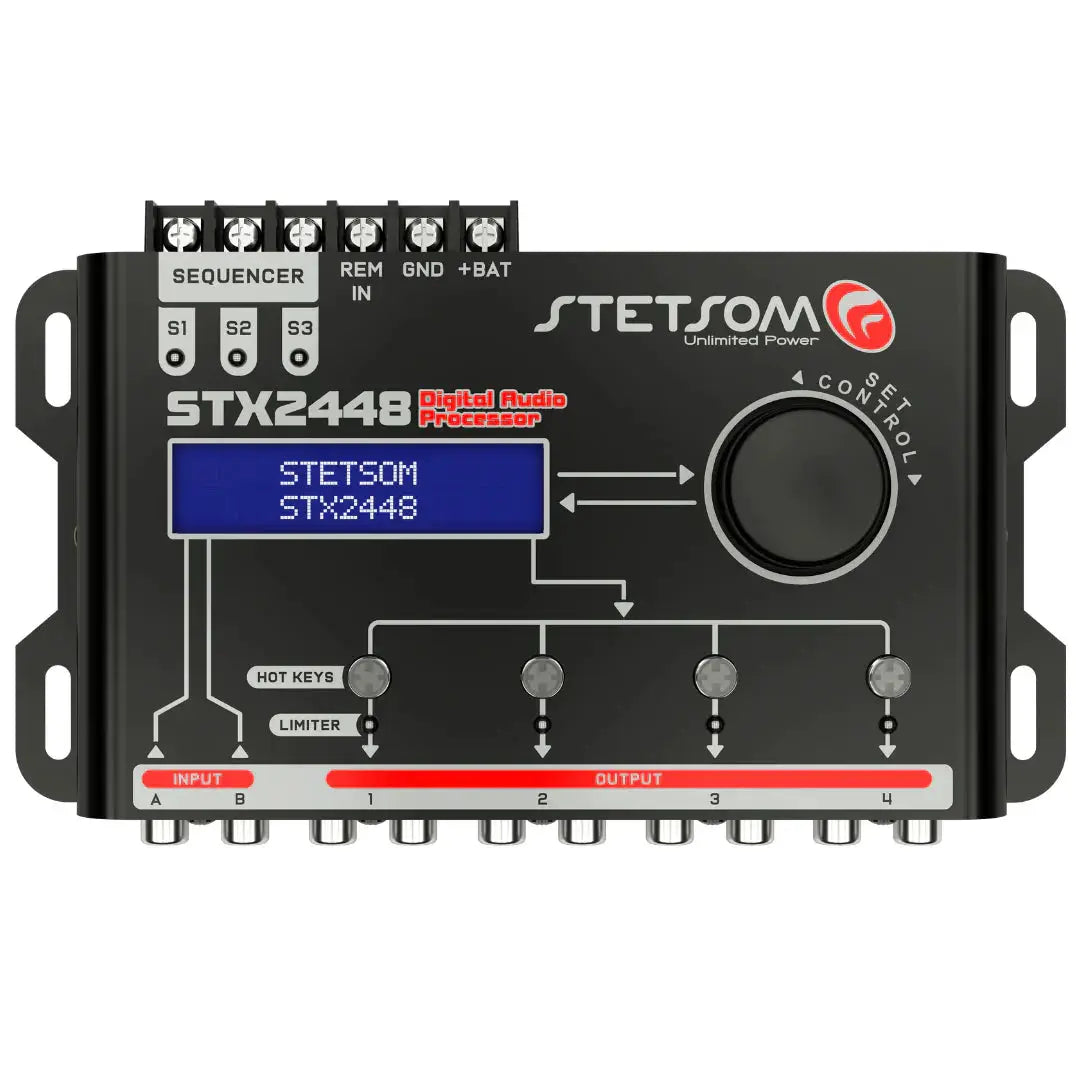

Fine-tune a multi-amplifier car audio system with the Stetsom STX 2448 DSP, a 2-input, 4-output digital signal processor. Its LCD controls, flexible crossover options, equalizers, limiter, and REM sequencer bring key tuning and system-control functions into one unit.
Use its four independent outputs to shape processed audio for multiple amplifiers or zones. The front-panel encoder and hotkeys let you adjust settings directly on the processor.
Key Features & Benefits
- Flexible equalization: A 15-band graphic EQ and input/output parametric EQs give you broad tonal shaping and frequency-specific adjustments.
- Selectable crossovers: Choose Butterworth or Linkwitz-Riley slopes to set frequency separation for your system.
- Output routing: Assign input A, B, or A+B to each output to suit your signal layout.
- Time alignment: Apply up to 8 ms of alignment to help coordinate speaker timing.
- Signal management: Configure the limiter’s threshold, attack, and release, and adjust master level and output gain.

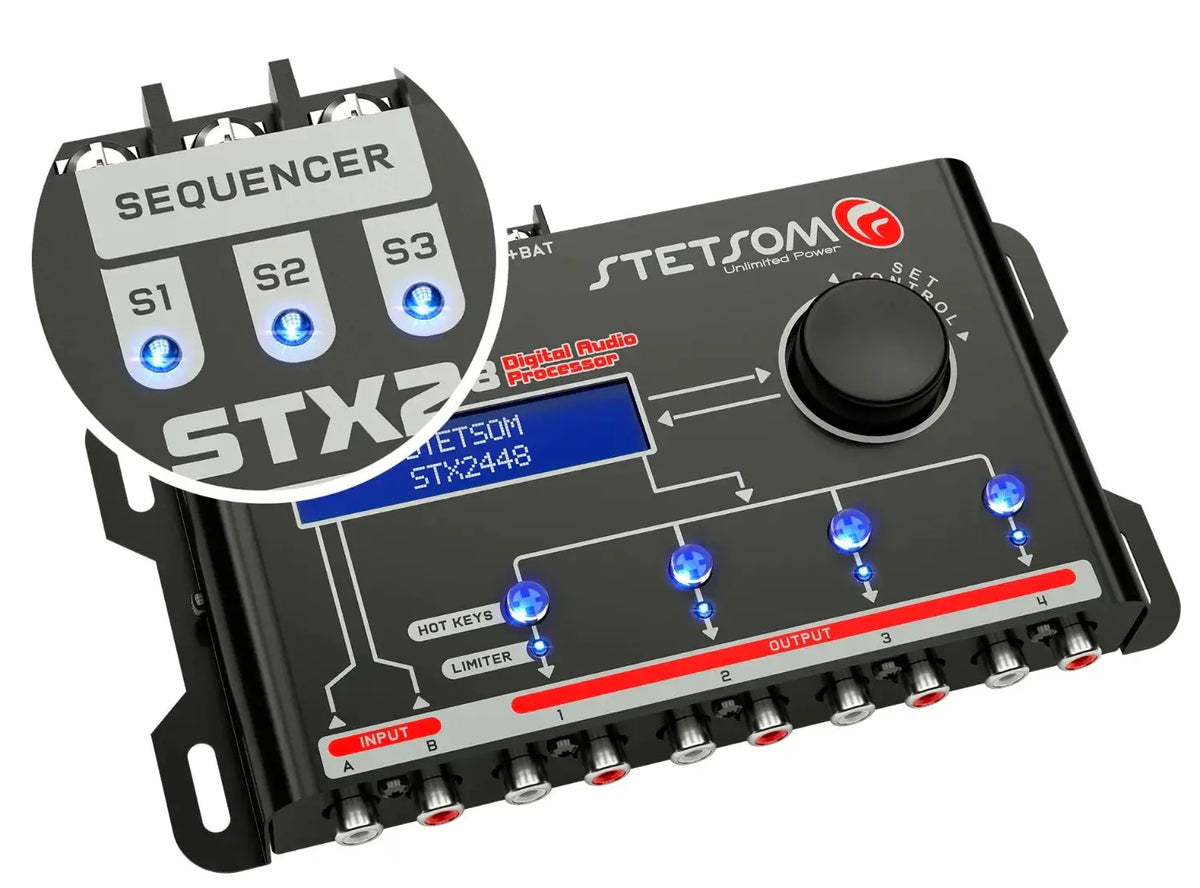

- System control: The REM sequencer can activate other devices, while saved settings and password protection help manage your configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Number of channels | 2 input / 4 output |
| Graphic equalizer | 15 bands; gain approx. 12 dB |
| Graphic equalization presets | 12 |
| Parametric equalizer | 1 input + 1 per output; gain approx. 12 dB; Factor Q 0.4 ~ 10.0 |
| Crossover | Variable frequency; Butterworth: 12/18/24/36/48 dB/8ª; Linkwitz-Riley: 12/18/24/36/48 dB/8ª |
| Routing between input and output | A, B or A+B |
| Alignment | 0 ~ 8 ms (275 cm) |
| Phase inversion | 0° ~ 180° |
| Limiter | Threshold: -24 ~ 0 dB; Attack: 0.1 ~ 100.0 ms; Release: 1 ~ 1600 ms (manual/automatic) |
| Master level and gain | 0 ~ 100%; Gain -45 ~ +15 dB per output |
| Memory positions | Save/Load Autosave + 5 slots |
| Security | Password with 4 digits |
| Frequency generator | 10 Hz ~ 22 kHz; Level -60 ~ 0 dB |
| Frequency sweep | Initial and final frequency 10 Hz ~ 22 kHz; Level -60 ~ 0 dB; Speed Control |
| Pink noise generator | 10 Hz ~ 22 kHz; Level -60 ~ 0 dB |
| Screensaver | Editable text with 15 characters |
| Languages | Portuguese, English and Spanish |
| Latency | 1.08 ms |
| Input impedance | 10 KΩ |
| Output impedance | 47 Ω |
| Maximum input and output voltage | 5.6 Vpp (+8.2 dBu) |
| Maximum output current, sequencer | 180 mA per output |
| Saturation indicator | 1 per input + 1 per output (linked to the limiter) |
| Signal-to-noise ratio | >90 dB |
| Total harmonic distortion (T.H.D) | <0.01% |
| Channel separation | >80 dB |
| Power supply | 9 V ~ 16 V DC |
| Maximum current consumption | 350 mA @ 12.6 V DC |
| Audio inputs | RCA connectors (A and B) with independent actuation |
| Audio outputs | RCA connectors delivering processed audio per settings |
| Power connections | Negative power connector (GND); positive connector (+BAT) |
| Recommended external fuse | 1 A |
| Display and controls | LCD display, encoder, hotkeys |
| REM sequencer operation | Sequencer enables activation of other devices via REM; REM IN auto-activates amplifiers with the head unit |
Why Choose This Product?
The STX 2448 combines signal routing, crossover setup, equalization, time alignment, and limiting in one processor. That range of controls is useful when you want to tailor separate outputs instead of relying on a single shared signal adjustment.
Its 12 graphic EQ presets offer starting curves for different listening targets, while the parametric controls allow more focused tuning. Save and load settings with Autosave and five slots for repeatable configurations.
Installation & Compatibility Notes
Plan for RCA connections from inputs A and B and RCA outputs to the rest of your signal chain. The processor requires a 9 V ~ 16 V DC supply, with GND and +BAT connections and a recommended external 1 A fuse.
REM IN auto-activates amplifiers with the head unit, and the sequencer provides up to 180 mA per output for activating other devices via REM. Confirm that your system’s connections, power supply, and REM requirements match these specifications before installation.
Frequently Asked Questions
How many inputs and outputs does the STX 2448 have?
It has two inputs, A and B, and four outputs. Each output can be routed from A, B, or A+B.
Which crossover types and slopes can I select?
It offers Butterworth and Linkwitz-Riley crossovers, each with 12/18/24/36/48 dB/8ª slopes.
What does the time-alignment range allow?
Alignment is adjustable from 0 ~ 8 ms (275 cm), allowing timing adjustments across the processor’s outputs.
What power supply does the processor require?
The specified supply range is 9 V ~ 16 V DC. The recommended external fuse is 1 A.
Can I save a tuned setup?
Yes. The processor has Save/Load Autosave + 5 slots and a four-digit security password.
Explore More
Shop the Stetsom STX 2448 at 12 Volt Outlet. Want to learn more about Stetsom? Explore our Stetsom brand profile.
| Number of Channels | 2 input / 4 output |
| Graphic Equalizer | 15 Bands (gain aprox. 12dB) |
| Graphic Equalization Presets | 12 |
| Parametric Equalizer | 1 input + 1 per Output (gain aprox. 12dB, Factor Q 0.4 ~ 10.0) |
| Crossover Variable Frequency | Butterworth: 12/18/24/36/48 dB/8ª - Linkwitz-Riley: 12/18/24/36/48 dB/8ª |
| Routing bet. Input and Output | A, B or A+B |
| Alignment | 0 ~ 8ms (275cm) |
| Phase Inversion | 0° ~ 180° |
| Limiter | Threshold: -24 ~ 0dB / Attack: 0.1 ~ 100.0ms and Release: 1 ~ 1600ms (manual/automatic) |
| Master Level and Gain | 0 ~ 100% (Gain -45 ~ +15dB per output) |
| Memory Positions Save/Load | Autosave + 5 slots |
| Secutiry | Password with 4 digits |
| Frequency Generator | 10Hz ~ 22kHz, Level -60 ~ 0dB |
| Frequency Sweep | Freq. initial and final 10Hz ~ 22kHz (Level -60 ~ 0dB and Speed Control) |
| Pink Noise Generator | 10Hz ~ 22kHz and Level -60 ~ 0dB |
| Screensaver | Editable text with 15 characters |
| Languages | Portuguese, English and Spanish |
| Latency | 1.08ms |
| Input Impedance | 10KΩ |
| Output Impedance | 47Ω |
| Max. Input and Output Voltage | 5.6 Vpp (+8.2 dBu) |
| Max. Output Current SEQUENCER | 180 mA per output |
| Saturation Indicator | 1 per input + 1 per output (linked to the Limiter) |
| Signal-to-noise ratio | >90dB |
| Total Harmonic Dist. (T.H.D) | <0.01% |
| Channel Separation | >80dB |
| Power supply | 9V ~ 16V DC |
| Max. Current Consumption | 350mA @ 12.6V DC |
