Steve Meade Designs | SKU:
SMD-5000.1D
Steve Meade Designs SMD-5000.1D 5000W RMS Monoblock Amplifier
Regular price
$1,299.95
Unit price
Shipping calculated at checkout.
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 2000.0 W
- RMS output at 2 ohms: 3500 W
- RMS output at 1 ohm: 5000 W
- Amplifier class: D
- RMS rating condition: 14.4 V
Steve Meade Designs SMD-5000.1D 5000W RMS Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Steve Meade Designs | SKU:
SMD-5000.1D
Regular price
$1,299.95
Unit price
Shipping calculated at checkout.
Steve Meade Designs SMD-5000.1D 5000W RMS Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description

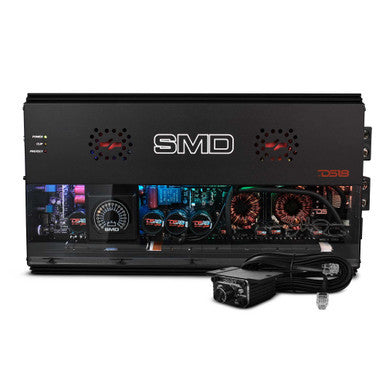

The SMD-5000.1D pairs a Class D subwoofer channel with an integrated SMD VM-1 voltmeter. Developed with DS18, its acrylic window, adjustable RGB lighting and twin fans suit an amplifier installation that is designed to be seen.
Power and installation
- RMS output at 14.4 V: 2000W at 4 ohms; 3500W at 2 ohms; 5000W at 1 ohm.
- Minimum load: 1 ohm.

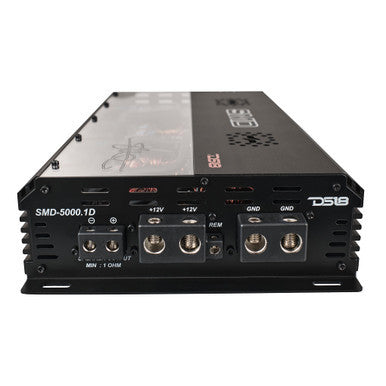

- 0 AWG power terminals; recommended external fuse 520A, not included.
- Overall dimensions (L x W x H): 462 x 232 x 76 mm.
Features and controls

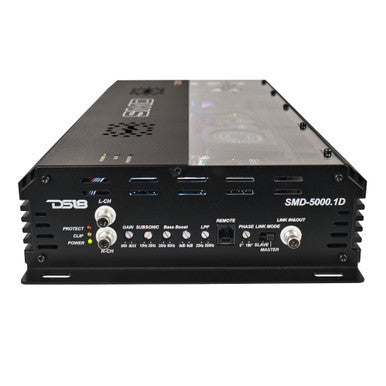

Tiffany RCA inputs, power/protection/clip indicators and a metal-case remote level control with clip indication. An IR remote controls the lighting. Low-pass adjustment: 35–250 Hz; infrasonic filter: 10–30 Hz.
