VIBE Audio FD-F150-10 10" Loaded Subwoofer Enclosure for Ford F-150 SuperCrew
Key features
- Vehicle fit: 2015–2025 Ford F-150 SuperCrew
- Mounting: under the rear cab seat; down-firing ported enclosure
- Included subwoofer: one 10-inch VIBE BlackAir BLACKAIR10D2S-V3
- Power handling: 300W RMS / 900W peak; dual 2-ohm voice coils
- Enclosure dimensions: 13.13 H × 35.125 W × 9.07 D inches
- Installation: passive enclosure requires an external amplifier; check vehicle-specific instructions
VIBE Audio FD-F150-10 10" Loaded Subwoofer Enclosure for Ford F-150 SuperCrew is backordered and will ship as soon as it is back in stock.
VIBE Audio FD-F150-10 10" Loaded Subwoofer Enclosure for Ford F-150 SuperCrew is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

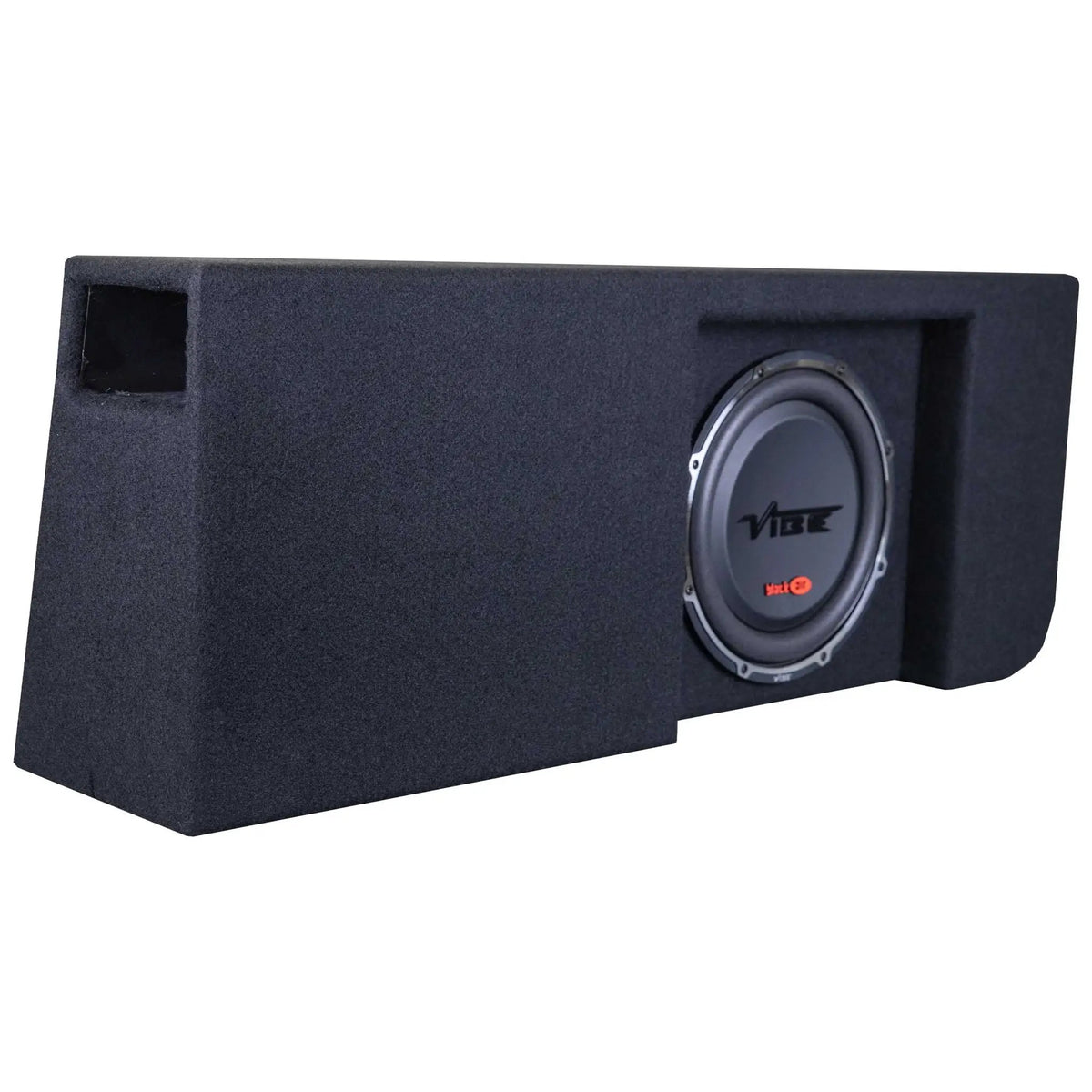

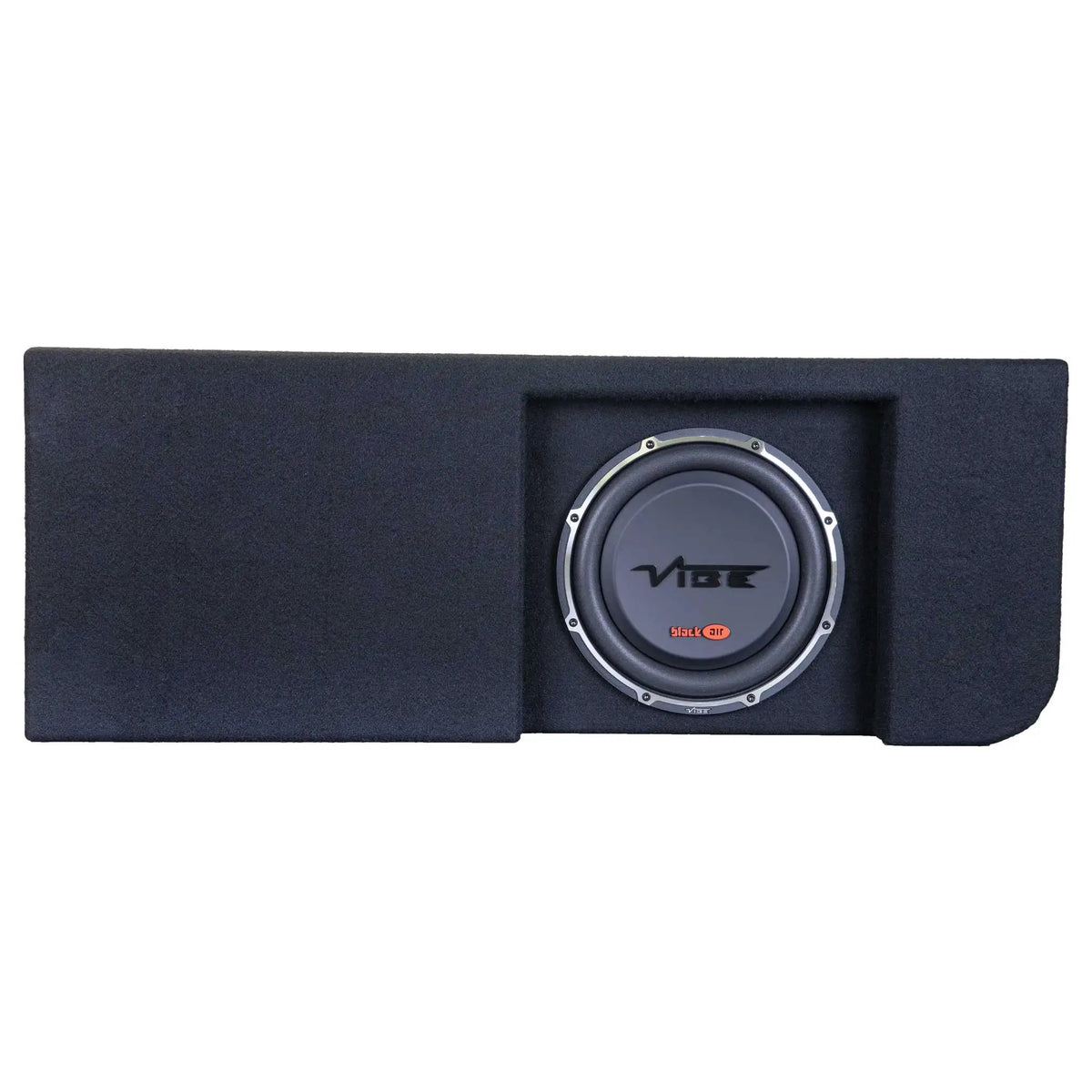

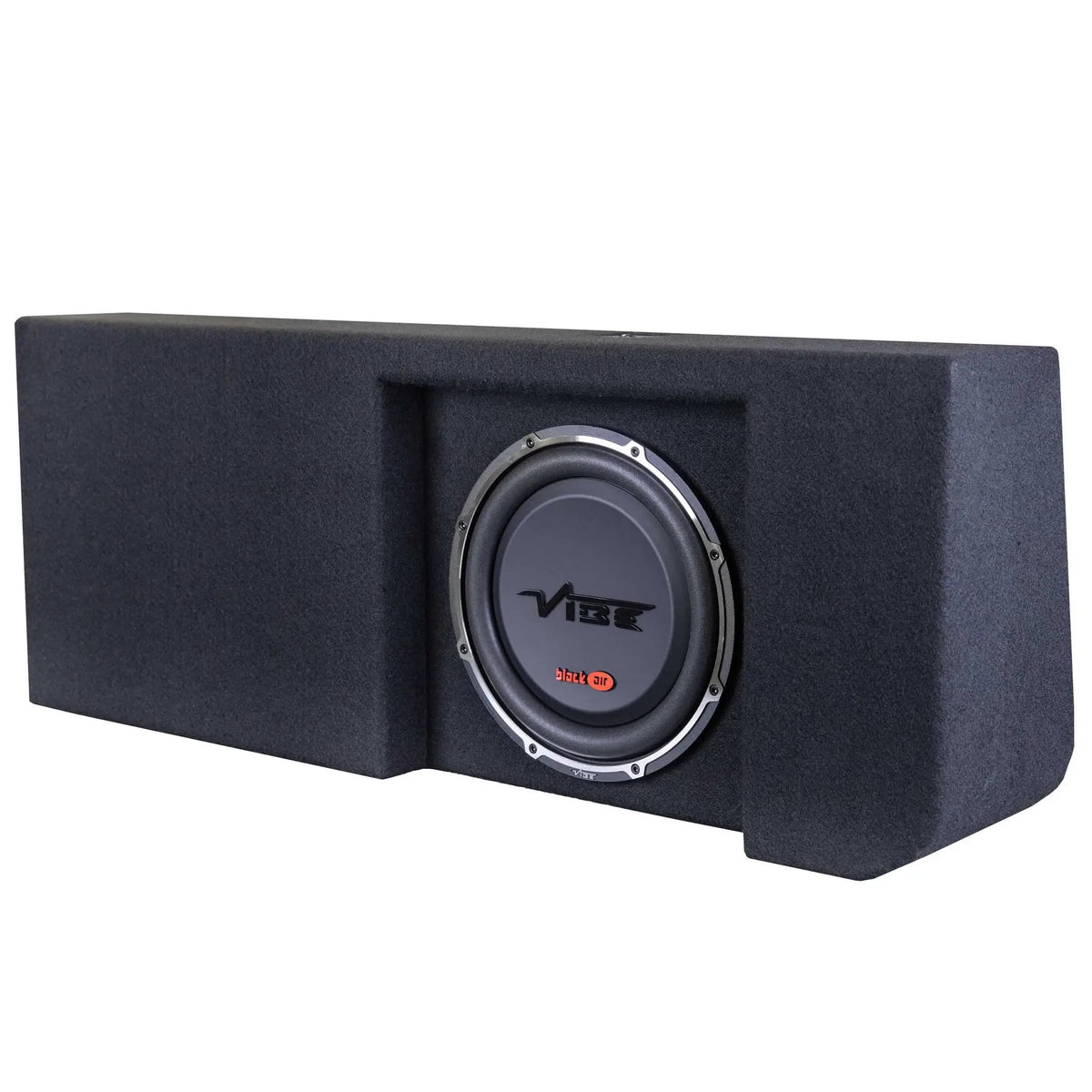

Add a 10-inch subwoofer beneath the rear cab seat of a Ford F-150 SuperCrew with the VIBE Audio FD-F150-10 loaded enclosure. Its down-firing, ported design is vehicle-specific for the listed truck fitment.
Key Features & Benefits
- Loaded enclosure: Includes one VIBE Audio BLACKAIR10D2S-V3 shallow-mount subwoofer.
- Down-firing layout: Positions the subwoofer beneath the rear cab seat.

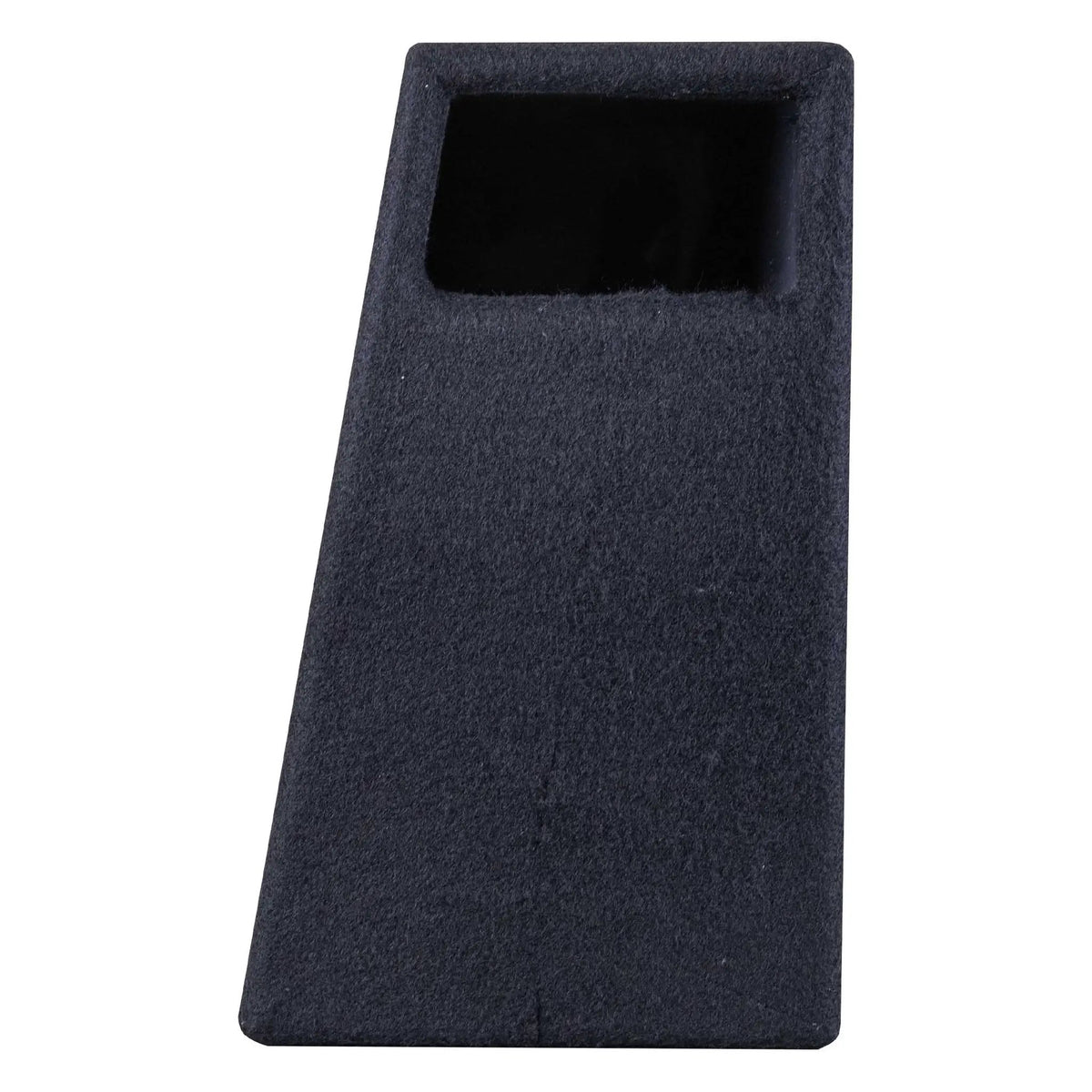

- Ported design: Uses a single-chamber enclosure tuned to 36 Hz.
- Shallow-mount driver: Provides a 10-inch subwoofer for this under-seat enclosure.
- Black carpet finish: Covers the MDF enclosure in a black carpet finish.
Technical Specifications
| Product model | FD-F150-10 |
|---|---|
| Subwoofer included | VIBE Audio BLACKAIR10D2S-V3, 10-inch shallow-mount subwoofer |
| Enclosure | Down-firing, ported, single-chamber |
| Power handling | 300W RMS / 900W peak |

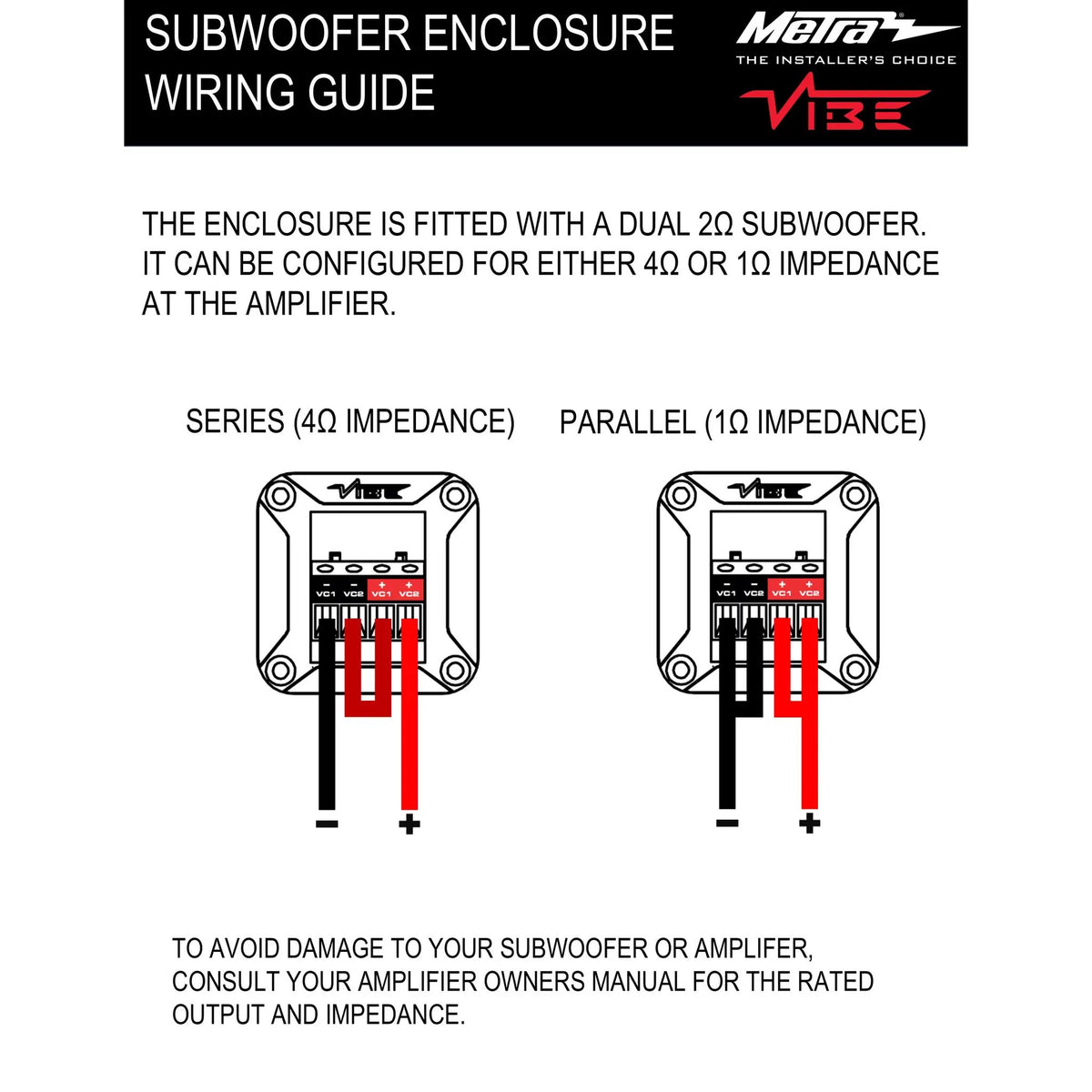

| Voice coils | Dual 2 ohms |
| Sensitivity | 85 dB |
| Finish | Black carpet |
| Construction | MDF |
| Published internal air space | 1.8 ft³ |
| External dimensions | 13.13 H × 35.125 W × 9.07 D inches |
| Port tuning | 36 Hz |
| Subwoofer frequency response | 30 Hz–1 kHz |
| Fitment | 2015–2025 Ford F-150 SuperCrew |
| Manufacturer-listed warranty | One-year limited warranty |
The published internal air-space figure is reproduced as stated by Metra; it is not described here as net volume.
Why Choose This Product?
The FD-F150-10 combines the subwoofer and enclosure in one vehicle-specific package. Its under-seat, down-firing layout is intended for Ford F-150 SuperCrew installations, rather than a universal enclosure placement.
The enclosure is passive, so you can plan your system around a separately selected amplifier and suitable installation wiring.
Installation & Compatibility Notes
Fitment is listed for 2015–2025 Ford F-150 SuperCrew models, with mounting beneath the rear cab seat. Before ordering, confirm your exact model year, body style, factory audio system, available clearance, and installation requirements using Metra’s current vehicle fit guide and the Installation Instructions.
An external amplifier and suitable installation wiring are required. Check the Product Information Sheet and Installation Instructions for product and fitting details.
Frequently Asked Questions
Which vehicles is the FD-F150-10 listed for?
It is listed for 2015–2025 Ford F-150 SuperCrew models and mounts beneath the rear cab seat. Confirm your vehicle’s exact configuration before ordering.
Does the enclosure include an amplifier?
No. This is a loaded passive enclosure, and an external amplifier and suitable installation wiring are required.
What subwoofer comes with the enclosure?
It includes one VIBE Audio BLACKAIR10D2S-V3 10-inch shallow-mount subwoofer.
What are the enclosure dimensions?
External dimensions are 13.13 H × 35.125 W × 9.07 D inches. Check available space beneath your rear cab seat before fitting.
