Metra SoundStage / VIBE Audio FD-PPKT-1 Ford F-150 SuperCrew Audio Kit (2015–2025, 2015–2017 factory-amplified or 2015–2025 non-amplified)
Key features
- F-150 SuperCrew: amplified 2015–2017; non-amp page 2015–2025, guide ends 2024
- Two PB100.4M-V0 four-channel amplifiers with pre-tuned Axxess DSP
- Six cabin speakers: 1-inch tweeters, 6×9-inch fronts and 6.5-inch rears
- FD-F150-10 10-inch subwoofer in a down-firing ported enclosure; series wiring shown in kit guide yields 4 ohms
- Vehicle-specific harnesses, adapters, amp rack and OFC installation wiring
- Non-amplified 2021–2025 trucks require the AXDSPX firmware update in Metra’s instructions
Metra SoundStage / VIBE Audio FD-PPKT-1 Ford F-150 SuperCrew Audio Kit (2015–2025, 2015–2017 factory-amplified or 2015–2025 non-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio FD-PPKT-1 Ford F-150 SuperCrew Audio Kit (2015–2025, 2015–2017 factory-amplified or 2015–2025 non-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Upgrade the dash, doors and bass in a Ford F-150 SuperCrew with the Metra SoundStage / VIBE Audio FD-PPKT-1 complete audio kit. It combines two four-channel amplifiers, a pre-tuned Axxess DSP, six cabin speakers and a 10-inch subwoofer in a vehicle-specific package.
The kit includes the integration parts, wiring and mounting rack for the listed applications. Its subwoofer sits in a down-firing ported enclosure.
Key Features & Benefits
- Complete speaker layout: Separate dash tweeters, 6-by-9-inch front speakers and 6.5-inch rear speakers address each listed cabin position.
- Amplification and tuning: Two PB100.4M-V0 amplifiers and a pre-tuned Axxess DSP are supplied together.
- Dedicated bass package: The FD-F150-10 pairs a 10-inch subwoofer with a down-firing ported enclosure.
- Vehicle-specific integration: Harnesses, adapters, an amp rack and installation wiring are included for the listed application.
- Planned as one system: Metra specifies that the package is not designed to be split into separately installed products.
Technical Specifications

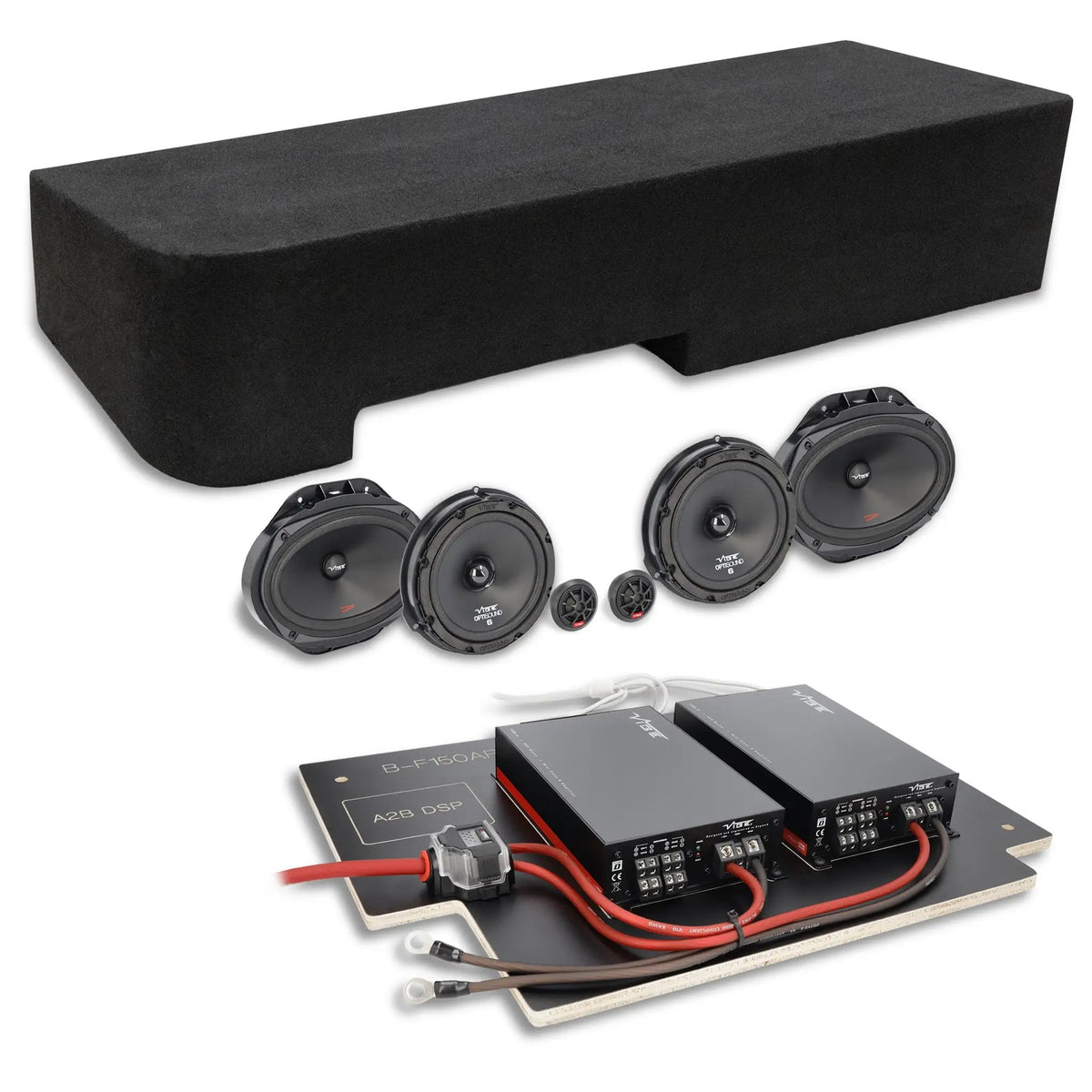

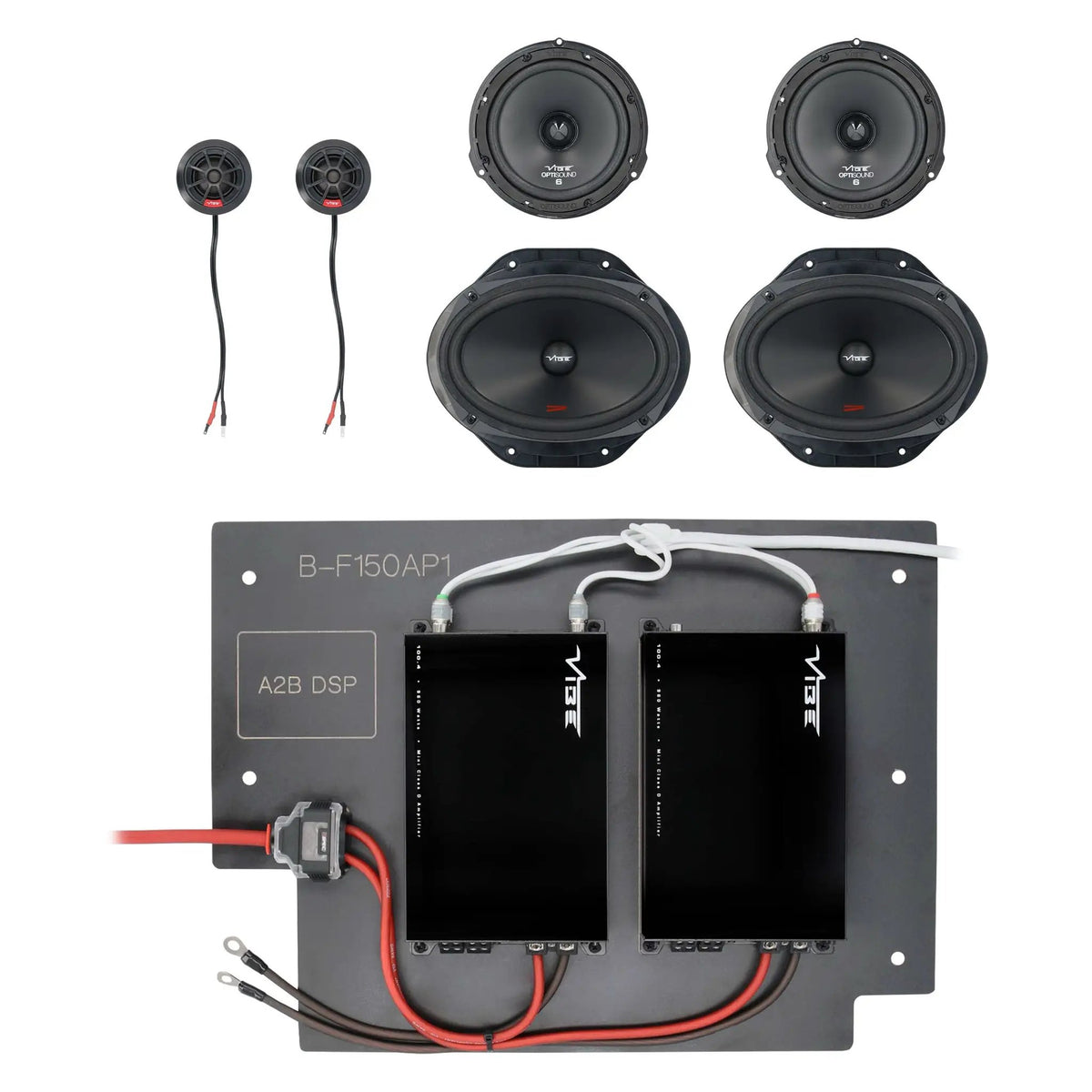

Included components
- Two 400-watt, 4-channel 100x4 amplifiers
- Two 1-inch front dash tweeters
- Two 6-by-9-inch front door speakers
- Two 6.5-inch rear door speakers
- One 10-inch subwoofer with down-firing ported subwoofer enclosure

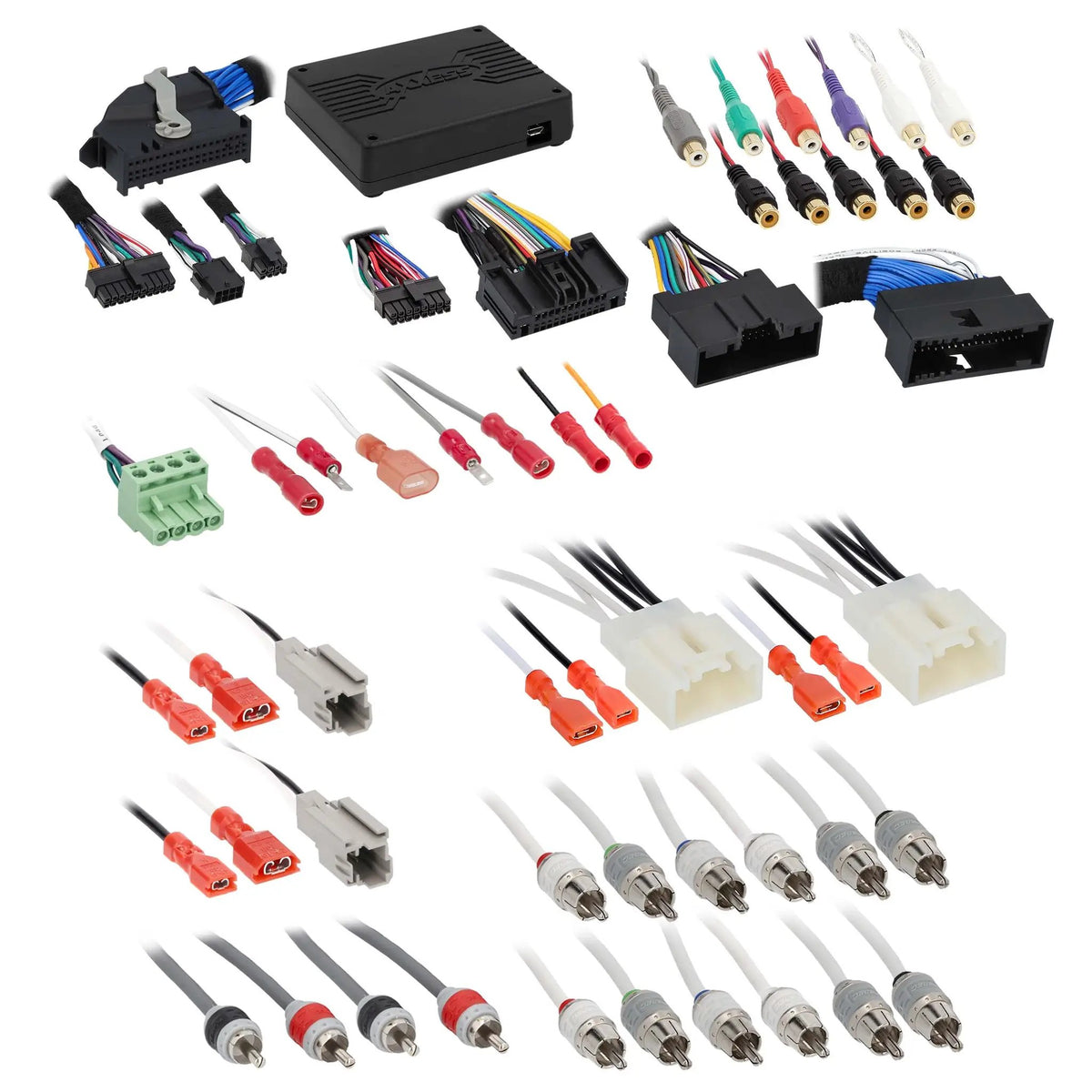

- Pre-tuned Axxess DSP
- T-Spec RCA cables: 6-channel and 2-channel
- Application-matched amplifier mounting rack
- Step-by-step installation documentation
The complete system is supplied through package part numbers BLK-FD-PPKT-1A, for vehicle-specific integration and installation parts, and FD-F150-10, for the 10-inch subwoofer enclosure.

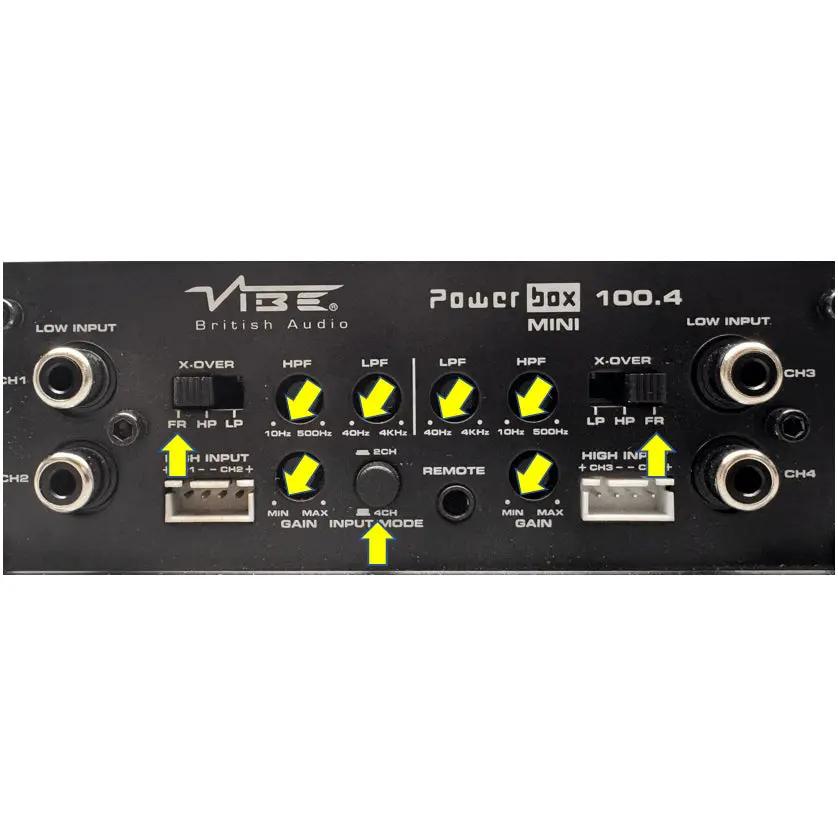

PB100.4M-V0 amplifiers
| Quantity | Two |
| Maximum power rating | 960W each |
| Output at 2 ohms | 120W x 4; rating type not specified as RMS |
| Output at 4 ohms | 100W x 4; rating type not specified as RMS |
| Output at 4 ohms bridged | 240W x 2; rating type not specified as RMS |
| Published combined maximum amplifier rating | Up to 1,920 W; not an RMS system rating |
| Chassis dimensions (H × W × D) | 1.9" H x 9.1" W x 5.3" D (47mm x 230mm x 134mm) |
| Amplifier topology | Class D |
SLICK-V4 1-inch front dash tweeters
| Nominal driver size | 1" |
| Speaker power capacity | 150W Peak / 50W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 1.5kHz - 25kHz |
| Nominal impedance | 4 ohms |
| Installation component, non-amplified | Metra tweeter dash harness |
| Installation component, amplified | Metra 72-5603 speaker harness |
CVEN69MW-V4 6-by-9-inch front door speakers
| Nominal driver size | 6" x 9" |
| Speaker power capacity | 260W Peak / 130W RMS |
| Rated sensitivity | 91dB |
| Specified frequency range | 40Hz - 20kHz |
| Nominal impedance | 4 ohms |
| Installation component | Metra 82-5606 door speaker adapter plates |
| Installation component | Metra 72-5602 door speaker harnesses |
| Included baffles | IBSBF69: 2-piece 6" x 9" speaker baffle kit |
OPTI6-V4 6.5-inch rear door speakers
| Nominal driver size | 6.5" |
| Speaker power capacity | 270W Peak / 90W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 55Hz - 20kHz |
| Nominal impedance | 4 ohms |
| Installation component | Metra 82-5605 door speaker adapter plates |
| Installation component | Metra 72-5602 door speaker harnesses |
| Included baffles | IBSBF65: 2-piece 6.5" speaker baffle kit |
FD-F150-10 10-inch subwoofer and ported enclosure
| Nominal driver size | 10" |
| Speaker power capacity | 900W Peak / 300W RMS |
| Rated sensitivity | 85dB |
| Specified frequency range | 30Hz - 1kHz |
| Nominal impedance | Dual 2 ohms |
| Enclosure design | Down-firing ported enclosure |
Amplifier installation kit
| Power wire | 4-gauge OFC, 18.5 ft |
| Ground wire | 8-gauge OFC, 21 ft |
| Speaker wire | 12-gauge OFC, 12 ft |
| Fuse protection | T-Spec VMANL watertight fuse holder with 100A MANL fuse |
| Power distribution block | Included |
| Installation fasteners and hardware | Supplied |
Vehicle-specific amplifier mounting rack
| Mounting design | Specific to the listed vehicle application |
| Construction | CNC-cut with holes already drilled |
| Mounting location | Behind the rear seat, using original-equipment bolt locations |
Why Choose This Product?
This package brings amplification, signal processing, cabin speakers and a dedicated subwoofer enclosure into one coordinated F-150 SuperCrew upgrade. The included harnesses, adapters and rack address vehicle-specific connections and mounting alongside the audio components.
Metra estimates 6–8 hours of installation time for one experienced technician. The manufacturer lists a one-year warranty for the kit.
Installation & Compatibility Notes
- Vehicle fitment: Ford F-150 SuperCrew factory-amplified models from 2015–2017, or non-amplified models from 2015–2025. Metra’s Vehicle Applications entries list 2015–2024, so confirm a 2025 truck directly with Metra before ordering. Check the truck’s factory-audio configuration, cab/body style and applicable exclusions.
- Non-amplified 2021–2025 trucks: Metra’s April 17, 2026 installation notice requires an AXDSPX firmware update. The notice addresses amplifier turn-on recognition when the 12 V turn-on signal is missing.
- Subwoofer wiring: The current kit installation guide specifies a series connection between the two voice coils. With the included dual 2-ohm subwoofer, this produces a 4-ohm final load. Follow the kit-specific terminal diagram.
- Mounting and installation: The rack mounts behind the rear seat at original-equipment bolt locations. Confirm fitment and mounting clearance, and review the latest installation steps before starting.
- System use: Use the supplied components together as the intended system; Metra does not design the package for separate installations.
Component ratings apply to the named components. Peak or maximum figures are not continuous system ratings; an output is identified as RMS only where explicitly labeled.
Frequently Asked Questions
Which Ford F-150 SuperCrew models does the kit fit?
It is listed for factory-amplified 2015–2017 models and non-amplified 2015–2025 models. The Vehicle Applications entries stop at 2024, so confirm 2025 fitment with Metra. Check the truck’s factory-audio configuration and cab/body-style requirements.
Does a non-amplified 2021–2025 truck need a firmware update?
Yes. Metra’s April 17, 2026 notice directs an AXDSPX firmware update for these trucks to address amplifier turn-on recognition when the 12 V turn-on signal is missing.
What final load does the included subwoofer use?
The dual 2-ohm voice coils are connected in series as specified by the kit guide, producing a 4-ohm final load. Follow the kit’s terminal diagram.
Are the amplifier power figures RMS?
The listed amplifier outputs are 120W x 4 at 2 ohms, 100W x 4 at 4 ohms and 240W x 2 bridged at 4 ohms; their rating type is not specified as RMS. The combined maximum rating is up to 1,920 W, not an RMS system rating.
Can the kit components be installed separately?
Metra specifies that this package is intended to be used as a complete system, not split into separately installed products.
What installation documentation is included?
Step-by-step installation documentation is included. Metra estimates 6–8 hours for one experienced technician.
