Metra SoundStage / VIBE Audio FD-PPKT-3 Ford Bronco Audio Kit (2021–2026, non-amplified)
Key features
- Non-amplified Bronco: page lists 2021–2026; guide 2021–2024; verify 2025–2026
- Excludes Bronco Sport; two-door models require amplifier-rack modification
- PB80.6-8DSP-V3 DSP amplifier plus PB650.1D-V4 mono amplifier
- Six cabin speakers: 4-inch dash, 6.5-inch kick-panel and rear pairs
- BAMIT12-V4 sealed 12-inch subwoofer with tailgate mounting brackets; series wiring shown in kit guide yields 4 ohms
- Axxess active LOC, FD-BROPOD1 rear pods, harnesses and mounting hardware
Metra SoundStage / VIBE Audio FD-PPKT-3 Ford Bronco Audio Kit (2021–2026, non-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio FD-PPKT-3 Ford Bronco Audio Kit (2021–2026, non-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

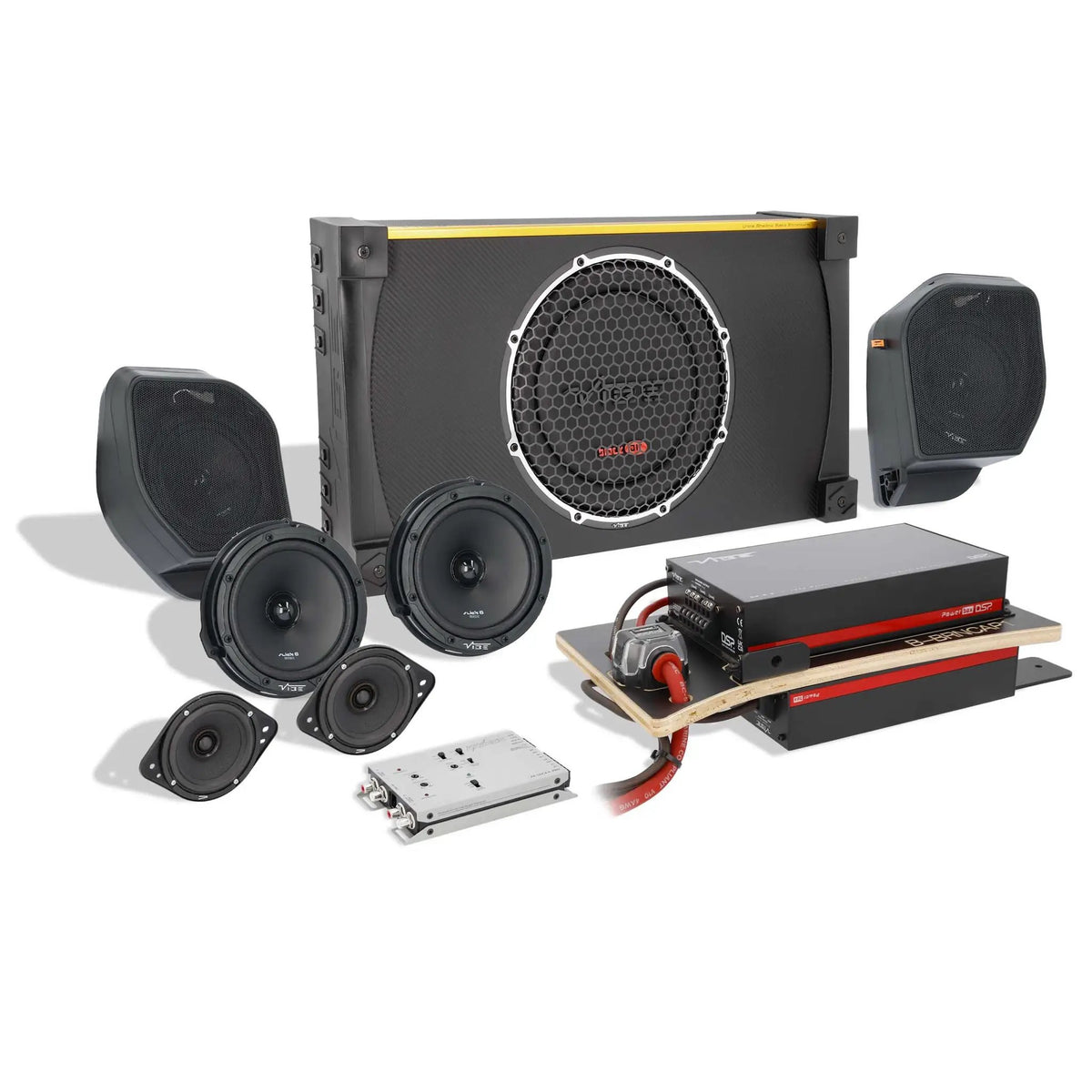

Build a complete DSP-controlled speaker system for a non-amplified Ford Bronco with the Metra SoundStage / VIBE Audio FD-PPKT-3 audio kit. It combines a six-channel DSP amplifier, a separate mono amplifier, six cabin speakers and a sealed 12-inch subwoofer in a vehicle-specific package.
The kit includes the integration parts, speaker adapters and rear pods needed for its listed application, along with a vehicle-specific DSP tuning file. Its subwoofer enclosure mounts at the tailgate.
Key Features & Benefits

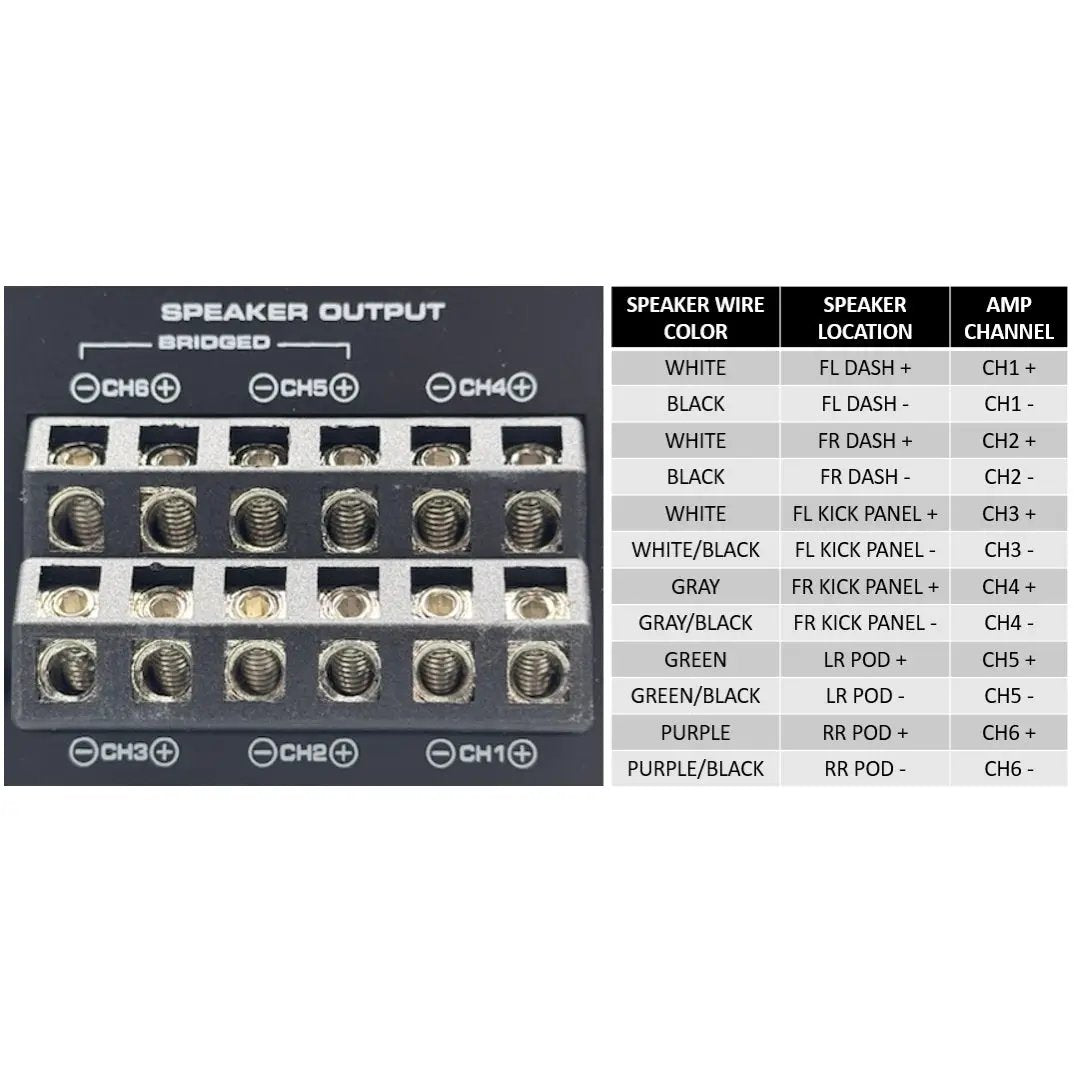

- DSP-controlled six-channel amplifier: The PB80.6-8DSP-V3 provides six amplified channels and accepts the supplied vehicle-specific tuning file.
- Separate subwoofer amplifier: The PB650.1D-V4 supplies dedicated power for the included subwoofer.
- Six cabin speakers: Four-inch dash speakers and 6.5-inch kick-panel and rear pairs provide speaker locations across the cabin.
- Sealed 12-inch enclosure: The BAMIT12-V4 includes tailgate mounting brackets and a dual 2-ohm subwoofer.
- Factory-system integration: The active Axxess LOC, vehicle-matched T-harness and OE-style connectors support integration with the listed factory audio system.

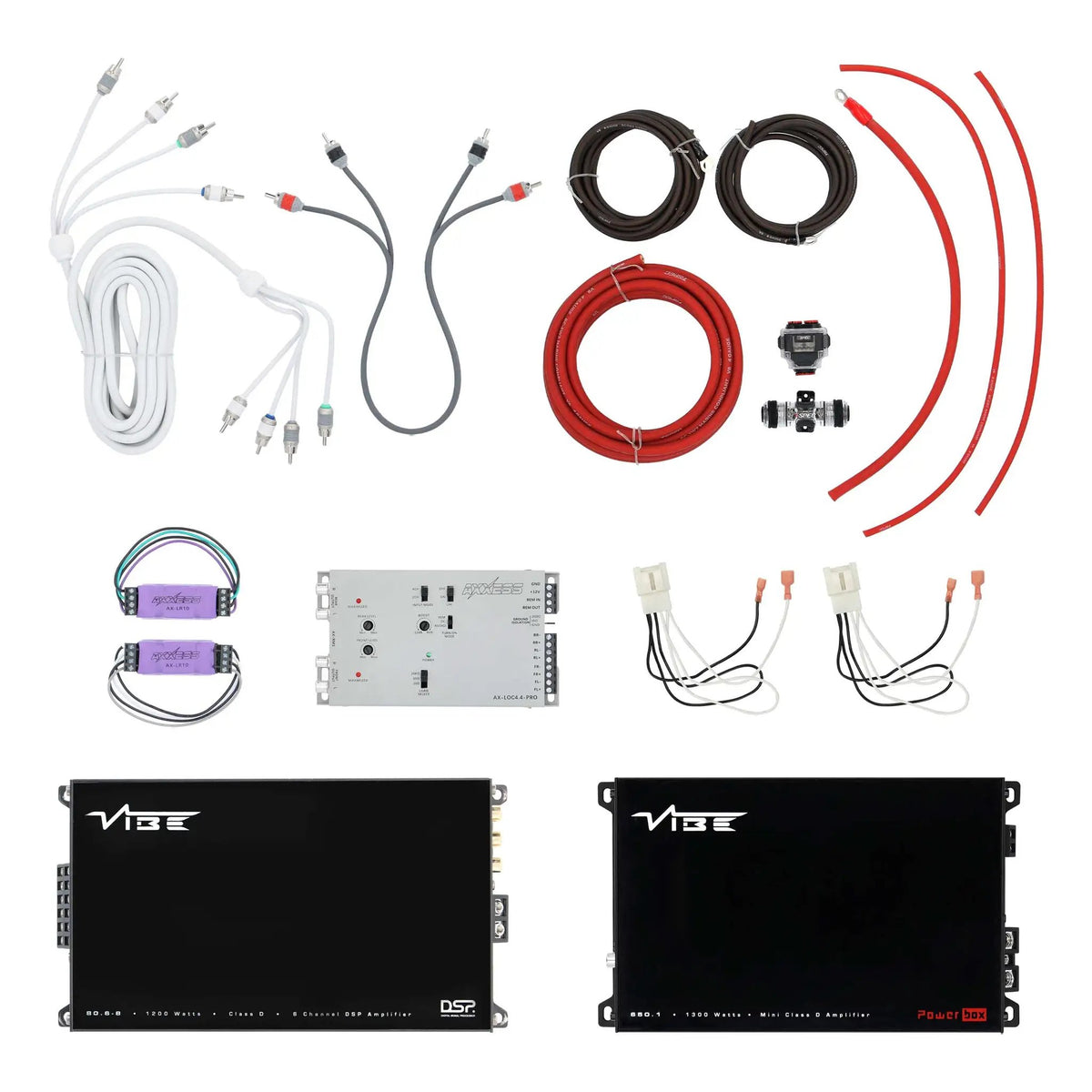

- Vehicle-specific mounting parts: The kit includes a drilled amplifier rack, installation hardware, speaker adapters, harnesses and wiring components.
Technical Specifications

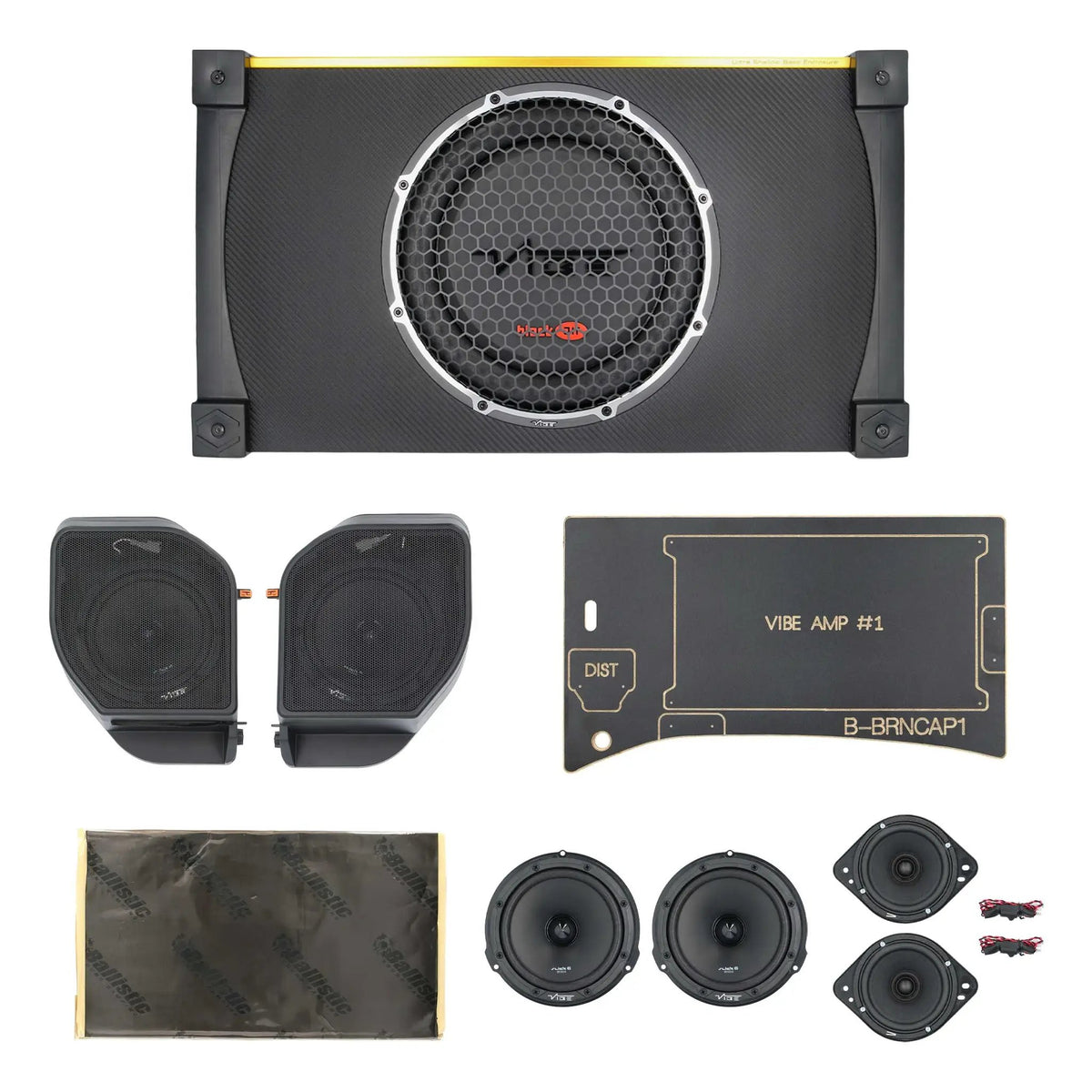

System contents and package parts

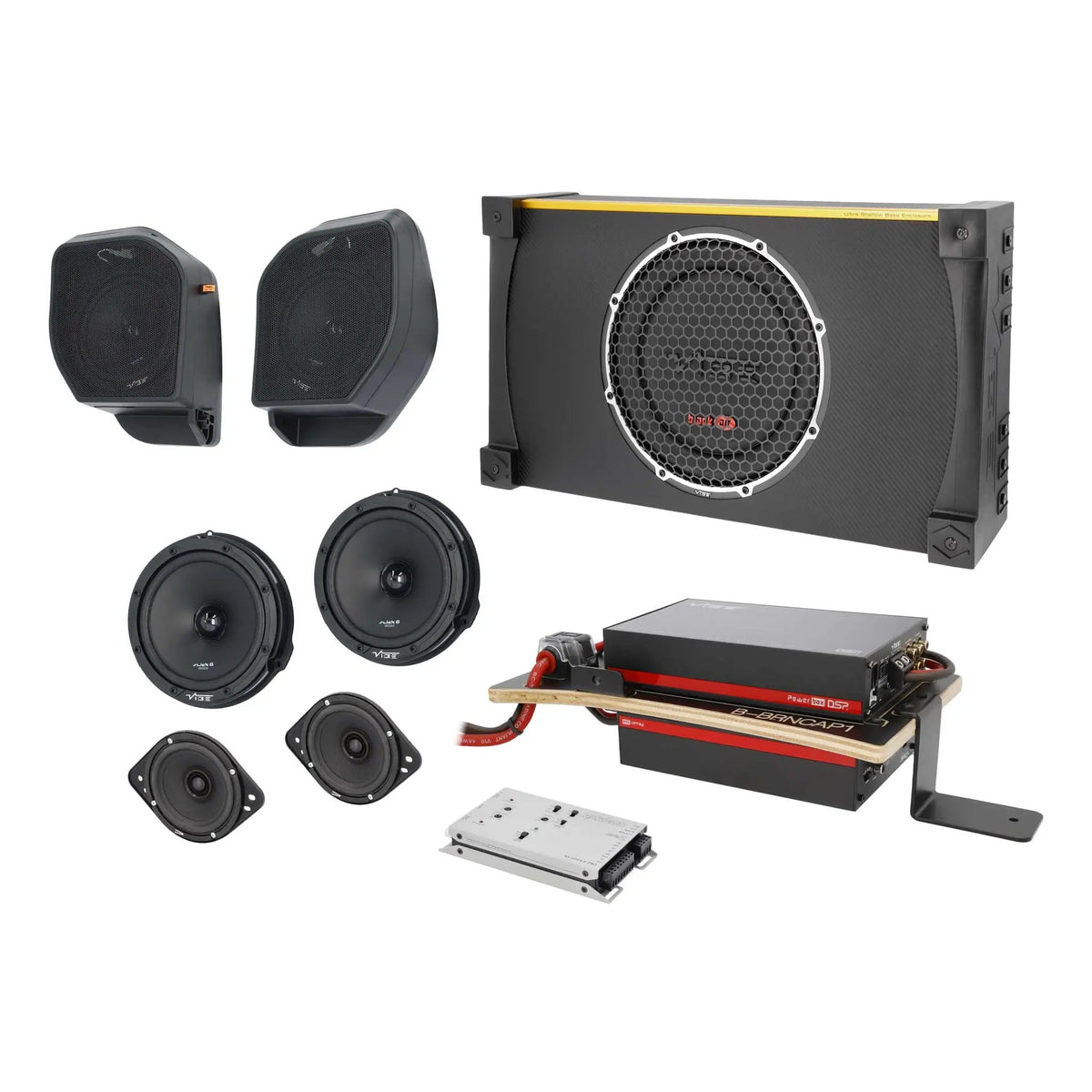

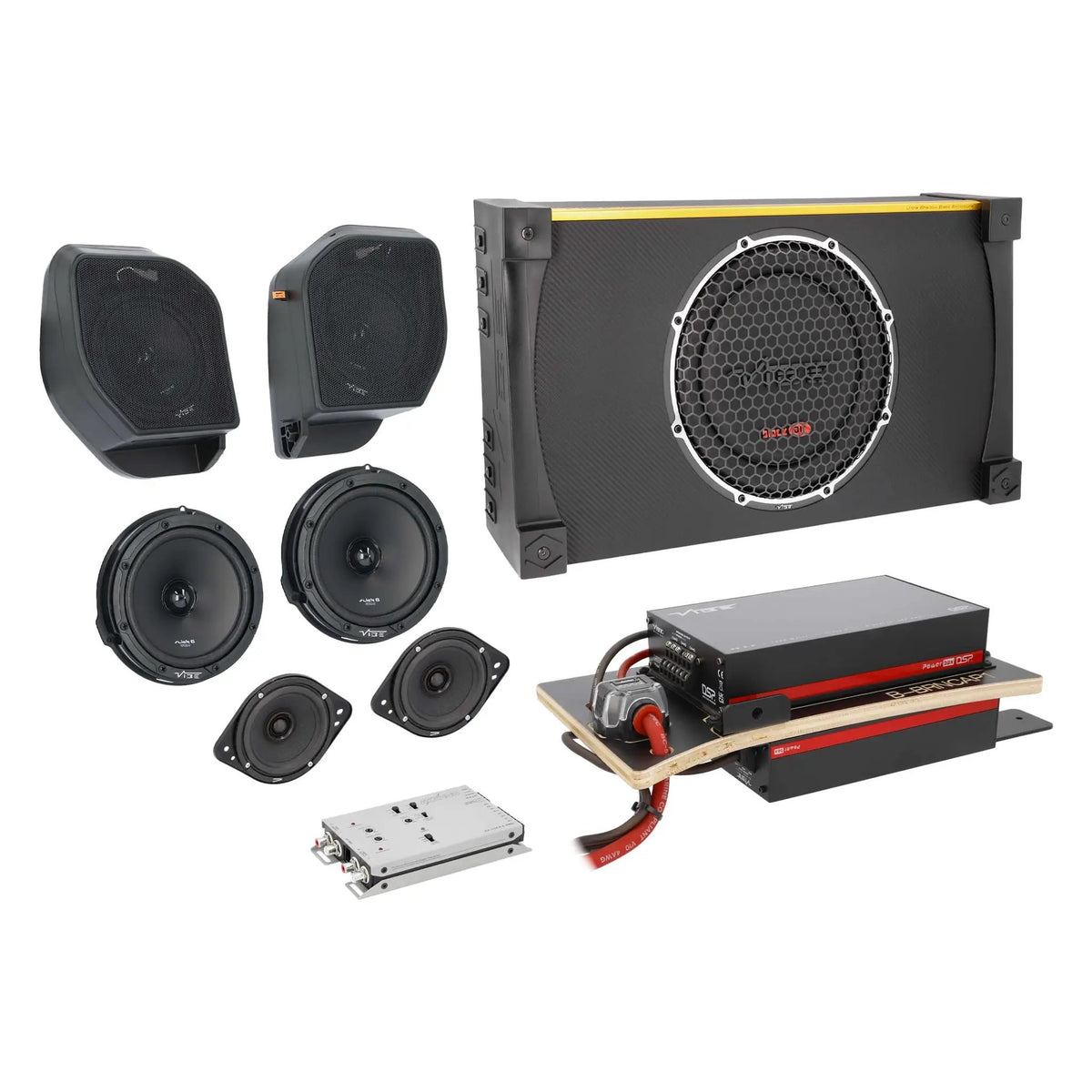

- One PB80.6-8DSP-V3 six-channel DSP/amplifier combination.
- One PB650.1D-V4 mono amplifier; published output is 650 W at 1 ohm.
- Two 4-inch concentric dash speakers, two 6.5-inch front kick-panel speakers and two 6.5-inch rear speakers.
- One 12-inch subwoofer in a sealed BAMIT12-V4 enclosure.
- Vehicle-specific DSP tuning file for loading through computer software.
- Application-matched amplifier installation kit and amplifier mounting rack.
- FD-BROPOD1 rear speaker pods, step-by-step installation documentation, mounting hardware and enclosure mounting brackets.
- BLK-FD-PPKT-3A: vehicle-specific integration and installation parts.
- BLK-FD-PPKT-3B: vehicle-specific integration and installation parts.
- BAMIT12-V4: 12-inch subwoofer enclosure.
| Component | Specifications |
|---|---|

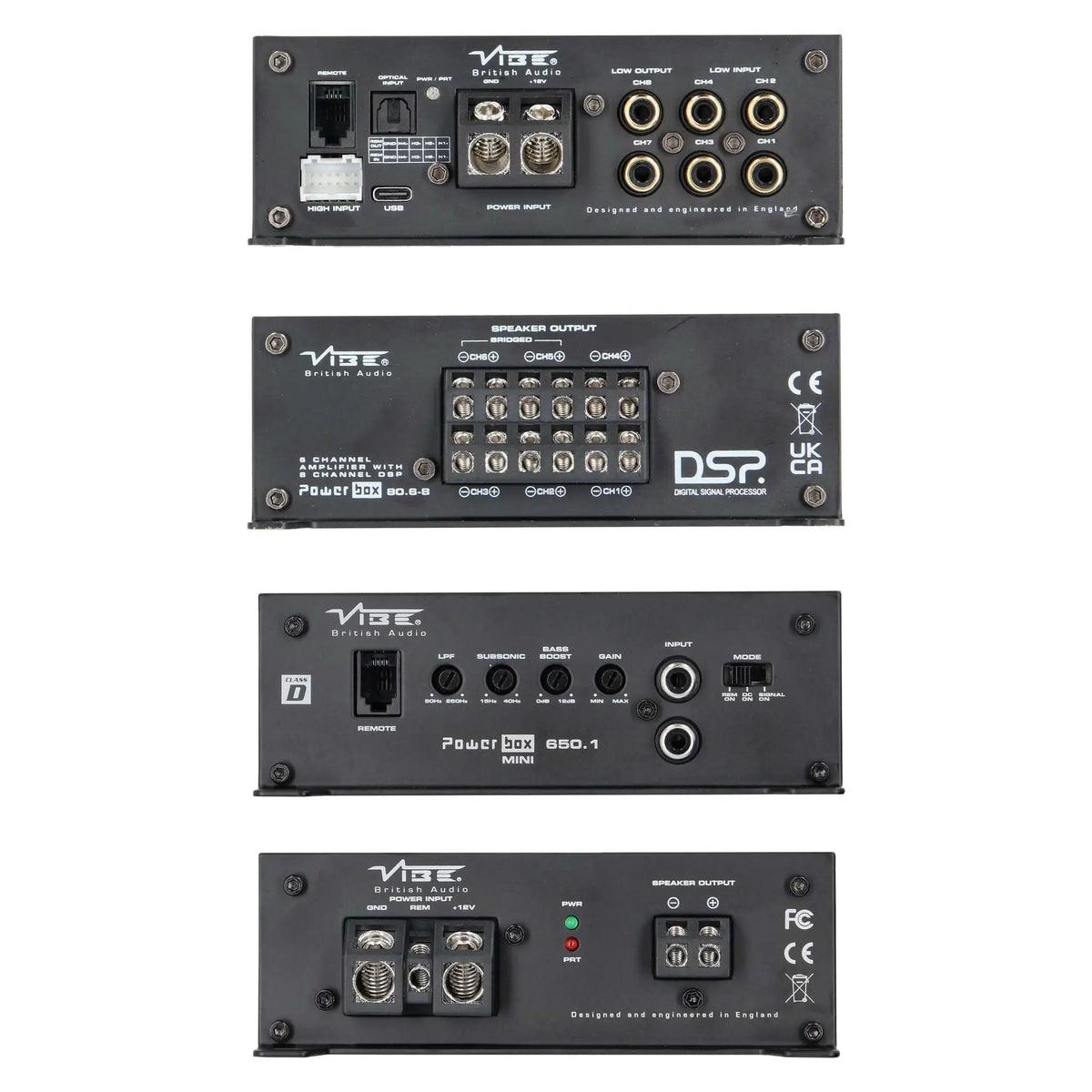

| PB80.6-8DSP-V3 DSP and amplifier combo | 6 amplified channels; 1200W maximum power rating; 6x80W RMS into 4 ohms, stereo; specified frequency range: 20Hz – 20kHz; chassis dimensions (H × W × D): 1.5" H x 8.6" W x 5.1" D (40mm x 220mm x 131mm); compact Class D amplifier topology. Load the vehicle-specific DSP equalization file using computer-based software. |
| PB650.1D-V4 amplifier | 1200W maximum power rating; output at 4 ohms: 325W; output at 2 ohms: 475W; output at 1 ohm: 650W. The output rating type is not specified as RMS. Chassis dimensions (H × W × D): 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm). Class D topology. |
| CVEN4CN-V5 concentric dash speakers | Nominal driver size: 4"; speaker power capacity: 120W Peak / 60W RMS; rated sensitivity: 88dB; specified frequency range: 110Hz – 20kHz; nominal impedance: 3.2 Ohms. Installation component: Metra 82-5609 speaker adapters. |
| SLICK6SQM-V5 front kick-panel speakers | Nominal driver size: 6.5"; speaker power capacity: 270W Peak / 90W RMS; rated sensitivity: 94dB; specified frequency range: 55Hz – 20kHz; nominal impedance: 4 ohms. Installation components: Metra 82-5605 speaker adapters and Metra 72-5602 speaker harnesses. |
| SLICK6SQM-V5 rear speakers | Nominal driver size: 6.5"; speaker power capacity: 270W Peak / 90W RMS; rated sensitivity: 94dB; specified frequency range: 55Hz – 20kHz; nominal impedance: 4 ohms. Installation component: Metra FD-BROPOD1 rear speaker pods. |

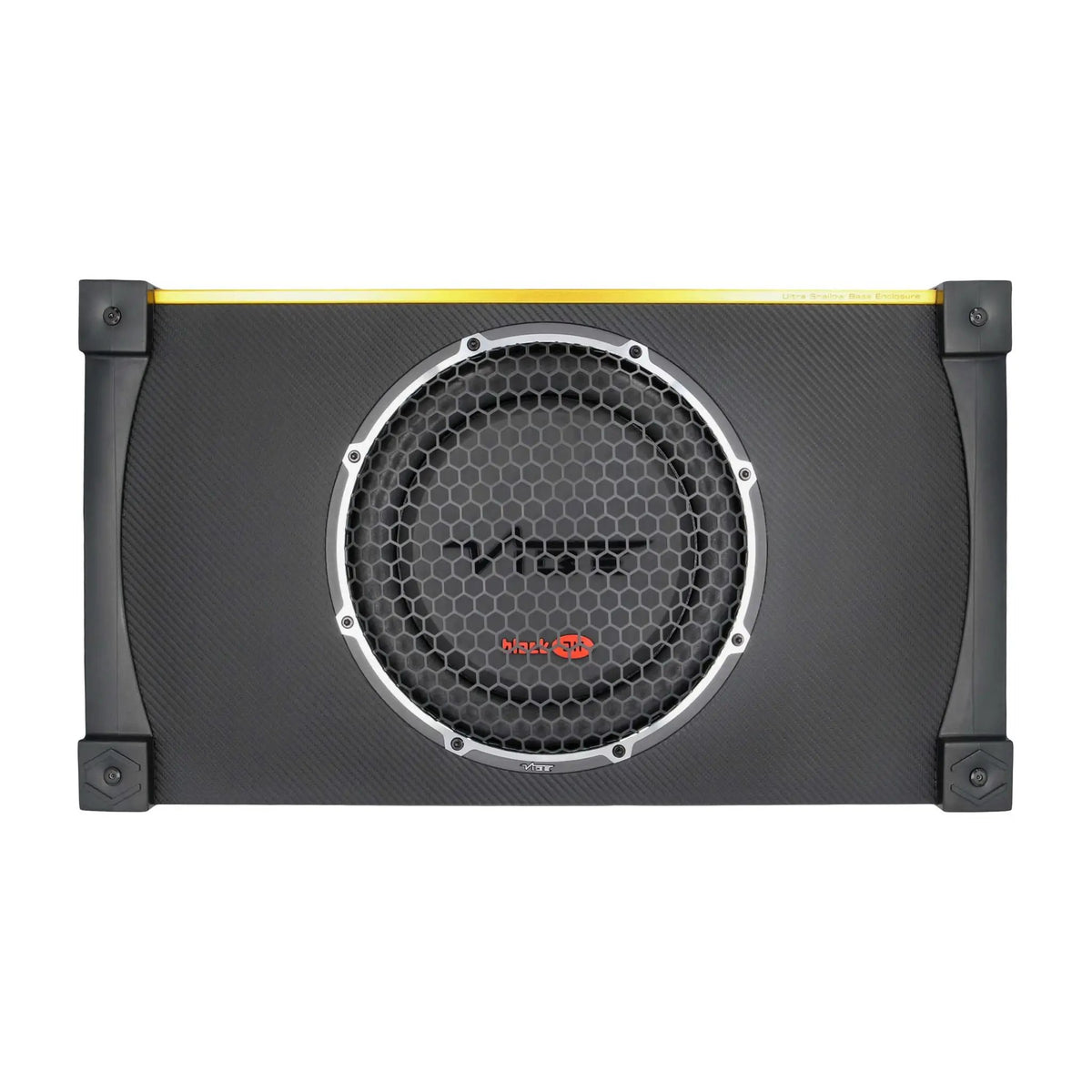

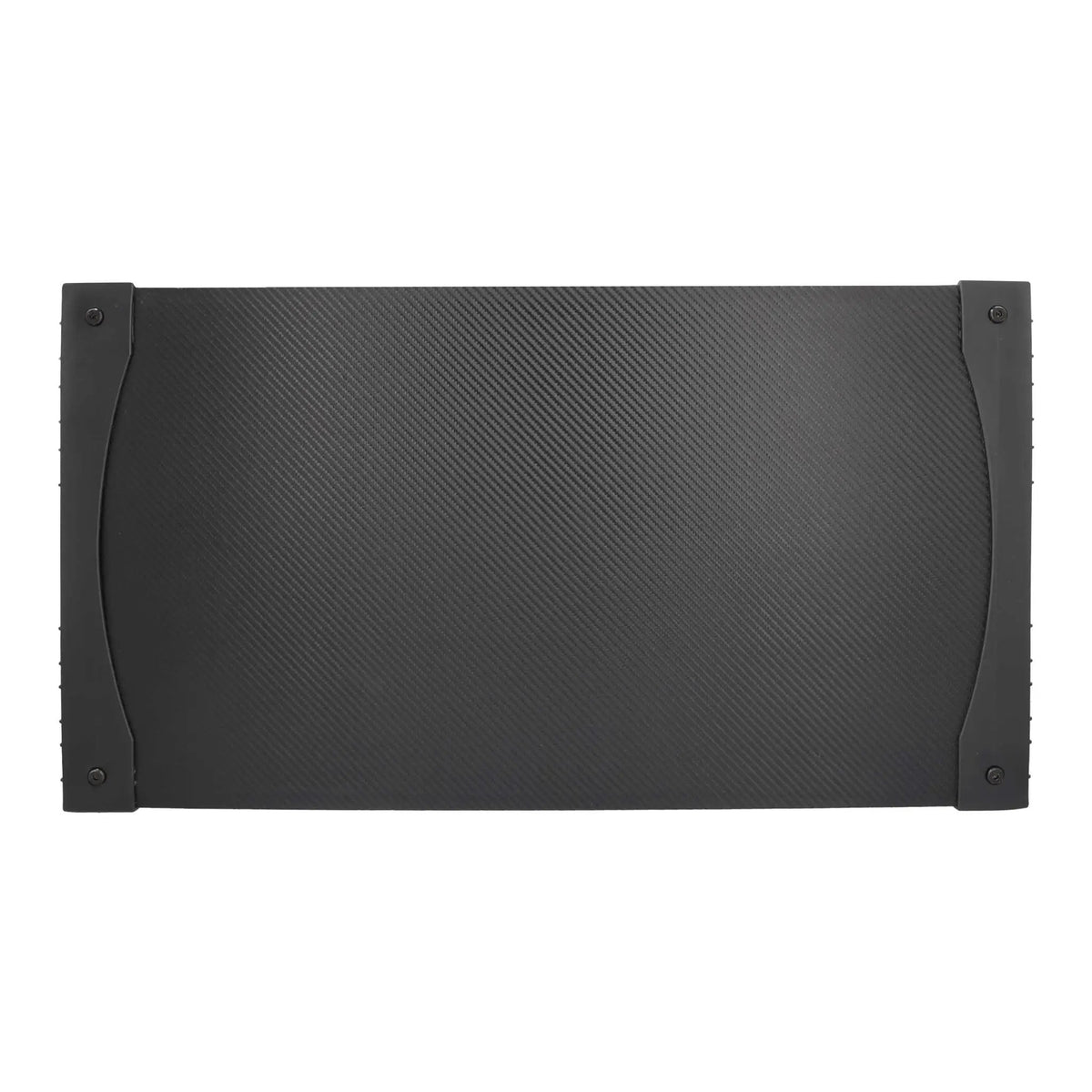

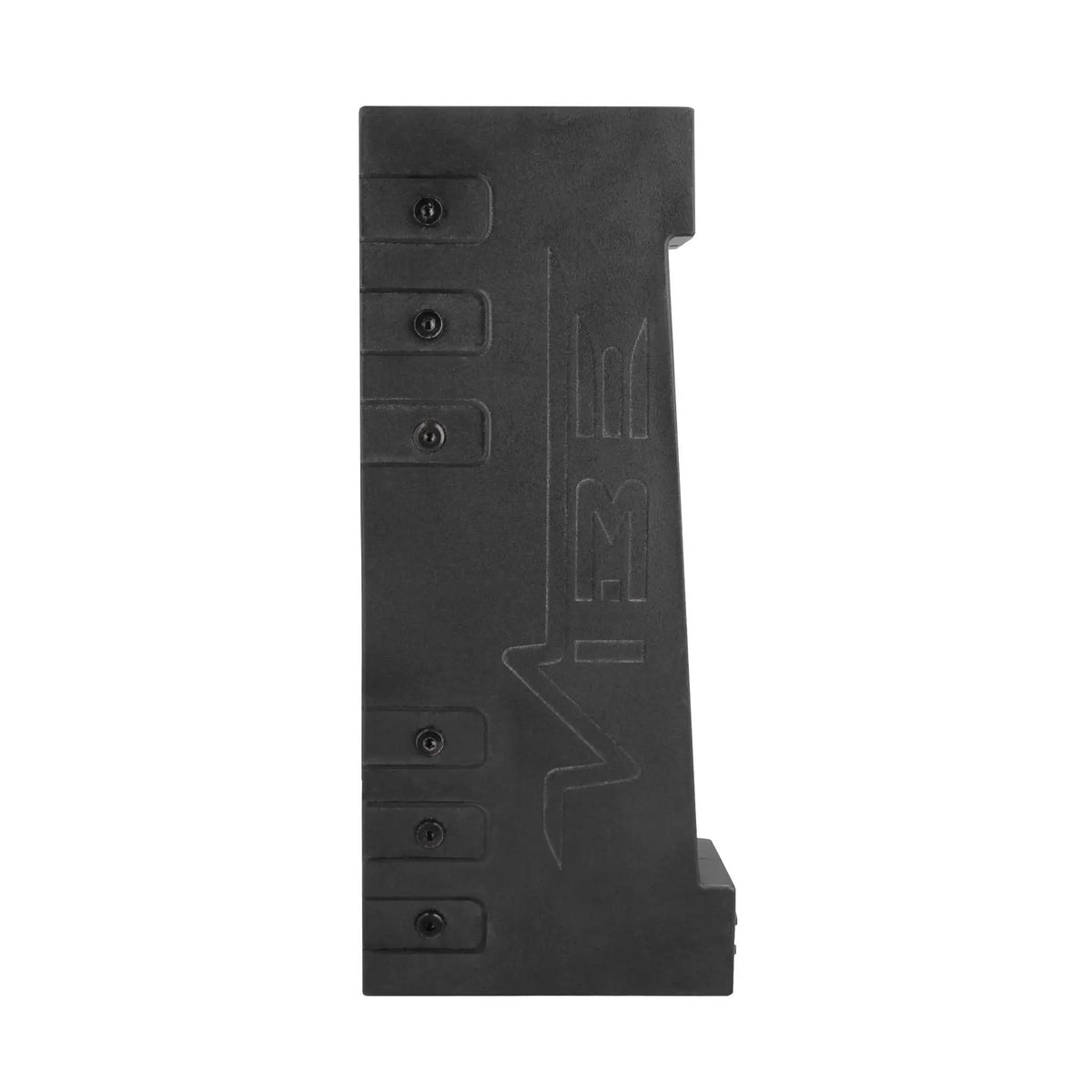

| BAMIT12-V4 subwoofer and sealed enclosure | Nominal driver size: 12"; speaker power capacity: 900W Peak / 300W RMS; rated sensitivity: 85dB; specified frequency range: 30Hz - 1kHz; nominal impedance: Dual 2 ohms. Enclosure mounting brackets are supplied. |

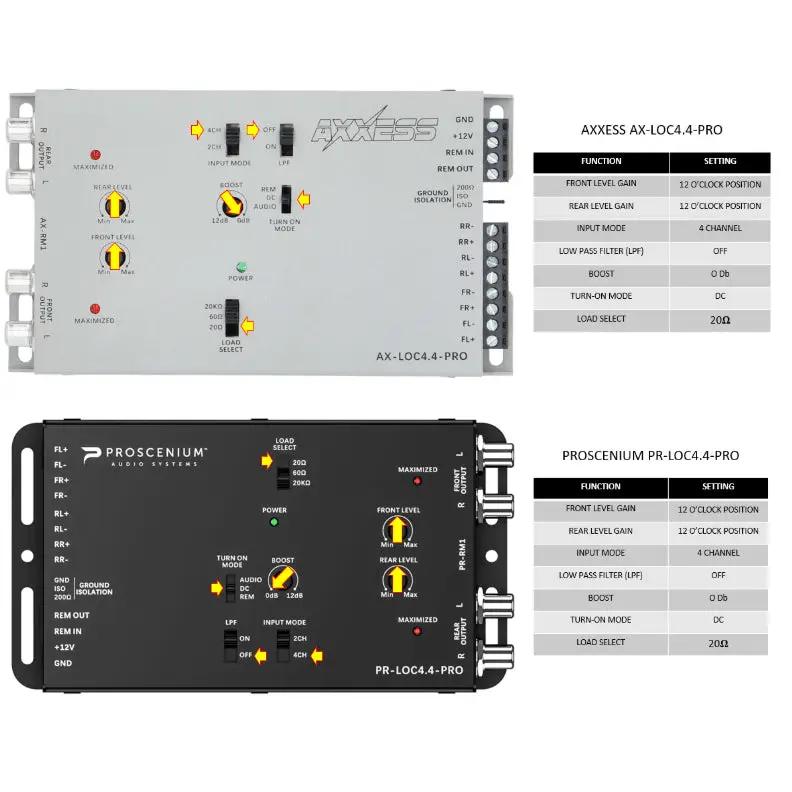

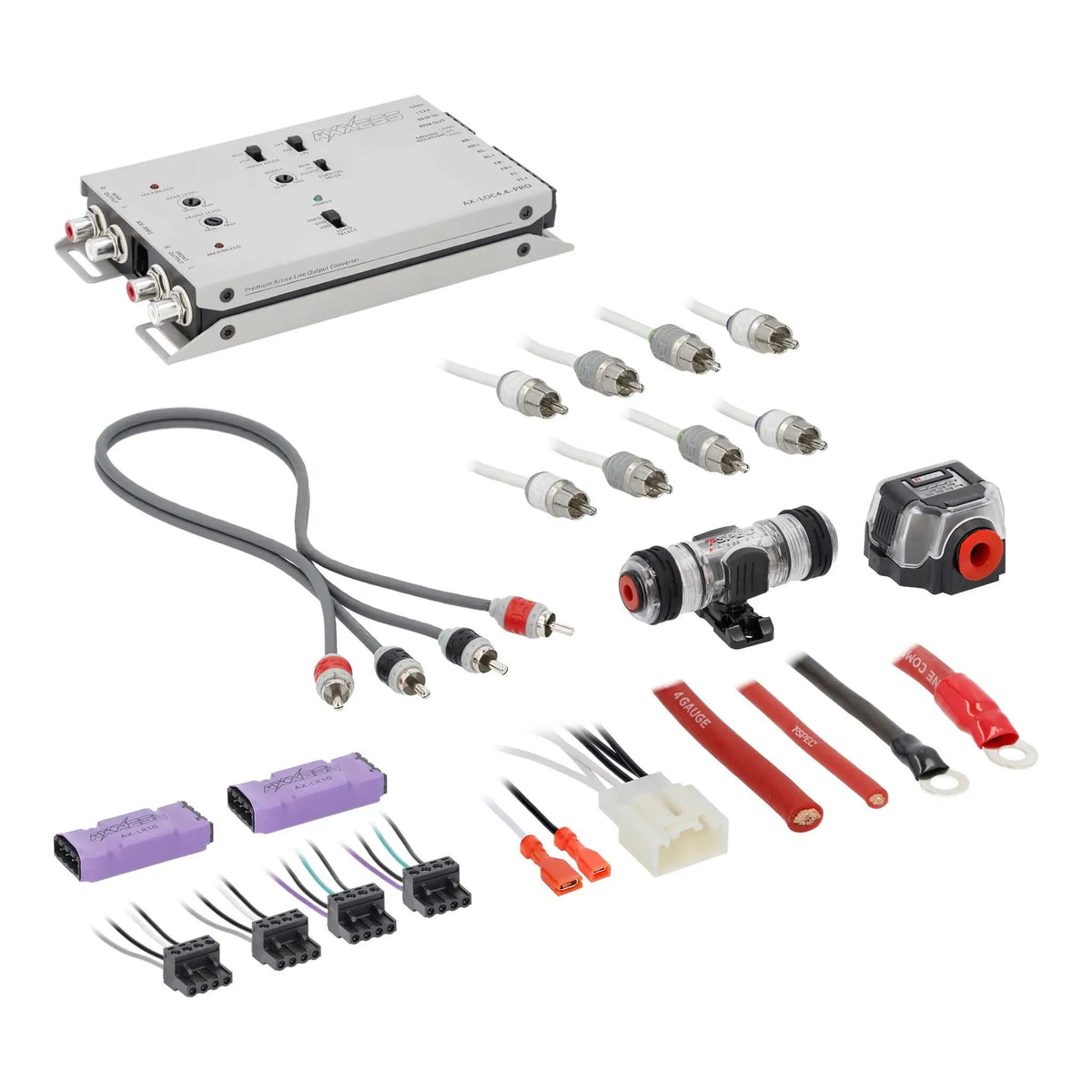

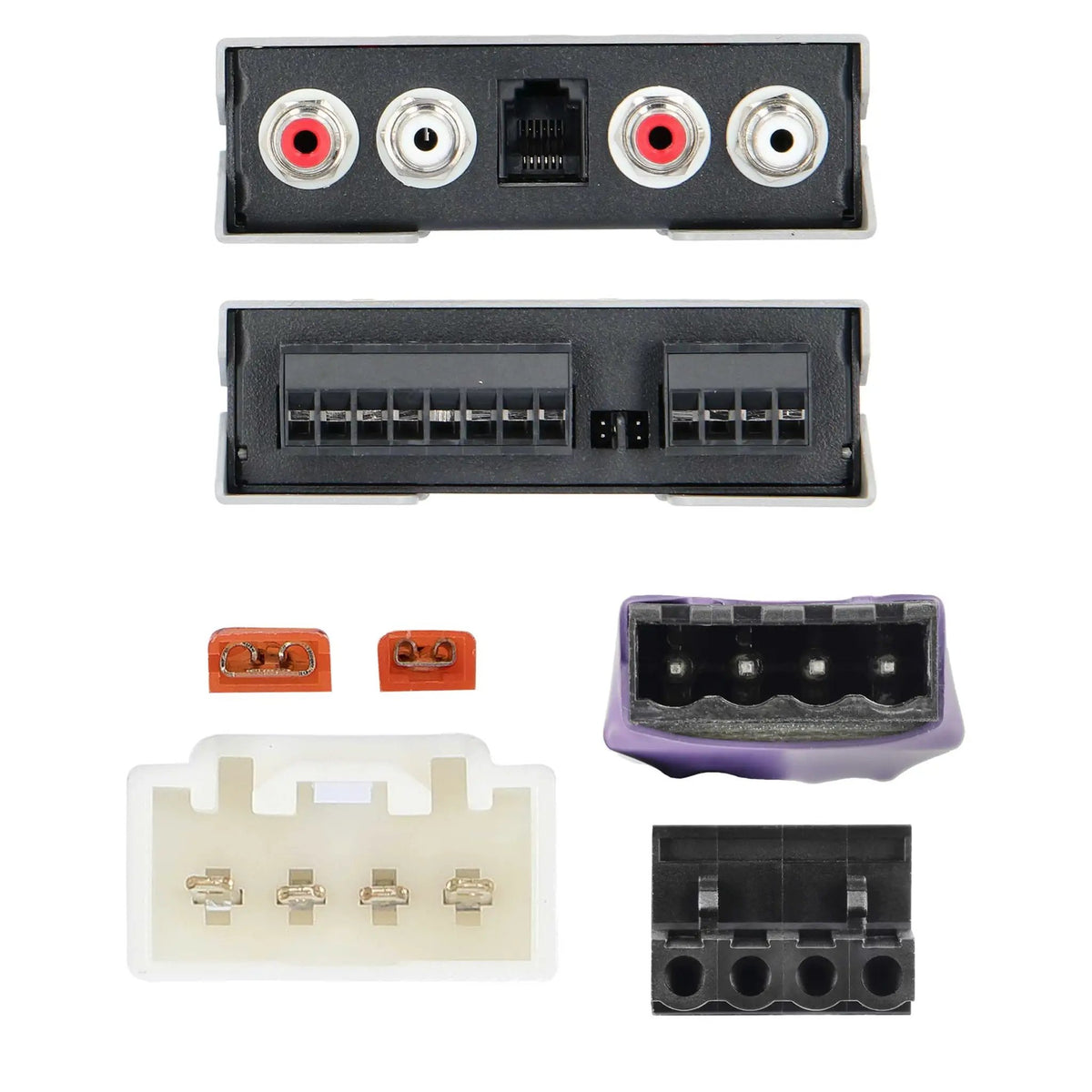

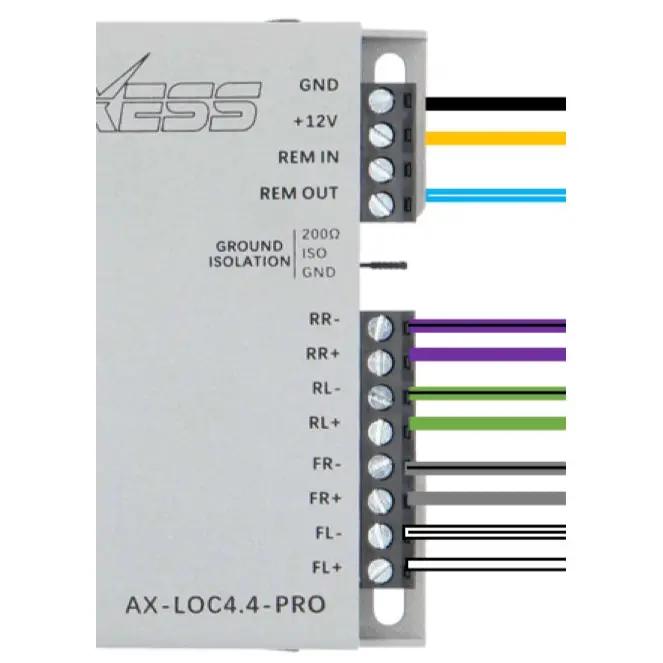

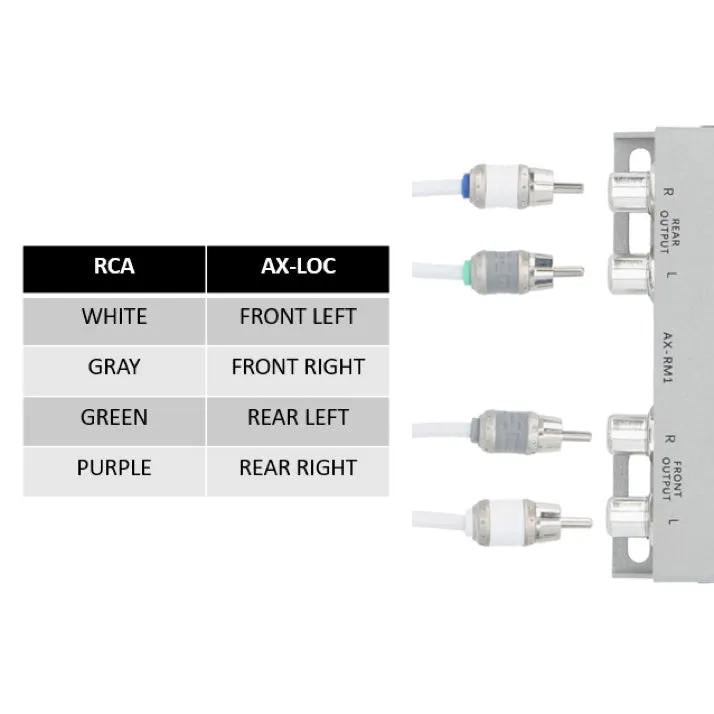

| Axxess AX-LOC4.4-PRO active LOC | Four inputs, four outputs and bass boost; specified input capability: 40 V maximum / 400 W at 20 kΩ. Load resistors are built into the converter. Vehicle-matched T-harness, original-equipment-style connectors and RCA cables are supplied. |
| Metra amplifier installation kit | 4-gauge OFC power wire: 9.5 ft; 8-gauge OFC ground wire: 8 ft; 12-gauge OFC speaker wire: 12 ft. Fuse protection: T-Spec VMANL watertight fuse holder with 100A MANL fuse. Power distribution block and installation fasteners/hardware included. |
| Metra vehicle-specific amplifier mounting rack | Mounting design is specific to the listed vehicle application; CNC-cut construction with holes already drilled; mounts behind the rear seat using original-equipment bolt locations. For a two-door application, the manufacturer calls for amplifier-rack modification to clear the panel. |
Peak or maximum figures are not continuous system ratings. An output is labeled RMS only where the specifications explicitly identify it that way. Metra estimates 6–8 hours for one experienced technician and lists a one-year warranty for the kit.
Why Choose This Product?
This package brings the signal integration, amplification, speakers and subwoofer enclosure together for the specified non-amplified Bronco application. The supplied DSP file is vehicle-specific, while the separate mono amplifier is assigned to the subwoofer.
Metra specifies that the package is not designed to be split into separately installed products. Use the supplied components together as the intended system, rather than treating them as a collection of unrelated upgrades.
Installation & Compatibility Notes
The product listing describes fitment for 2021–2026 Ford Bronco models with the non-amplified factory audio system. However, the manufacturer Vehicle Applications entries list 2021–2024. Confirm 2025–2026 compatibility directly with Metra before ordering.
This kit is not compatible with the Ford Bronco Sport. Two-door Bronco installations require modification of the amplifier rack to clear the panel. Check vehicle fitment and mounting clearance before beginning installation.
The kit’s installation guide specifies a series connection between the subwoofer’s two voice coils. With the included dual 2-ohm subwoofer, this produces a 4-ohm final load. Follow the kit-specific terminal diagram when connecting the enclosure.
The manufacturer estimates 6–8 hours for one experienced technician. Review the supplied step-by-step documentation and the latest installation steps before starting.
Frequently Asked Questions
Which Ford Bronco models does the FD-PPKT-3 fit?
The product listing says 2021–2026 Bronco with the non-amplified factory audio system, while the manufacturer Vehicle Applications entries list 2021–2024. Confirm 2025–2026 fitment with Metra before ordering.
Will this kit fit a Ford Bronco Sport?
No. The included BAMIT12-V4 enclosure’s product sheet excludes the Bronco Sport.
Does the kit work with a two-door Bronco?
A two-door installation requires modifying the amplifier rack so it clears the panel.
What final load does the included subwoofer use?
Connect its dual 2-ohm voice coils in series, as shown in the kit-specific terminal diagram, for a 4-ohm final load.
Can I install the components as separate upgrades?
Metra specifies that this package is not designed to be split into separately installed products. Use the supplied components together as the intended system.
How long does installation take?
Metra estimates 6–8 hours for one experienced technician.
