VIBE Audio TY-TAC1-10 10" Loaded Subwoofer Enclosure for Toyota Tacoma Double Cab
Key features
- Vehicle fit: 2016–2023 Toyota Tacoma Double Cab
- Mounting: behind the rear cab seat; front-firing ported enclosure
- Included subwoofer: one 10-inch VIBE BlackAir BLACKAIR10D2S-V3
- Power handling: 300W RMS / 900W peak; dual 2-ohm voice coils
- Enclosure dimensions: 16.875 H × 29.5 W × 8.5 D inches
- Installation: passive enclosure requires an external amplifier; check vehicle-specific instructions
VIBE Audio TY-TAC1-10 10" Loaded Subwoofer Enclosure for Toyota Tacoma Double Cab is backordered and will ship as soon as it is back in stock.
VIBE Audio TY-TAC1-10 10" Loaded Subwoofer Enclosure for Toyota Tacoma Double Cab is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

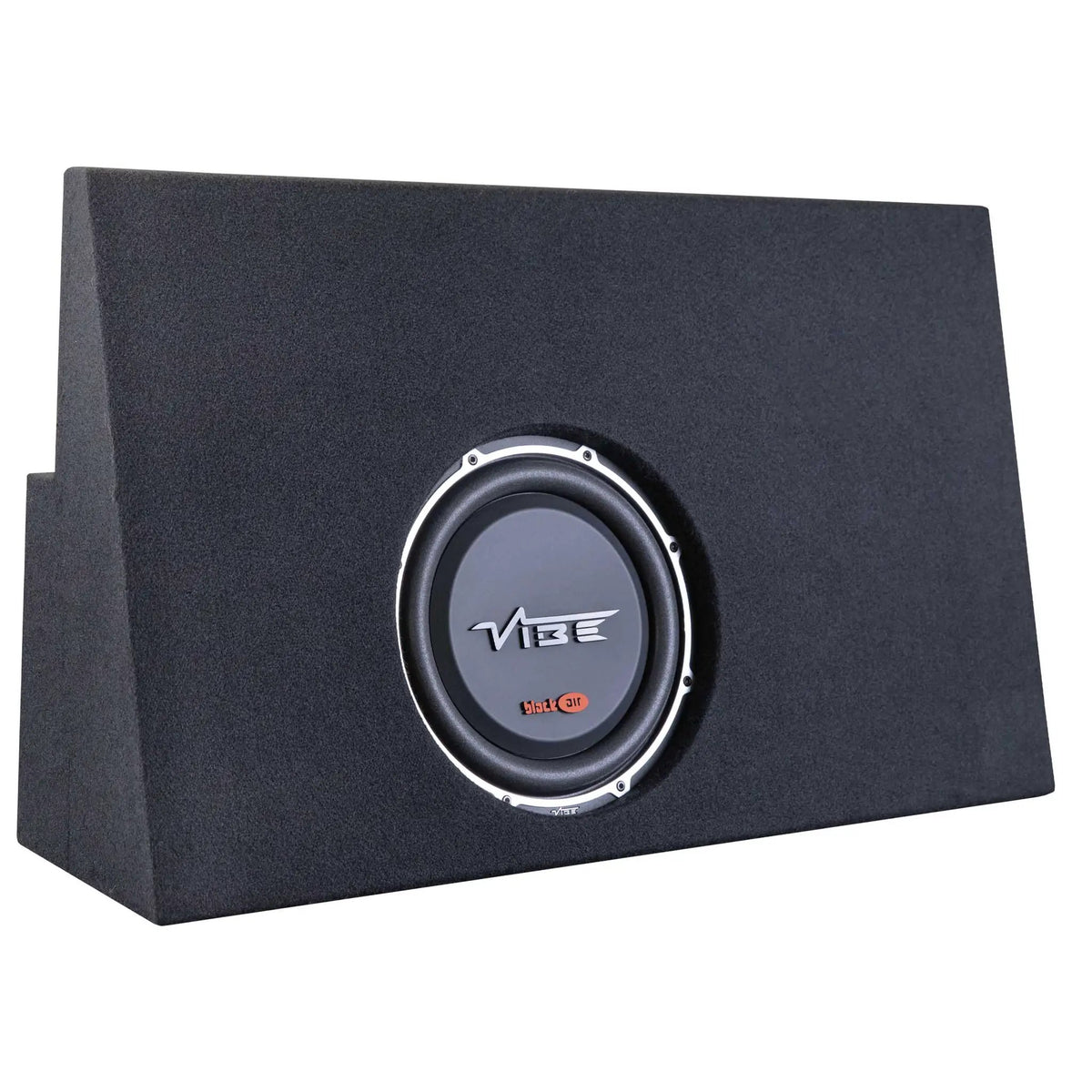

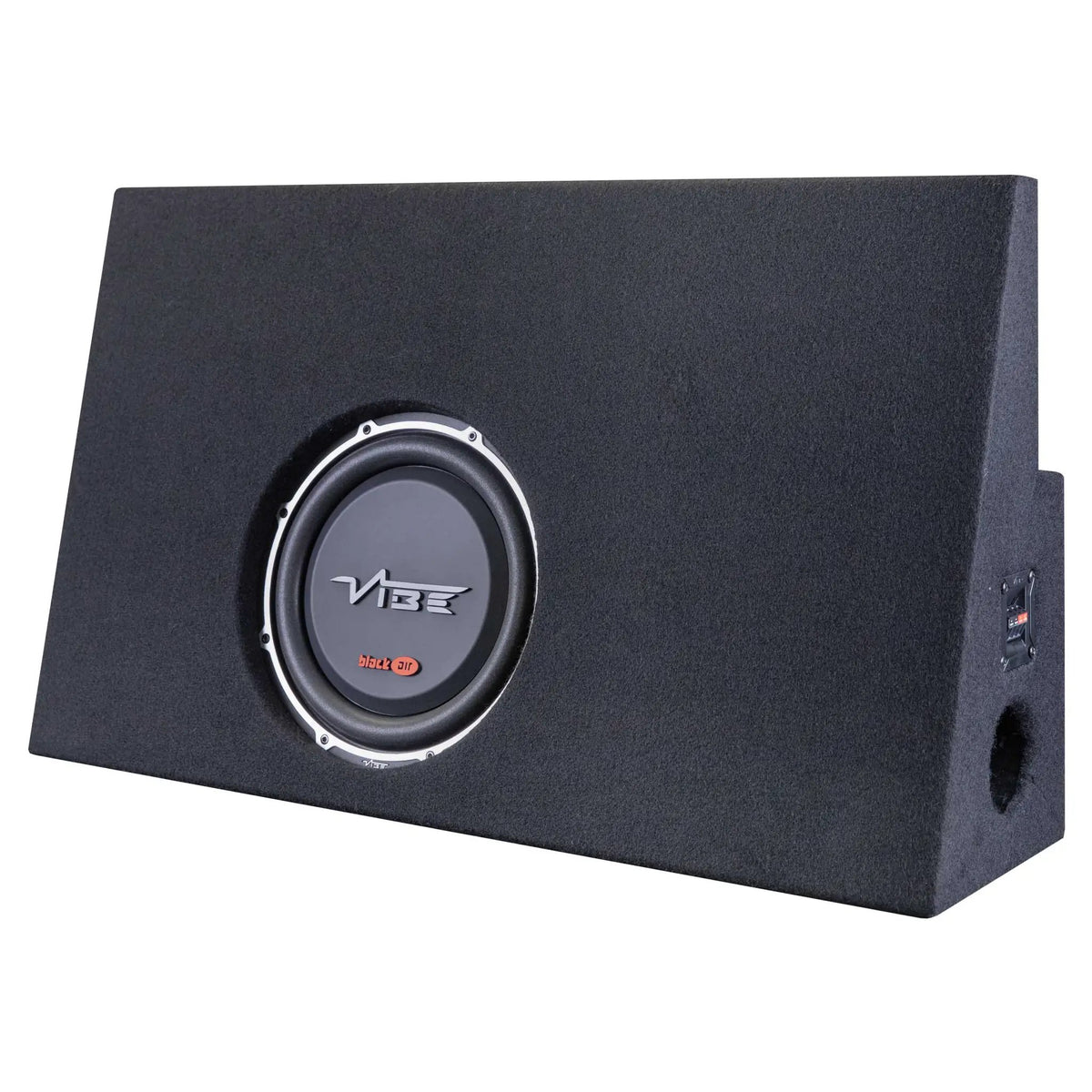

Give your 2016–2023 Toyota Tacoma Double Cab a dedicated bass setup with the VIBE Audio TY-TAC1-10 loaded 10-inch subwoofer enclosure. Its front-firing VIBE BlackAir shallow subwoofer sits in a vehicle-specific ported enclosure designed to mount behind the rear cab seat.
Key Features & Benefits
- Vehicle-specific enclosure: The enclosure is designed for the Toyota Tacoma Double Cab, rather than a universal fit.
- Shallow-mount subwoofer: The included 10-inch driver is suited to the enclosure’s behind-the-seat placement.

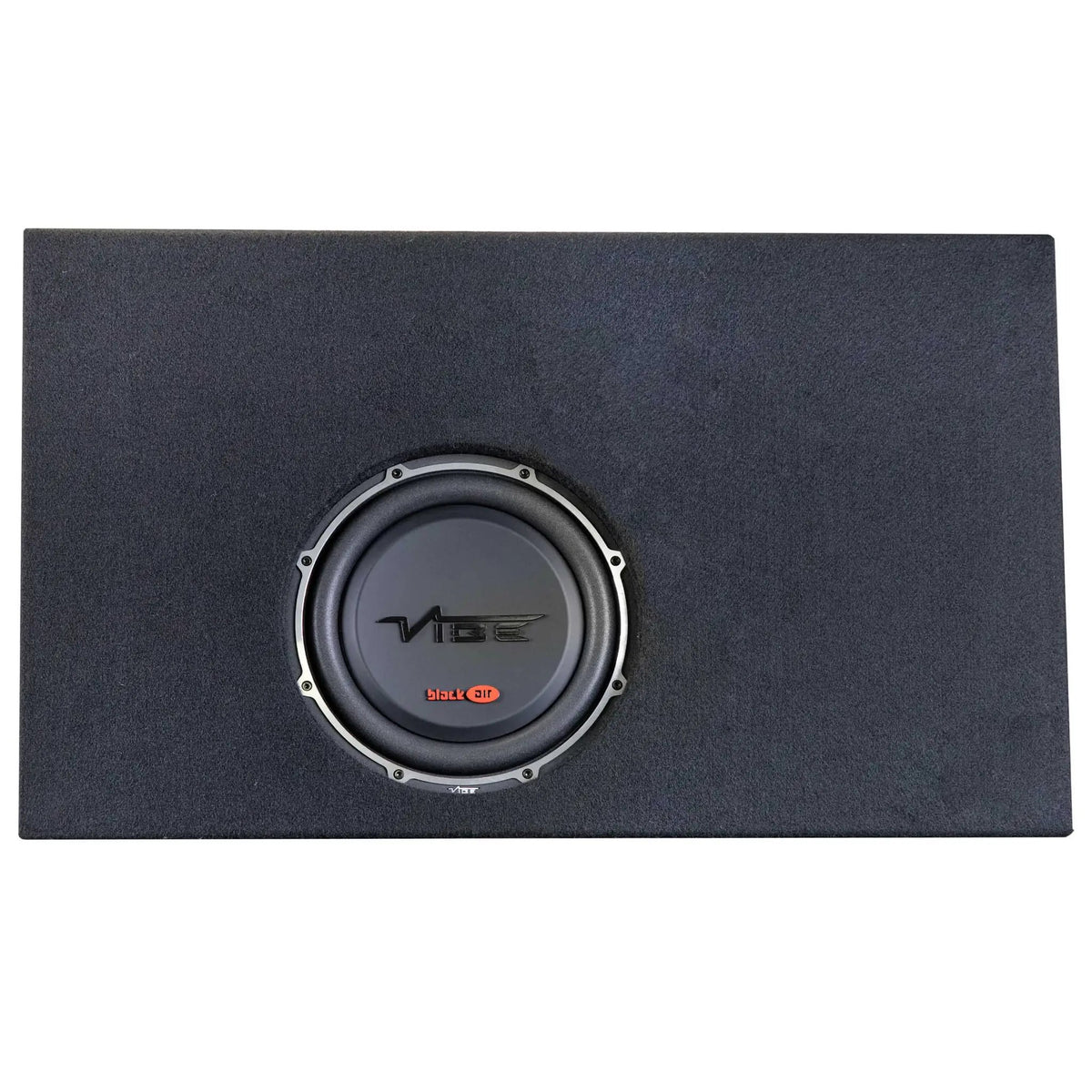

- Front-firing layout: The subwoofer faces forward from its position behind the rear cab seat.

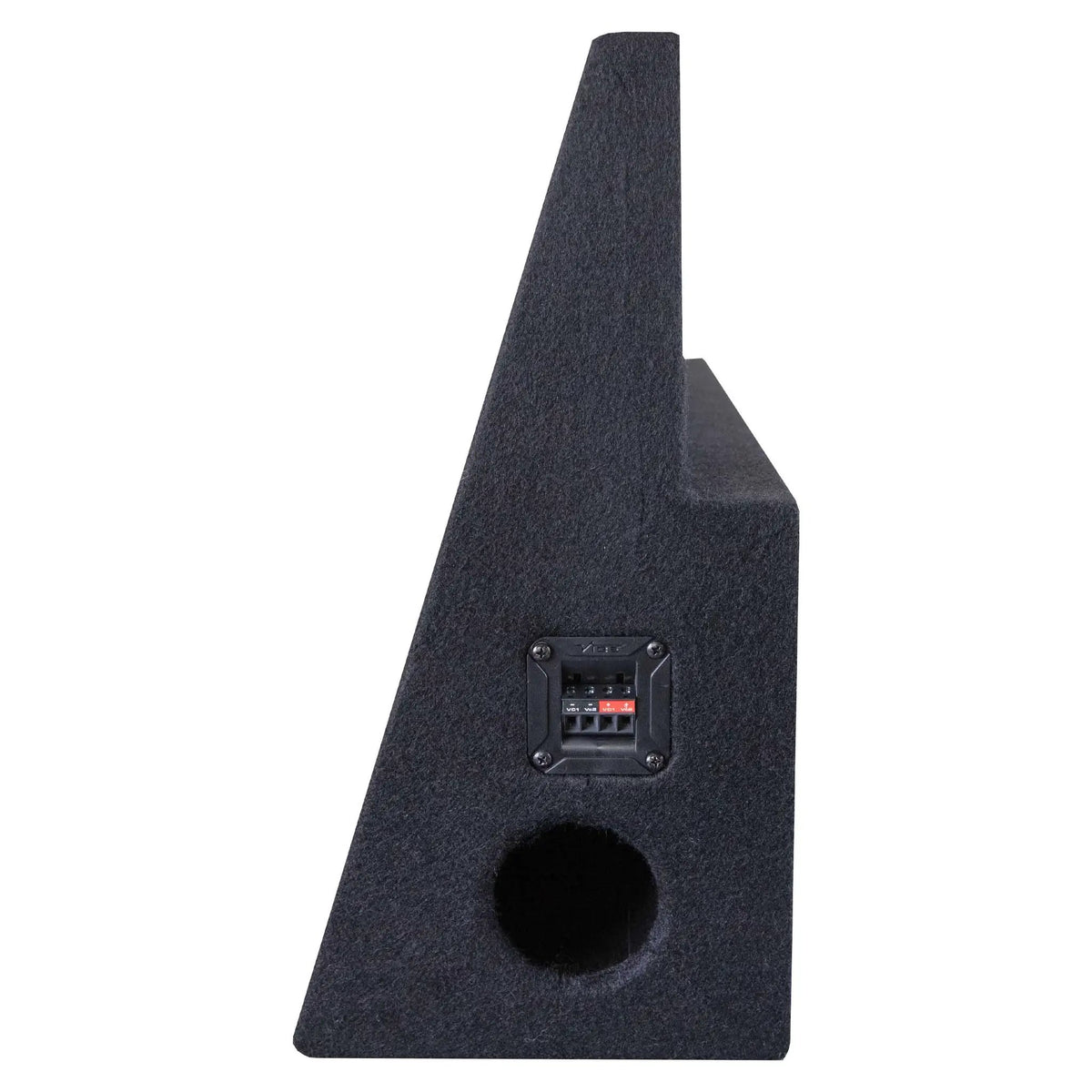

- Ported single chamber: The enclosure’s port is tuned to 36 Hz.
- Loaded passive design: The subwoofer is included, so you can plan your system around the specified external amplifier and installation wiring requirements.
Technical Specifications
| Subwoofer | One VIBE Audio BLACKAIR10D2S-V3 10-inch shallow-mount subwoofer |
|---|---|
| Subwoofer diameter | 10 inches |
| Power handling | 300W RMS / 900W peak |

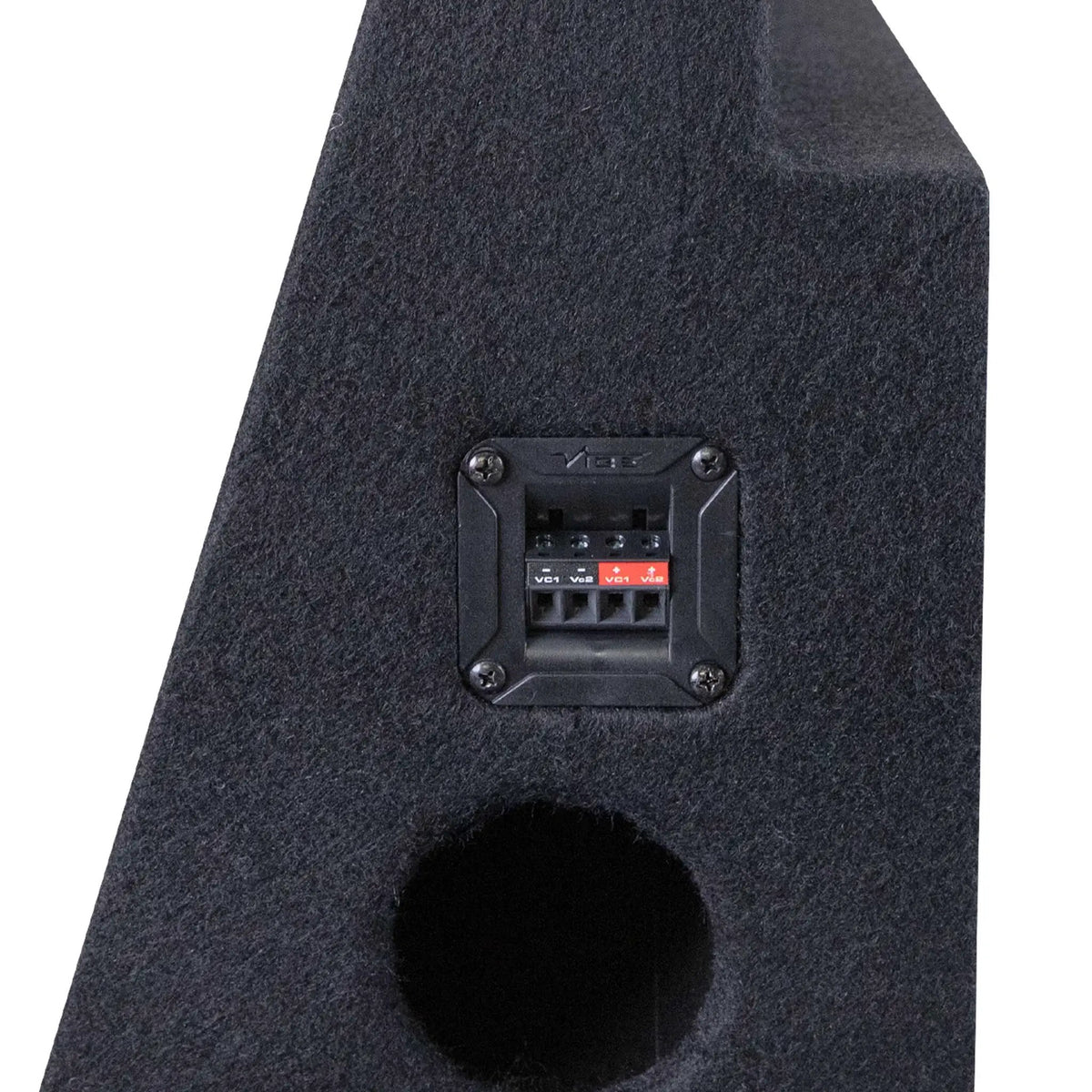

| Voice coils | Dual 2 ohms |
| Sensitivity | 85 dB |
| Subwoofer frequency response | 30 Hz–1 kHz |
| Enclosure design | Front-firing ported single-chamber enclosure |
| Port tuning | 36 Hz |
| Published internal air space | 1.5 ft³ |
| External dimensions | 16.875 H × 29.5 W × 8.5 D inches |
| Construction | MDF |
| Finish | Black carpet |
| Fitment | 2016–2023 Toyota Tacoma Double Cab; mounts behind the rear cab seat |
| Warranty | Manufacturer-listed one-year limited warranty |
The published internal air-space figure is reproduced as stated by Metra; it is not identified as net volume.
Why Choose This Product?
The TY-TAC1-10 pairs its subwoofer and enclosure in one vehicle-specific assembly. That gives you a defined behind-the-seat placement and enclosure design to consider when planning a Tacoma audio system.
Its stated power handling, dual 2-ohm voice coils, and frequency response help you compare the enclosure with your system plans. The loaded passive design still requires an external amplifier and suitable installation wiring.
Installation & Compatibility Notes
This enclosure is listed for 2016–2023 Toyota Tacoma Double Cab models and mounts behind the rear cab seat. Check your exact model year, body style, factory audio system, and available clearance before ordering.
Review the installation instructions and Metra’s current vehicle fit guide for installation requirements. An external amplifier and suitable installation wiring are required; confirm your planned equipment and connections before fitting.
Frequently Asked Questions
What is included with the TY-TAC1-10?
It includes one VIBE Audio BLACKAIR10D2S-V3 10-inch shallow-mount subwoofer in a front-firing, ported single-chamber enclosure.
Will this enclosure fit every Toyota Tacoma?
It is listed for 2016–2023 Toyota Tacoma Double Cab models. Confirm your model year, body style, factory audio system, and available clearance before ordering.
Does the enclosure include an amplifier?
No. It is a loaded passive enclosure, and an external amplifier and suitable installation wiring are required.
What are the enclosure dimensions?
The listed external dimensions are 16.875 H × 29.5 W × 8.5 D inches.
What warranty is listed?
The manufacturer lists a one-year limited warranty.
