American Bass King Series 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 6500 W
- Voice-coil options: D1, D2
- Mounting depth: 11.02 inches
- Cutout size: 11.34 inches
- Voice-coil diameter: 4.5 inches
American Bass King Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass King Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

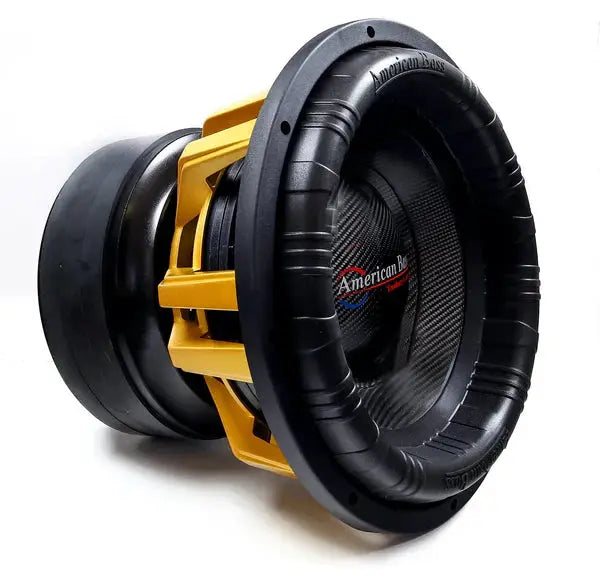

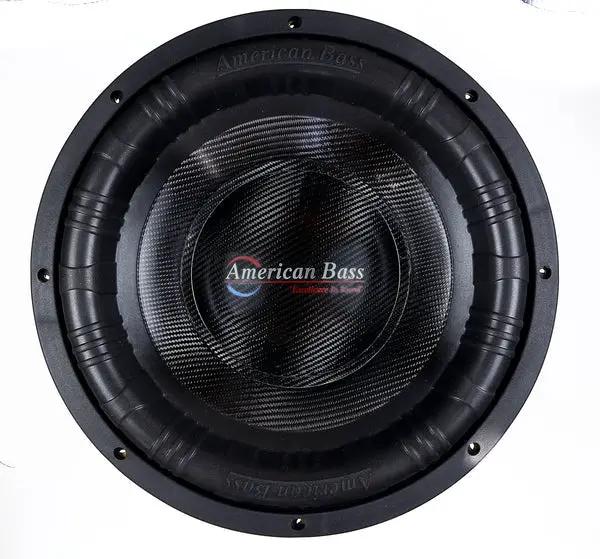

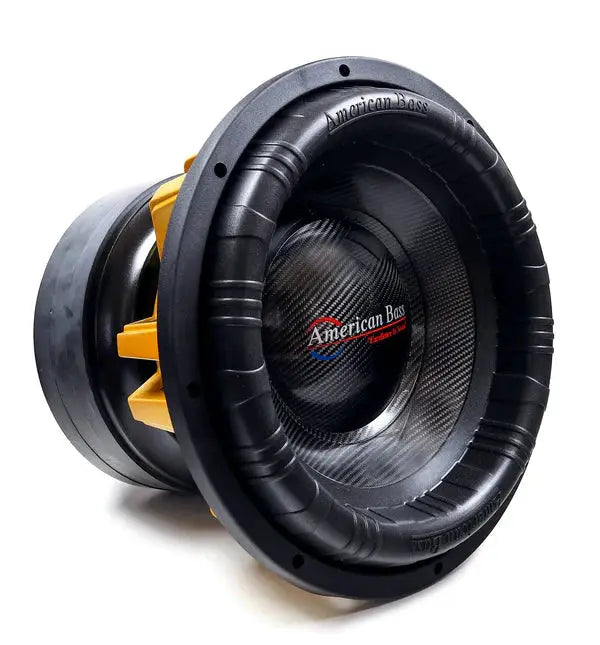

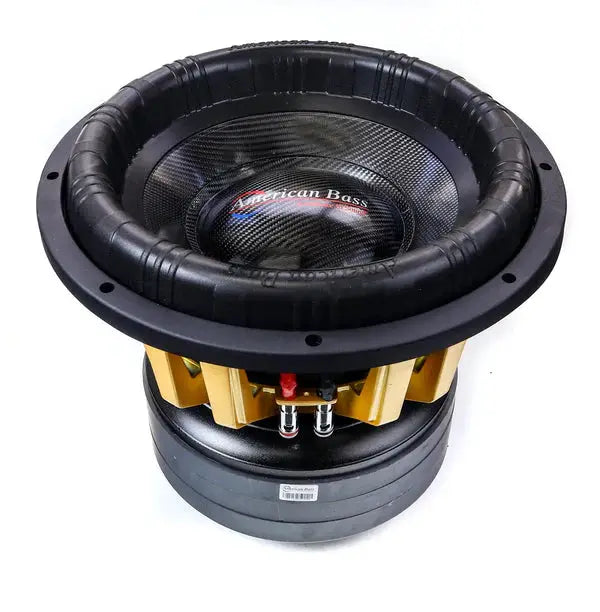

The American Bass King Series 12" subwoofer is built for high-output bass in demanding car-audio systems. Its 6,500-watt RMS rating, direct cooling system, and 4.5" high-temperature flat-wire voice coil suit power-focused builds. A 3.75 ft³ ported enclosure is the listed box volume.
Key Features & Benefits
- High-power design: The 6,500-watt RMS and 15,000-watt maximum ratings describe its continuous and peak power handling.
- Heat-management features: Direct cooling and a high-temperature voice coil support operation in demanding, high-power systems.
- Dual impedance: D1 / D2 options give you impedance configurations to consider when matching an amplifier.

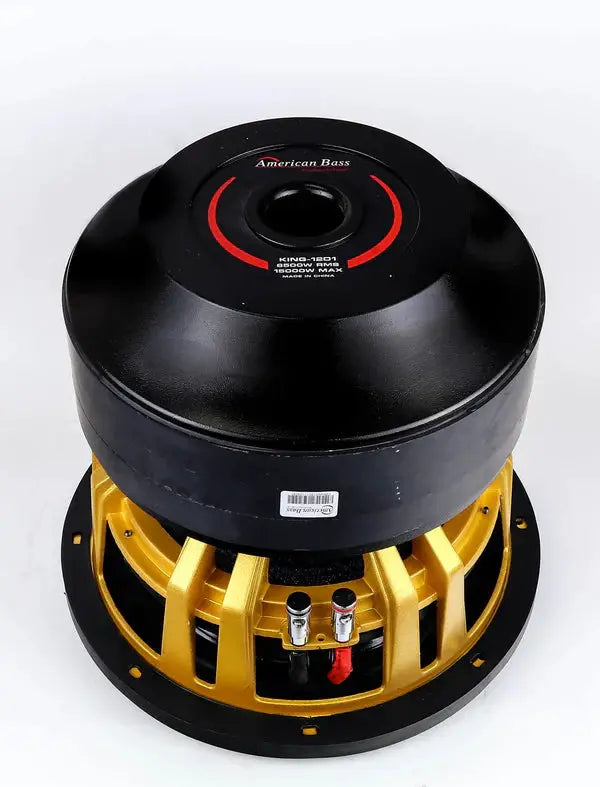

- Rigid construction: The cast basket, triple-stacked 613 oz magnet, and black anodized T-yoke are built for demanding installations.
- Reinforced cone assembly: A carbon fiber dust cap and carbon cone foam surround complete the subwoofer’s construction.

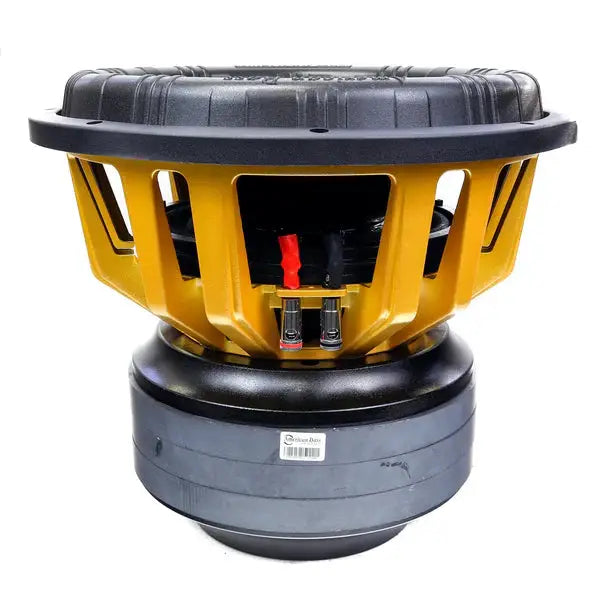

- Wiring terminals: 4GA copper push terminals provide a connection point for high-power wiring.
Technical Specifications
| RMS POWER | 6500 |
| MAX POWER | 15000 |
| IMPEDANCE (OHMS) | D1 / D2 |
| SENSITIVITY DB | 82.3 |
| MOUNTING DEPTH (IN) | 11.02 |
| CUTOUT SIZE (IN) | 11.34 |
| PORTED BOX (FT3) | 3.75 |
| MAGNET SIZE (OZ) | 613 |
| VOICE COIL SIZE | 4.5" |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL Comp 8K |
Additional construction details include a double black spider and a regal textured finish on the die-cast basket.
Why Choose This Product?
The King Series combines a large voice coil, direct cooling, and a substantial triple-stacked magnet in a 12-inch subwoofer. Its listed 3.75 ft³ ported-box volume gives you a specific enclosure target to consider when planning a vented car-audio build.
Installation & Compatibility Notes
Allow for the listed 11.02-inch mounting depth and 11.34-inch cutout size when checking enclosure space. The recommended ported box volume is 3.75 ft³. Confirm that your enclosure dimensions and amplifier’s supported impedance match your planned installation.
The listed recommended amplifier for a pair is the VFL Comp 8K. Check the subwoofer’s D1 / D2 configuration and your amplifier’s requirements before choosing a wiring setup.
Frequently Asked Questions
What are the power ratings?
The subwoofer is rated at 6,500 watts RMS and 15,000 watts maximum power.
What impedance options does it have?
The listed impedance configurations are D1 / D2. Match the selected configuration to your amplifier’s supported load.
How much enclosure space does it need?
The listed ported-box volume is 3.75 ft³. Check your planned enclosure dimensions against the installation space in your vehicle.
What are the mounting dimensions?
It has an 11.02-inch mounting depth and an 11.34-inch cutout size.
Which amplifier is recommended for a pair?
The listed recommendation is the VFL Comp 8K. Confirm amplifier compatibility with your chosen impedance configuration.
