American Bass XMAXXX Monster Series 12" Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 3000 W
- Voice-coil options: D1, D2
- Mounting depth: 9.17 inches
- Cutout size: 11.4 inches
- Basket construction: Cast
American Bass XMAXXX Monster Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
American Bass XMAXXX Monster Series 12" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

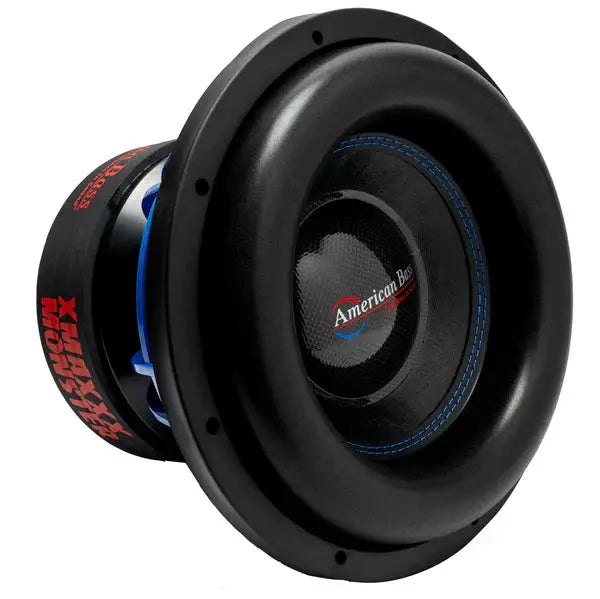

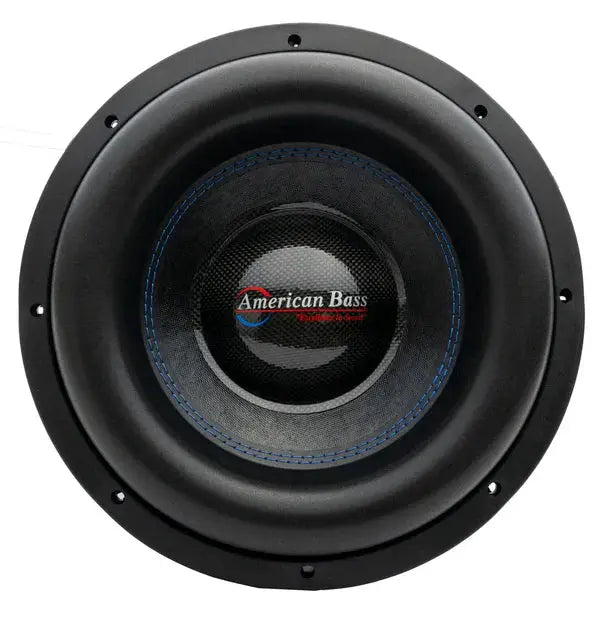

The American Bass XMAXXX Monster Series 12" subwoofer brings a 3000W RMS rating to a car-audio system built for powerful bass. Its blue-finished design, dual-voice-coil configuration, and cast basket make it a distinctive choice for a high-output installation.
Key Features & Benefits
- Blue finish: The blue powder-coated basket, matching surround, and blue stitching create a coordinated look.
- High power ratings: 3000W RMS and 6000W maximum power ratings specify its continuous and peak power handling.
- D1/D2 impedance: The dual-voice-coil design offers two impedance options for amplifier matching and wiring choices.

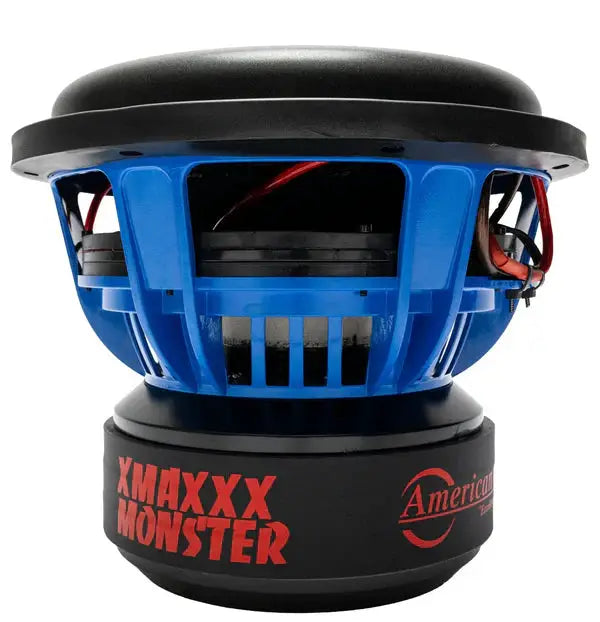

- Cast basket and 321 oz magnet: These substantial components provide mechanical support for the subwoofer.
- Ported enclosure guidance: The recommended 2.75 ft³ box volume gives you a specific starting point for enclosure planning.
Technical Specifications
| RMS POWER | 3000W |
| MAX POWER | 6000W |
| IMPEDANCE (OHMS) | D1/D2 |
| SENSITIVITY DB | 85.9 |
| MOUNTING DEPTH (IN) | 9.17 |
| CUTOUT SIZE (IN) | 11.4 |
| PORTED BOX (FT3) | 2.75 |
| MAGNET SIZE (OZ) | 321 |
| VOICE COIL SIZE | 3.5 |
| BASKET TYPE | CAST |
| RECOMMENDED AMP (PAIR) | VFL 5K |
Why Choose This Product?
The XMAXXX Monster Series combines substantial power ratings with a cast basket and large magnet. Its blue detailing also brings a distinctive visual accent to a custom car-audio build.
The listed VFL 5K recommendation applies to a pair of subwoofers. Consider your intended system configuration and amplifier when choosing this model.
Installation & Compatibility Notes
Plan for 9.17 inches of mounting depth and an 11.4-inch cutout. The recommended ported box volume is 2.75 ft³.
Check available mounting space and confirm the D1/D2 impedance option and wiring plan suit your amplifier and vehicle electrical setup before installation.
Frequently Asked Questions
What do the 3000W and 6000W ratings mean?
They are the listed RMS power and maximum power ratings, respectively.
What does D1/D2 mean?
It identifies the dual-voice-coil configuration and its two impedance options. Match the selected option and wiring plan to your amplifier.
What space should I allow for installation?
Allow for the listed 9.17-inch mounting depth and 11.4-inch cutout, and check your enclosure and mounting surface.
What amplifier is recommended for a pair?
The listed recommendation for a pair is the VFL 5K.
