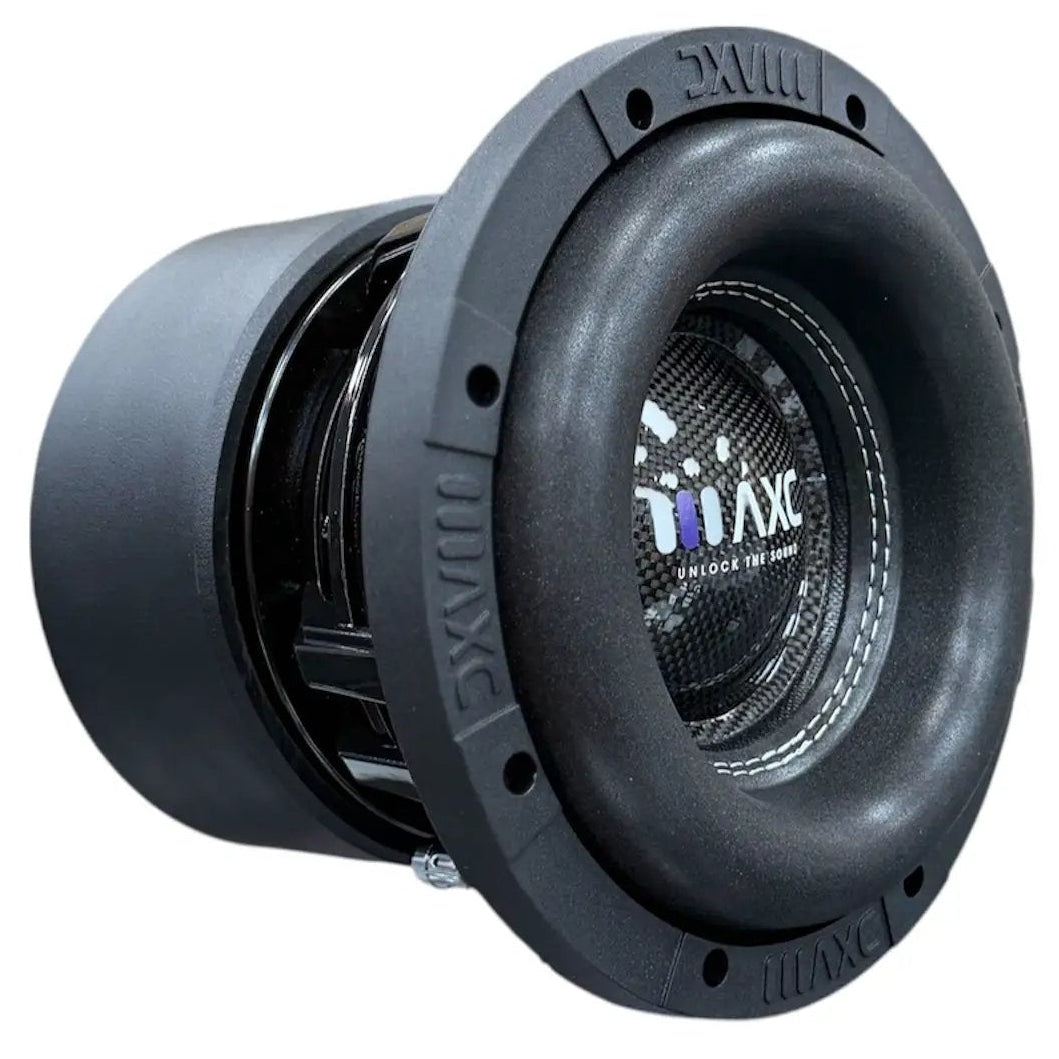

Audio Code AXC-T84 8" 1,000W RMS Subwoofer D4
Key features
- Subwoofer size: 8.0 inches
- RMS power per subwoofer: 1000 W
- Voice-coil options: D4

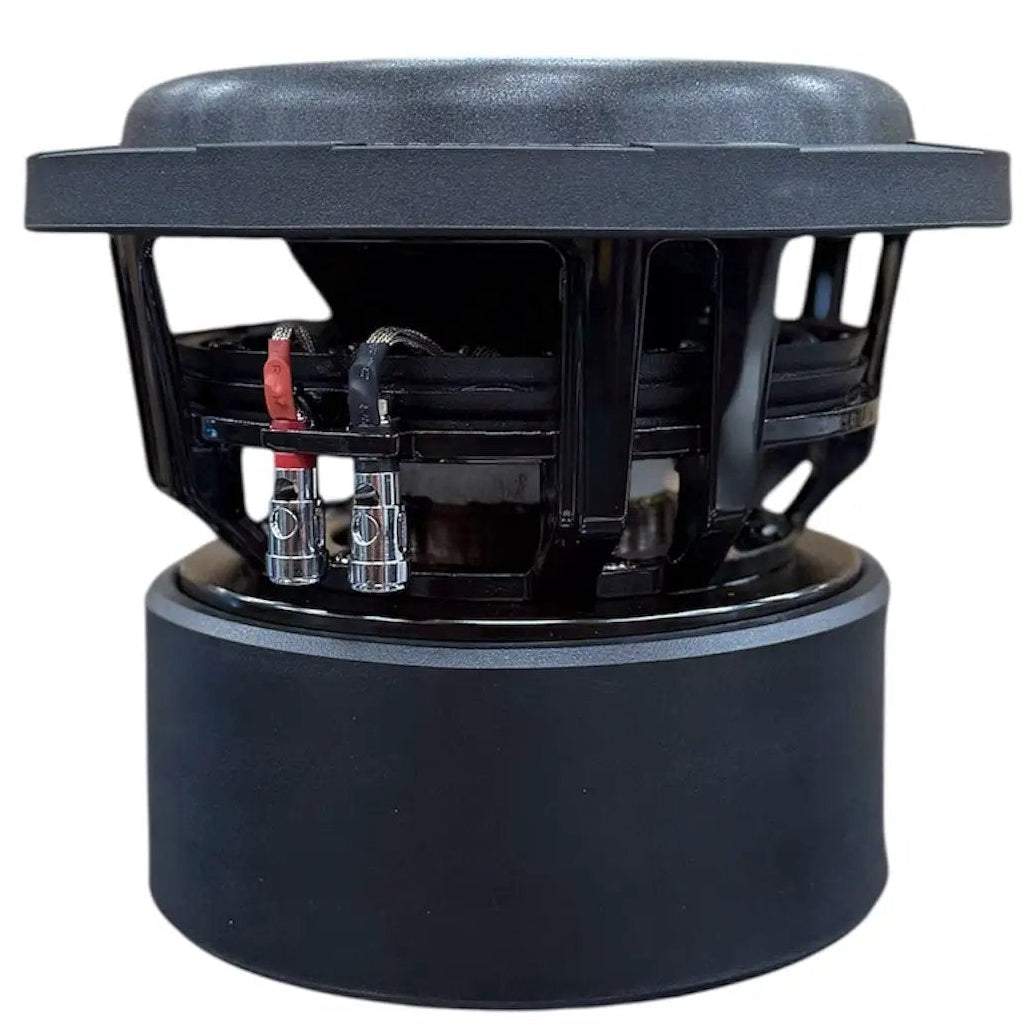

- Connections: Push terminals
- Mounting: Eight-hole flange
- Motor ventilation: Rear pole vent
Audio Code AXC-T84 8" 1,000W RMS Subwoofer D4 is backordered and will ship as soon as it is back in stock.
Audio Code AXC-T84 8" 1,000W RMS Subwoofer D4 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Audio Code AXC-T84 8-inch subwoofer delivers 1,000W RMS power handling in a compact format for space-conscious car audio builds. Its dual 4-ohm voice coils let you configure a 2-ohm or 8-ohm final load to match your amplifier’s supported impedance.
Key Features & Benefits
- 1,000W RMS power handling: Supports high-output system plans built around a suitably rated amplifier.
- Compact 8-inch format: Suits installations where a larger subwoofer may not fit, including under-seat and small-enclosure builds.
- Dual 4-ohm voice coils: Parallel wiring produces a 2-ohm final load; series wiring produces an 8-ohm final load.
- Flexible system matching: The two wiring options give you a choice when pairing the subwoofer with a mono amplifier.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC-T84 |
| Size | 8" |
| Power Handling (RMS) | 1,000W |
| Voice Coil | Dual Voice Coil (DVC) |
| Impedance per Coil | 4 ohms |
| Final Impedance (Parallel) | 2 ohms |
| Final Impedance (Series) | 8 ohms |
Why Choose This Product?
The AXC-T84 combines high RMS power handling with an 8-inch size, making it an option for builds with limited room for a subwoofer. Its dual voice coils offer two final impedance choices, so you can select the wiring configuration that suits your amplifier and system goals.
A sealed enclosure is a practical choice for compact installations. It is described as producing tight, accurate bass while keeping the enclosure volume compact.
Installation & Compatibility Notes
For maximum output, the product details recommend a mono amplifier rated 750–1,000W RMS at 2 ohms with the coils wired in parallel. For series wiring, they recommend an amplifier rated 750–1,000W RMS at 8 ohms.
The provided wiring guidance calls for 4-gauge power and ground wire to the amplifier, and 8 AWG or heavier speaker wire from the amplifier to the subwoofer. Check that your amplifier supports the selected final load and that your enclosure fits the installation space.
Frequently Asked Questions
How can I wire the AXC-T84 for a 2-ohm final load?
Wire the two 4-ohm voice coils in parallel to create a 2-ohm final load.
How can I wire it for an 8-ohm final load?
Wire the two 4-ohm voice coils in series to create an 8-ohm final load.
What amplifier rating is recommended?
The product details recommend a mono amplifier rated 750–1,000W RMS at the chosen final load: 2 ohms for parallel wiring or 8 ohms for series wiring.
What enclosure type is suggested?
A sealed enclosure is described as a practical choice for compact builds, including under-seat and small-trunk locations.
Can this subwoofer suit daily listening or competition use?
The product details describe the AXC-T84 for both high-output daily-driver builds and competition-level applications.
Explore More
Explore Audio Code products at 12 Volt Outlet, and browse the brands we sell.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
