Audiopipe High Performance Vented Enclosure (AP-CHU-1028RED), Sold individually
Key features
Drivers included; amplifier not included
- Speaker fit: 2 × 10-inch low-mid-frequency speakers included
- Finish: High-density carpet
- Enclosure design: Ported
- Construction: MDF enclosure
- Midrange driver: 1 × 6 × 6-inch driver with 2-inch titanium diaphragm
- Super tweeters: 2 × 4 × 4-inch tweeters with 1.5-inch aluminum diaphragms
Audiopipe High Performance Vented Enclosure (AP-CHU-1028RED), Sold individually is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

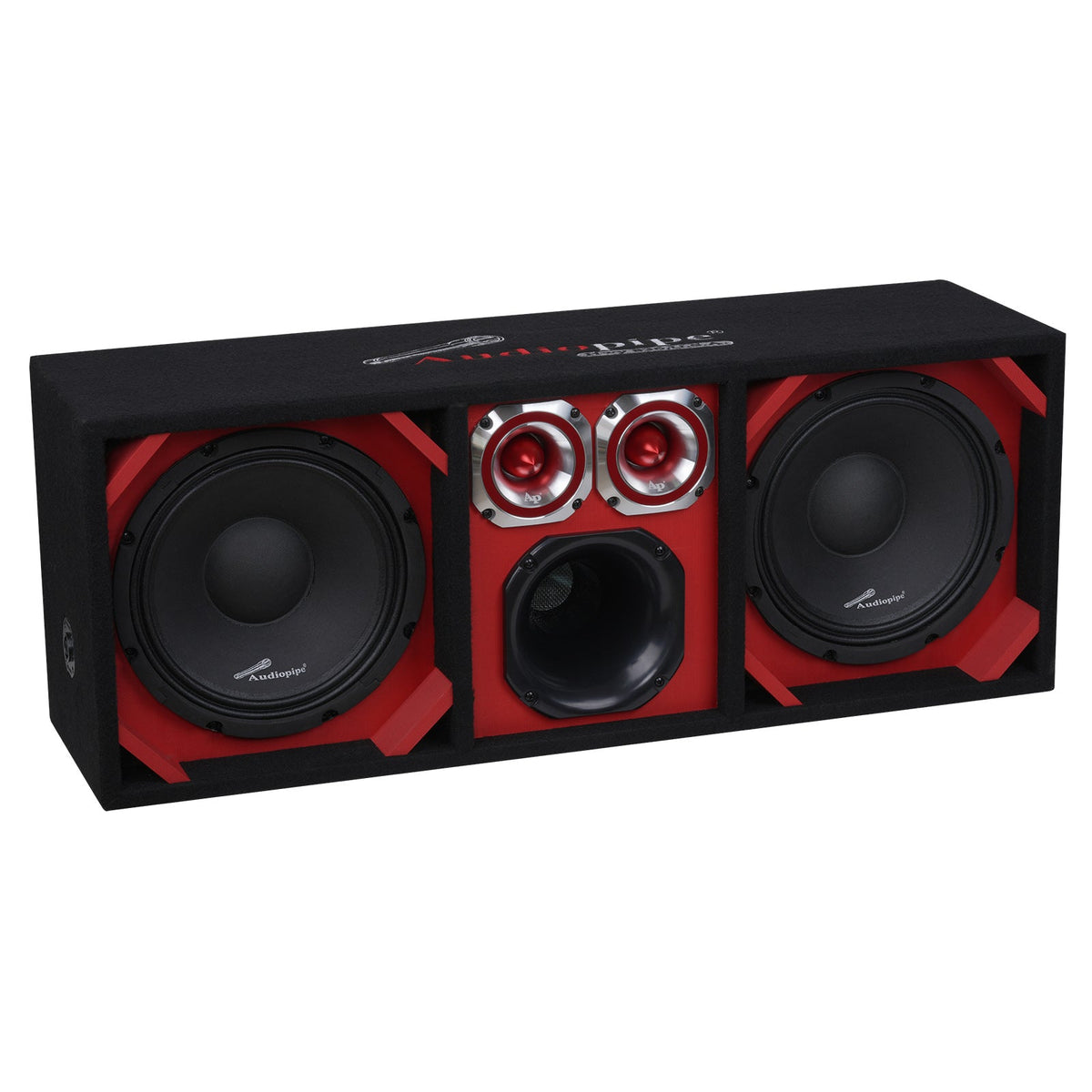

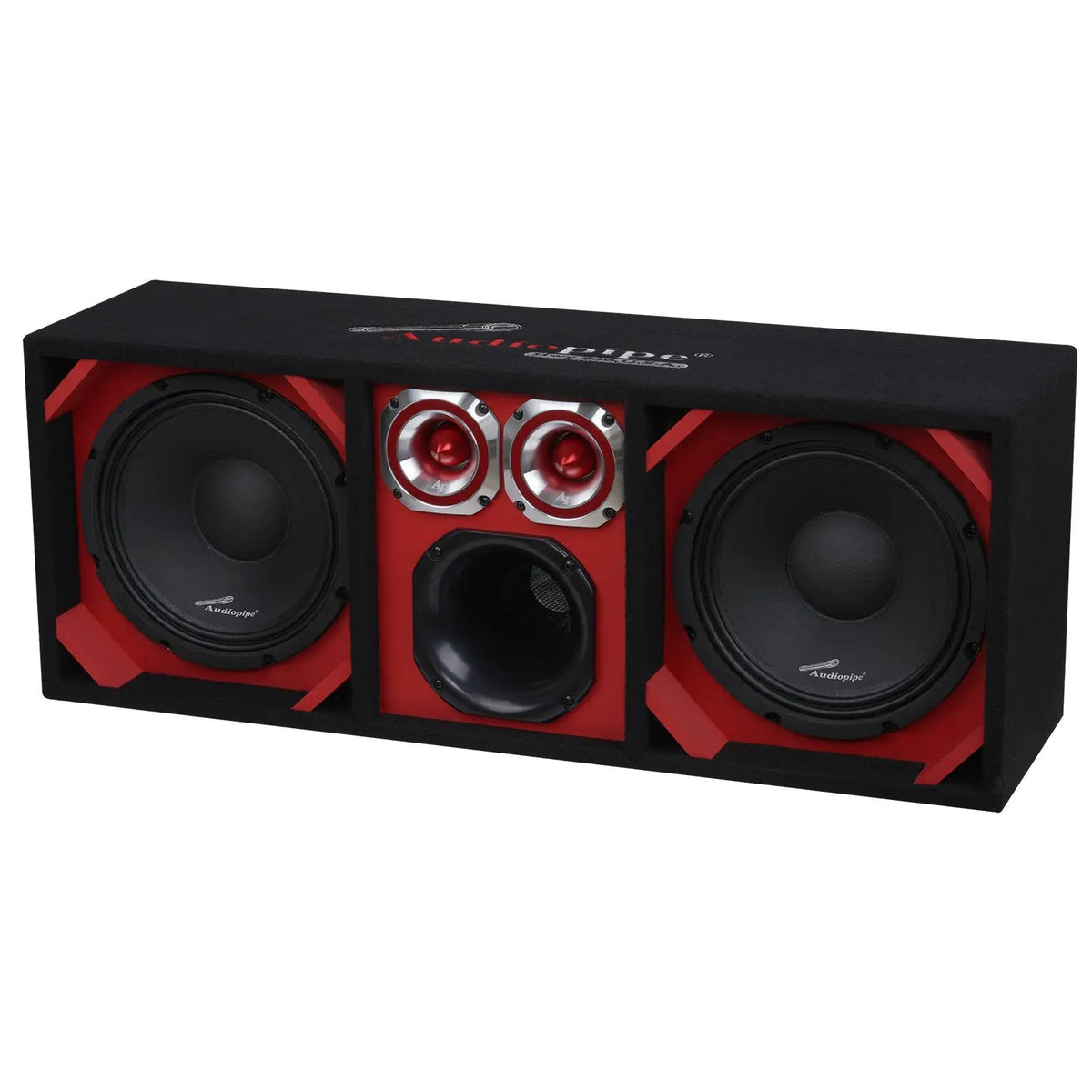

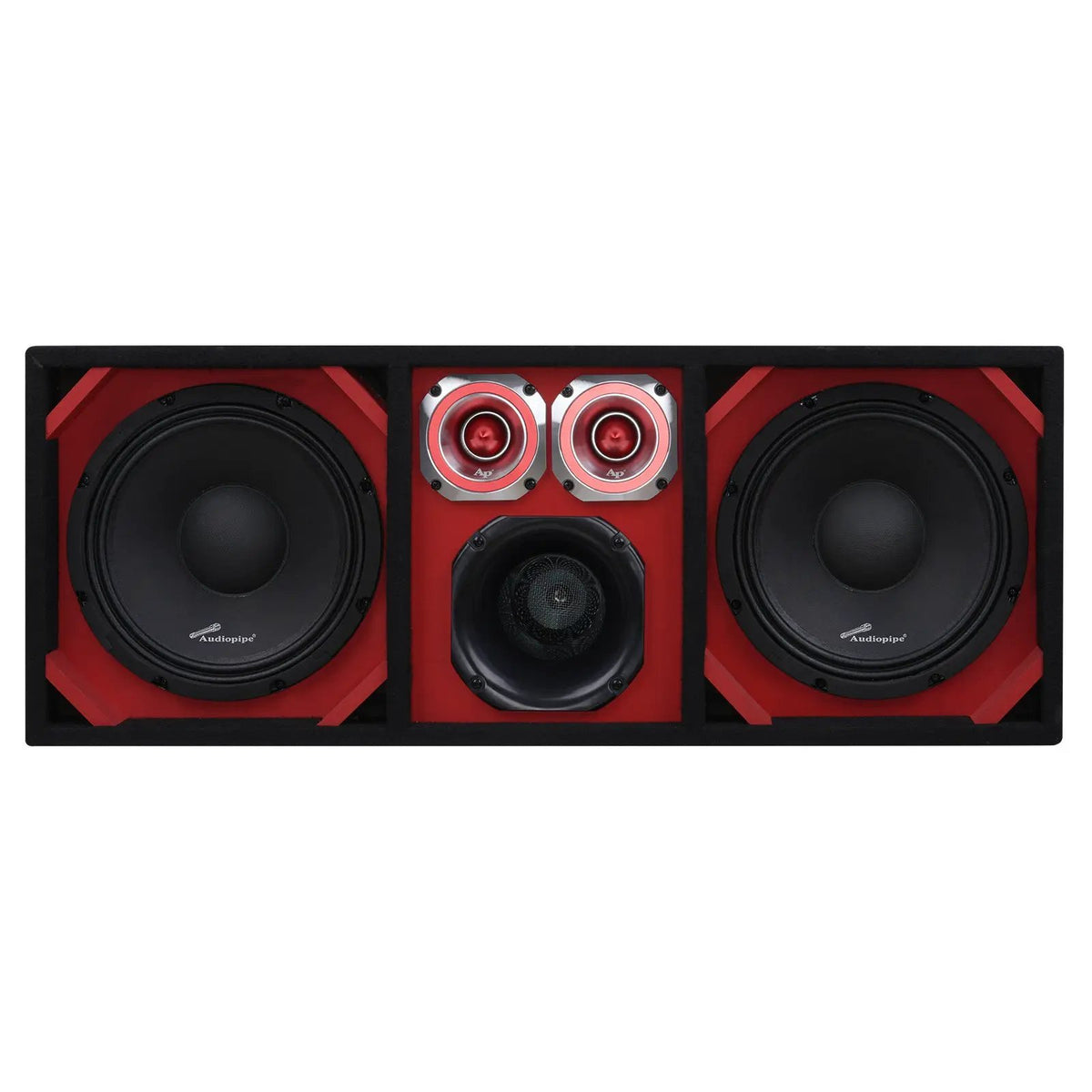

Bring bass, midrange, and high frequencies together in your vehicle with the Audiopipe AP-CHU-1028RED high performance vented enclosure. It combines two 10-inch low-mid-frequency speakers, a dedicated midrange driver, and dual super tweeters in one carpeted MDF enclosure.
Key Features & Benefits
- Vented enclosure: The vented design is intended to deliver deep, punchy bass.
- Multiple drivers: Separate low-mid, midrange, and high-frequency drivers provide a varied speaker arrangement.
- Carpeted MDF construction: The high-density carpet finish gives the enclosure a finished appearance.
- 4-ohm final impedance: Check that your audio system supports this load before connecting the enclosure.

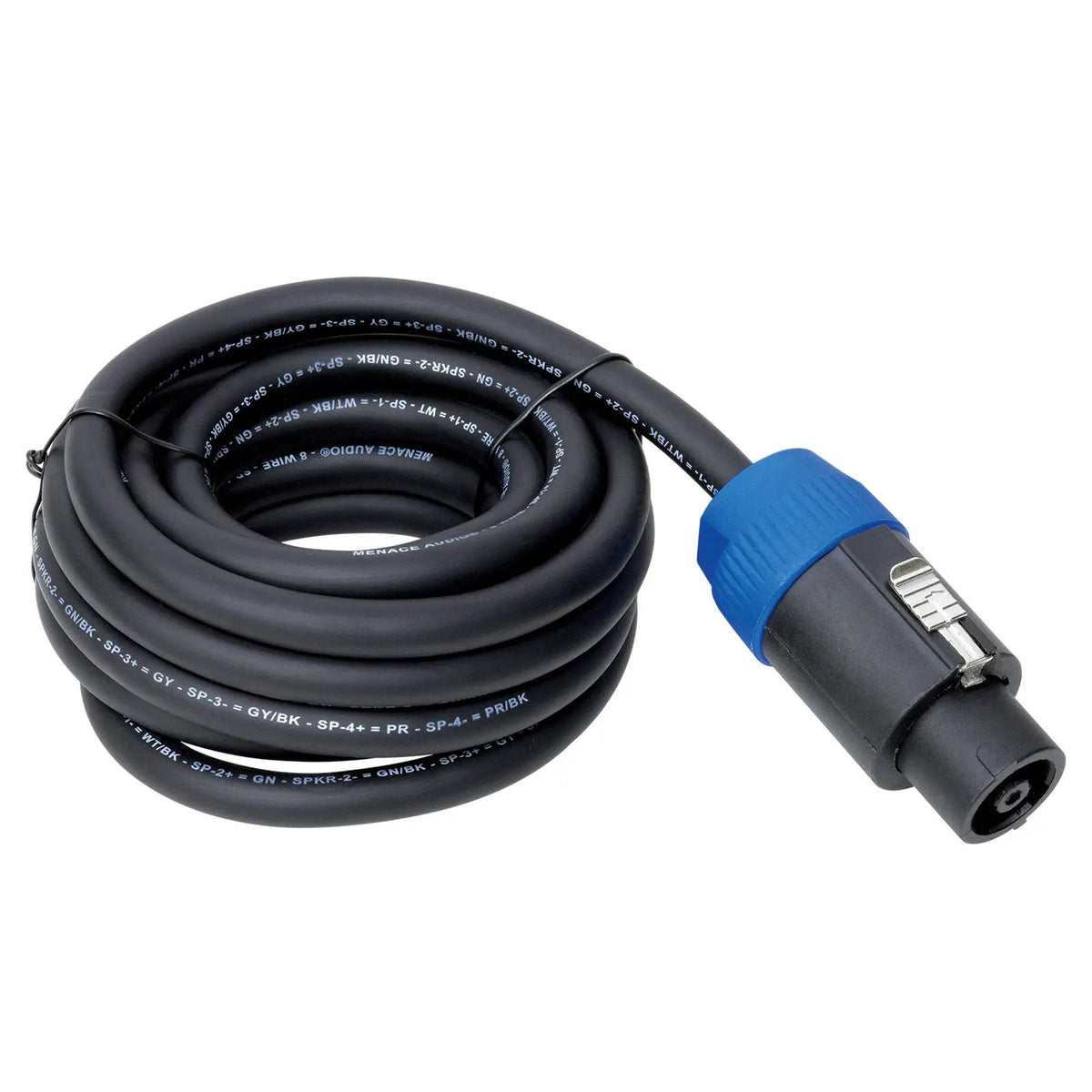

- Quick disconnect cable: The included 13 ft. 8-pin cable provides a connection option for installation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Audiopipe |
| Model | AP-CHU-1028RED |
| Product type | High performance vented enclosure |
| Power handling | 1000 watts peak |
| Enclosure material | MDF |
| Covering | High-density carpet |
| Low-mid-frequency speakers | Two 10-inch speakers; 2.5-inch high-temperature KSV voice coils |
| Midrange driver | 6" x 6"; high-temperature Kapton voice coil; 2" titanium super diaphragm |
| Super tweeters | Two 4" x 4" heavy-duty tweeters; 1.5" aluminum super diaphragms |
| Final impedance | 4 ohms |
| Included cable | 13 ft. 8-pin quick disconnect cable |
| Quantity | Sold individually |
Why Choose This Product?
This Audiopipe enclosure brings several driver types into a single vented unit. Its dual 10-inch speakers handle low-mid frequencies, while the dedicated midrange driver and super tweeters cover additional parts of the audio range.
The carpeted MDF enclosure gives the speaker assembly a cohesive finish for a vehicle audio setup. Its stated 1000-watt peak power handling and 4-ohm final impedance are key details to consider when matching it with your system.
Installation & Compatibility Notes
Before installation, confirm that your audio system is compatible with a 4-ohm final load and 1000 watts peak power handling. Check the enclosure’s fit in your intended location, and make sure the included 13 ft. cable can reach your connection point.
Frequently Asked Questions
What type of enclosure is the AP-CHU-1028RED?
It is a vented car audio enclosure made from MDF and finished with high-density carpet.
Which drivers are built into the enclosure?
It has two 10-inch low-mid-frequency speakers, one 6" x 6" midrange driver, and two 4" x 4" super tweeters.
What impedance should my system support?
The enclosure has a final impedance of 4 ohms. Confirm your system supports this load before connecting it.
What comes with the enclosure?
The product description lists a professional 13 ft. 8-pin quick disconnect cable. The enclosure is sold individually.
