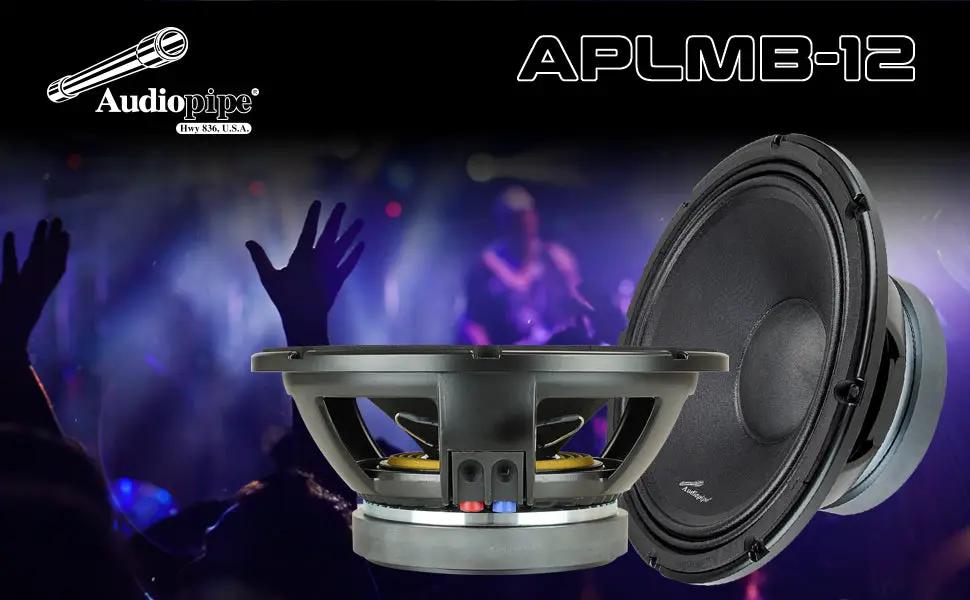

Audiopipe APLMB-12 12" Mid-Low Frequency Loudspeaker, Sold individually
Key features
- Speaker size: 12″
- RMS power per speaker: 750 W
- Speaker impedance: 8.0 ohms
- MAGNET: The APLMB-12 includes a 95 Oz magnet for strong power handling and superior performance.
- FREQUENCY RESPONSE: 55-6,000Hz
- SENSITIVITY: 94dB
Audiopipe APLMB-12 12" Mid-Low Frequency Loudspeaker, Sold individually is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

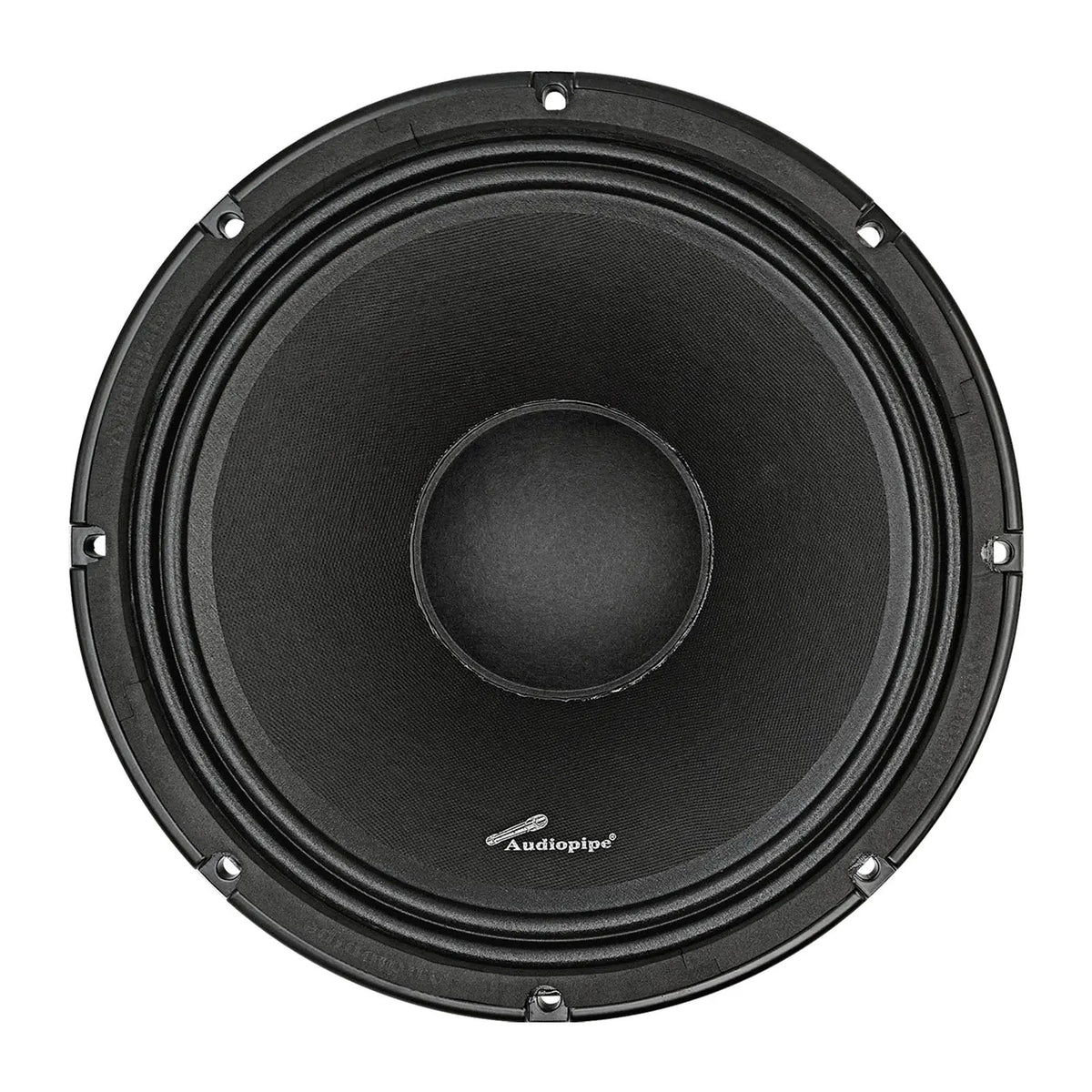

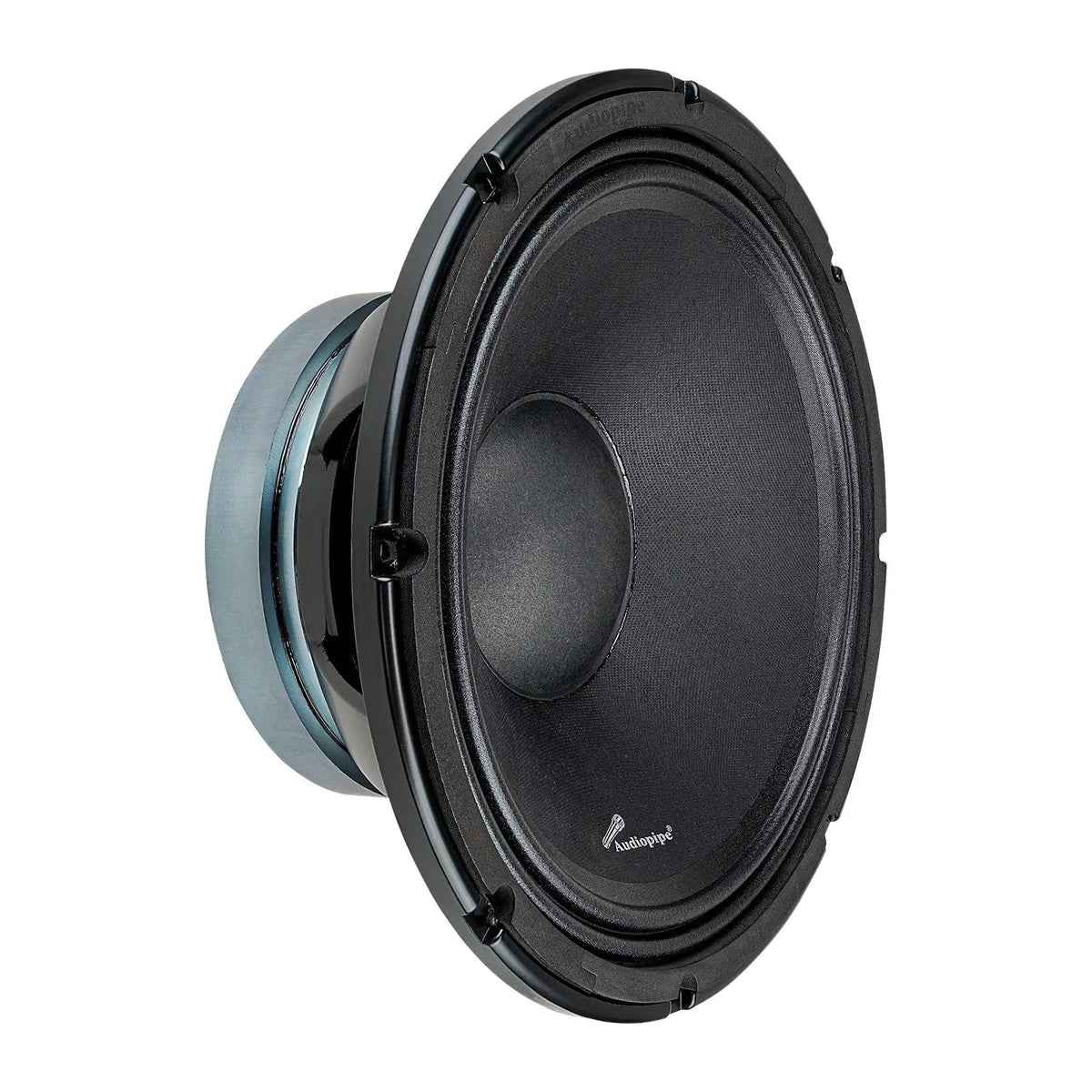

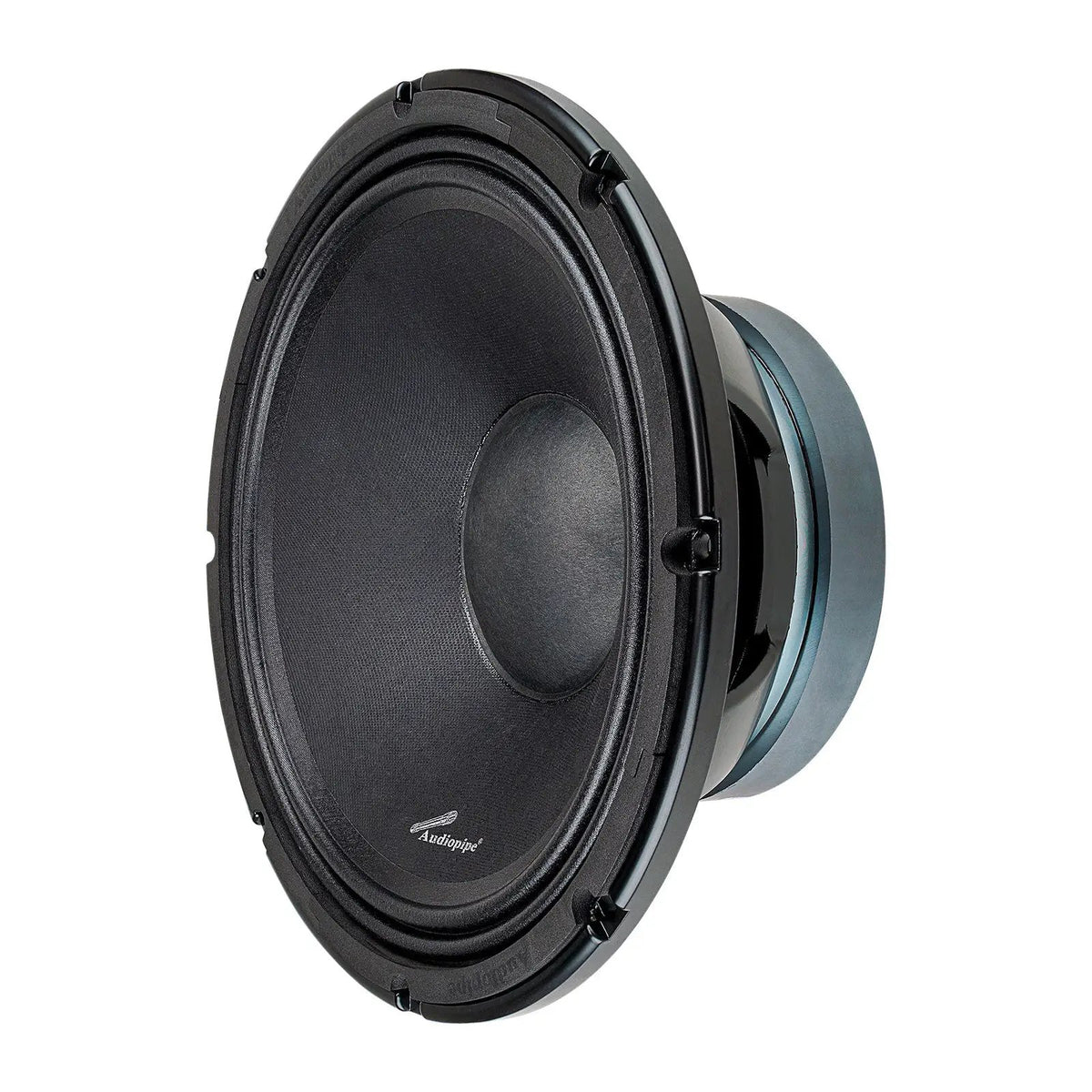

The Audiopipe APLMB-12 is a 12-inch mid-low frequency loudspeaker designed to add powerful low tones and clear midrange sound to an audio system. Its cloth edge surround, Kevlar fiber embedded paper cone, and 3.3-inch TIL voice coil are paired with a 95-ounce magnet and die-cast aluminum basket.
Key Features & Benefits
- Mid-low frequency design: The cloth edge surround supports low-frequency performance while the design aims to maintain midrange clarity.
- 750 watts continuous power: The RMS rating gives you a key figure for matching the speaker with suitable audio equipment.
- 3.3-inch TIL voice coil: High-temperature construction and improved ventilation support the speaker’s performance and endurance.
- Die-cast aluminum basket: The basket provides a rigid speaker structure and is designed to isolate internal air from external frequencies.

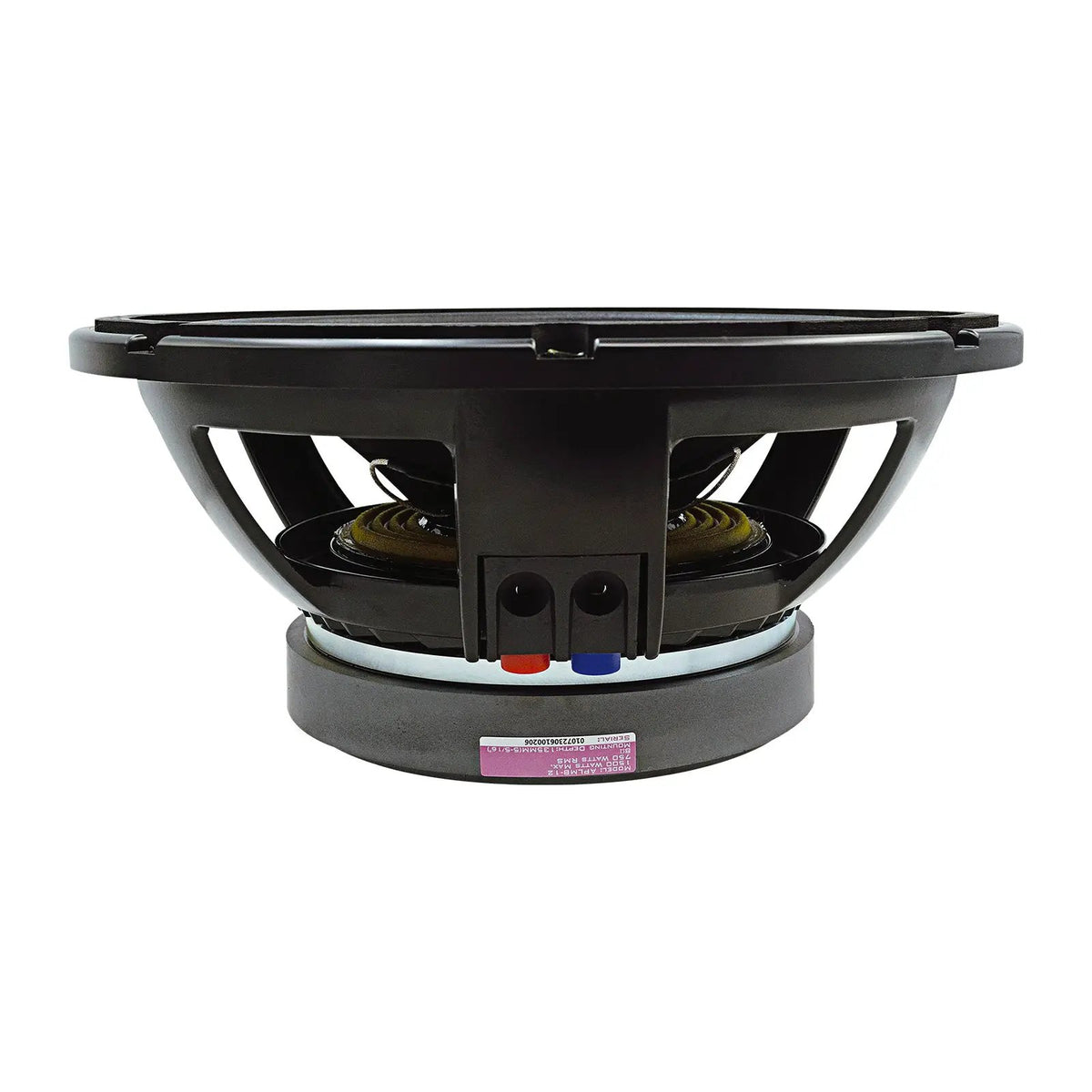

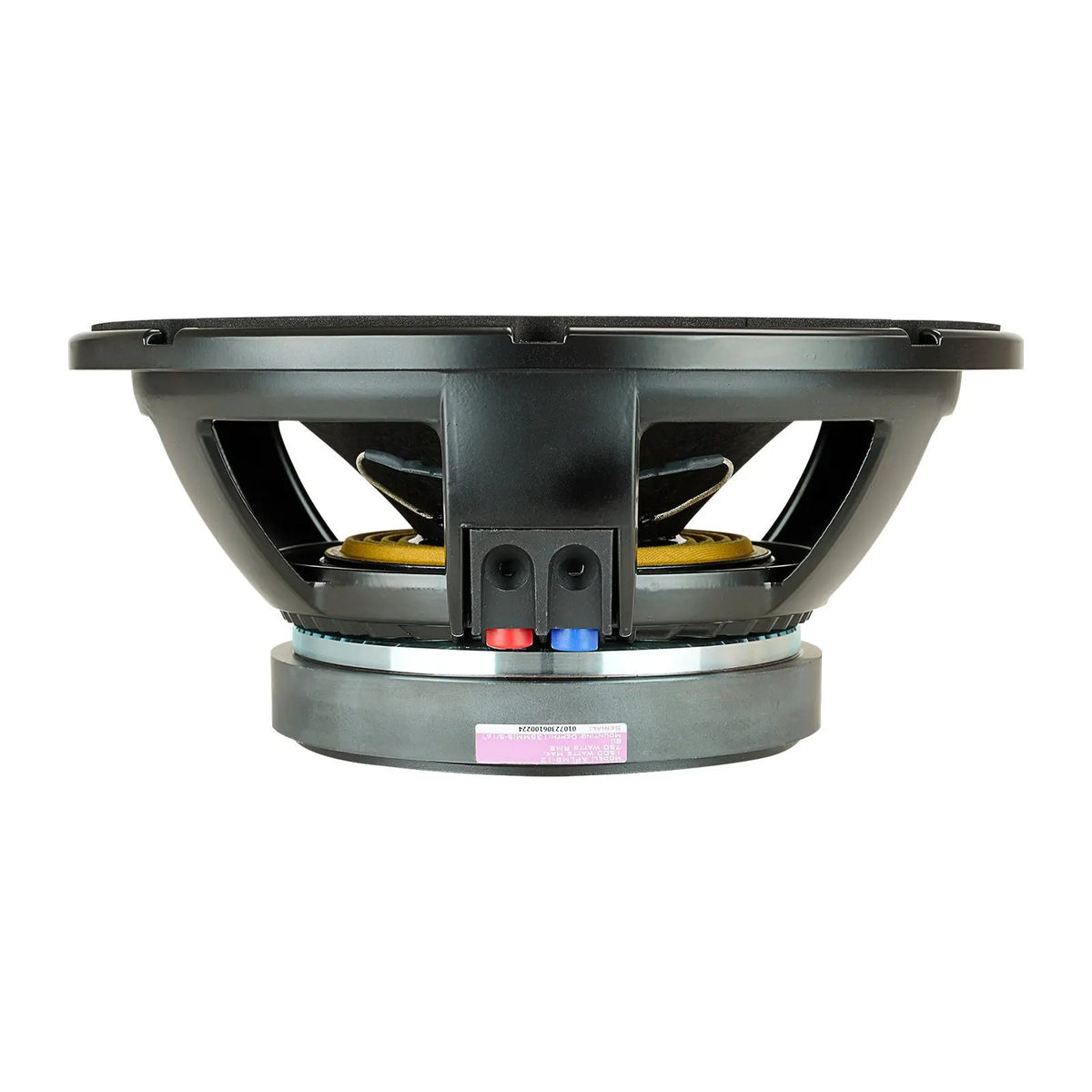

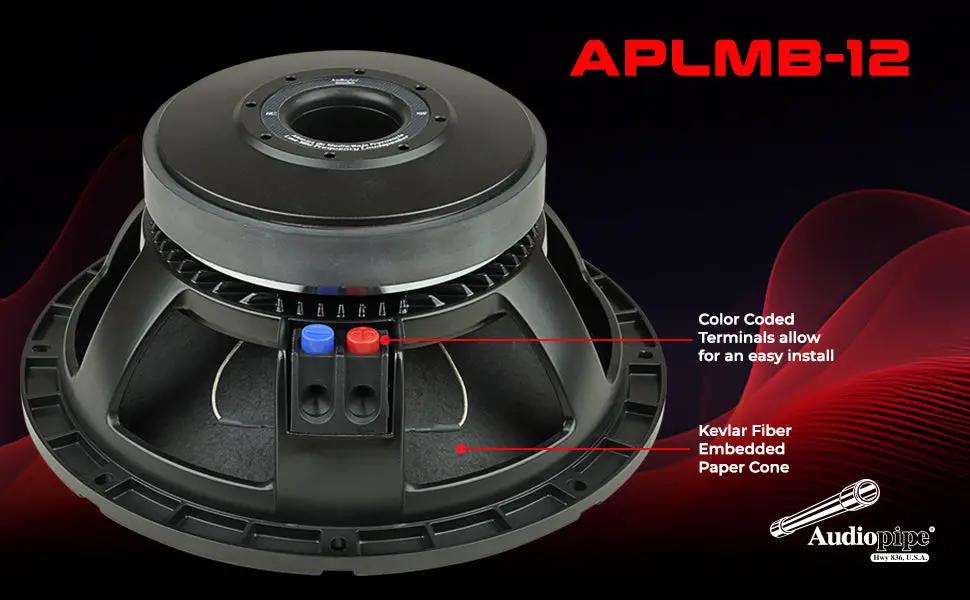

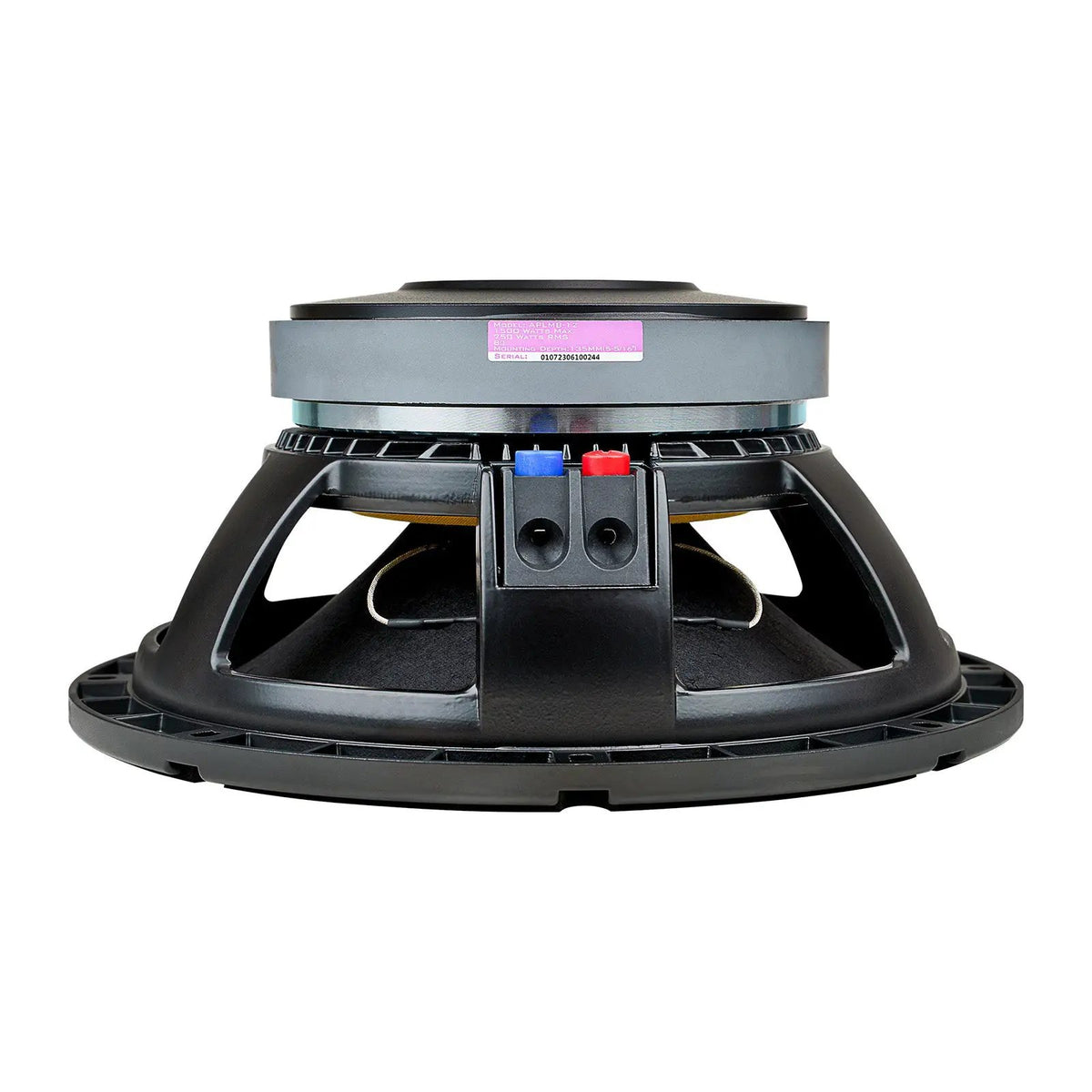

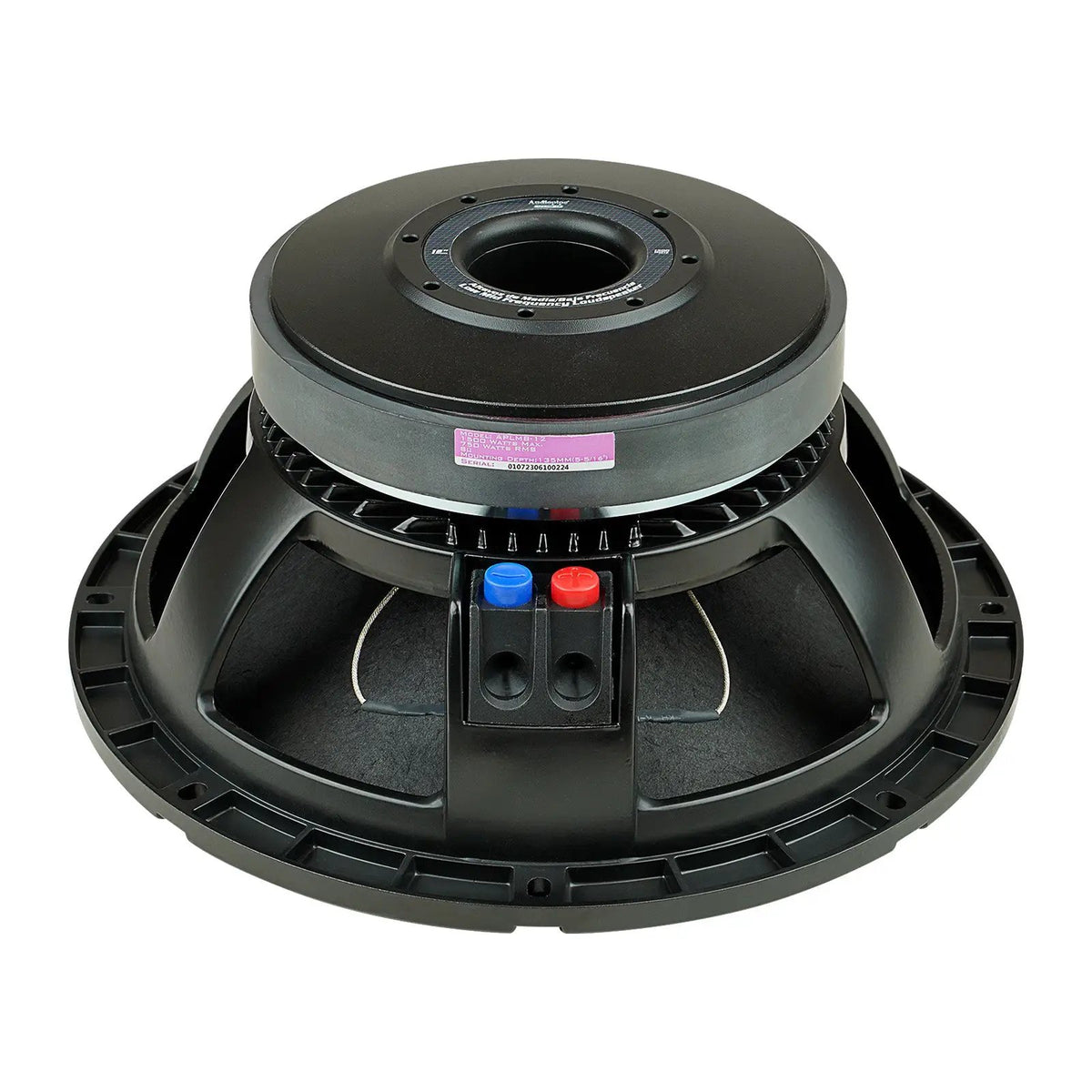

- Installation details: Reserved installation holes and color-coded terminals help make mounting and connections more straightforward.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker size | 12" |

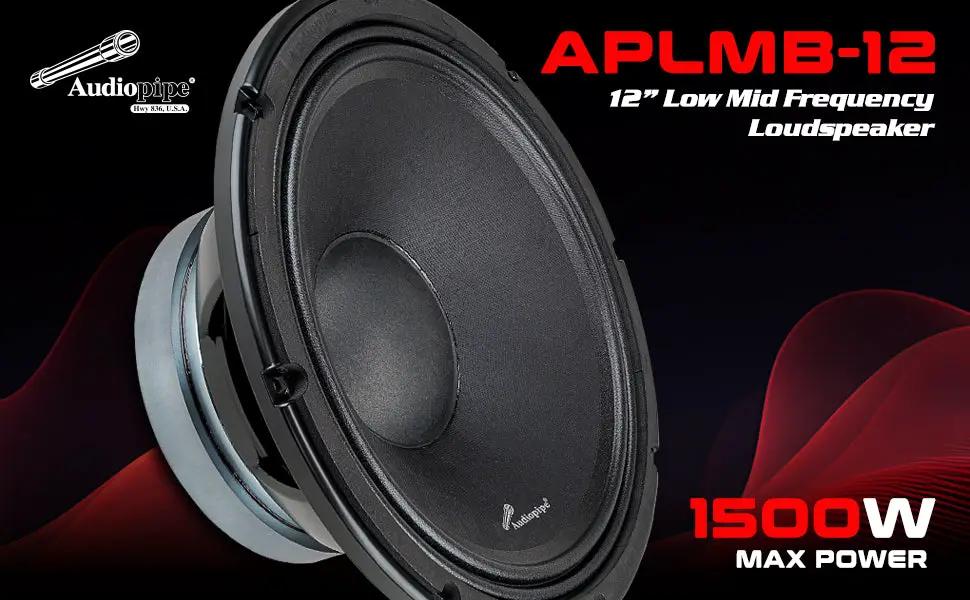

| Peak power | 1500 Watts [P.M.P.O.] |
| Continuous power | 750 Watts [R.M.S.] |
| Frequency response | 55-6,000Hz |
| Sensitivity | 94dB |

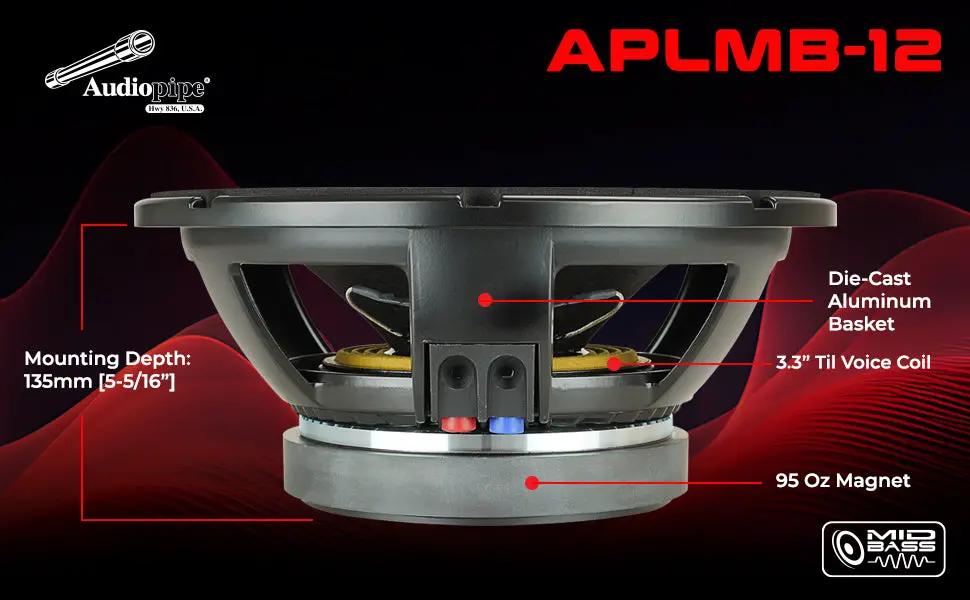

| Mounting depth | 135mm (5-5/16”) |
| Impedance | 8 Ohms |
| Voice coil | 3.3” TIL |
| Magnet | 95 Oz |
| Cone | Kevlar Fiber Embedded paper cone |
| Basket | Die-cast aluminum |
| Quantity | Sold individually |
Why Choose This Product?
The APLMB-12 brings together a mid-bass-focused design and substantial power ratings in a single 12-inch loudspeaker. Its cloth edge surround supports low-frequency output, while the listed 55-6,000Hz response covers low and midrange frequencies. The 8-ohm impedance and power ratings give you specific figures to consider when planning your system.
Installation & Compatibility Notes
Check that your mounting space can accommodate the 12-inch speaker and its 135mm (5-5/16”) mounting depth. Match the 8-ohm impedance and power ratings with your audio equipment, and review the reserved installation holes and color-coded terminals during installation planning. The APLMB-12 is sold individually.
Frequently Asked Questions
What are the APLMB-12’s power ratings?
It is rated at 750 Watts continuous power [R.M.S.] and 1500 Watts peak power [P.M.P.O.].
What impedance is this loudspeaker?
The APLMB-12 has an impedance of 8 Ohms. Check your system’s requirements when selecting a speaker.
How much mounting depth should I allow?
The listed mounting depth is 135mm (5-5/16”). Check your available mounting space against this measurement.
How many speakers are included?
This product is sold individually.
