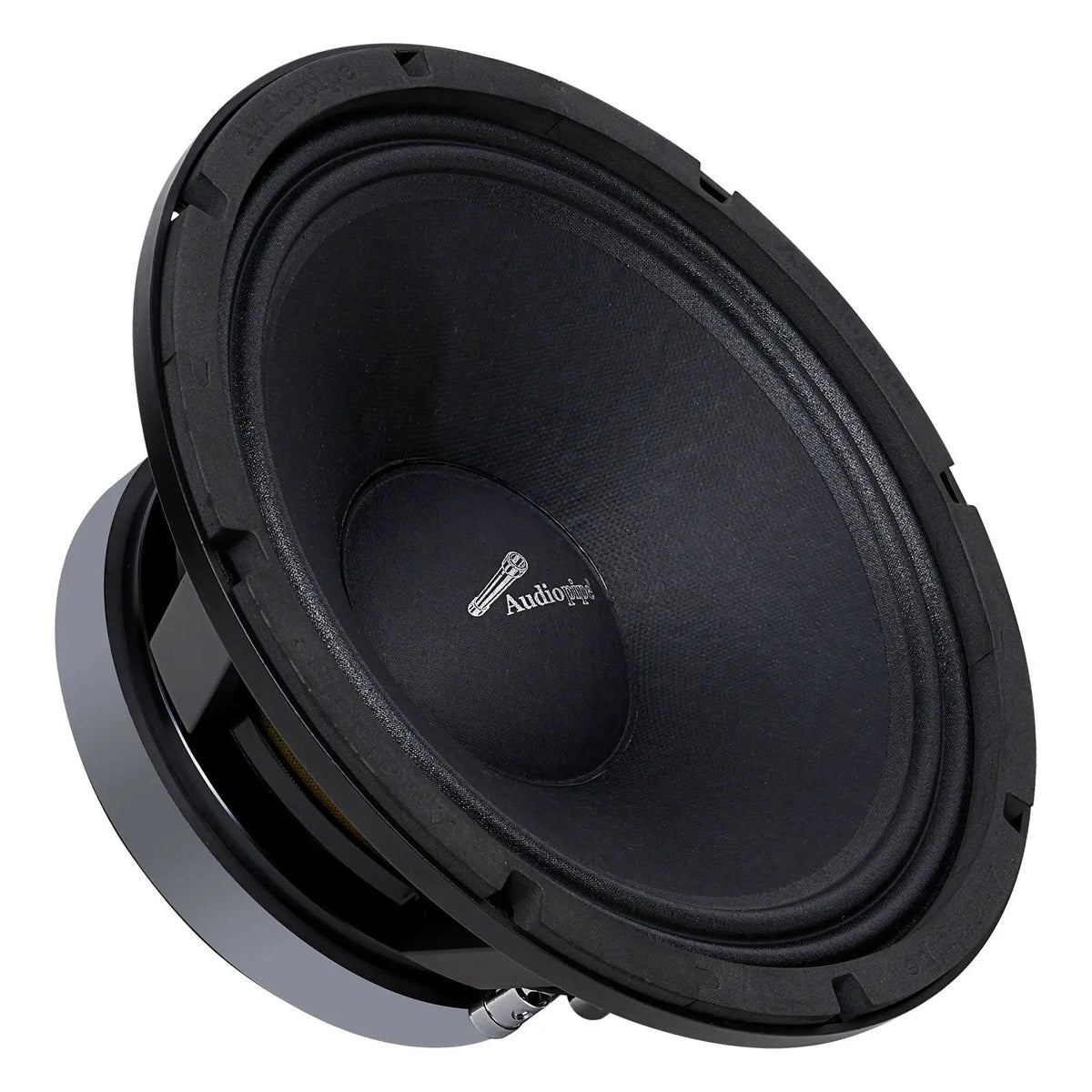

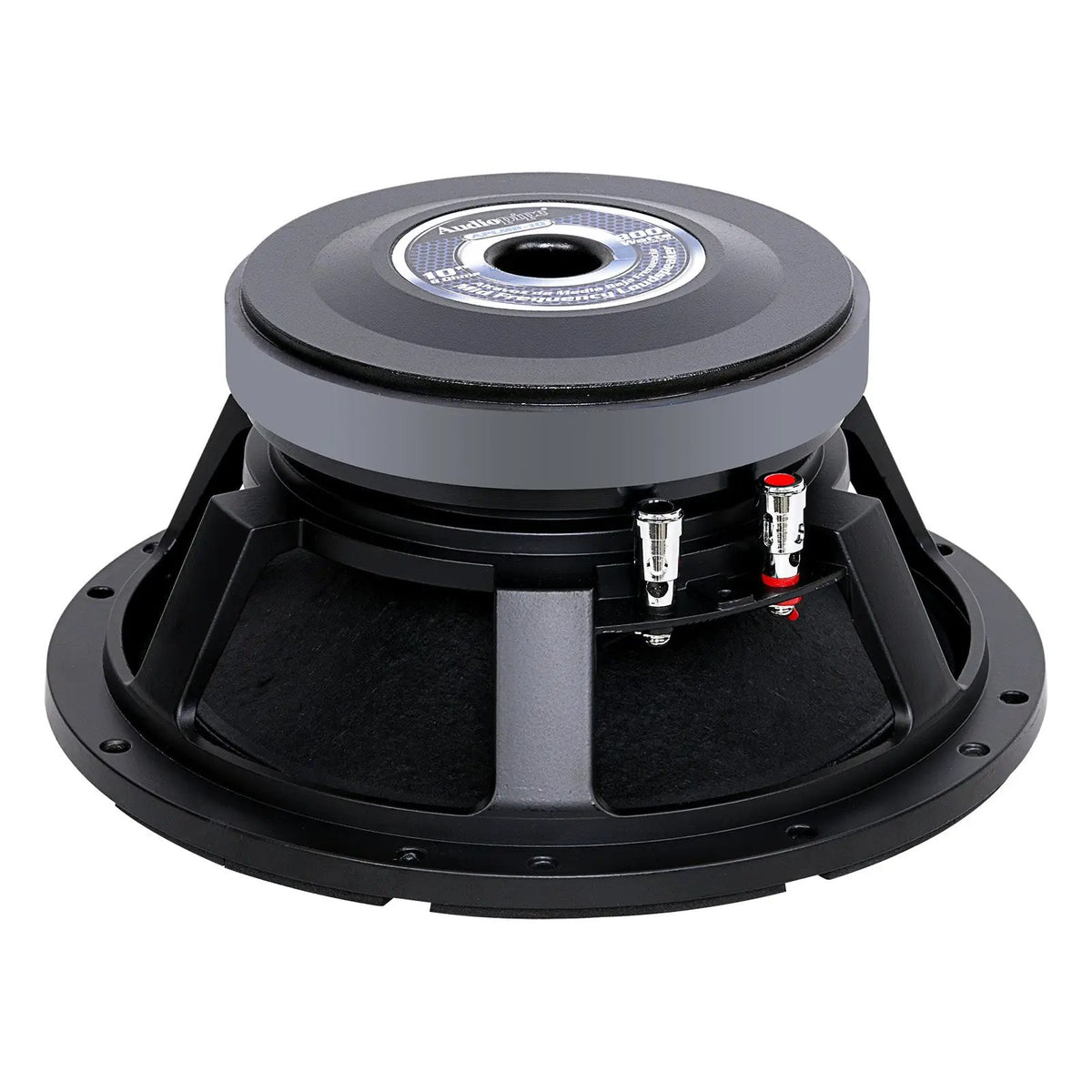

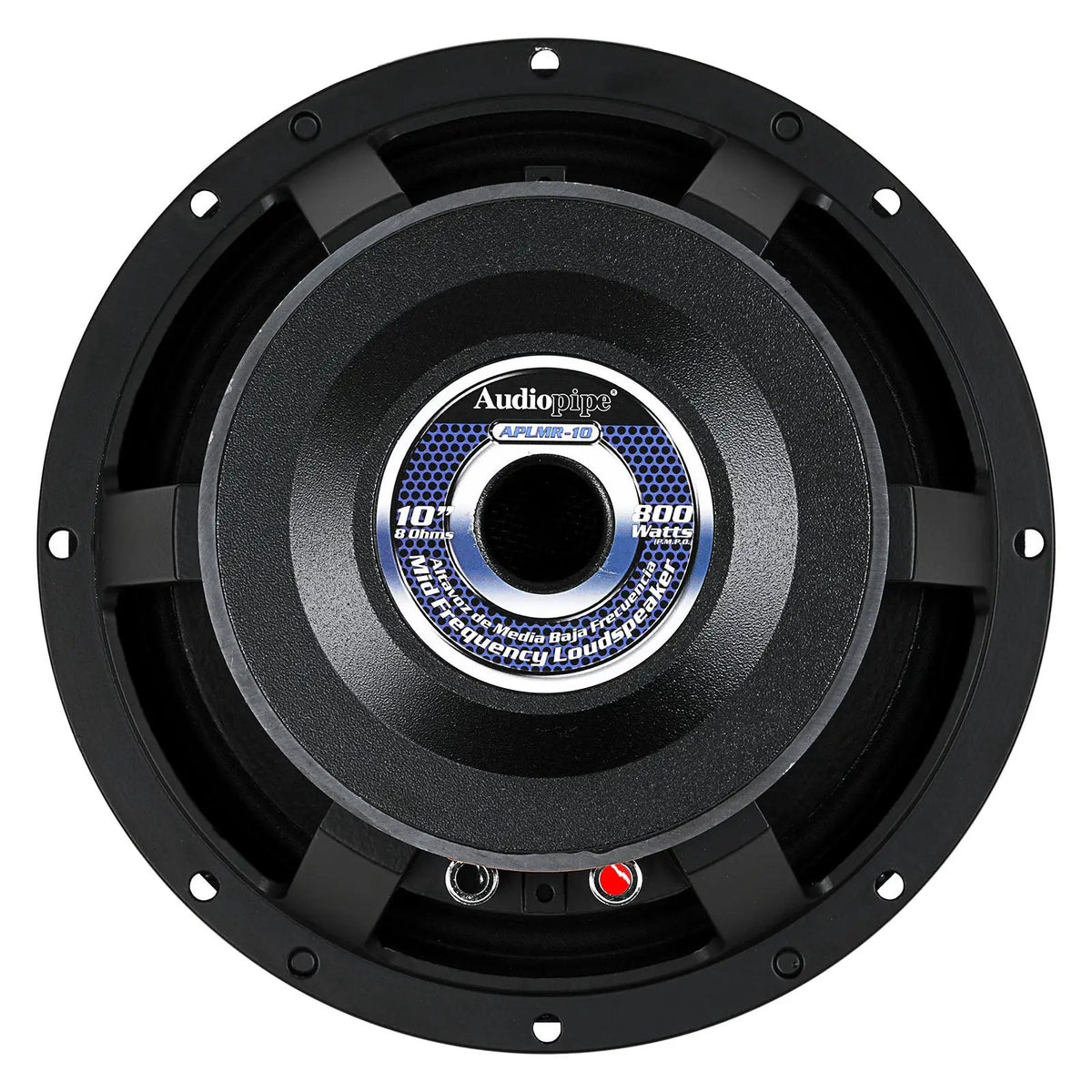

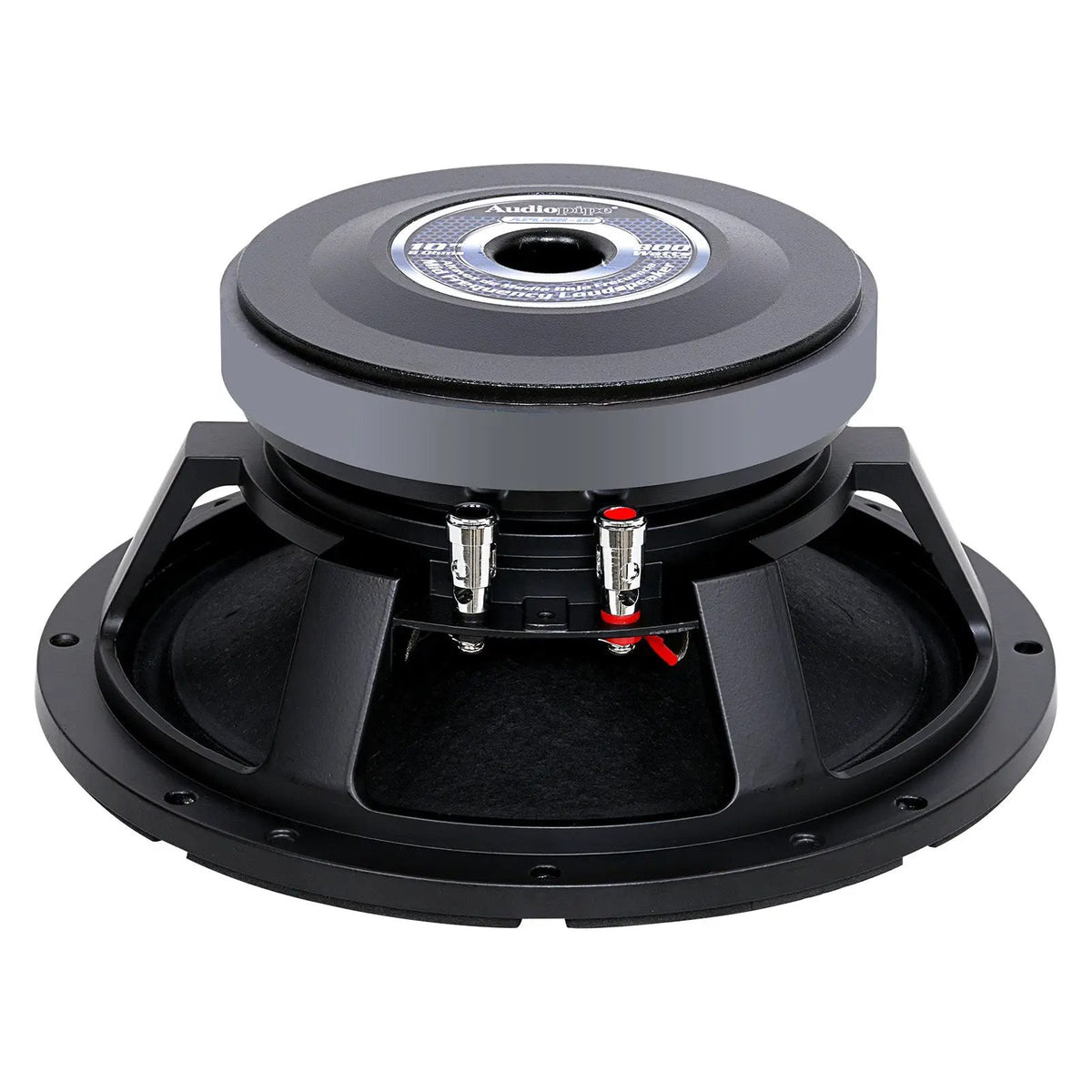

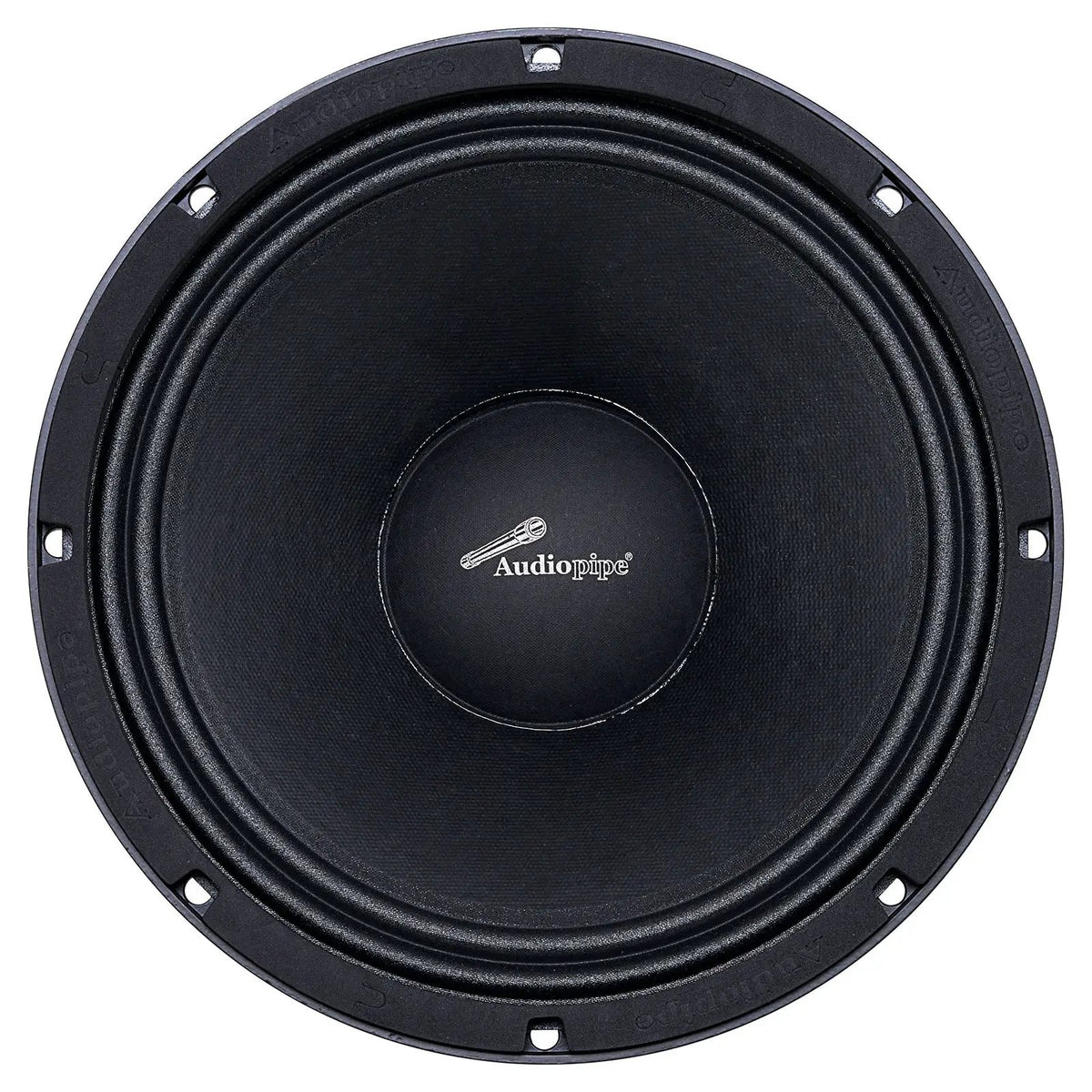

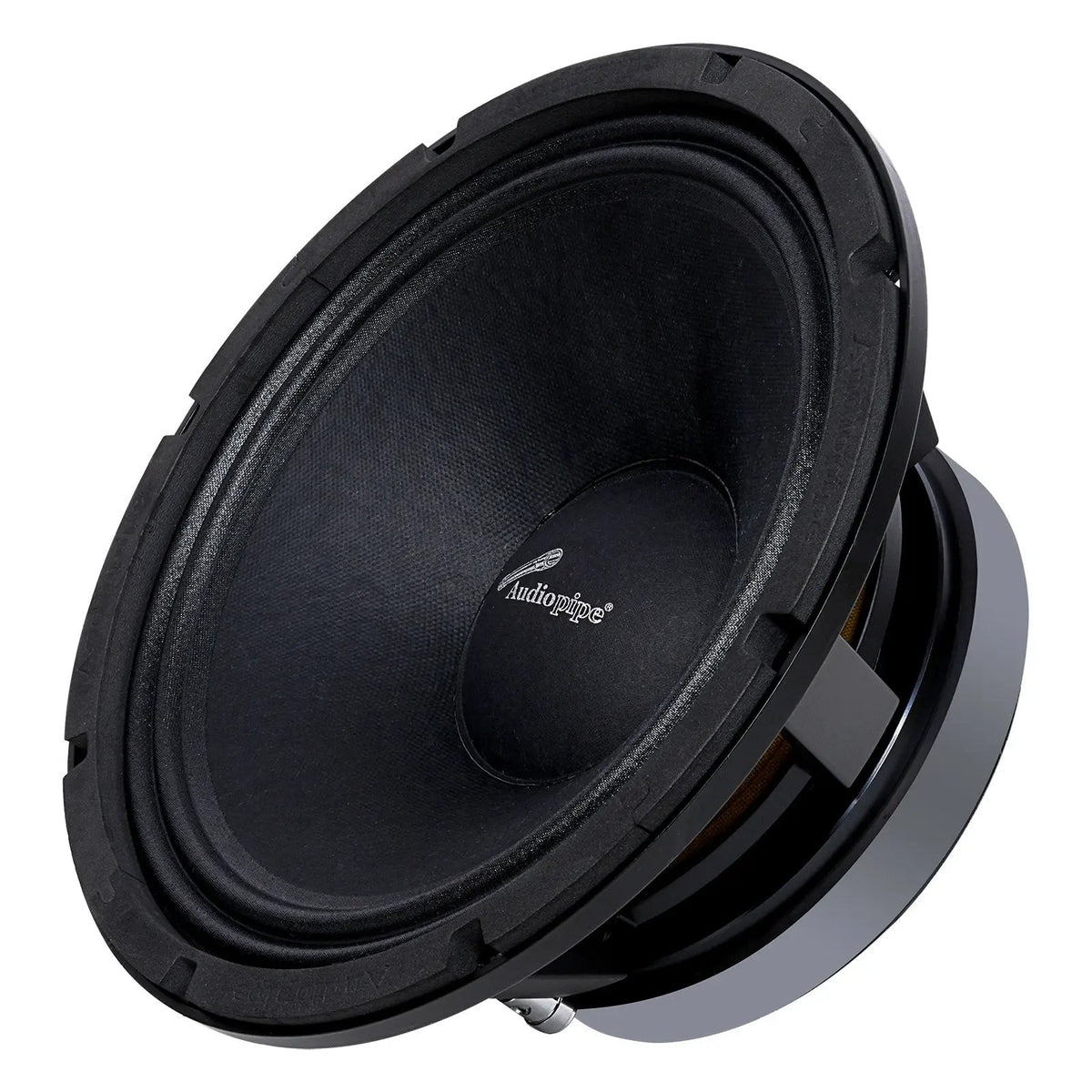

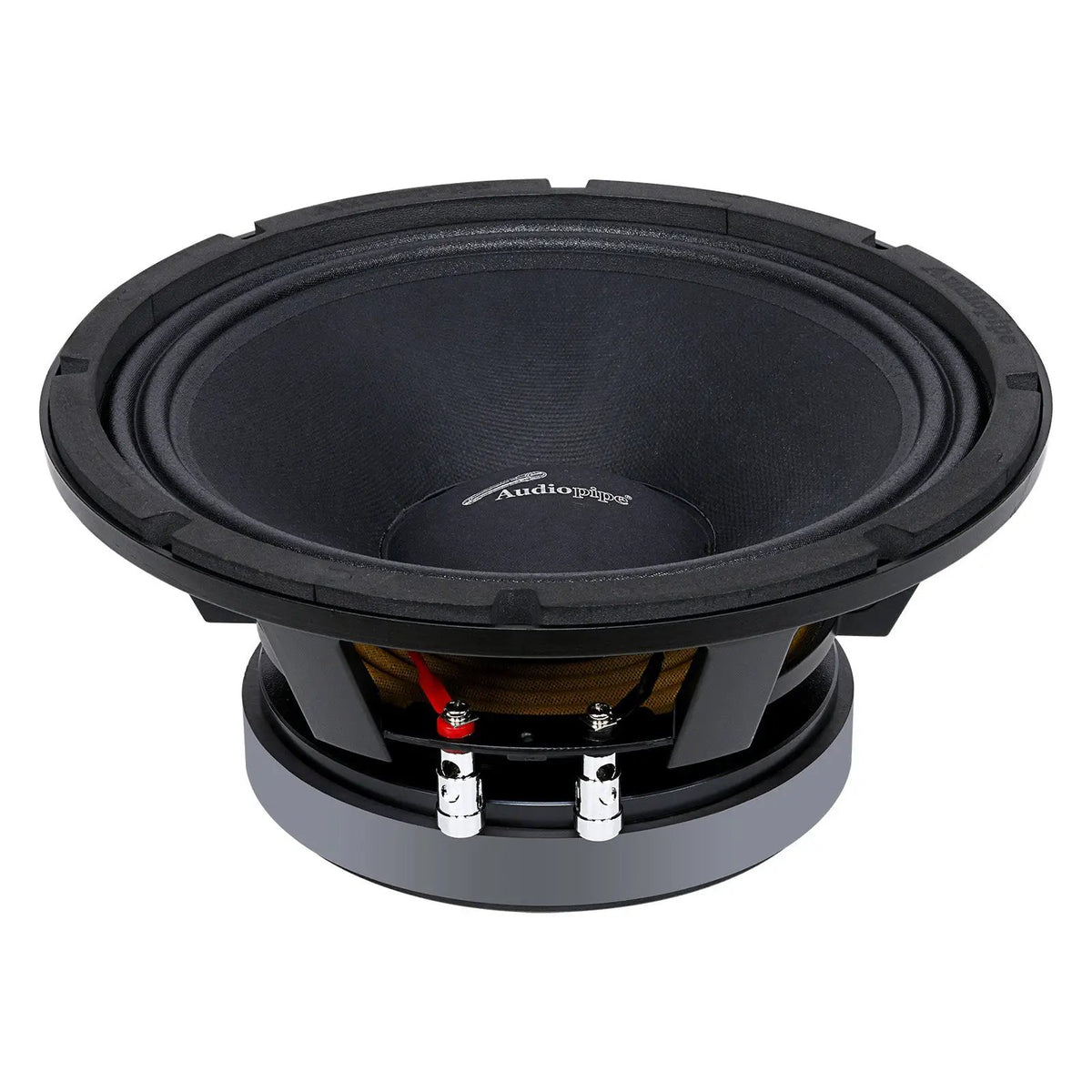

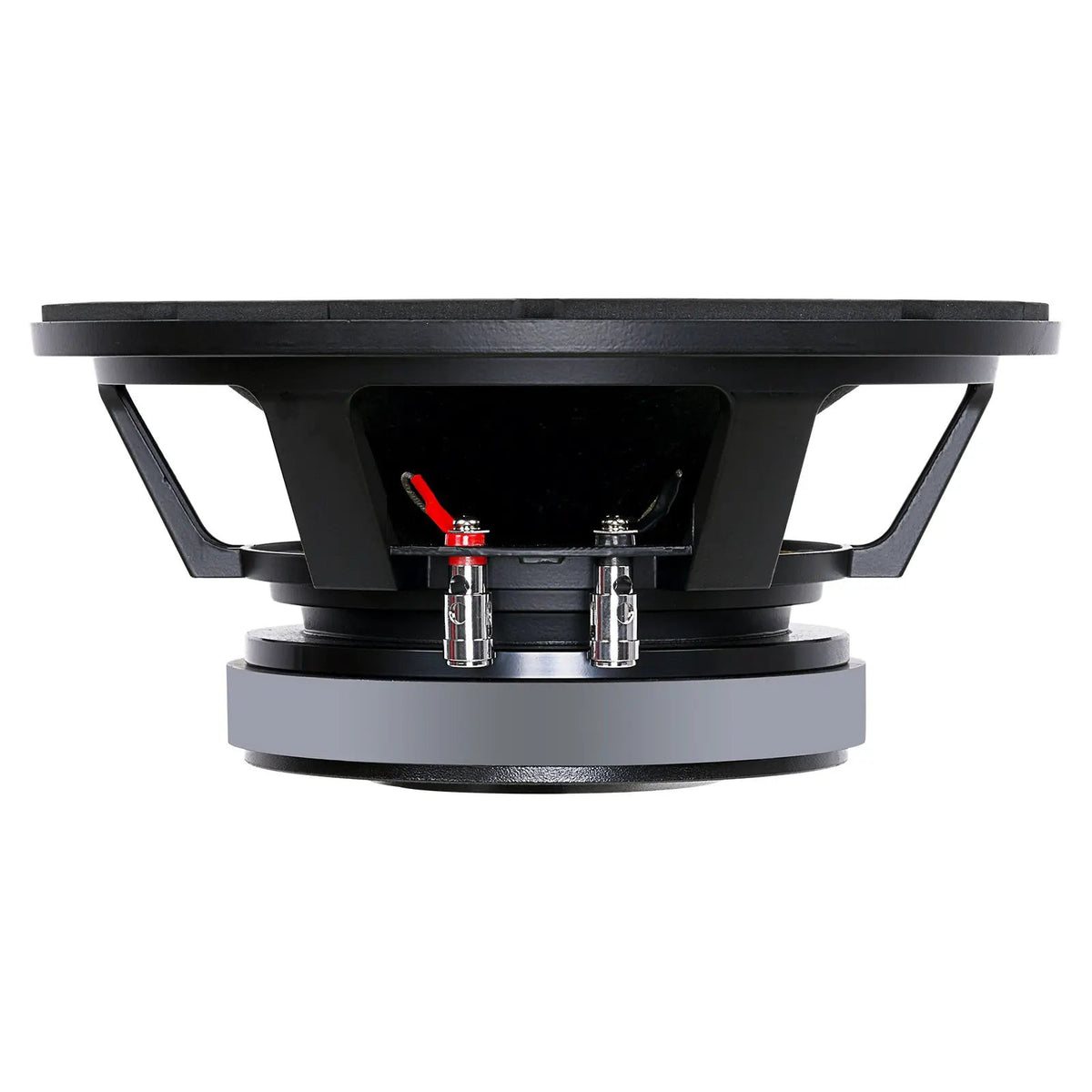

Audiopipe APLMR-10 10” Mid Frequency Loudspeaker
Key features
- Speaker size: 10″
- RMS power per speaker: 400 W
- Speaker impedance: 8.0 ohms
- MAGNET: Features a 55 Oz magnet for balanced power handling and reliable midrange performance.
- FREQUENCY RESPONSE: 55–8,000Hz
- SENSITIVITY: 95dB
Audiopipe APLMR-10 10” Mid Frequency Loudspeaker is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get clear, strong midrange sound in a compact 10-inch format with the Audiopipe APLMR-10 mid frequency loudspeaker. Its 400-watt RMS power handling, 95dB sensitivity, and 55Hz–8,000Hz frequency response make it suited to high-output car audio and professional sound systems.
Key Features & Benefits
- 400W RMS power handling: Supports high-output midrange audio setups.
- 95dB sensitivity: Delivers the specified sensitivity for this 8-ohm loudspeaker.
- 2.5-inch TIL voice coil: Designed to manage heat while maintaining structural integrity.
- Die-cast aluminum basket: Provides a sturdy foundation designed to minimize unwanted resonance and distortion.
- 55-ounce magnet: Supports the speaker’s midrange power handling.
- Reserved mounting holes: Offer flexibility when planning an installation.
Technical Specifications
| Specification | Value |
|---|---|
| Model | APLMR-10 |
| Speaker size | 10 inches |
| Peak power | 800 watts (P.M.P.O.) |
| Continuous power | 400 watts (R.M.S.) |
| Frequency response | 55–8,000Hz |
| Sensitivity | 95dB |
| Impedance | 8 ohms |
| Voice coil | 2.5-inch high-temperature TIL |
| Magnet | 55 oz |
| Mounting depth | 110mm (4-5/16 inches) |
| Basket | Die-cast aluminum |
Why Choose This Product?
The APLMR-10 combines a die-cast basket and high-temperature voice coil with the power handling and frequency range stated for this model. Its 10-inch size and listed mounting depth give you concrete measurements to consider when selecting a midrange speaker for your system.
Installation & Compatibility Notes
Check that your mounting space can accommodate the 10-inch speaker and its 110mm (4-5/16-inch) depth. Confirm that your audio equipment is suitable for an 8-ohm speaker and the APLMR-10’s power ratings before installation.
Frequently Asked Questions
What are the APLMR-10’s power ratings?
It is rated at 400 watts continuous power (R.M.S.) and 800 watts peak power (P.M.P.O.).
What impedance is this loudspeaker?
The APLMR-10 has an 8-ohm impedance. Check that your audio equipment supports this load.
How much mounting depth does it need?
The listed mounting depth is 110mm (4-5/16 inches). Check available space before installation.
What frequency range is listed for this model?
Its frequency response is 55–8,000Hz.
