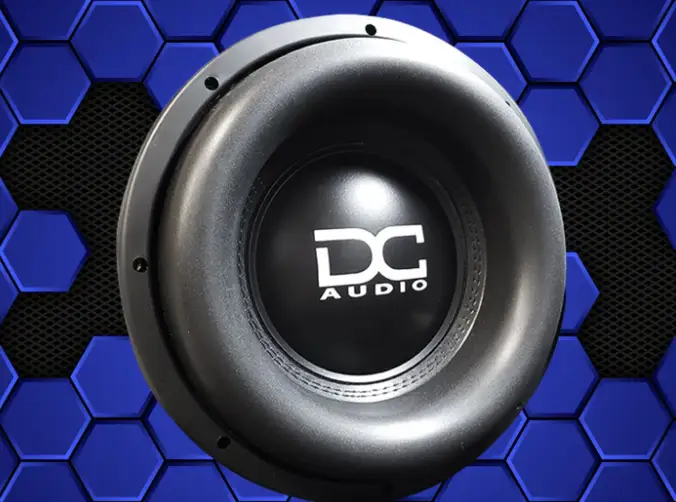

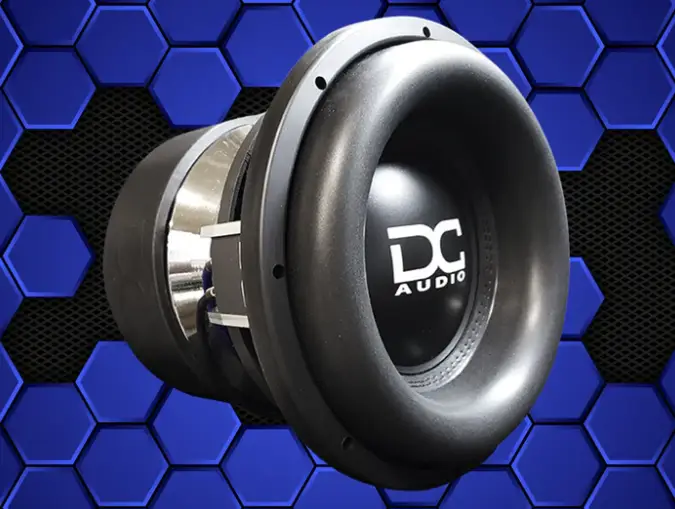

DC Audio Level 5 Elite 12" Subwoofer

DC Audio Level 5 Elite 12" Subwoofer is a hand-built, USA-made high-power driver engineered for extreme bass authority and reliability in demanding builds. The M6 Elite (2025 release) carries the 2024 cone change with LR cone/surround and a fully CNC-machined motor assembly for precision and cooling efficiency; Click HERE to get a Subwoofer Box.

• Power Handling: 3500 Watts RMS / 7000 Watts Peak — provides headroom for sustained bass and dynamic transients when paired with a suitable amplifier and electrical system.
• Cone & Surround: Extremely strong kraft pulp fiber reinforced cone with wide long-throw foam surround — supports large excursions with controlled breakup for tight, deep bass.
• Voice Coil: 3.5" 8‑layer hi‑temp aluminum coil on a black anodized aluminum former with high-current input strips — high thermal capacity and stiffness for stable performance under heavy load.

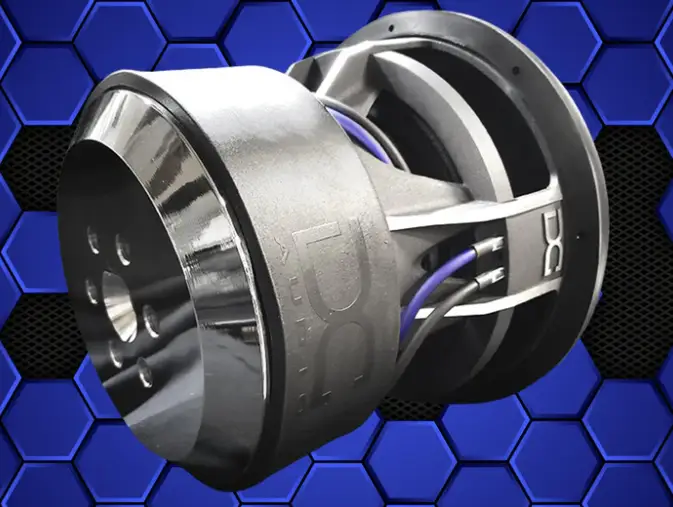

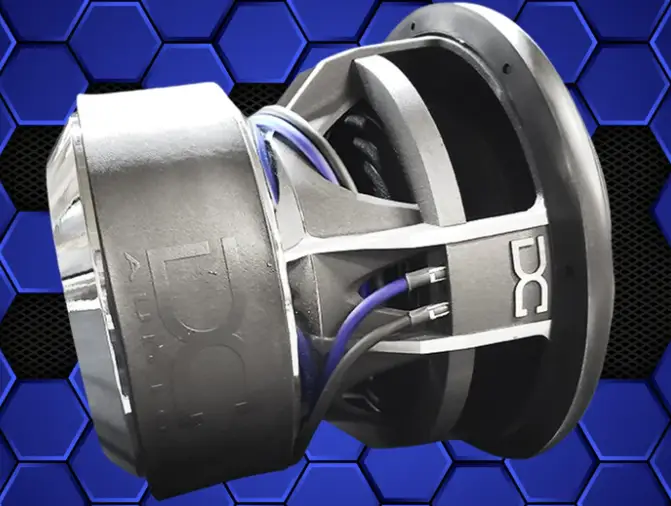

• Motor & Frame: FE A analyzed and optimized motor assembly; fully CNC machined; Cast DC Series aluminum black frame — ensures precise tolerances and robust cooling.
• Lead Wires: 8 AWG OFC Direct Leads — minimizes resistance at high current for reliable power transfer.
• Dust Cover & Gasket: Dome polypropylene dust cover with White DC logo; Embossed Rubber Motor Boot; Rubber mounting gasket — protects the motor and seals the installation.
• Spiders: 10 Spiders — contributes to load distribution and stability during extreme excursions.
• Impedance Options: Ohm Options d.7/d1/d2/d4 — flexible compatibility with various amplifier and enclosure designs.
• Physical Dimensions (12" model): Mounting Depth 10.5"; Outside Driver Diameter 12.5"; VC Diameter 3.5" — suits moderate-depth enclosures with a compact frame.
• Performance Metrics: Sd 494 cm; Vas 18.19 L; Fs 30.59 Hz; Qts 0.381; Qes 0.399; Re 4.01 Ohm; Le 4.29 mH; Mms 442.01 g; Sensitivity 82.89 dB — these values guide enclosure design and in-vehicle integration.
• Ported Box Suggestion: 12" recommended ported box volume 1.50 ft³ — design target for deep, low-end extension.

In a properly sized ported enclosure, the Level 5 Elite 12" delivers deep bass with robust control, supported by a reinforced cone, long-throw surround, and a high-current, CNC-machined motor assembly. The LR cone/surround update in the 2024 cone change enhances durability for demanding install environments, while the 8 AWG direct leads and heavy-duty frame maintain reliable performance under high power. This driver is well-suited to SPL-focused builds or daily drivers seeking serious bass authority with predictable, repeatable behavior across impedance options.
