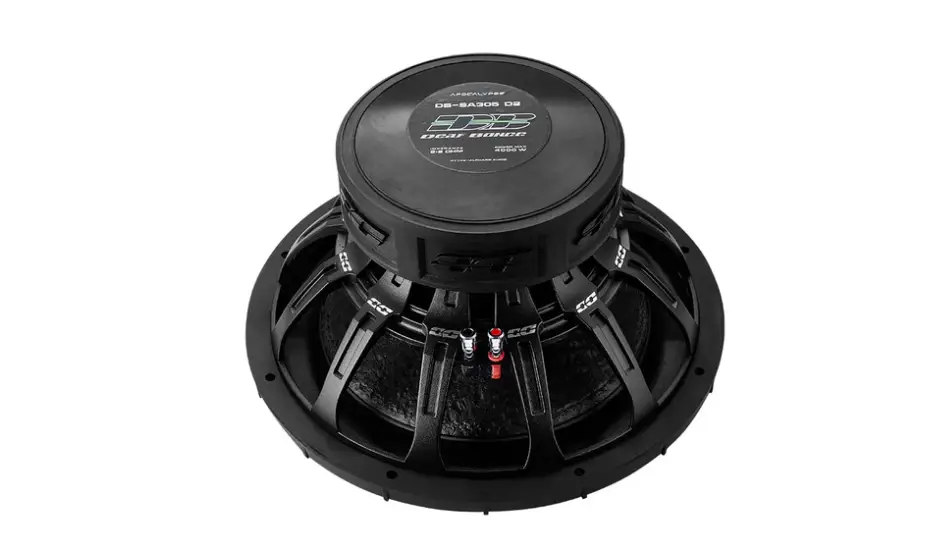

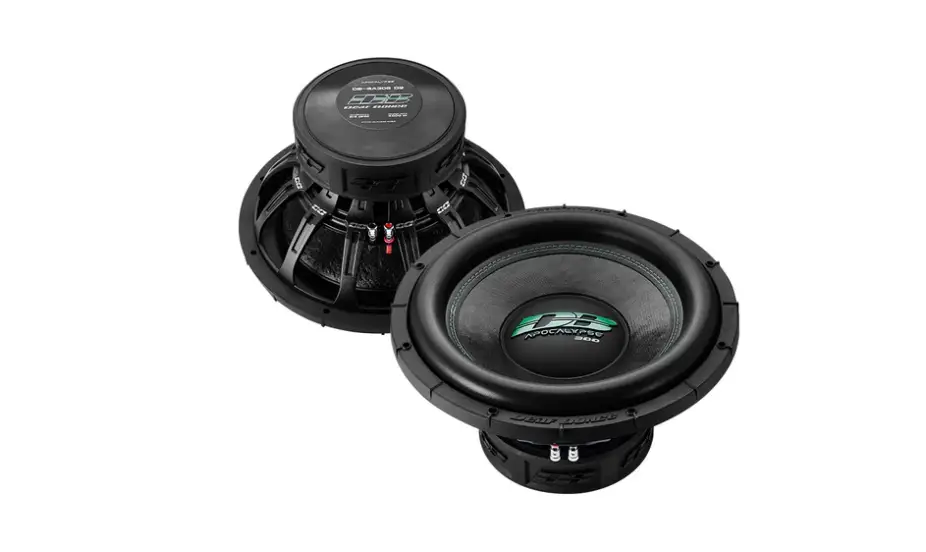

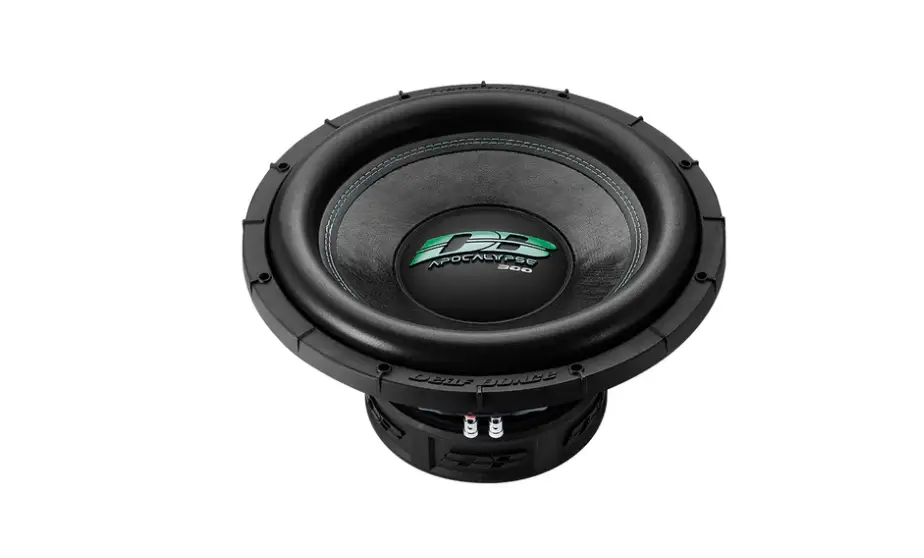

Deaf Bonce Apocalypse DB-SA305 D1/D2 15" Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 2000 W
- Voice-coil options: D1, D2
- Voice-coil diameter: 3 in
- Xmax: 18 mm
- Mounting depth: 199.5 mm
Deaf Bonce Apocalypse DB-SA305 D1/D2 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse DB-SA305 D1/D2 15" Subwoofer - Dual 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring high-power bass to your car audio system with the Deaf Bonce Apocalypse DB-SA305 D1/D2 15-inch subwoofer. Its 2000 W RMS rating, 3.00-inch voice coil, and dual impedance options make it a substantial driver for builds designed around powerful low-frequency output.
Choose between the DB-SA305D1 and DB-SA305D2 models, with listed impedance options of 1+1 Ohm and 2+2 Ohm. The paper cone, foam surround, and ferrite magnet define its core construction.
Key Features & Benefits
- 15-inch size: The large cone area is made for systems seeking substantial bass output.
- 2000 W RMS power: Match it with suitable amplification for a high-power system.
- Dual impedance options: Select the model that fits your amplifier’s supported load.
- 3.00-inch voice coil: A key component of this subwoofer’s high-power design.
- 18.00 mm Xmax: The listed linear excursion supports substantial cone movement.
- Aluminum frame: The Alu chassis provides the subwoofer’s structural frame.
Technical Specifications
| Model | DB-SA305D1 / DB-SA305D2 |
| Type | Subwoofer |
| Size | 15 inch |
| Voice coil size | 3.00 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Foam |
| RMS Power | 2000 W |
| MAX Power | 4000 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 88.30 / 88.60 dB |
| Fs | 31.70 / 32.00 Hz |
| Qts | 0.40 / 0.43 |
| BL | 18.50 / 18.70 |
| Vas | 61.00 / 63.00 L |
| Xmax | 18.00 / 18.00 mm |
| Mounting depth | 7.85 inch |
| Cut-out dimension | 14.09 inch |
| Gross weight |
Why Choose This Product?
The DB-SA305 combines a high RMS power rating with two impedance configurations, giving you specific options to consider when planning a powerful bass system. Its listed Fs, Qts, and Vas values can help inform enclosure planning alongside your system requirements.
The paper cone and foam surround complete a construction focused on moving through the bass range, while the ferrite motor and aluminum frame define the subwoofer’s build.
Installation & Compatibility Notes
Allow at least 7.85 inches of mounting depth and a 14.09-inch cutout. Check your enclosure dimensions before installation.
Match the selected D1 or D2 model’s impedance to the amplifier’s supported load. Consider the 2000 W RMS rating when planning amplification; the listed 4000 W MAX rating is a separate peak figure.
Frequently Asked Questions
What is the difference between the DB-SA305D1 and DB-SA305D2?
The listed impedance is 1+1 Ohm or 2+2 Ohm. Choose the model whose impedance configuration suits your amplifier and planned wiring.
How much power is this subwoofer rated for?
It is rated at 2000 W RMS and 4000 W MAX. These are separate power ratings and should not be treated as equivalent.
What mounting space does it need?
Plan for a mounting depth of 7.85 inches and a cutout dimension of 14.09 inches.
What enclosure volume should I use?
The listed Vas values are 61.00 / 63.00 L. Use the applicable value alongside the other specifications and your enclosure design requirements.
Explore More
Shop with 12 Volt Outlet, and explore the Deaf Bonce brand profile to learn more about the brand.
Recommended Monoblock Amplifiers
Power-matched options for one subwoofer or one complete loaded enclosure. We aim to include same-brand choices when their ratings qualify.
Loading amplifier suggestions…
Suggestions use 75–125% of the subwoofer’s RMS rating at the wiring load shown. Check wiring, enclosure needs, electrical capacity and installation space. Set gain and filters correctly to avoid overpowering the subwoofer. Buying more than one subwoofer changes the match.
