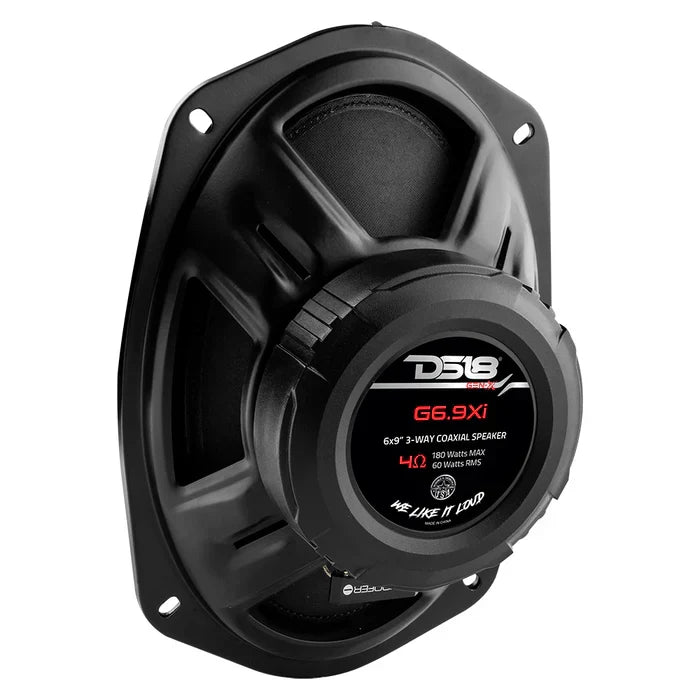

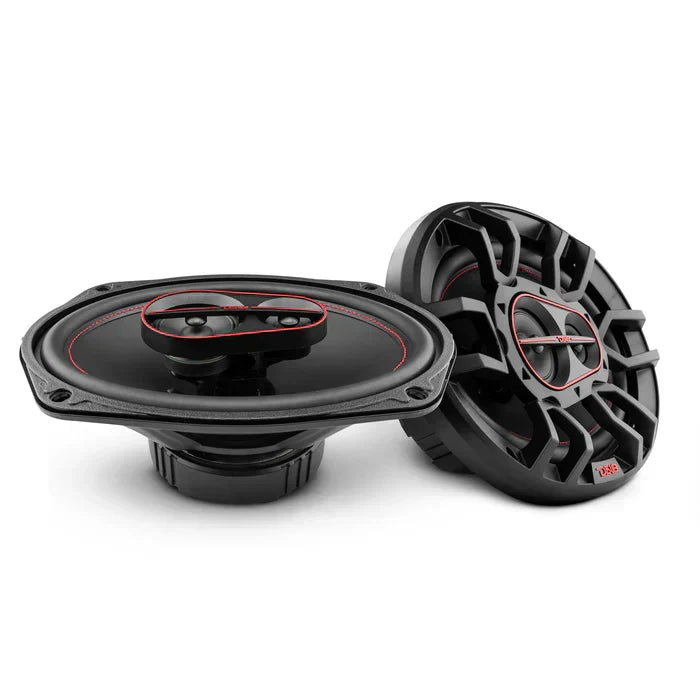

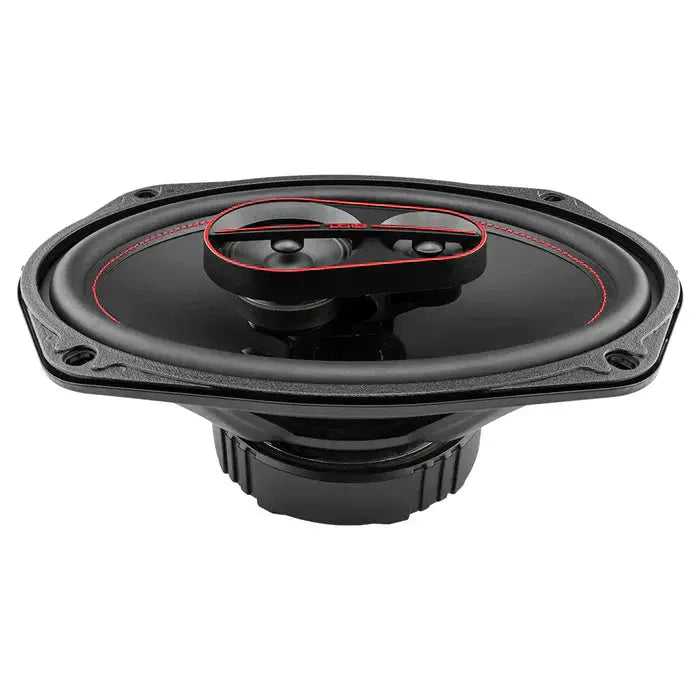

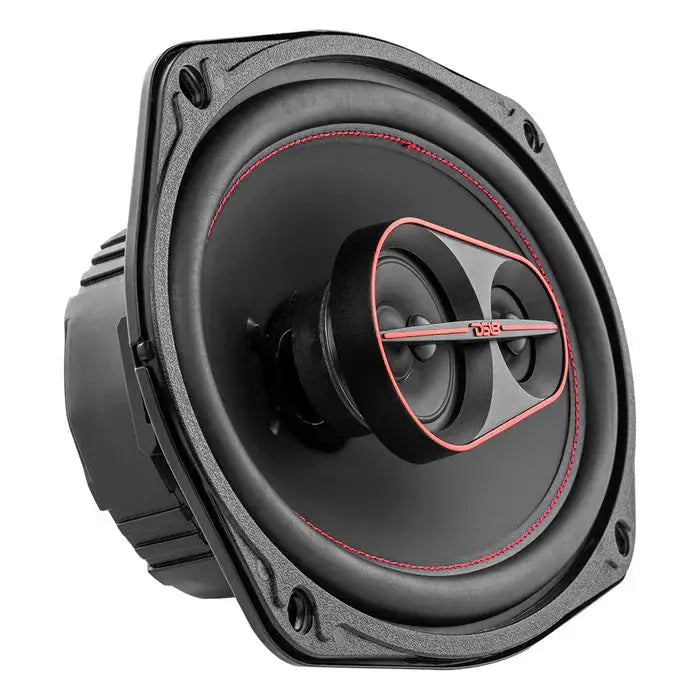

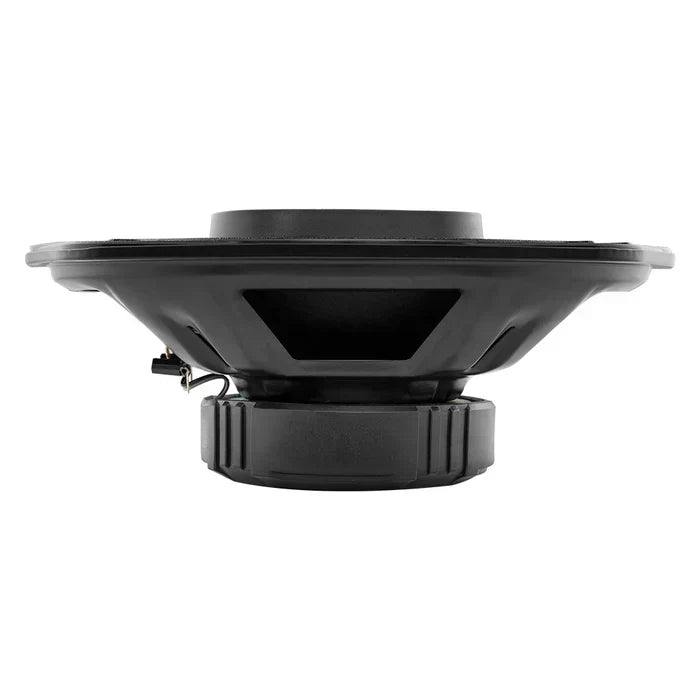

DS18 G6.9XI GEN-X 6X9 3 WAY COAX 180 WATTS 4 OHM
Key features
- Speaker size: 6×9″
- RMS power per speaker: 60 W
- Speaker impedance: 4.0 ohms
- Frequency response: 35 Hz–20 kHz
- Sensitivity (1 W/1 m): 86 dB
- Woofer voice-coil diameter: 1 inch
DS18 G6.9XI GEN-X 6X9 3 WAY COAX 180 WATTS 4 OHM is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring three-way sound to your car audio system with the DS18 G6.9XI GEN-X 6x9 3-way coaxial speakers. Their 60W RMS power handling, 4-ohm impedance, and 35Hz–20kHz frequency response cover bass, midrange, and treble in one speaker.
Key Features & Benefits
- Three-way coaxial design: A woofer, midrange, and tweeter handle different parts of the sound range.
- 60W RMS power handling: Match your system using the continuous rating, not only the 180W maximum rating.
- Mylar balanced-dome tweeter: Adds high-frequency detail to your audio.
- Steel basket and rubber surround: Built to handle the vibration of road use.

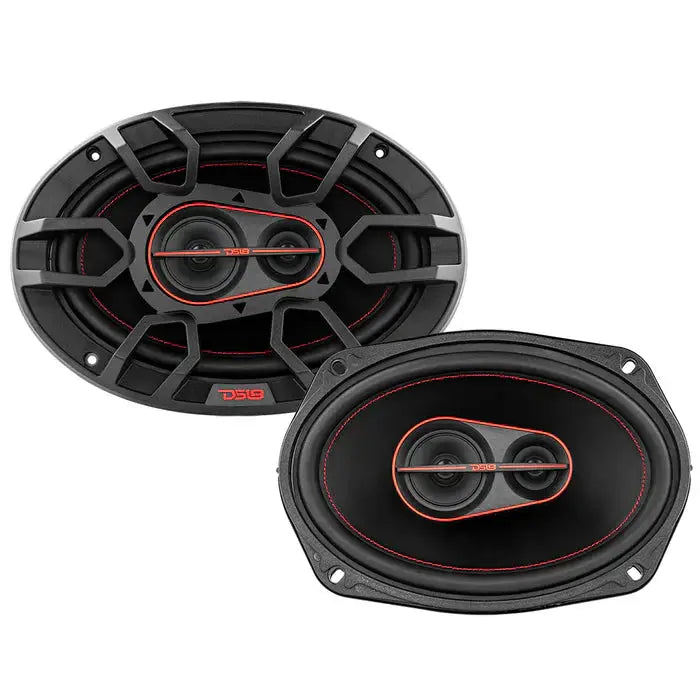

- Included grille: Provides a finished look when the speaker is mounted behind grille perforations.
- 50Hz recommended high-pass crossover: Use this listed crossover point when planning the speaker setup.
Technical Specifications
| Specification | Details |
|---|---|
| Nominal Diameter | 6x9" / 152x228mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 60W |
| Maximum Power Handling | 180W |
| Sensitivity | 86dB (1W/1m) |
| Frequency Response | 35Hz-20kHz |
| Design | 3-Way Coaxial (Woofer, Mid-range, Tweeter) |
| Tweeter Type | Mylar Balanced Dome |
| Grill Included | Yes |
| Basket Material | Steel |
| Voice Coil Diameter | 1" / 25.5mm |
| Cone Material | Paper |
| Surround Material | Rubber |
| Recommended Hi-Pass Crossover | 50Hz |
| Overall Dimensions | 6.4" x 9.2" (163 x 234 mm); with grill 7.24" x 10.4" (184 x 264 mm) |
Why Choose This Product?
The G6.9XI brings bass, midrange, and treble reproduction together in a single 6x9 speaker. That makes it a practical option for car audio upgrade paths where you want a three-way coaxial design and a 4-ohm load.
Its 60W RMS rating gives you a useful figure for matching amplifier output, while the separate 180W maximum rating describes its peak power handling. The broad stated frequency response spans 35Hz to 20kHz.
Installation & Compatibility Notes
Check the speaker opening and available mounting space against the listed dimensions before purchase. The measurements differ with the included grille: 6.4" x 9.2" (163 x 234 mm) without it, and 7.24" x 10.4" (184 x 264 mm) with it.
Confirm that your system supports a 4-ohm speaker load. The recommended high-pass crossover is 50Hz. The product is described as suitable for common OEM speaker upgrade paths, but vehicle fit depends on the available mounting space.
Frequently Asked Questions
What is the difference between the 60W and 180W ratings?
60W is the RMS power handling rating; 180W is the maximum power handling rating.
What impedance should my system support?
These speakers have a nominal impedance of 4 ohms.
What are the speaker dimensions?
Overall dimensions are 6.4" x 9.2" (163 x 234 mm), or 7.24" x 10.4" (184 x 264 mm) with the grille.
Is a grille included?
Yes, a grille is included.
What high-pass crossover point is recommended?
The listed recommended high-pass crossover is 50Hz.
