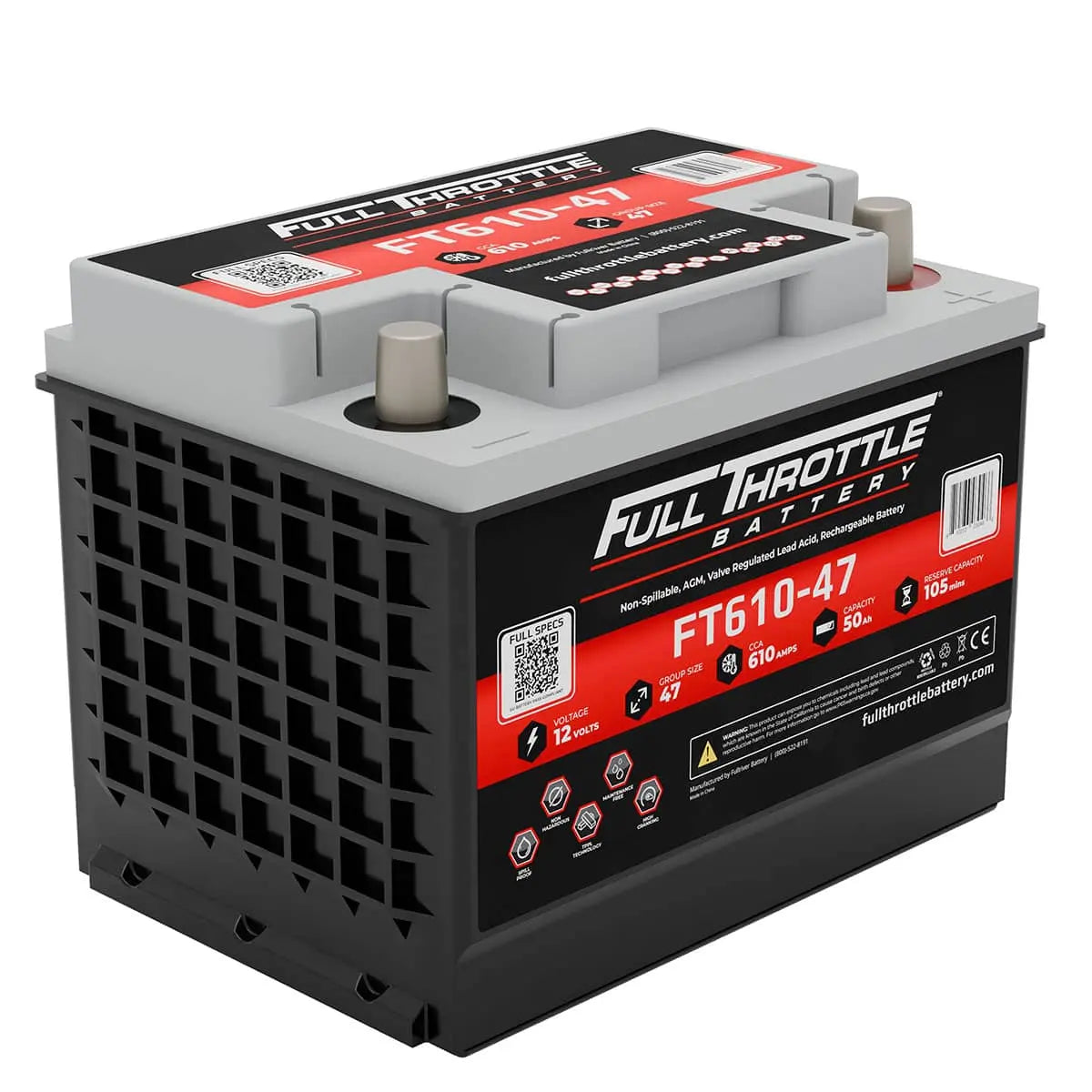

Full Throttle Series High-Performance AGM Battery FT610-47
Key features
- Chemistry: AGM lead-acid
- Nominal voltage: 12 V
- Capacity (20-hour rate): 50 Ah
- Cold-cranking current: 610 A (CCA)
- Dimensions (L × W × H, including terminals): 9.49 × 6.89 × 7.48 inches
- Terminals: AP
Full Throttle Series High-Performance AGM Battery FT610-47 is backordered and will ship as soon as it is back in stock.
Full Throttle Series High-Performance AGM Battery FT610-47 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Full Throttle Series FT610-47 is a 12V high-performance AGM battery with a 610-amp CCA rating. Its listed capacity ratings and Group 47 case dimensions help you compare it with your application’s requirements.
Key Features & Benefits
- 12V nominal voltage: Check this rating against the electrical requirements of your application.
- Multiple capacity ratings: Compare its C100, C20, and C5 amp-hour figures with your needs.
- 610-amp CCA: This rating helps you assess the battery’s cold-cranking specification.
- Group size 47: The listed group size and alternate size references support fitment checks.
- AP terminal type: Confirm the terminal style matches your connection requirements.
Technical Specifications
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 12V |
| C100 | 55 Ah |
| C20 | 50 Ah |
| C5 | 43 Ah |
| CCA | 610 Amps |
| CA or MCA | 745 Amps |
| PHCA | 1280 Amps |
| Internal Resistance | 7.5 mΩ |
| Mechanical Specifications | |
| Group Size | 47, H6, L2, 96R, 86 |
| Terminal Type | AP |
| Terminal Torque | 4.2 - 5.8 50 - 70 5.6 - 7.9 |
| Height (w/ terminal) | 7.48 / 190 |
| Height (case only) | 7.48 / 190 |
| Width | 6.89 / 175 |
| Length | 9.49 / 241 |
| Weight | 42.11 / 19.1 |
| Case Type | ABS Plastic |
Why Choose This Product?
The FT610-47 gives you several capacity and current ratings to compare when selecting a battery. Its listed group-size references, dimensions, and AP terminal type also provide useful details for checking an existing battery or planning a replacement.
Installation & Compatibility Notes
Compare the Group 47 size references and listed length, width, and height with your battery space. Check that the AP terminal type and 12V nominal voltage suit your application before installation.
Frequently Asked Questions
What capacity ratings are listed for the FT610-47?
It is rated at 55 Ah C100, 50 Ah C20, and 43 Ah C5.
What are the battery’s cranking ratings?
The listed ratings are 610 Amps CCA, 745 Amps CA or MCA, and 1280 Amps PHCA.
What group sizes are associated with this battery?
The specifications list Group Size 47, H6, L2, 96R, and 86. Compare these references with your application’s fitment requirements.
What are the battery’s dimensions?
The listed length is 9.49 / 241, width is 6.89 / 175, and height is 7.48 / 190 both with the terminal and for the case only.
Explore More
Shop the Full Throttle Series at 12 Volt Outlet. Want to learn more about Full Throttle Batteries? Explore our Full Throttle Batteries brand profile.
