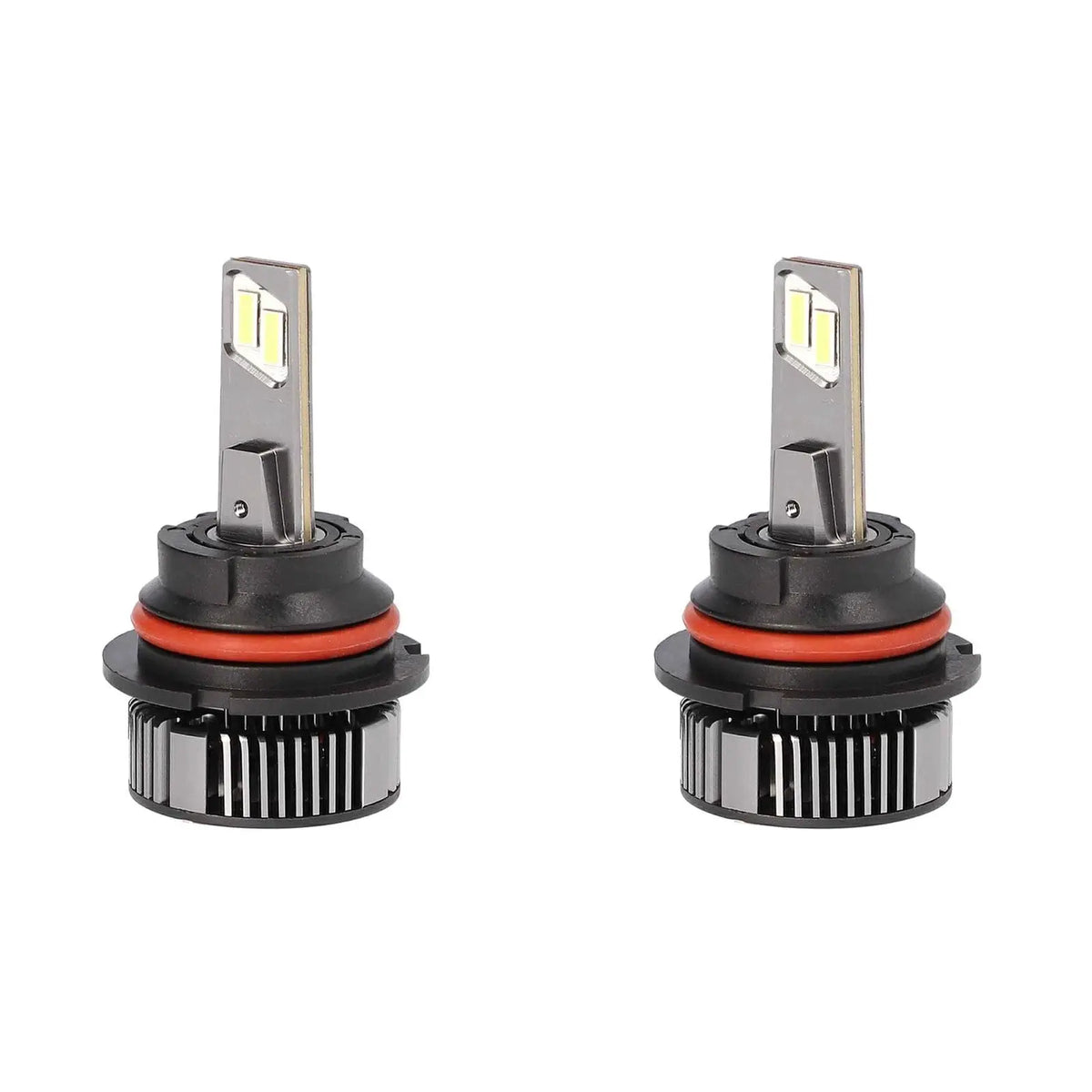

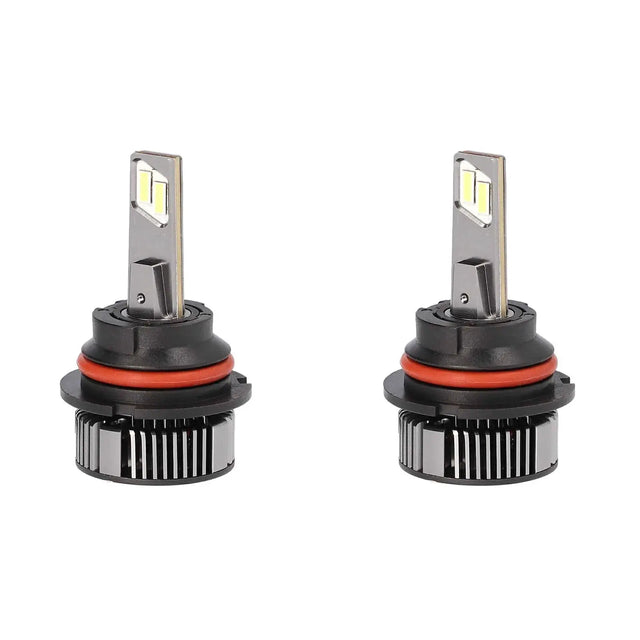

Heise 9007 Pro Series LED Kit - Dual Beam

Product Overview

Get 16,000 lumens per set from the Heise 9007 Pro Series LED Kit, a dual-beam 9007 / HB5 headlight upgrade for off-road use. Its single-bulb design handles both high and low beams, while a rotatable collar lets you adjust the beam orientation after installation.

Key Features & Benefits

• 16,000 lumens per set: The stated output is 260% brighter than stock halogen 9007 bulbs.
• Dual-beam operation: One 9007 / HB5 bulb provides both high- and low-beam functions.
• Active cooling: An IC thermal controller, high-speed smart fan, and 2 mm solid copper core manage heat during operation.
• Adjustable collar: Rotate the collar to align the beam pattern in projector or reflector housings.
• EMI filtering: The built-in filter is intended to reduce radio static and interference with equipment such as CB, ham radio, or GPS systems.

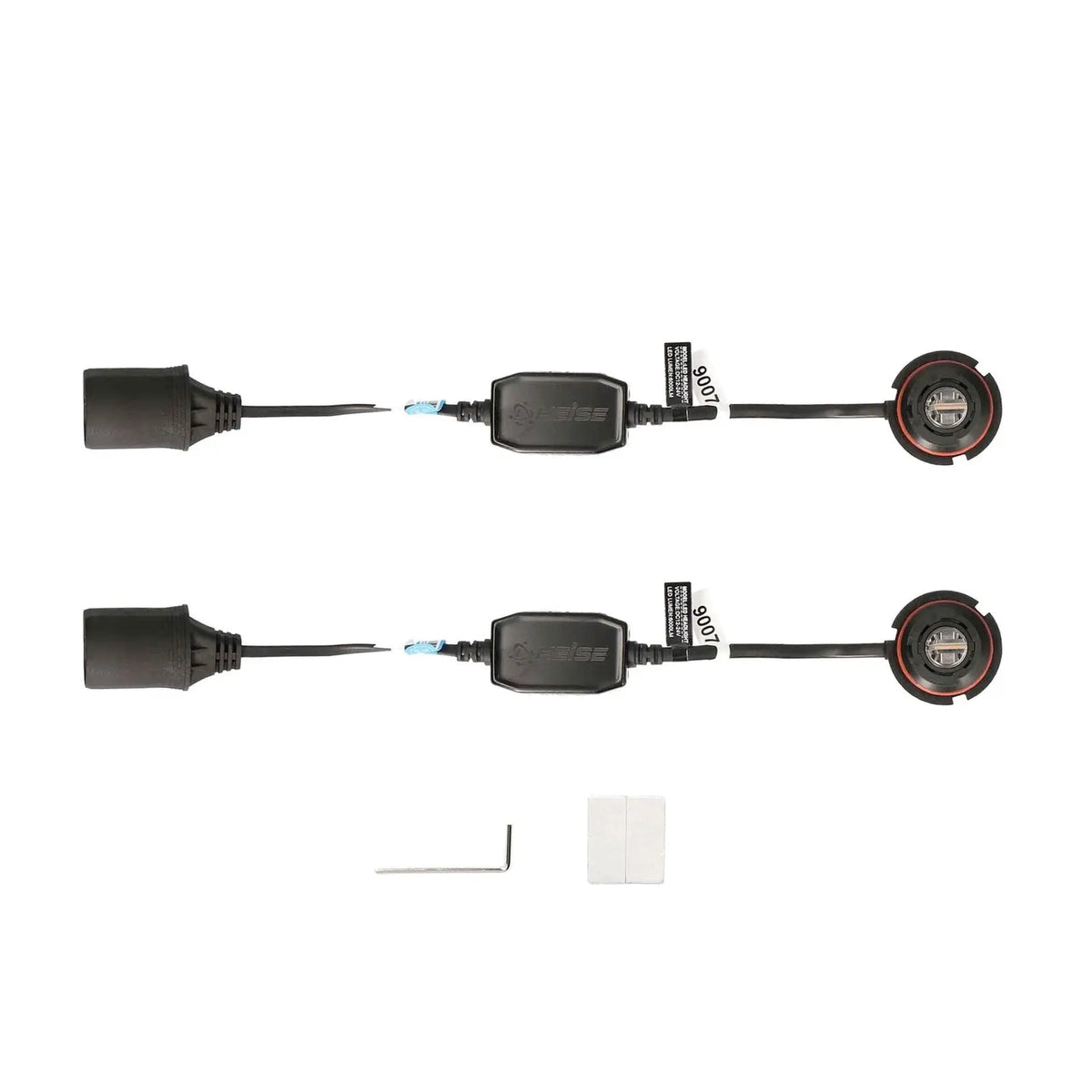

• Installation details: A slim side-cable connection helps keep the setup tidy in tight engine bays; reverse-polarity protection is built in.

Technical Specifications

Why Choose This Product?

The Heise 9007 Pro combines a dual-beam format with a rotatable collar, giving you a way to adjust beam orientation for your headlight housing. Its built-in EMI filter is a useful consideration if your off-road setup includes radio or GPS equipment.

The kit is labeled for off-road use only. The supplied product information states that aftermarket LED kits are not DOT-certified for on-road use in the United States.

Installation & Compatibility Notes

This kit is designed for vehicles with a 9007 / HB5 dual-beam socket. The source describes this fitment as common on domestic trucks and SUVs from the 1990s through the mid-2000s; check your vehicle’s bulb type before purchase. Installation is plug-and-play in most applications, with no relay harness required in most cases.

Vehicles with CANBUS monitoring may need a CANBUS decoder to address flickering or bulb-warning messages. A relay harness is recommended for older wiring or high-draw applications. After installation, adjust the rotatable collar and check the beam cutoff against a wall before driving.

Frequently Asked Questions

What is the power draw of the Heise 9007 Pro?

The kit draws 70W per set, or 35W per bulb. The supplied information estimates approximately 5.8A per bulb at 12V.

Can I use this LED kit for daily on-road driving?

The product is labeled for off-road use only. The supplied information states that aftermarket LED kits are not DOT-certified for on-road use in the United States.

Will it fit a projector or reflector headlight?

The rotatable collar is designed to help align the beam in either projector or reflector housings. Confirm your vehicle uses a 9007 / HB5 socket.

Do I need a CANBUS decoder or relay harness?

A CANBUS decoder is recommended for vehicles with CANBUS systems or LED warning lights. A relay harness is recommended for older wiring or high-draw applications.
