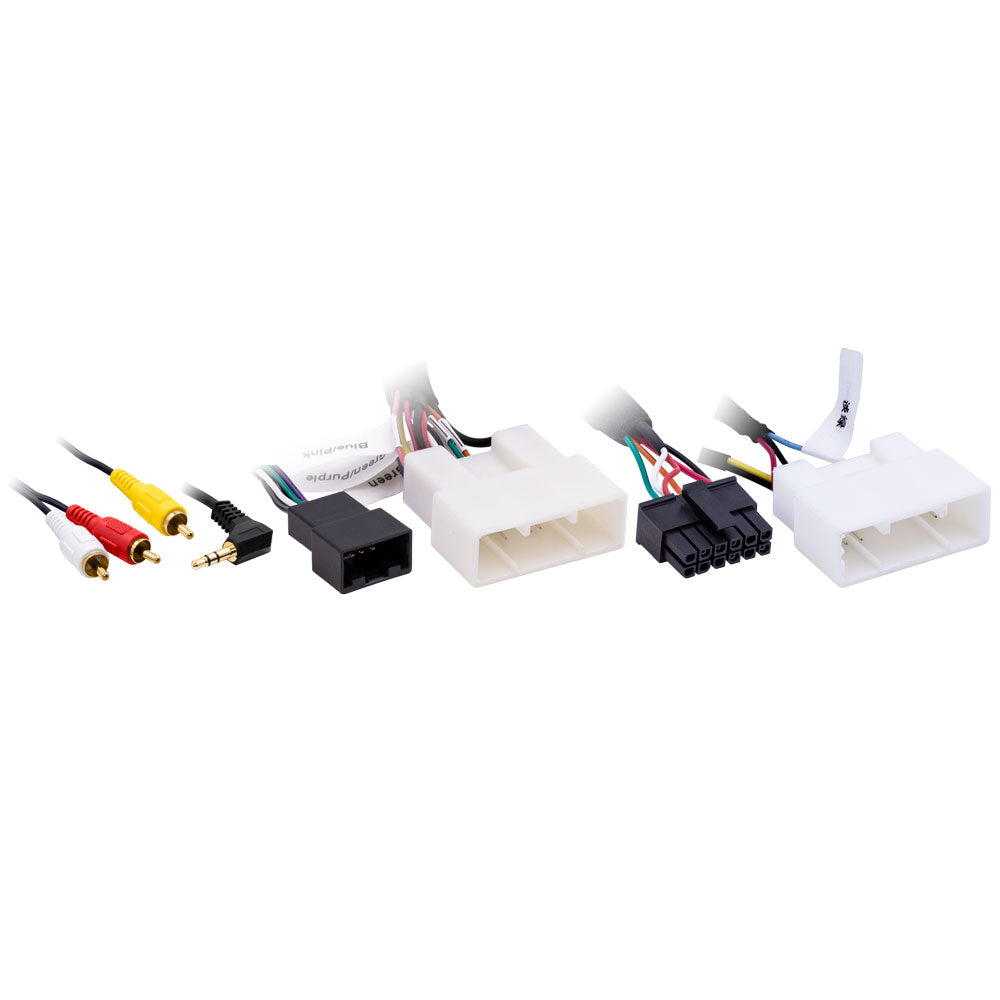

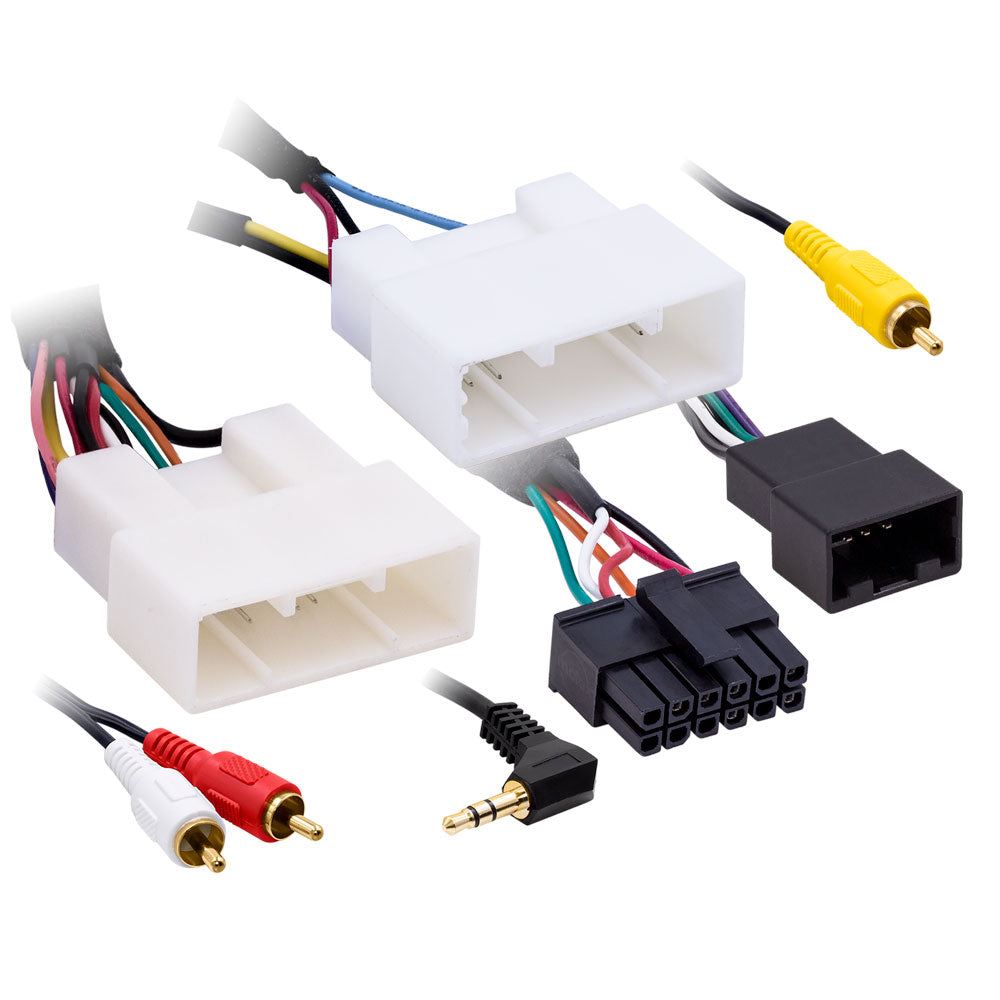

Radio Replacement Harness - Toyota 2017-2023 (non-amplified) — 70-1765
Key features
- For select Toyota 2017-2023 (non-amplified)
- Designed for non-amplified models
- Pre-wired for the Axxess SWC interface (sold separately)
- Excludes 4Runner
- Plugs into the car's original radio connectors on one side
- Retains balance and fade; Retains the factory backup camera; Retains the factory AUX-IN jack
Radio Replacement Harness - Toyota 2017-2023 (non-amplified) — 70-1765 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

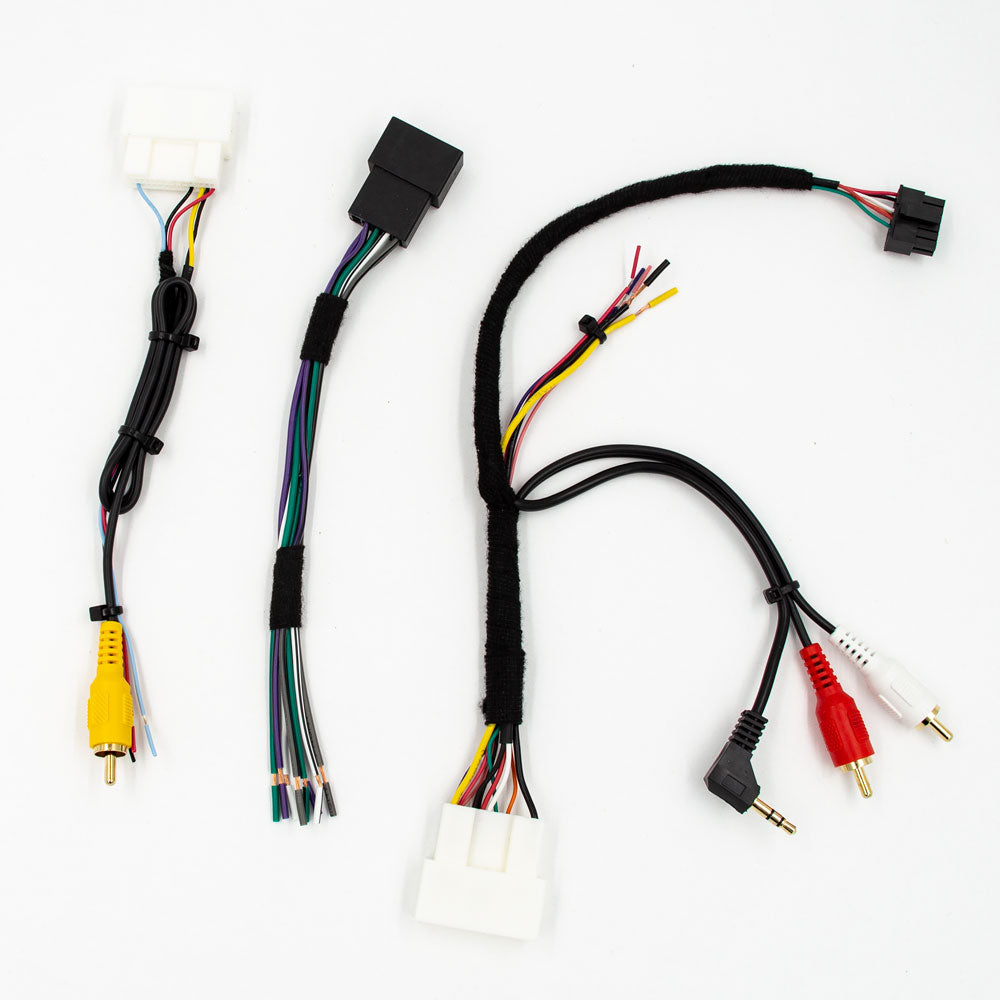

Connect an aftermarket radio to the original connectors in a 2017–2023 Toyota non-amplified model with radio replacement harness 70-1765. Its vehicle-specific adapter avoids cutting the factory radio wires, while color-coded leads connect to your new receiver.
Key Features & Benefits

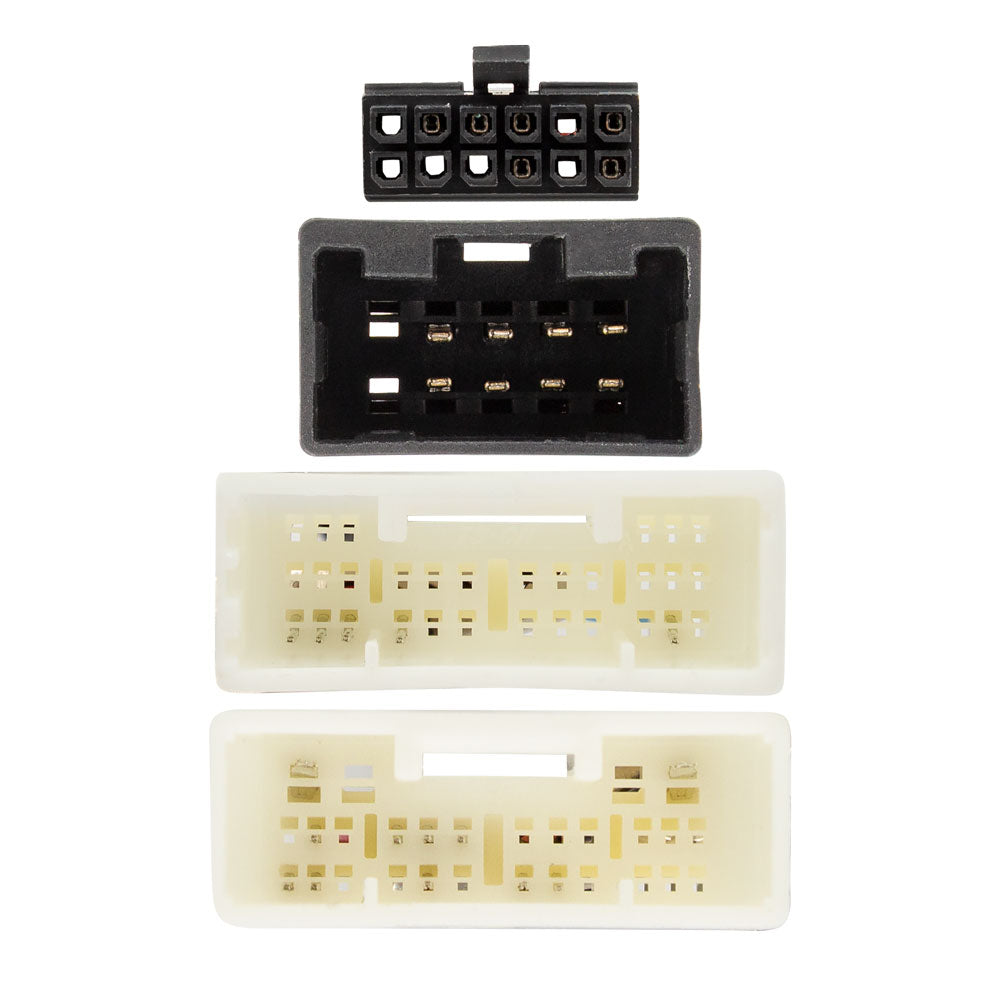

- Factory-connector adapter: Plugs into the original radio connectors, so you don’t need to cut those wires.
- Color-coded radio leads: Makes it clear which harness wires connect or solder to the aftermarket receiver.
- Four-speaker power connection: Provides electrical power to the radio for a four-speaker connection.
- Retained audio functions: Maintains balance and fade, plus the factory backup camera.
- NAV outputs: Provides parking brake, reverse, and speed-sense outputs.
- Factory AUX-IN connection: Retains the factory AUX-IN jack, except in 4Runner models.
Technical Specifications
| Product | Radio Replacement Harness |
|---|---|
| Model | 70-1765 |
| Vehicle range | Toyota 2017–2023 |
| Vehicle audio system | Non-amplified models |
| Factory connection | Plugs into original radio connectors |
| Aftermarket radio connection | Color-coded wires connect or solder to the aftermarket radio |
| Radio power connection | Four-speaker connection |
| Retained functions | Balance and fade; factory backup camera |
| NAV outputs | Parking brake, reverse, speed sense |
| Factory AUX-IN retention | Yes; excludes 4Runner |
| Steering-wheel-control interface preparation | Pre-wired for the Axxess SWC interface, sold separately |
| Installation support | A tech support number is available 7 days a week |
Why Choose This Product?
This harness gives you a direct connection point between the factory radio plugs and an aftermarket receiver. It also retains listed factory functions, including the backup camera and balance and fade, while providing NAV outputs for parking brake, reverse, and speed sense.
It is pre-wired for an Axxess SWC interface, sold separately, for installations that use that interface. The factory AUX-IN jack is retained except in 4Runner models.
Installation & Compatibility Notes
Use this harness for a Toyota 2017–2023 non-amplified model. Connect or solder the color-coded leads to the aftermarket radio, and plug the vehicle-specific adapter into the original radio connectors.
A dash kit, antenna adapter, or special interface adapter may also be needed, depending on the vehicle and the functions you want to retain. Check your vehicle’s installation requirements before starting. Installation help is available by phone 7 days a week.
Frequently Asked Questions
Which vehicles is harness 70-1765 designed for?
It is designed for Toyota 2017–2023 non-amplified models. Confirm that your vehicle and audio system match before installation.
Do I need to cut the factory radio wires?
No. The vehicle-specific adapter plugs into the original radio connectors. The color-coded wires connect or solder to the aftermarket radio.
Does it retain the factory AUX-IN jack?
Yes, except in 4Runner models.
Does it retain steering-wheel audio controls?
The harness is pre-wired for the Axxess SWC interface, which is sold separately.
What other parts might my installation require?
Depending on your vehicle, you may need a dash kit, antenna adapter, or special interface adapter to retain steering-wheel controls or other vehicle functions.
