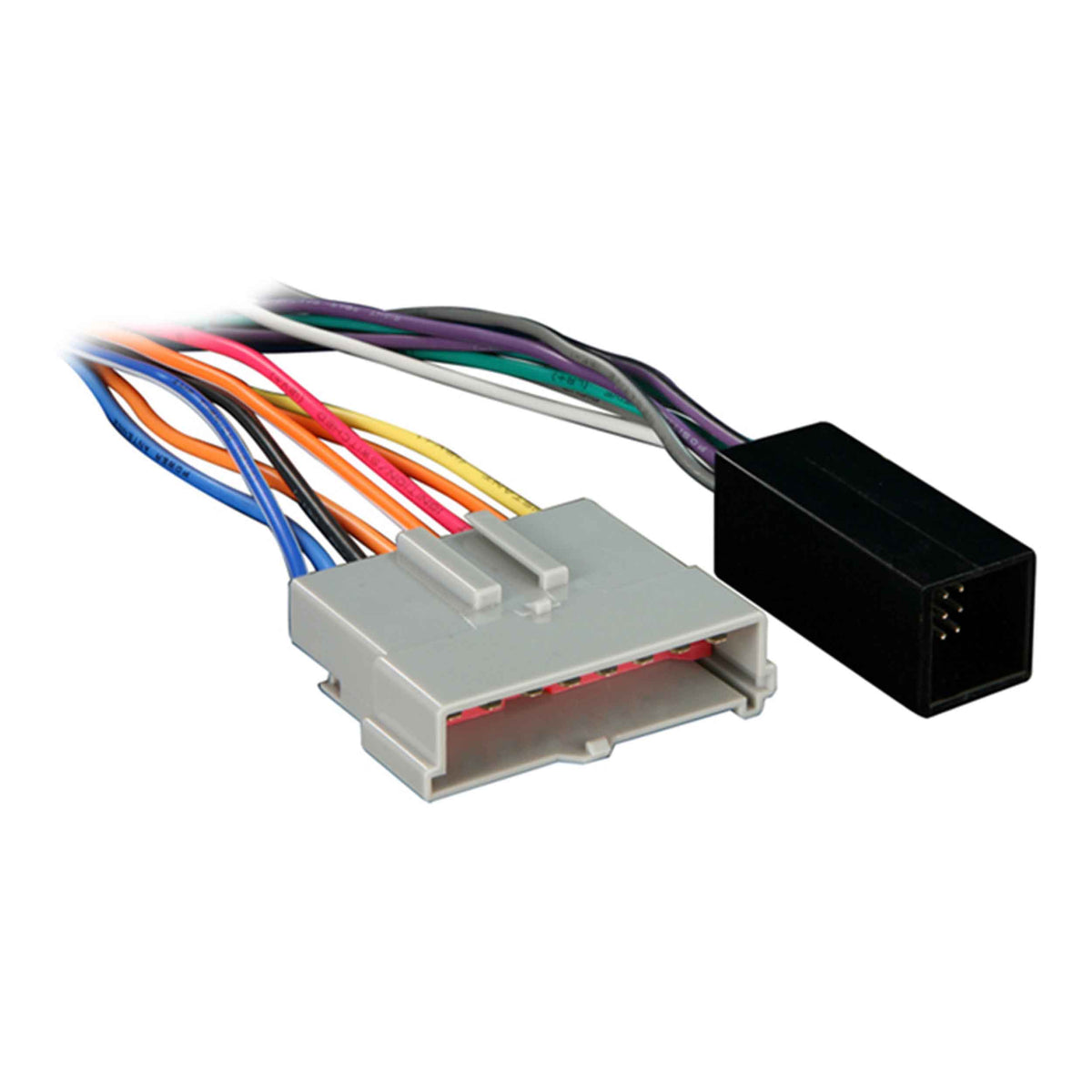

Amp Integration Harness - Ford Mustang 1999-2000 — 70-5511
Key features
- For select Ford Mustang 1999-2000
- Plugs into the car's original radio connectors on one side
- Designed for aftermarket radios that are 35 watts or less
- Includes (1) 8-pin power plug and (1) 8-pin speaker plug
- No wire cutting needed for factory radio connectors
Amp Integration Harness - Ford Mustang 1999-2000 — 70-5511 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Connect an aftermarket radio to the factory amplifier wiring in a 1999–2000 Ford Mustang with the 70-5511 amp integration harness. Its vehicle-specific plugs connect to the original radio connectors, while color-coded wires give you the connections for your aftermarket receiver.
Key Features & Benefits
- Factory connector fit: Plugs into the car’s original radio connectors without cutting those factory wires.

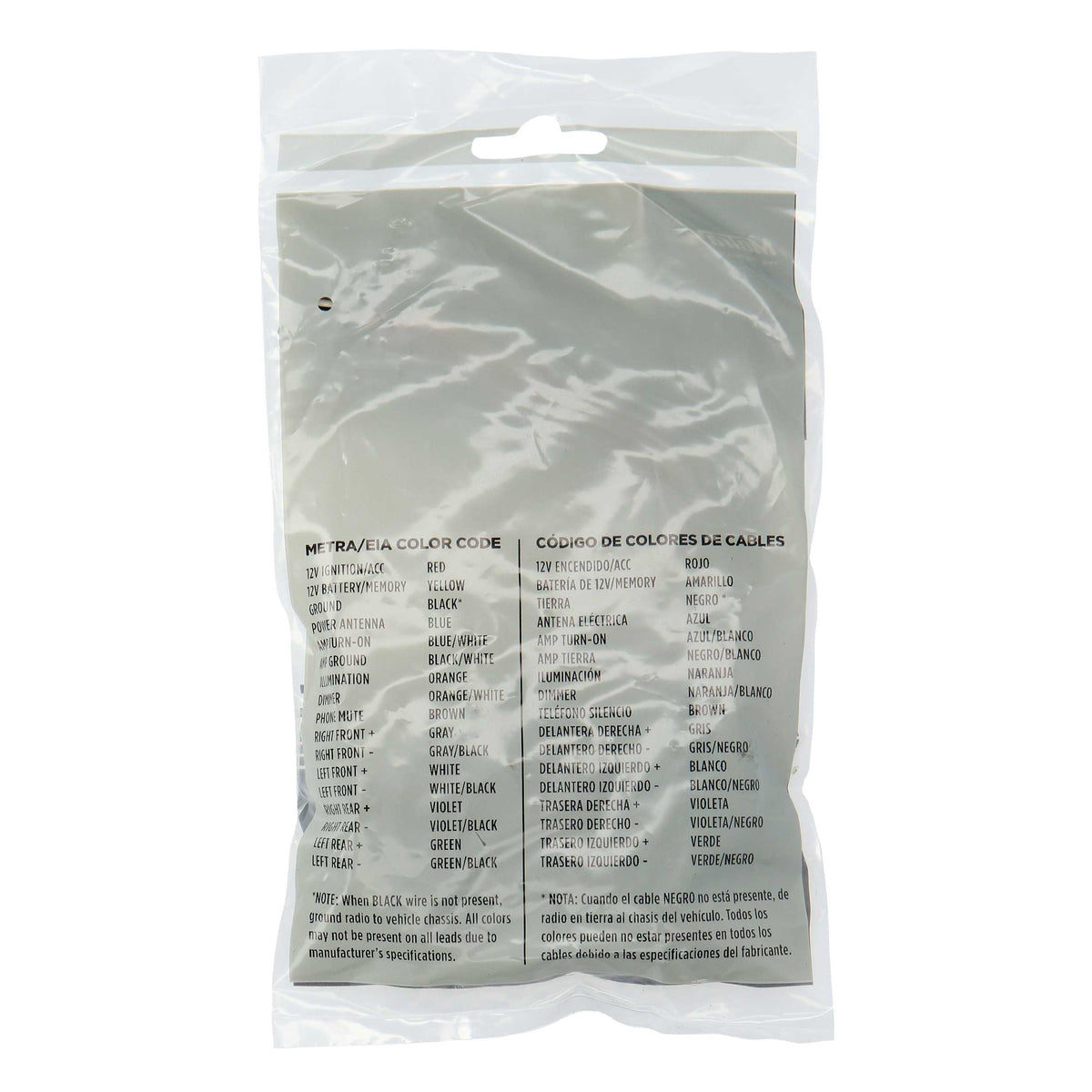

- Color-coded leads: Identify the wires to connect or solder to your aftermarket radio.
- Two included plugs: Includes one 8-pin power plug and one 8-pin speaker plug.
- Radio power limit: Designed for aftermarket radios rated at 35 watts or less.
- Installation help: A technical support number is available seven days a week.
Technical Specifications
| Product | Amp Integration Harness |
|---|---|
| Model | 70-5511 |
| Vehicle | Ford Mustang, 1999–2000 |
| Application | Factory amplifier integration for models with premium sound |
| Aftermarket radio rating | 35 watts or less |

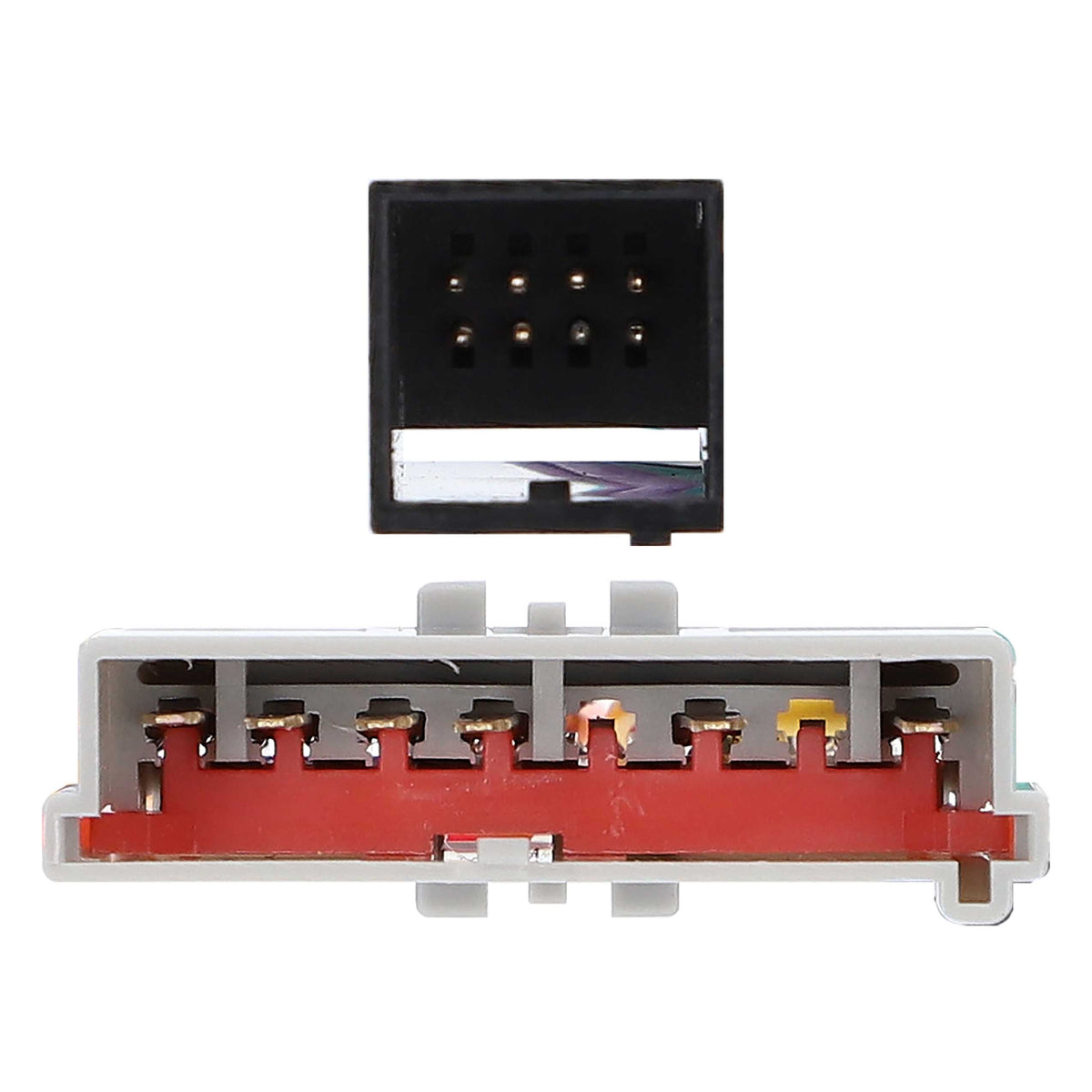

| Included connectors | (1) 8-pin power plug and (1) 8-pin speaker plug |
| Factory radio connection | Vehicle-specific adapter plugs into original radio connectors |
Why Choose This Product?
Replacing a radio can involve working with both the receiver’s wiring and the vehicle’s factory connections. This harness gives you color-coded leads for the aftermarket radio and vehicle-specific plugs for the original radio connectors, so you don’t have to cut those factory wires.
It is intended for compatible Mustang models with premium sound and aftermarket radios rated at 35 watts or less. Check your vehicle’s audio configuration and radio rating before choosing the harness.
Installation & Compatibility Notes
Connect or solder the color-coded leads to the aftermarket radio as required, then connect the adapter to the original radio connectors. A dash kit or antenna adapter may also be needed. Depending on the vehicle, a separate interface adapter may be needed to retain steering-wheel audio controls or other functions such as navigation or video.
Frequently Asked Questions
Which vehicles is the 70-5511 designed for?
It is listed for 1999–2000 Ford Mustang models with premium sound. Check your vehicle’s model year and audio configuration before installation.
What aftermarket radio rating does this harness support?
It is designed for aftermarket radios rated at 35 watts or less.
Does installation require cutting the factory radio wires?
The adapter plugs into the original radio connectors, so cutting those factory wires is not needed. The color-coded leads connect or solder to the aftermarket radio.
Will it retain steering-wheel audio controls?
A separate interface adapter may be needed, depending on your vehicle, to retain steering-wheel audio controls or other vehicle functions.
What connectors are included?
The package includes one 8-pin power plug and one 8-pin speaker plug.
