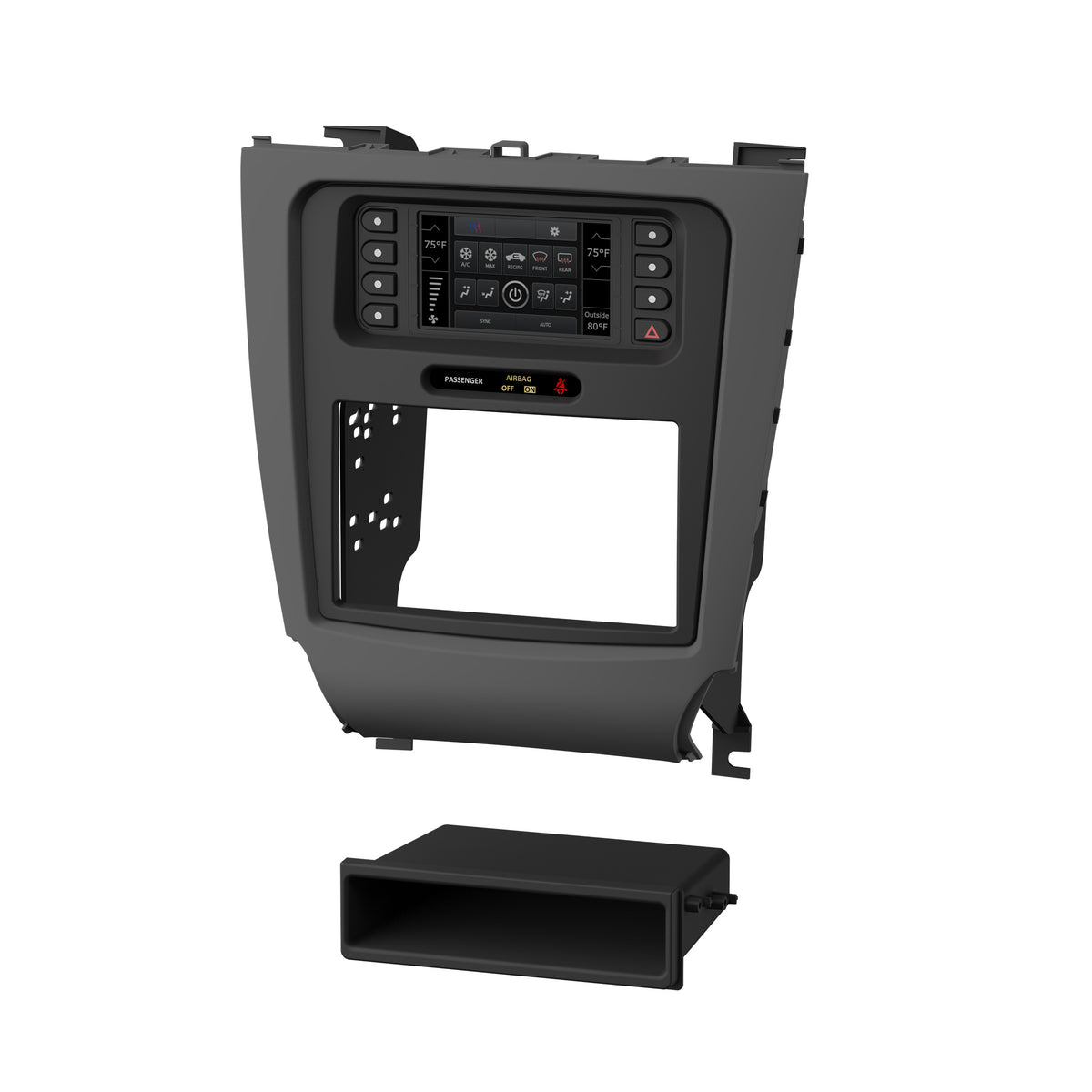

Lexus IS 2006-2015 (without factory NAV) — 99-8163
Key features
- Application: Lexus IS 2006-2015 (without factory NAV)
- ISO DIN radio provision with pocket
- ISO DDIN radio provision
- Note: The kit will not retain the factory amplifier nor provide you with the following outputs for aftermarket units equipped with Navigation. (Ex. VSS. Parking Brake and Reverse)
- Touchscreen display for the climate control
- When using AX-AB-LX2 or AX-AB-LX3 bypass harnesses, the factory amplifier must remain plugged in for factory HVAC operation
Lexus IS 2006-2015 (without factory NAV) — 99-8163 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

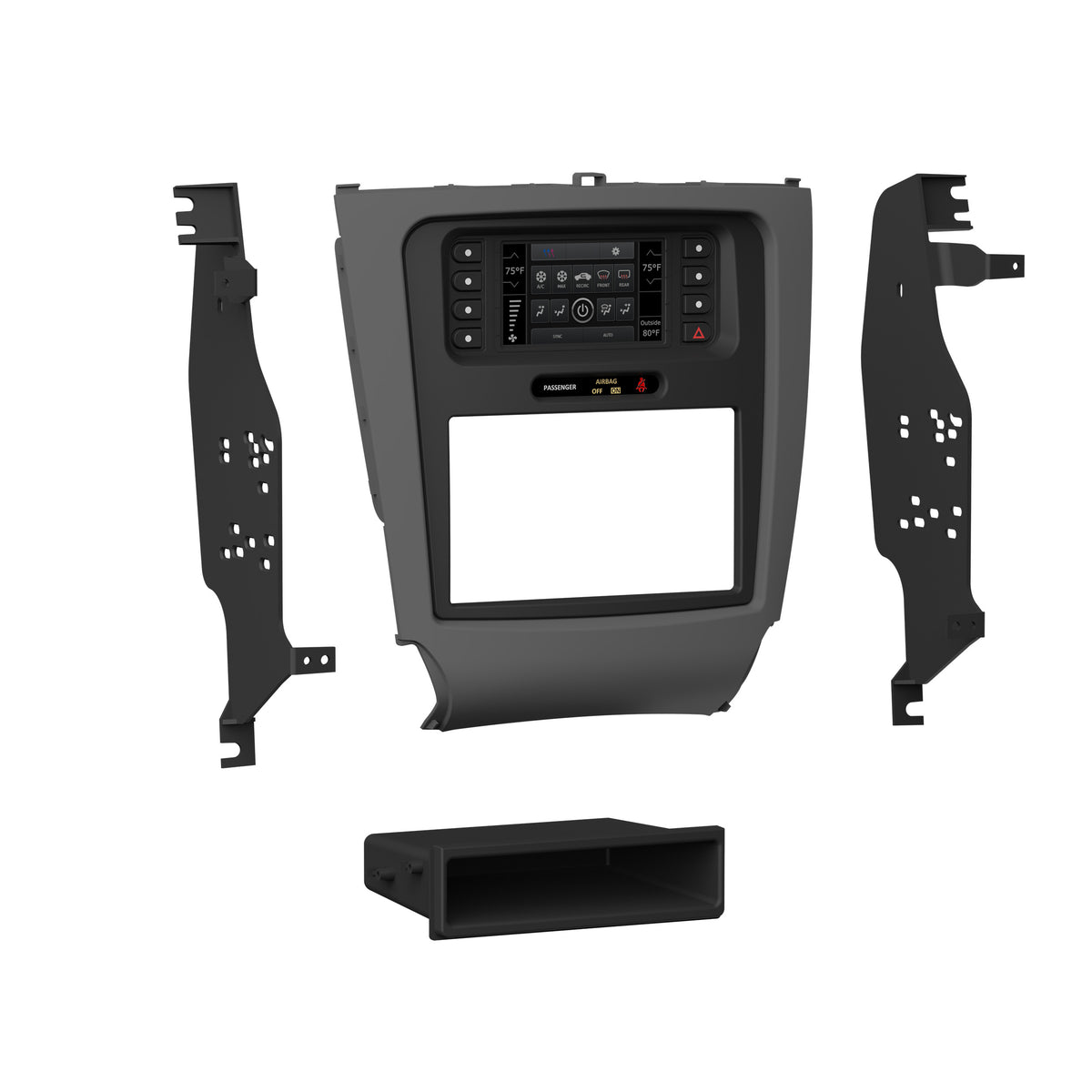

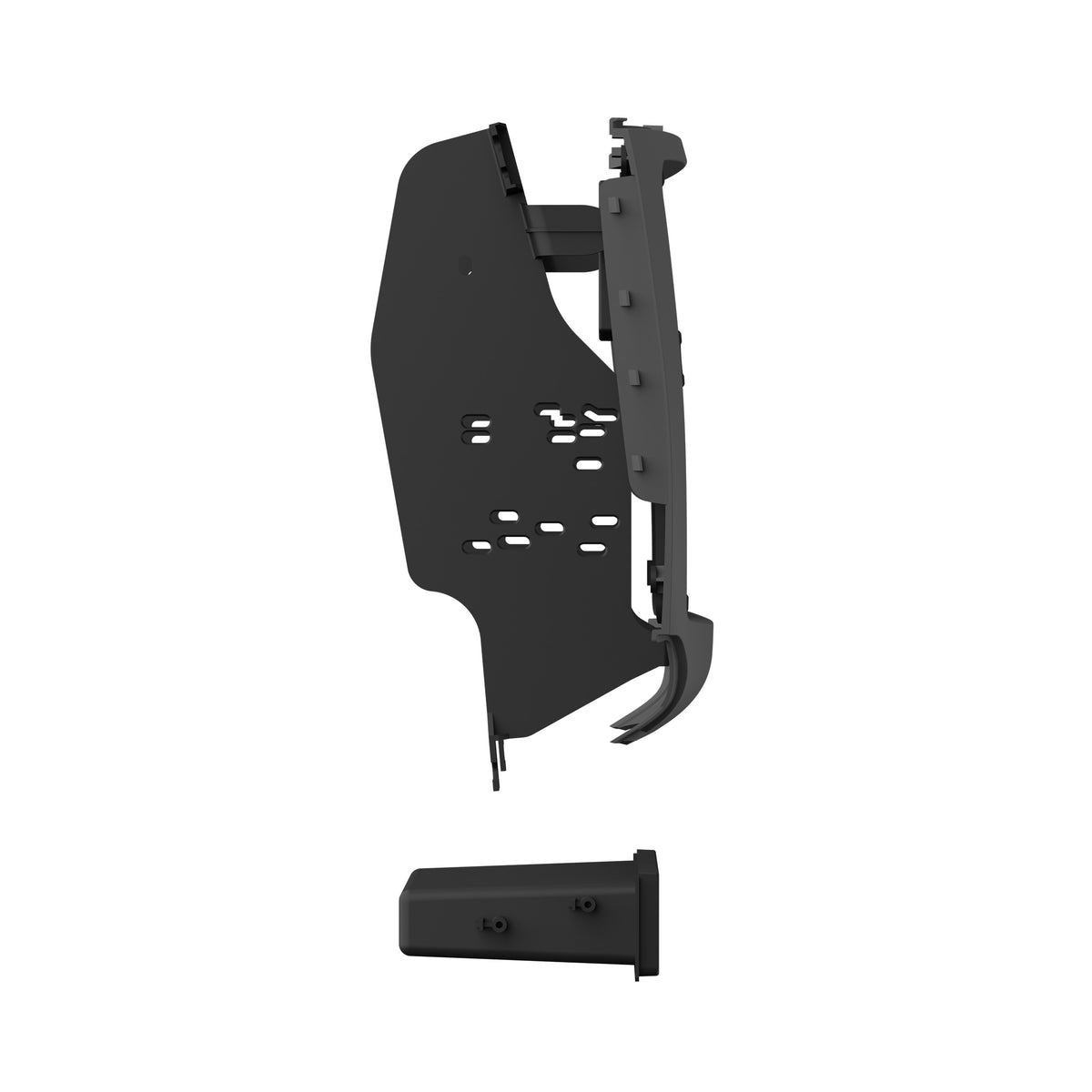

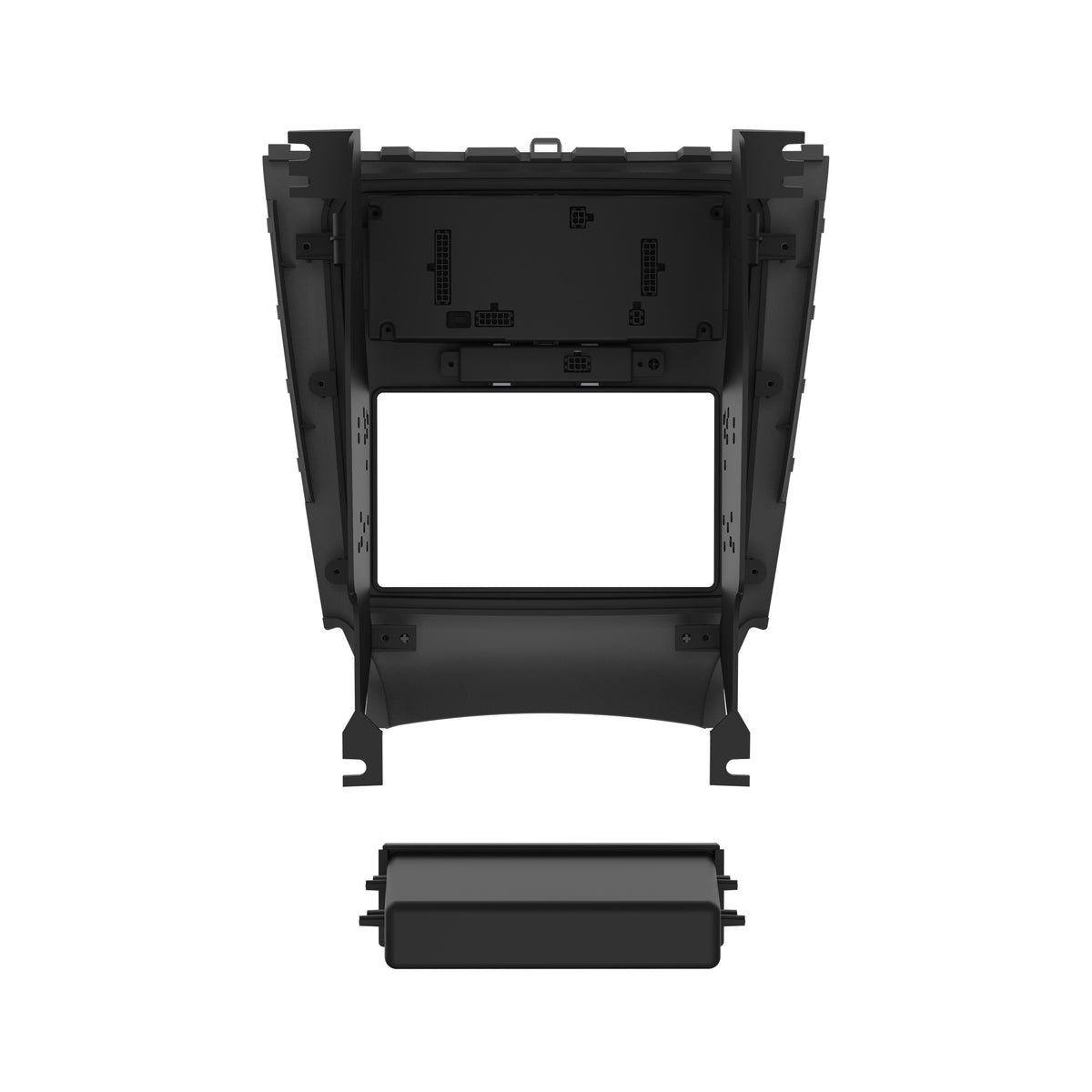

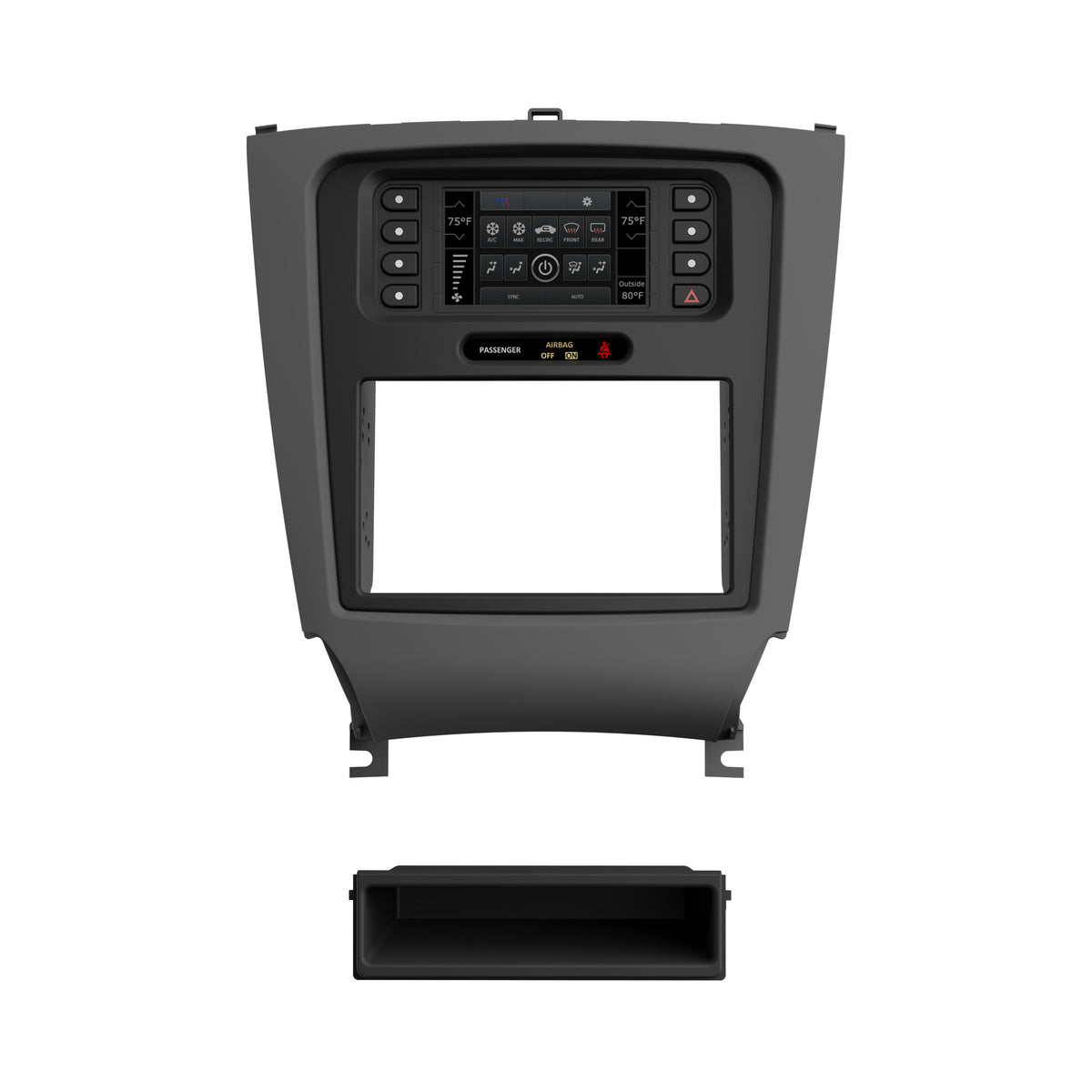

The 99-8163 radio installation kit provides ISO DIN or ISO DDIN radio provisions for 2006–2015 Lexus IS vehicles without factory navigation. Its two-tone gray and black finish includes a touchscreen display for climate control and passenger seat belt and airbag indicators.
Key Features & Benefits
- ISO DIN provision with pocket: Accommodates an ISO DIN radio installation with a pocket.
- ISO DDIN provision: Supports an ISO DDIN radio installation.
- Two-tone finish: Painted gray and black to suit the specified dash application.
- Climate control display: Provides a touchscreen display for climate control.
- Passenger indicators: Includes passenger seat belt and airbag indicators.
Technical Specifications
| Product | 99-8163 |
|---|---|
| Vehicle fitment | Lexus IS 2006–2015 without factory NAV |
| Radio provisions | ISO DIN radio provision with pocket; ISO DDIN radio provision |
| Finish | Painted two-tone gray and black |
| Display and indicators | Touchscreen display for the climate control; passenger seat belt and airbag indicator |
| Factory amplifier | The kit will not retain the factory amplifier. |
| Navigation-related outputs | For aftermarket units equipped with Navigation, the kit does not provide VSS, Parking Brake, or Reverse outputs. |
| Bypass harness note | When using either the AX-AB-LX2 or AX-AB-LX3 bypass harness, the factory amp must stay plugged into the vehicle for factory HVAC to work. |
| Warranty | 1-year warranty |
| Installation help | Tech support is available for installation help, 7 days a week. |
Why Choose This Product?
This kit combines radio provisions with a climate-control touchscreen and passenger seat belt and airbag indicators. Those integrated features matter when selecting a radio installation kit for the specified Lexus IS application.
It also clearly identifies important factory-system limitations, helping you account for the amplifier and navigation-related outputs during your installation planning.
Installation & Compatibility Notes
Confirm that your Lexus IS is from 2006–2015 and does not have factory navigation before choosing this kit. The kit does not retain the factory amplifier, and it does not provide VSS, Parking Brake, or Reverse outputs for aftermarket units equipped with Navigation.
If you use an AX-AB-LX2 or AX-AB-LX3 bypass harness, keep the factory amp plugged into the vehicle for factory HVAC operation.
Frequently Asked Questions
Which vehicles is the 99-8163 intended for?
It is listed for 2006–2015 Lexus IS vehicles without factory navigation.
What radio provisions does the kit offer?
It provides an ISO DIN radio provision with a pocket and an ISO DDIN radio provision.
Does the kit retain the factory amplifier?
No. The kit will not retain the factory amplifier.
What should I know when using an AX-AB-LX2 or AX-AB-LX3 bypass harness?
The factory amp must remain plugged into the vehicle for factory HVAC to work.
Does it provide VSS, Parking Brake, and Reverse outputs?
No. It does not provide those outputs for aftermarket units equipped with Navigation.
