Camera Data Interface - Chrysler | Dodge 2011-2018 — AXAC-CH3
Key features
- For select Chrysler / Dodge 2011-2018
- Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)
- Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
- Four (4) programmable camera control wires (configured via the Axxess Updater program)

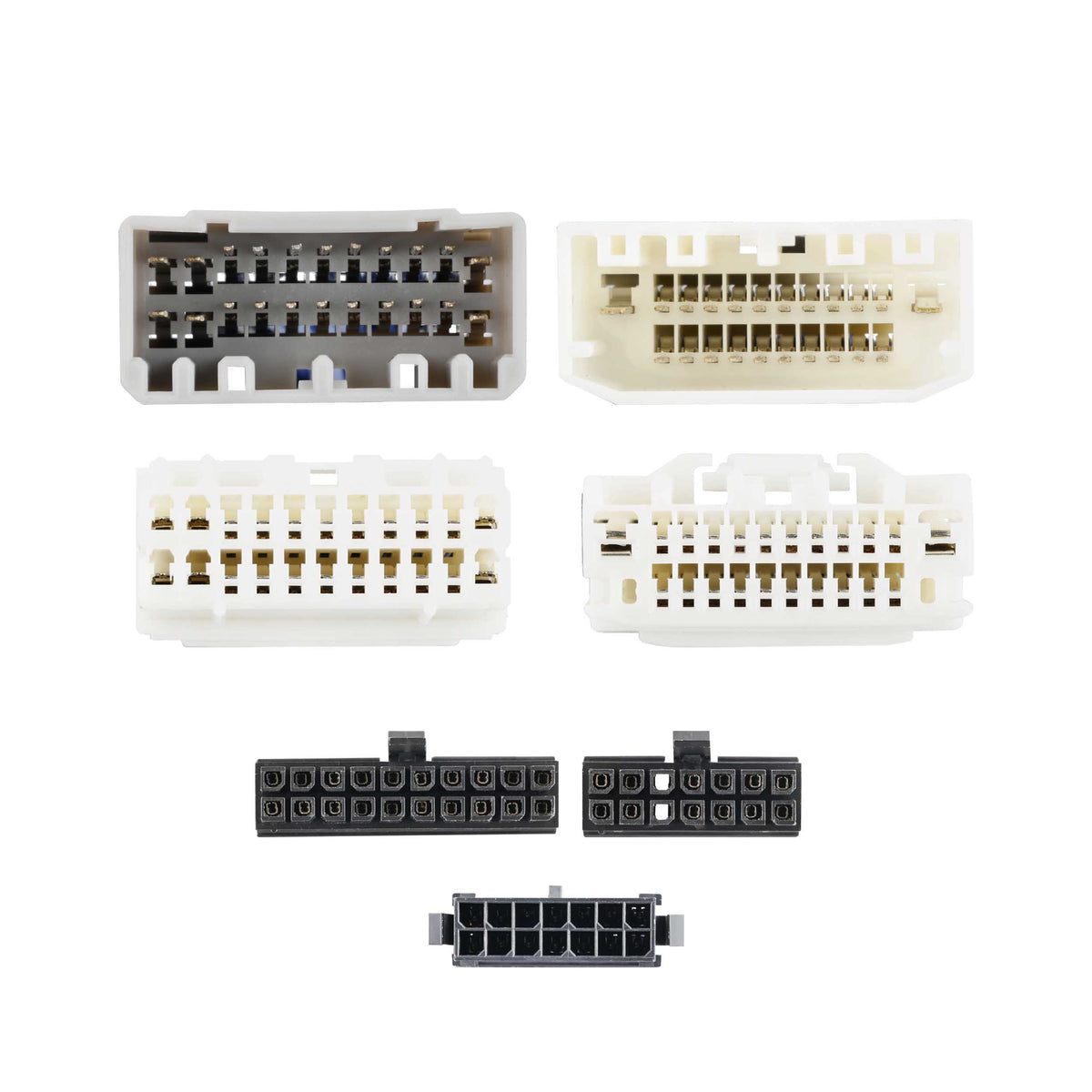

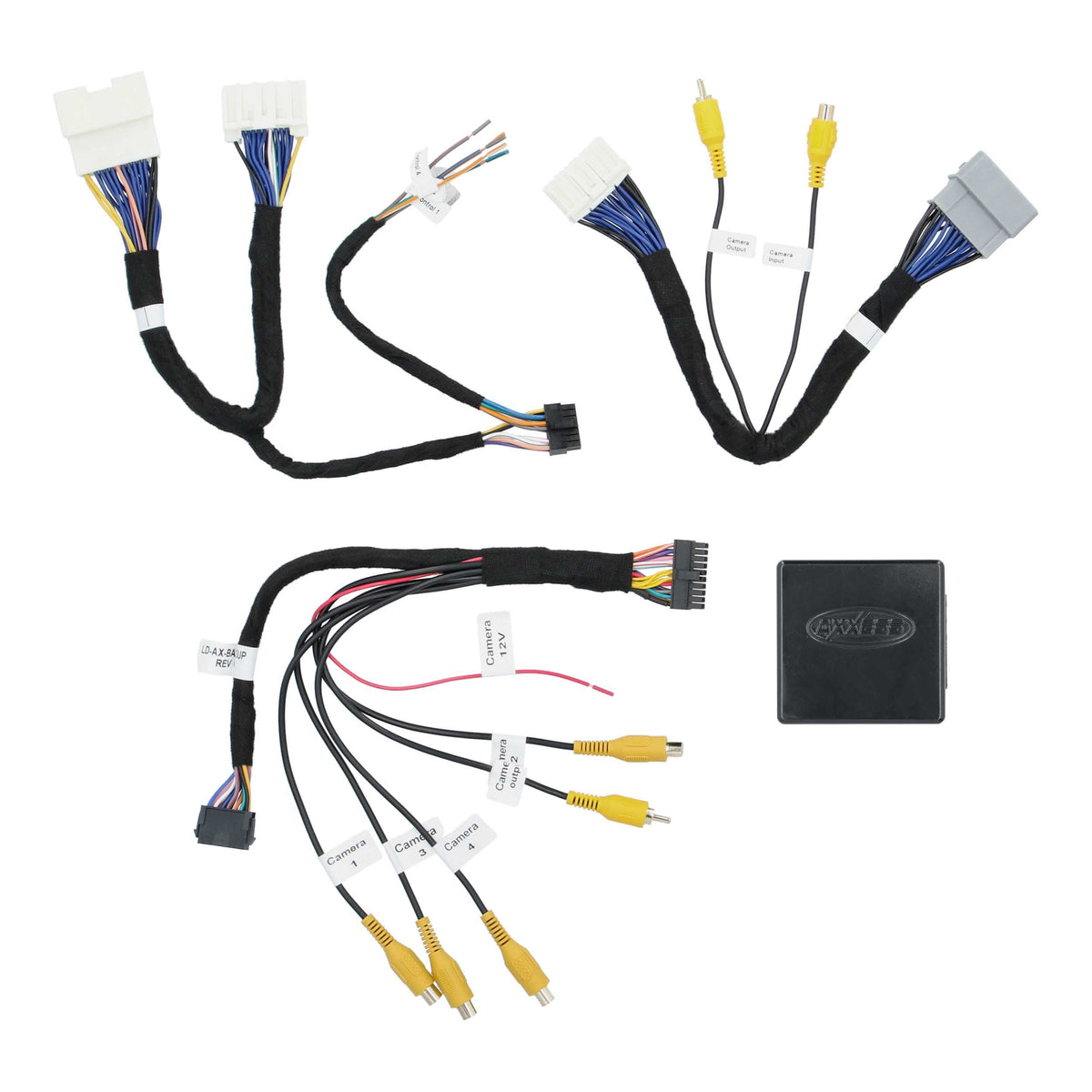

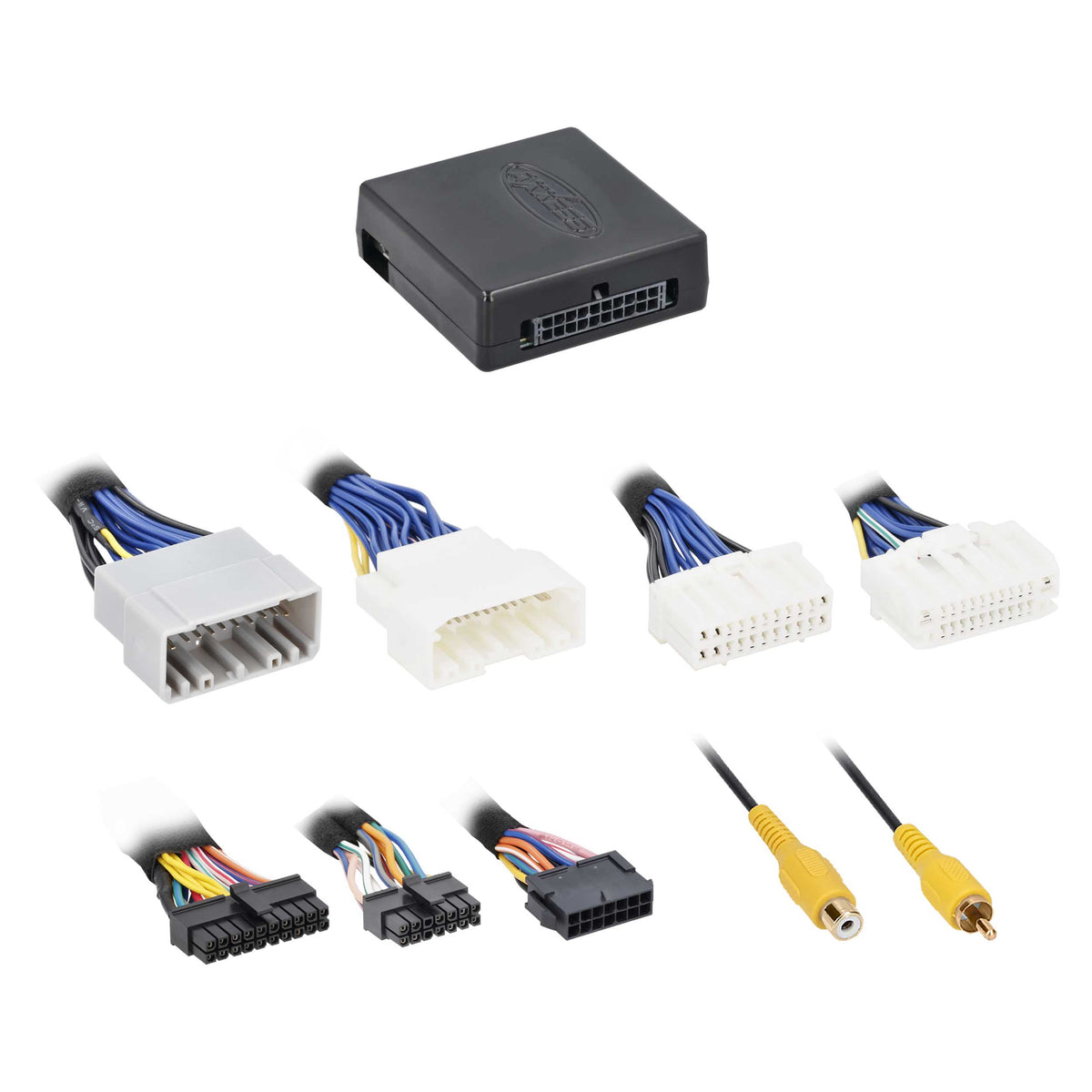

- Includes: Interface; Interface harness; (2) Vehicle harness
- Includes AXAC camera interface and vehicle-specific harness
Camera Data Interface - Chrysler | Dodge 2011-2018 — AXAC-CH3 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep your factory backup camera while adding camera views to your Chrysler or Dodge’s factory radio with the AXAC-CH3 camera data interface. It supports up to four camera inputs and uses vehicle signals to switch views automatically.
Designed for Chrysler and Dodge vehicles from 2011–2018, the interface can also be manually controlled and used with an aftermarket radio.
Key Features & Benefits
- Four camera inputs: Retain the factory backup camera and add up to three additional CAN-activated cameras.
- Automatic camera switching: CAN bus reverse and turn signal triggers can change the camera view in response to vehicle functions.
- Programmable output: Configure the switched 12-volt, 5-amp output through the Axxess Updater program.
- Camera control wires: Four programmable wires give you additional camera control options through the Axxess Updater program.
- Vehicle signal connections: VSS input and output support connections for vehicle speed sense.
Technical Specifications
| Product | AXAC camera-switching interface |
|---|---|
| Vehicle fitment | Chrysler | Dodge 2011–2018 |
| Camera inputs | Up to four total, including the factory camera |
| Additional cameras | Up to three additional CAN-activated cameras |
| Switched output | Programmable 12-volt, 5-amp output; configured via the Axxess Updater program |
| Reverse trigger | Generated through CAN bus communication |
| Turn signal trigger | Generated through CAN bus communication |
| Camera control wires | Four programmable wires; configured via the Axxess Updater program |
| Manual control | Can be manually controlled and used with an aftermarket radio |
| VSS | Vehicle Speed Sense input and output |
| Updates | Micro “B” USB updatable |
| Warranty | 1-year limited warranty |
| Included | Interface; interface harness; (2) vehicle harness |
Why Choose This Product?
The AXAC-CH3 adds camera options without giving up the factory backup camera. Automatic reverse and turn signal triggers let the interface respond to vehicle functions, while manual control provides another way to select a view. Its programmable connections also allow configuration through the Axxess Updater program.
Installation & Compatibility Notes
This interface is listed for Chrysler and Dodge vehicles from 2011–2018. Confirm that your specific vehicle and radio system match the application before purchase. The interface includes a vehicle-specific harness and two vehicle harnesses. Micro “B” USB is used for updates.
Frequently Asked Questions
How many cameras can the AXAC-CH3 support?
It supports up to four camera inputs total, including the factory camera, with up to three additional CAN-activated cameras.
Does camera switching happen automatically?
Reverse and turn signal triggers are generated through CAN bus communication to switch camera views based on those vehicle functions.
Can I use the interface with an aftermarket radio?
Yes. The interface can also be manually controlled and used with an aftermarket radio.
What comes in the package?
The package includes the interface, an interface harness, and two vehicle harnesses.
Can the interface be updated?
Yes. It is Micro “B” USB updatable.
