Camera Data Interface - Chrysler 2023-Up — AXAC-CH8
Key features
- For select Chrysler 2023-Up
- Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)
- Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
- One (1) programmable camera control wires (configured via the Axxess Updater program)

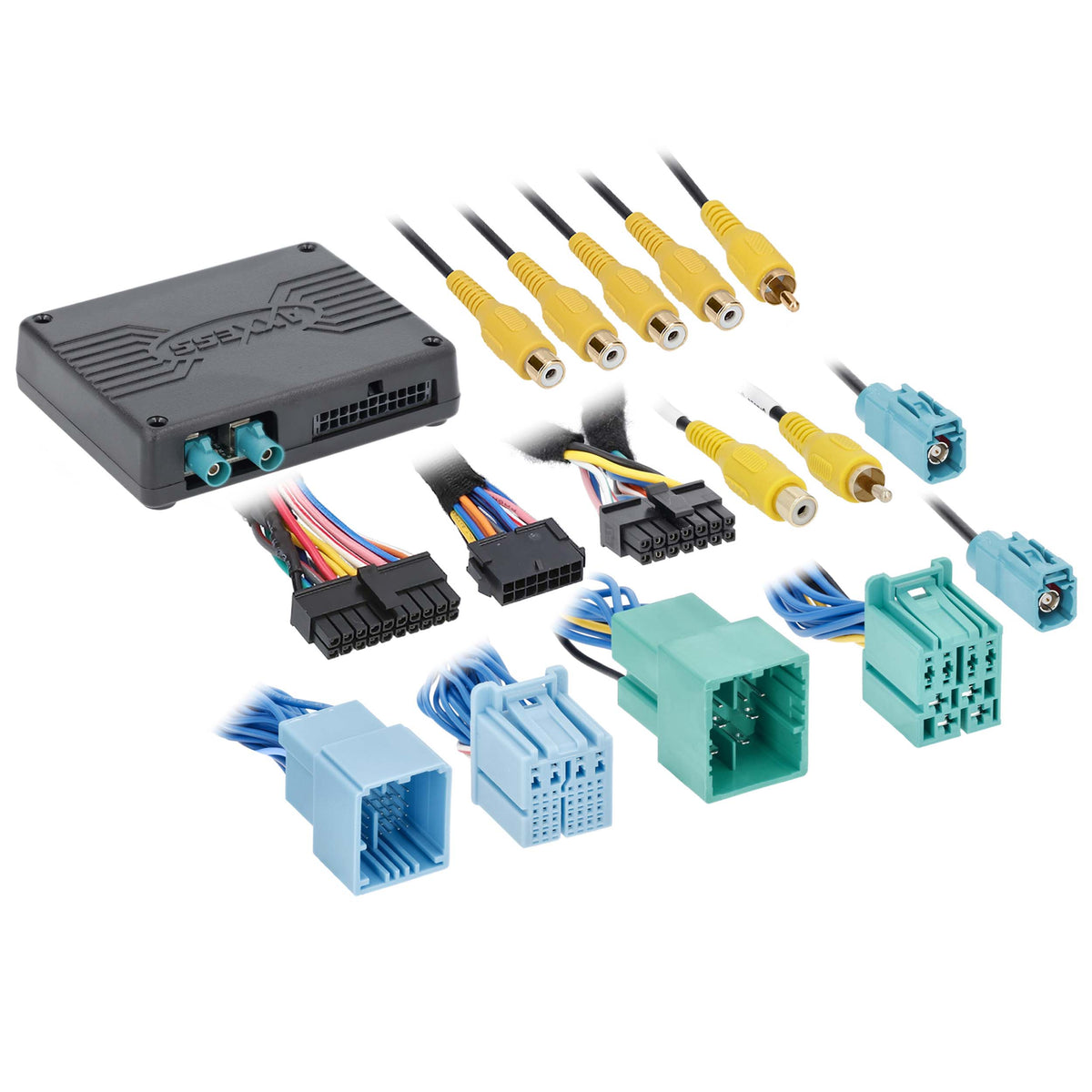

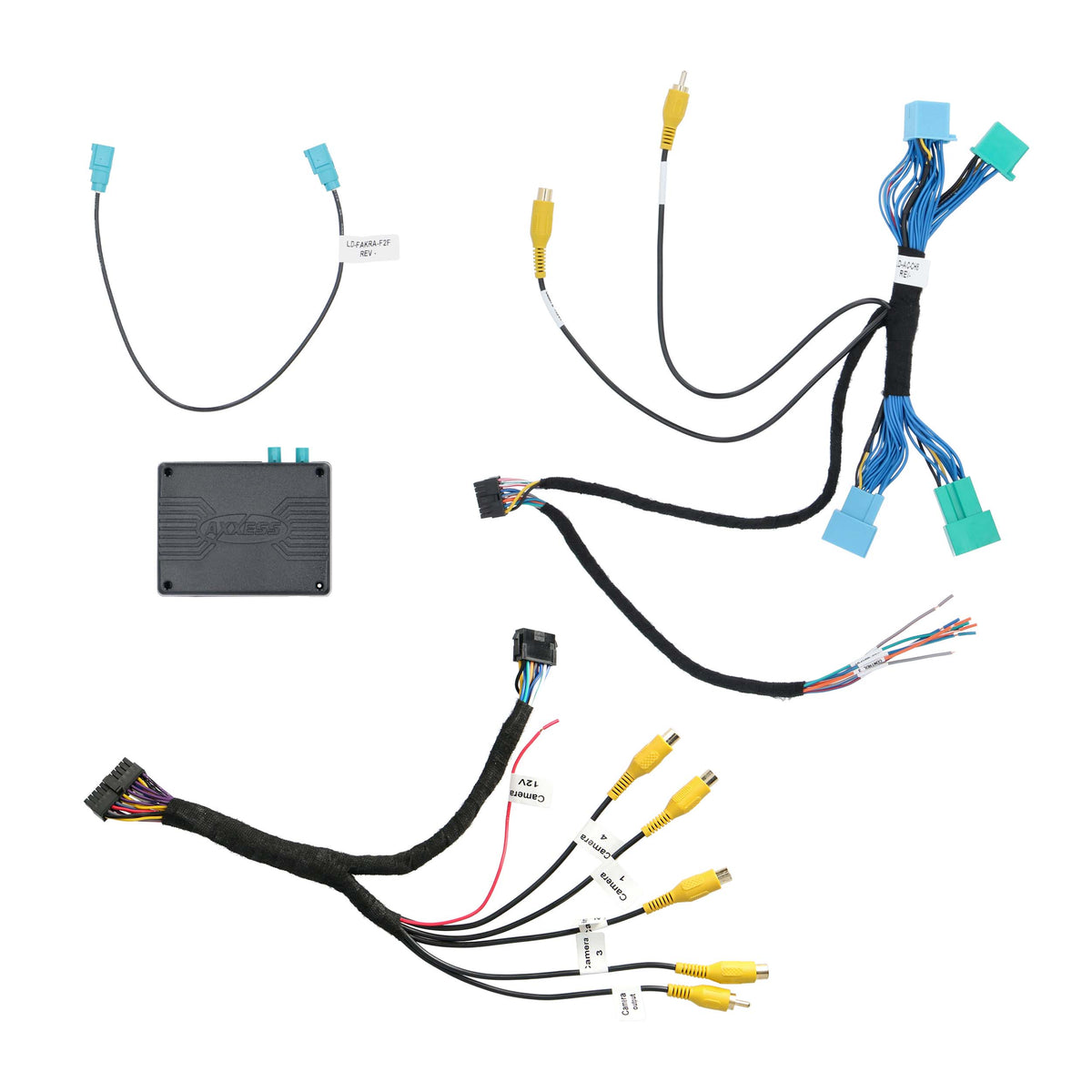

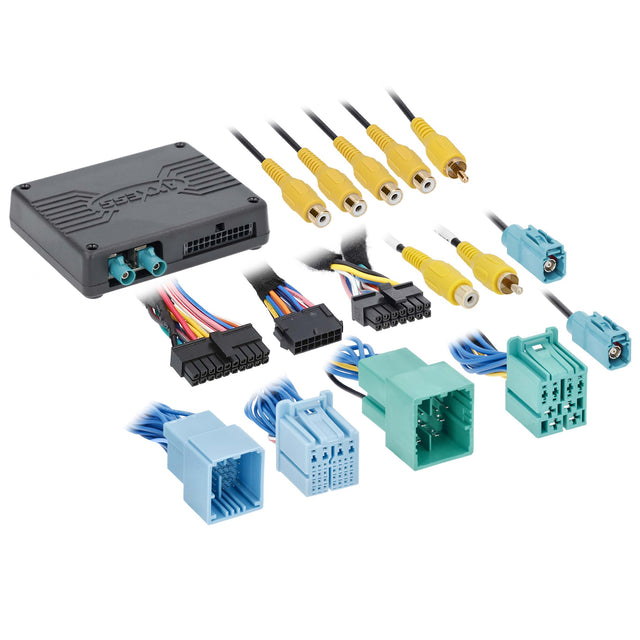

- Includes: Interface; Interface harness; Vehicle harness
- Includes AXAC camera interface and vehicle-specific harness
Camera Data Interface - Chrysler 2023-Up — AXAC-CH8 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Keep your factory backup camera while adding up to three more camera views with the AXAC-CH8 camera data interface for Chrysler 2023-up vehicles. It uses CAN bus signals to switch views automatically for reverse and turn signals, and can also be controlled manually.
Key Features & Benefits
- Four camera inputs: Retain the factory camera and add up to three additional cameras.
- Automatic camera triggers: CAN bus communication provides reverse and turn signal triggers for camera switching.
- Programmable output: Configure a switched 12-volt, 5-amp output with the Axxess Updater program.
- Flexible control: Use the programmable camera control wire or operate the interface manually.
- Factory and aftermarket radio use: The interface can also be used with an aftermarket radio.
- Updateable interface: A Micro “B” USB connection supports updates.
Technical Specifications
| Product | Camera Data Interface — AXAC-CH8 |
|---|---|
| Vehicle application | Chrysler 2023-up |
| Camera inputs | Up to four total, including the factory backup camera; supports up to three additional CAN-activated cameras |
| Automatic triggers | Reverse and turn signal triggers generated through CAN bus communication |
| Switched output | Programmable 12-volt, 5-amp output; configured via the Axxess Updater program |
| Camera control | One programmable camera control wire; configured via the Axxess Updater program. Manual control is also available. |
| Radio use | Can also be used with an aftermarket radio |
| Vehicle Speed Sense | VSS input and output |

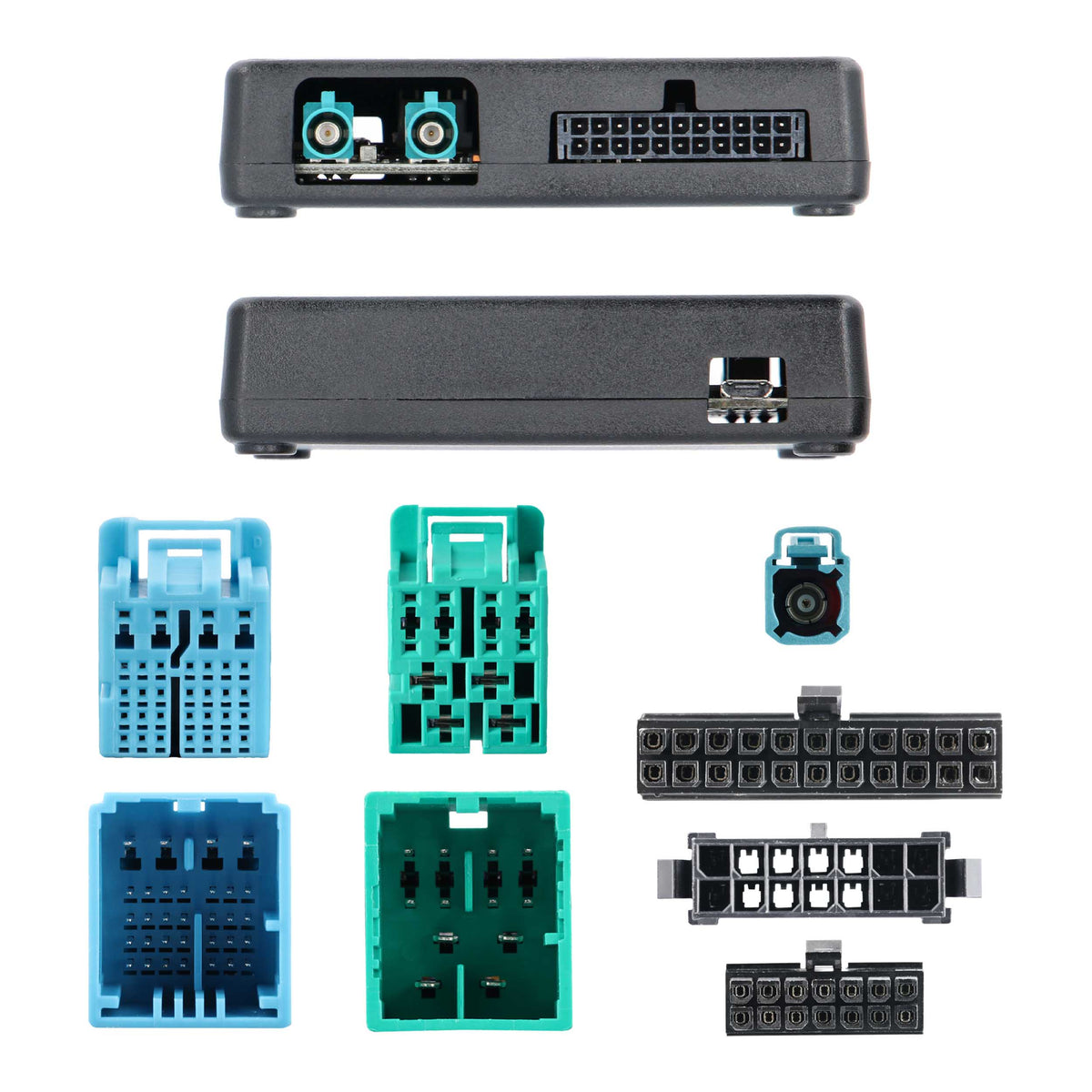

| Update connection | Micro “B” USB |
| Included | Interface, interface harness, vehicle harness |
| Warranty | 1-year limited warranty |
Why Choose This Product?
The AXAC-CH8 lets you add camera coverage while retaining the factory backup camera. Its automatic triggers connect camera switching to vehicle functions, while manual control offers another way to change views.
It also provides VSS input and output, plus a programmable switched output. These connections give you useful integration options in one camera interface.
Installation & Compatibility Notes
This interface is listed for Chrysler 2023-up vehicles and includes a vehicle harness. Confirm that the exact vehicle and factory radio match your installation before purchase. The switched output and camera control wire are configured through the Axxess Updater program.
Frequently Asked Questions
How many cameras can the AXAC-CH8 support?
It supports up to four camera inputs total, including the factory backup camera. You can add up to three additional CAN-activated cameras.
Does it switch cameras automatically?
Yes. CAN bus communication generates reverse and turn signal triggers for automatic switching. Manual control is also available.
Can I use this interface with an aftermarket radio?
Yes. The product details state that it can also be used with an aftermarket radio.
What comes in the package?
The package includes the interface, interface harness, and vehicle harness.
How is the output configured?
The 12-volt, 5-amp switched output and programmable camera control wire are configured through the Axxess Updater program.
