A2B DSP Data Interface - Lincoln 2018-Up — AXDSPX-A2B3
Key features
- For select A2B DSP Data Interface - Lincoln 2018-Up
- Factory amplifier does not need to be retained

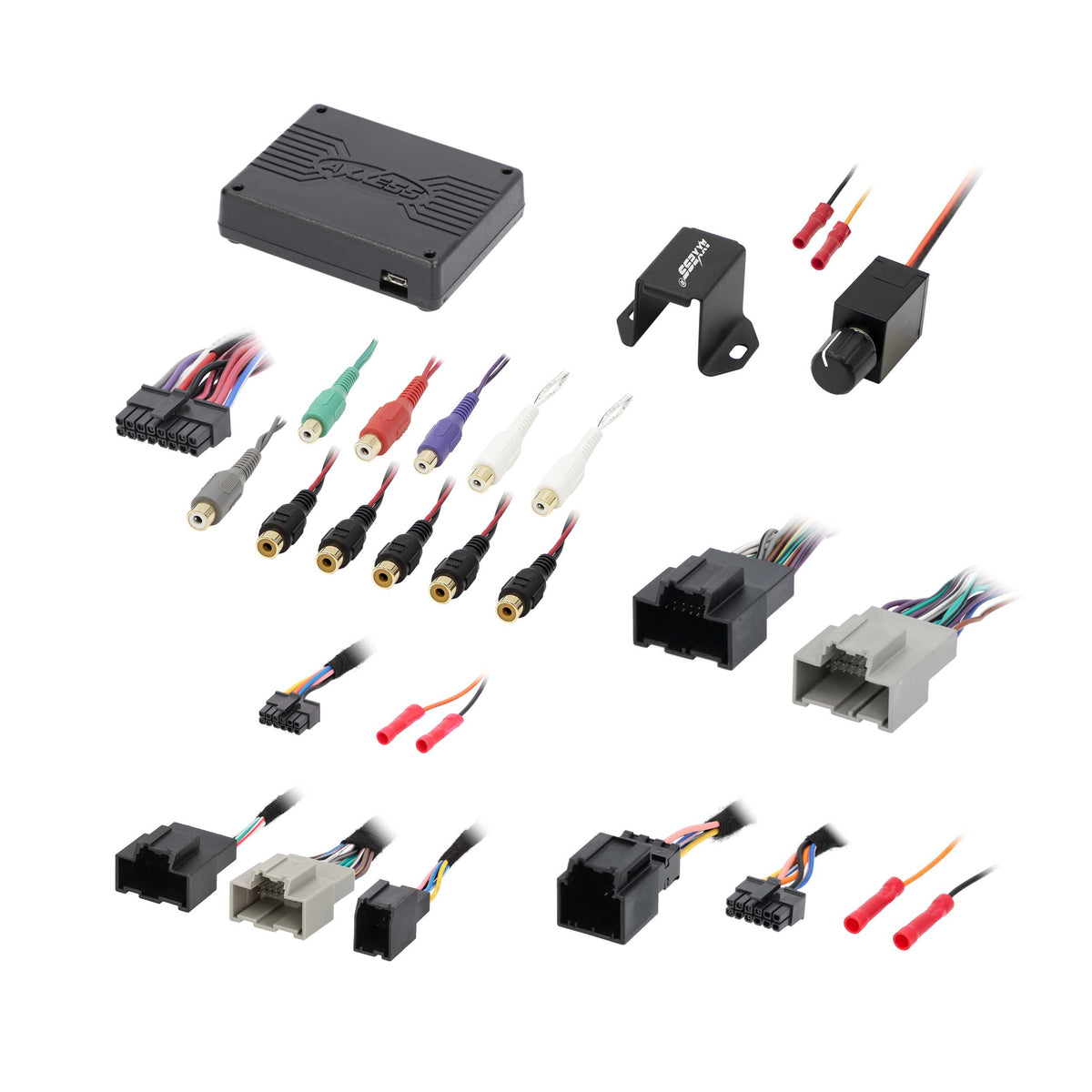

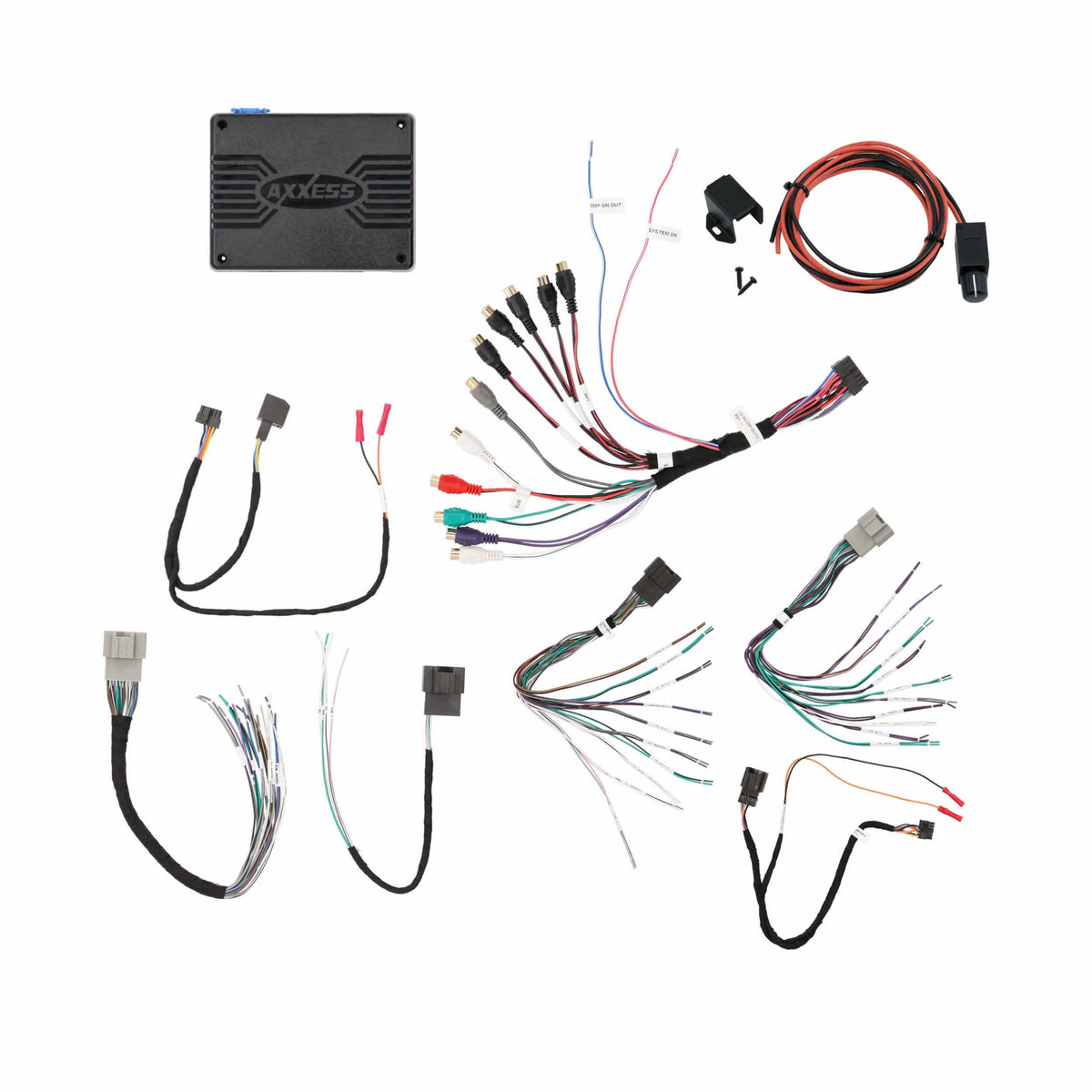

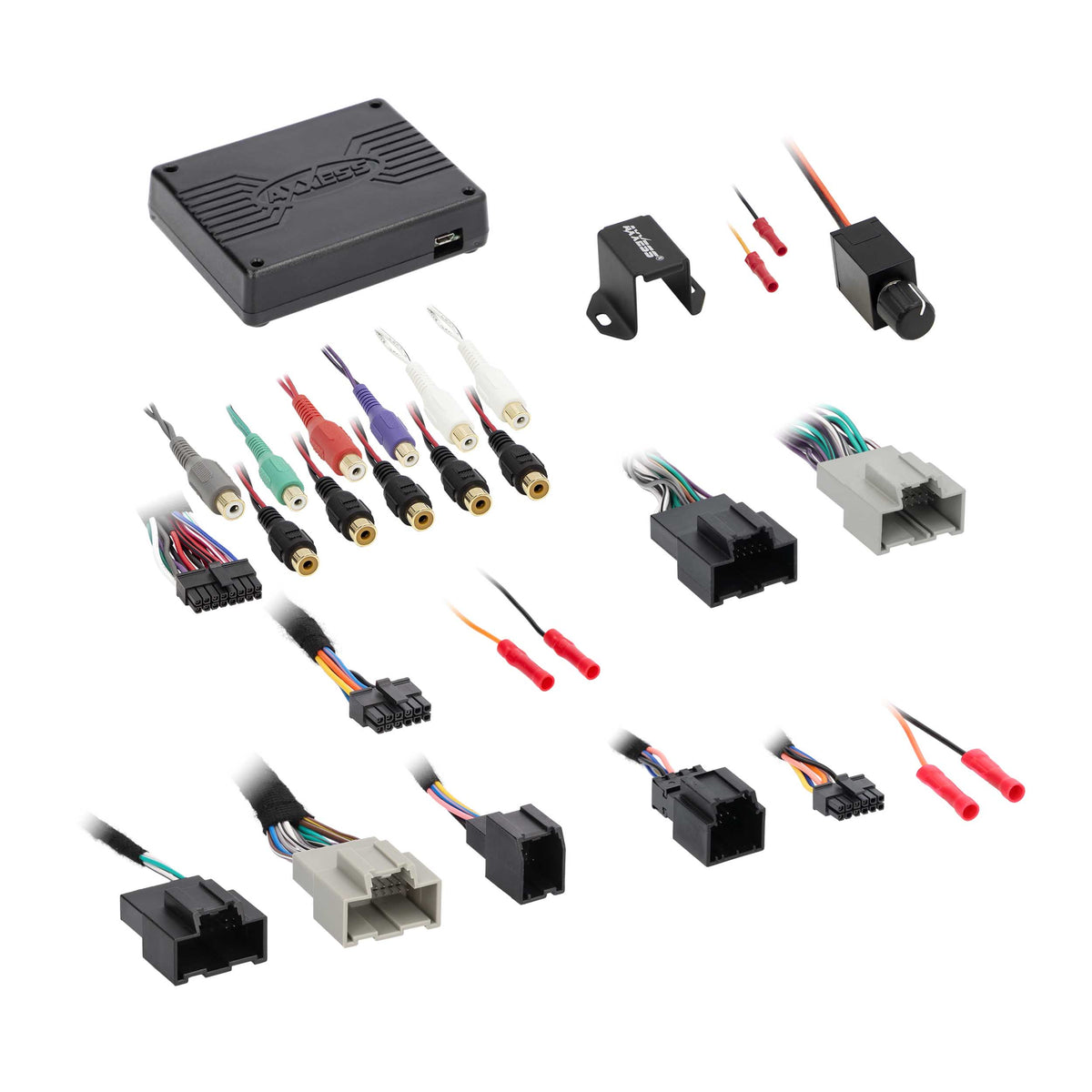

- Package includes the A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and an amplifier bypass harness
- Retains OE voice prompts (SYNC®) if vehicle is equipped
- Designed for select vehicles with a Revel® A2B amplifier
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
A2B DSP Data Interface - Lincoln 2018-Up — AXDSPX-A2B3 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a cleaner signal for aftermarket audio equipment while keeping key factory functions with the AXDSPX-A2B3 A2B DSP Data Interface. It is listed for Lincoln 2018-Up models and designed for select vehicles equipped with a Revel® A2B amplifier package.
Key Features & Benefits
- Factory-radio integration: Designed for use with factory radios to address their built-in audio processing when upgrading audio equipment.
- Factory amplifier bypass: The included bypass harness means the factory amplifier does not need to be retained.
- Voice prompt retention: Chimes and voice prompts route through the aftermarket amplifier; OE SYNC® voice prompts are retained if the vehicle is equipped with SYNC®.
- Flexible sound adjustment: Choose graphic or parametric equalization and adjust each output independently.
- Wireless setup: Adjust settings with the free AX-DSP-XL app on a smartphone or tablet.
- Configuration recall: Read, write, and store configurations for future recall, with password protection available in the app.
Technical Specifications
| Model | AXDSPX-A2B3 |
|---|---|
| Vehicle application | Lincoln 2018-Up; designed for select vehicles with a Revel® A2B amplifier package |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| Included control | Bass knob included |
| Factory functions | Retains OE voice prompts (SYNC®) if vehicle is equipped; chimes and voice prompts go through the aftermarket amplifier |
| App | Free AX-DSP-XL app for smartphones and tablets; settings adjusted wirelessly; password protect feature available in the app |
| Configuration | Read, write, and store configurations for future recall |
| Update connection | Micro “B” USB updatable |
| Install location | At the factory amplifier |
| Package includes | A2B data interface with built-in AXDSP-X technology, vehicle-specific T-harness, and an amplifier bypass harness |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
A factory radio may process audio for the original speakers, which can limit the signal available to aftermarket gear. This interface adds adjustable digital signal processing while supporting the factory features listed above.
Its 6 inputs and 10 assignable outputs provide multiple routing options. Independent output equalization and channel delay let you tailor settings across the connected system.
Installation & Compatibility Notes
Installation is at the factory amplifier and uses the included vehicle-specific T-harness and amplifier bypass harness. The factory amplifier does not need to be retained.
Confirm that your vehicle is a listed Lincoln 2018-Up application with the Revel® A2B amplifier package before purchase. The interface is intended for use with factory radios.
Frequently Asked Questions
Which vehicles is the AXDSPX-A2B3 designed for?
It is listed for Lincoln 2018-Up and designed for select vehicles with a Revel® A2B amplifier package.
Does the factory amplifier have to remain installed?
No. The package includes an amplifier bypass harness, and the factory amplifier does not need to be retained.
Are factory chimes and voice prompts retained?
Chimes and voice prompts go through the aftermarket amplifier. OE SYNC® voice prompts are retained if the vehicle is equipped with SYNC®.
How are the DSP settings adjusted?
Settings are adjusted wirelessly through the free AX-DSP-XL app for smartphones and tablets.
What comes in the package?
It includes the A2B data interface with built-in AXDSP-X technology, a vehicle-specific T-harness, and an amplifier bypass harness.
