DSP Data Interface - GM 2014-2020 — AXDSPX-GL9

The Axxess AXDSPX-GL9 digital signal processor integration package is listed for DSP Data Interface - GM 2014-2020 applications.

Compatibility and connections

• System requirement: non-amplified systems.

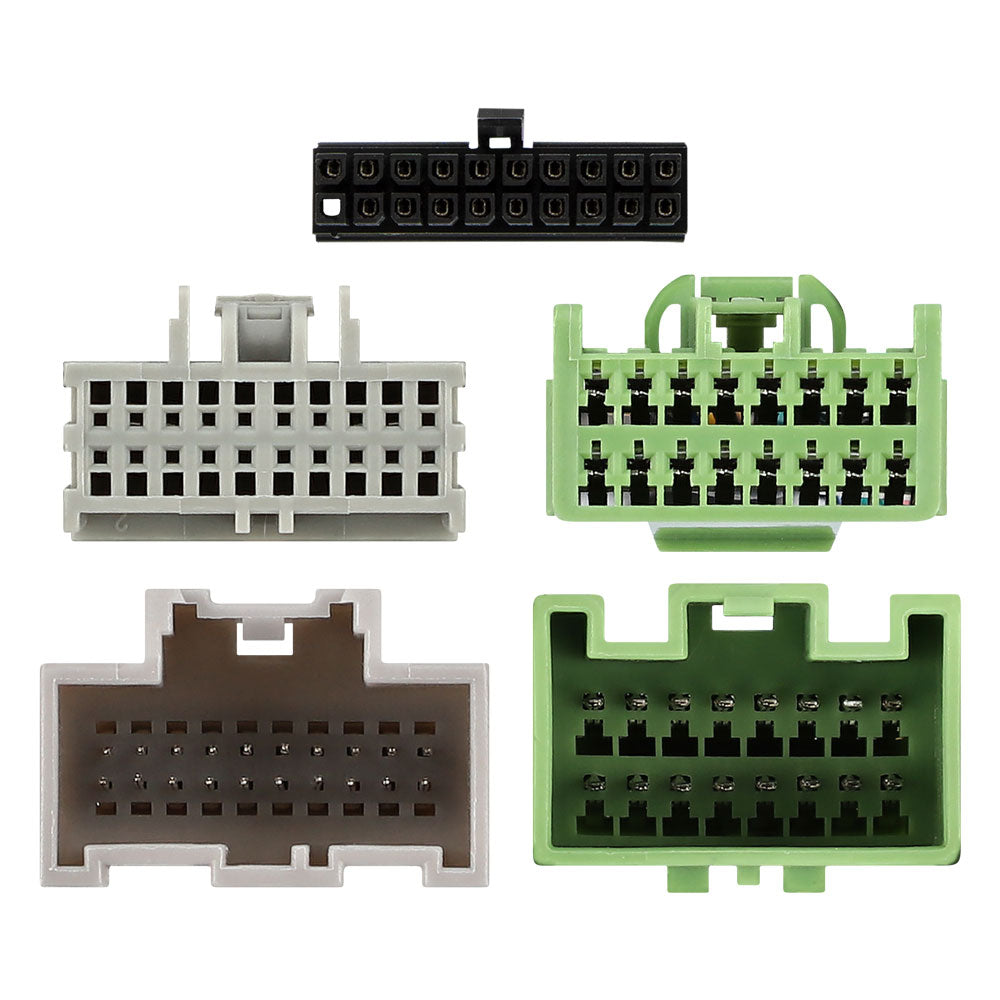

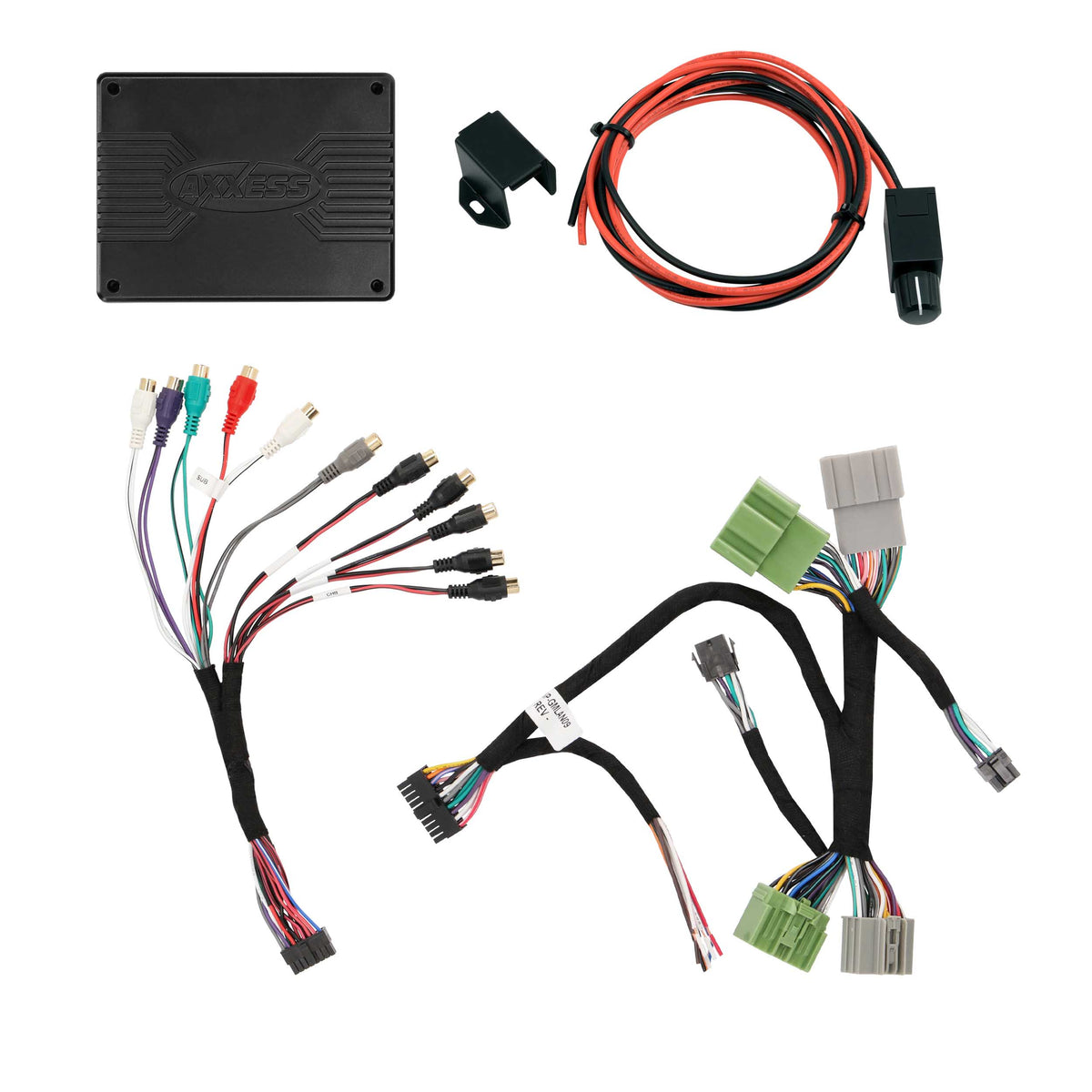

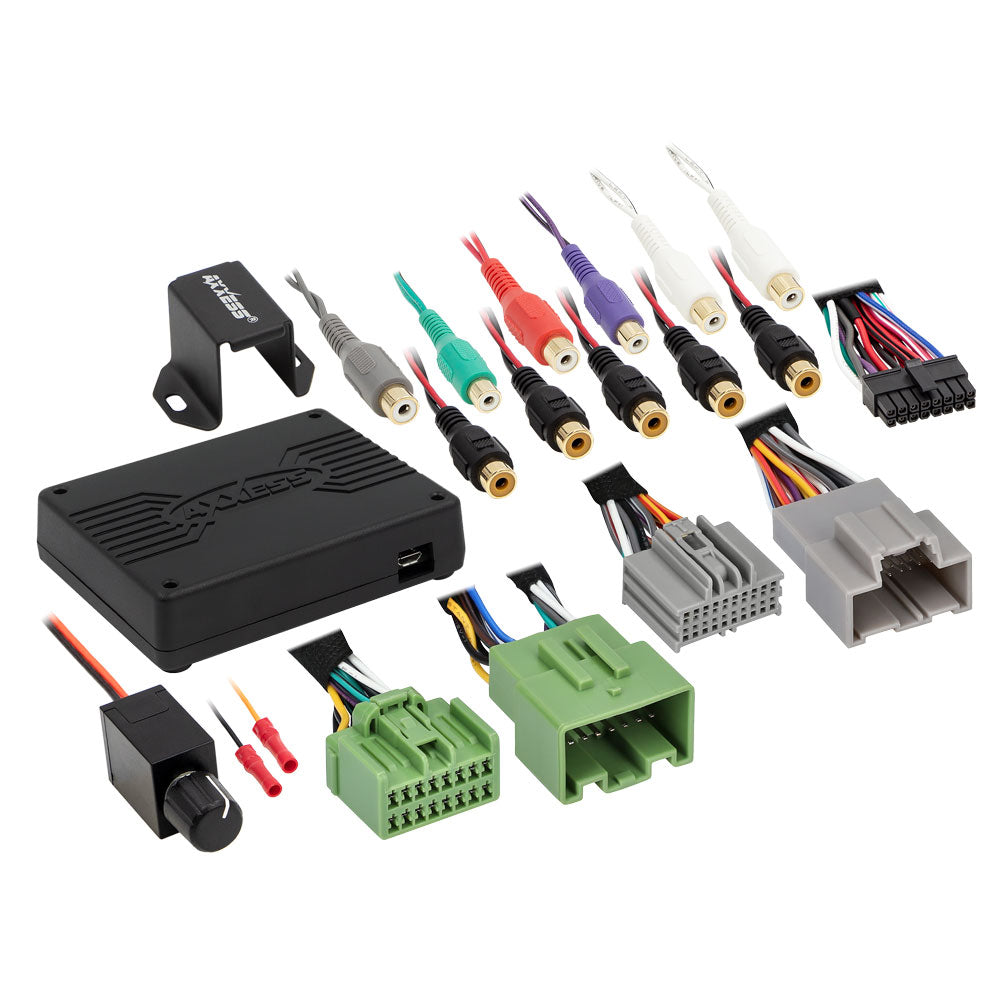

• Package includes the AXDSP-X interface and vehicle-specific T-harness.
• Internal header port for adding interface modules.
• Install location: At the factory radio.
• Firmware updates through Micro-B USB.
• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters.
• 6 inputs and 10 individually assignable outputs.
• Selectable slope (12, 24, 36, or 48db per octave).
• Selectable Graphic or Parametric EQ.
• Independent equalization on each of the 10 outputs.
• Each channel can be delayed independently up to 10 ms.
• Chime control for GM vehicles.
• Clipping detection and limiting circuits.
• Bass knob included.
• Retains OE voice prompts (OnStar®) if vehicle is equipped.
• Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped.
• Wireless settings adjustment with the AX-DSP-XL app available for smartphones and tablets.
• Can be used with factory and aftermarket radios.
• Read, write, and store configurations for future recall.
• Password protect feature available in the app.

Match the specified factory audio system and install location before ordering. The processor provides signal routing and tuning; system setup still requires channel assignment and adjustment for the installed speakers and amplifiers.
