DSP Data Interface - Hyundai | Kia 2011-2020 — AXDSPX-HK2
Key features
- For select Hyundai / Kia 2011-2020
- Factory amplifier does not need to be retained

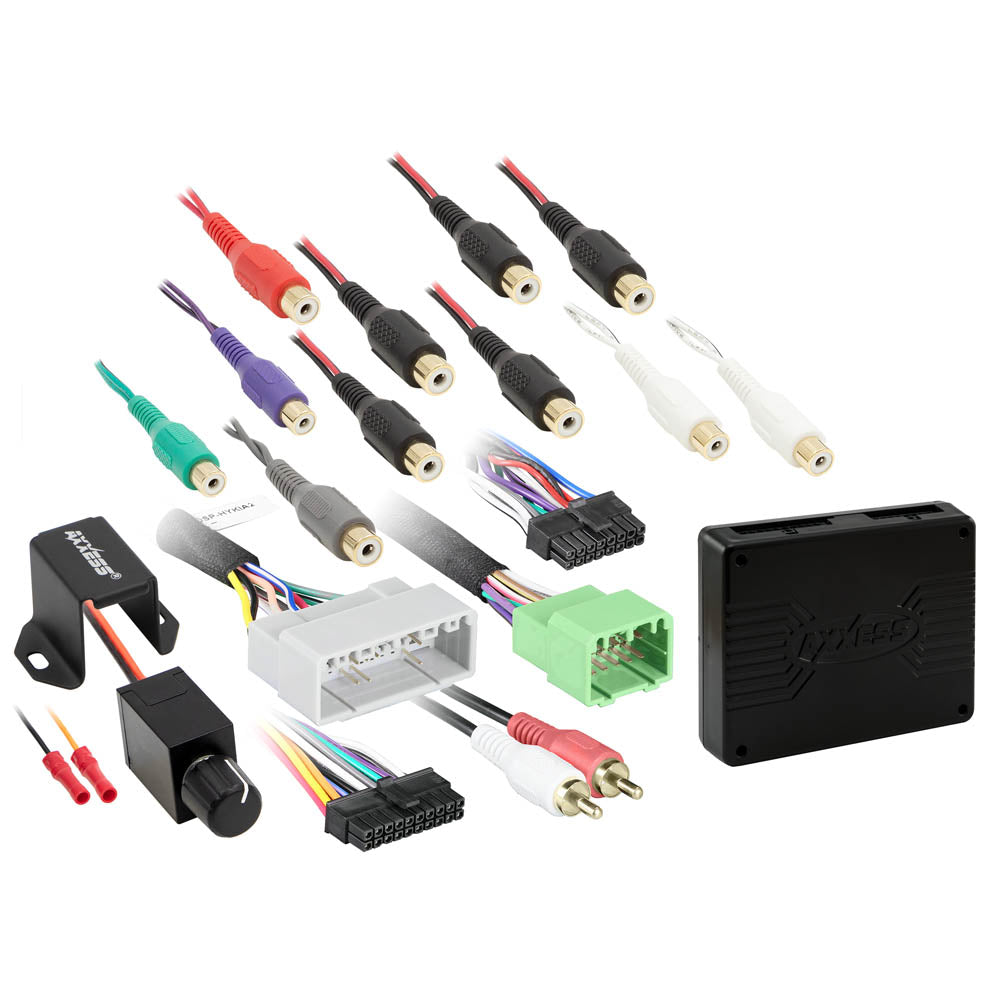

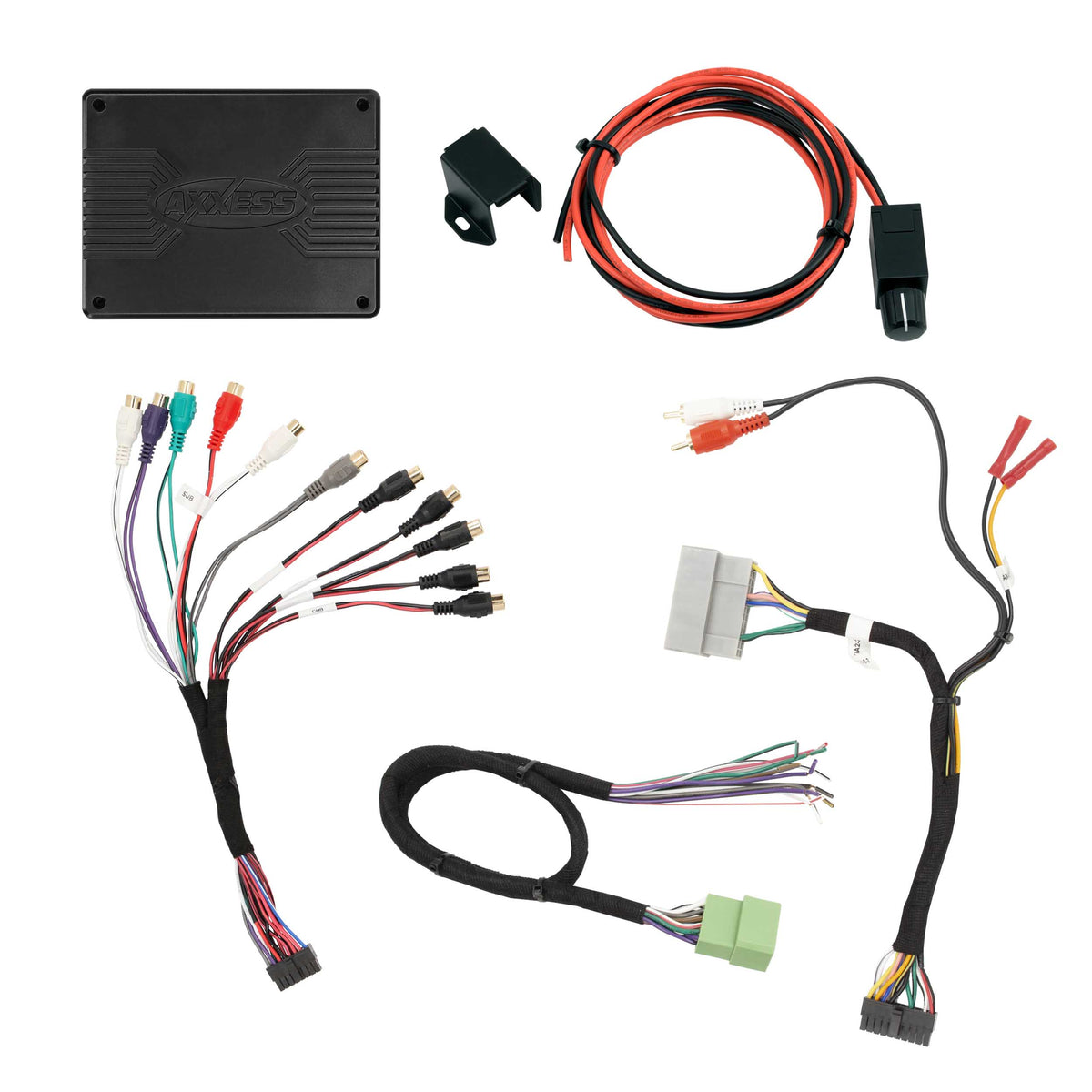

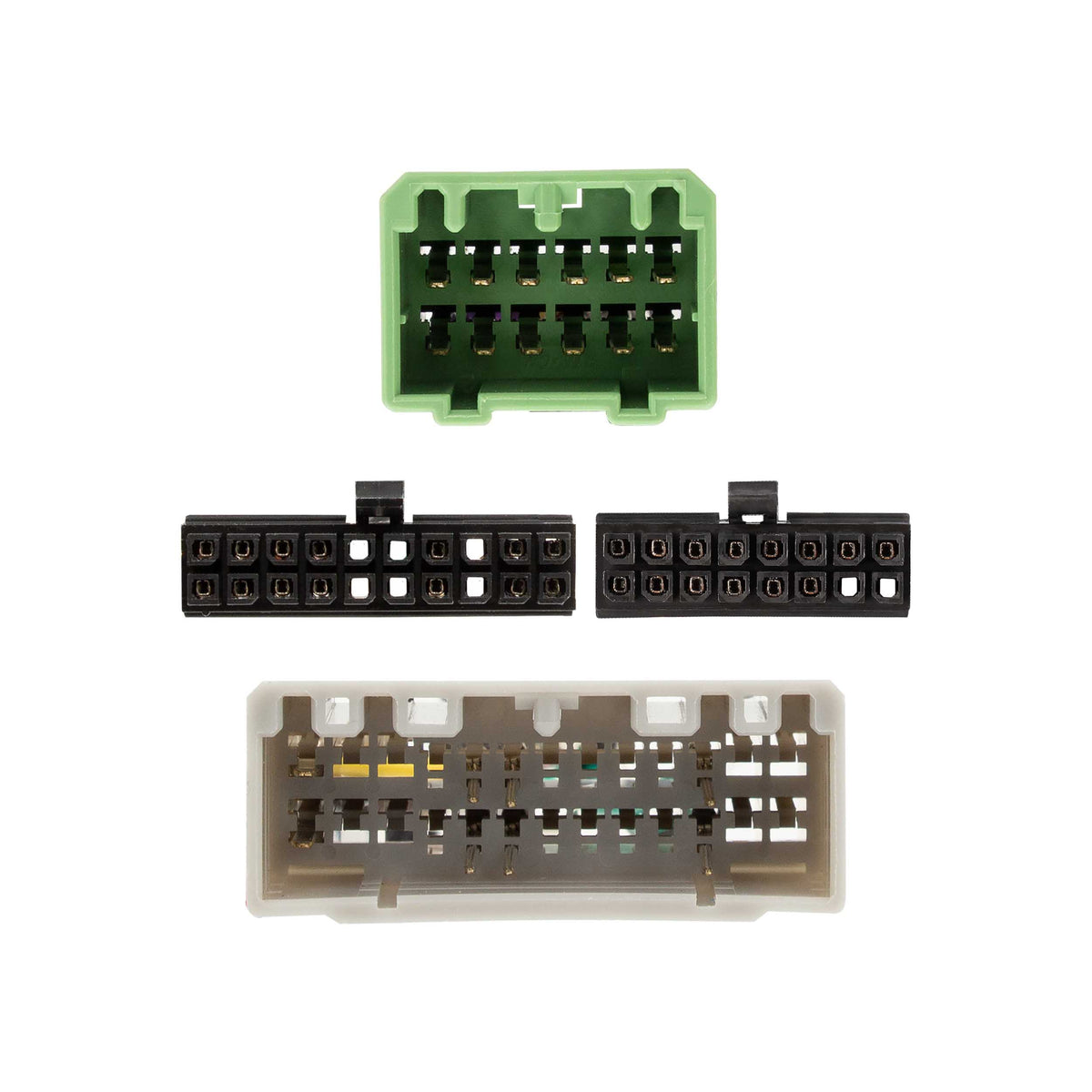

- Package includes AXDSP-X interface, vehicle-specific T-harness, and an amplifier bypass harness
- Retains ability to work with S/PDIF® digitally controlled amplified systems; Retains OE voice prompts (Blue Link®/UVO®) with adjustable level if vehicle is equipped
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
DSP Data Interface - Hyundai | Kia 2011-2020 — AXDSPX-HK2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get more control over your upgraded car audio with the AXDSPX-HK2 DSP data interface for Hyundai and Kia vehicles from 2011–2020. It helps address factory radio sound processing while retaining select factory features, including S/PDIF®-controlled amplified systems and equipped vehicles’ voice prompts.
Key Features & Benefits
- Vehicle-specific integration: The included T-harness and amplifier bypass harness support installation at the factory amplifier.
- Flexible sound shaping: Choose a 31-band graphic EQ or 5-band parametric EQ, with independent equalization across the outputs.
- Configurable outputs: Assign six inputs to ten outputs to suit your system setup.
- Wireless adjustments: Use the free AX-DSP-XL app on a smartphone or tablet to adjust and store configurations.
- Factory feature retention: Retain OE voice prompts from Blue Link® or UVO® with adjustable level when equipped.
Technical Specifications
| Specification | Details |
|---|---|
| Product model | AXDSPX-HK2 |
| Vehicle application | Hyundai | Kia 2011-2020 |
| Inputs | 6 |
| Outputs | 10 individually assignable |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| Bass control | Bass knob included |
| Factory system features | Retains ability to work with S/PDIF® digitally controlled amplified systems; factory amplifier does not need to be retained; retains OE voice prompts (Blue Link®/UVO®) with adjustable level if vehicle is equipped |
| Settings and configurations | Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets; read, write, and store configurations for future recall; password protect feature available in the app |
| Update connection | Micro “B” USB updatable |
| Installation location | At the factory amplifier |
| Package includes | AXDSP-X interface, vehicle-specific T-harness, and an amplifier bypass harness |
| Warranty | 1-year limited warranty |
| Patent | U.S. Patent 9,875,078 |
Why Choose This Product?
Factory sound processing can shape audio for the original speakers. This interface provides adjustable equalization, filtering, and output assignment for an aftermarket audio system, while retaining select factory functions. Its independent channel delay and clipping detection add further tools for system adjustment.
Installation & Compatibility Notes
The listed application is Hyundai and Kia vehicles from 2011–2020, and the installation location is the factory amplifier. The factory amplifier does not need to be retained. Check the vehicle’s specific fitment and factory audio configuration before purchase, particularly if you want to retain S/PDIF® system operation or voice prompts.
Frequently Asked Questions
What vehicles is the AXDSPX-HK2 listed for?
It is listed for Hyundai and Kia vehicles from 2011–2020. Confirm the interface matches your specific vehicle and factory audio configuration.
Does installation require keeping the factory amplifier?
No. The factory amplifier does not need to be retained.
Can it retain factory voice prompts?
It retains Blue Link® or UVO® voice prompts with adjustable level if the vehicle is equipped with those features.
How do I adjust the DSP settings?
Settings are adjusted wirelessly through the free AX-DSP-XL app for smartphones and tablets. The app can read, write, and store configurations for future recall.
What comes in the package?
The package includes the AXDSP-X interface, a vehicle-specific T-harness, and an amplifier bypass harness.
