DSP Data Interface - Mitsubishi 2007-2020 — AXDSPX-MI2
Key features
- For select Mitsubishi 2007-2020
- Designed for non-amplified systems
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Independent equalization on each of the 10 outputs
DSP Data Interface - Mitsubishi 2007-2020 — AXDSPX-MI2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a signal-processing interface designed to help aftermarket audio equipment work around the factory radio’s built-in sound processing. The AXDSPX-MI2 is a Mitsubishi DSP data interface for 2007–2020 vehicles with non-amplified systems, with adjustable sound controls and factory-radio installation.
Use it when upgrading audio in a compatible vehicle and you want to adjust the system’s sound while retaining a connection to either a factory or aftermarket radio.
Key Features & Benefits

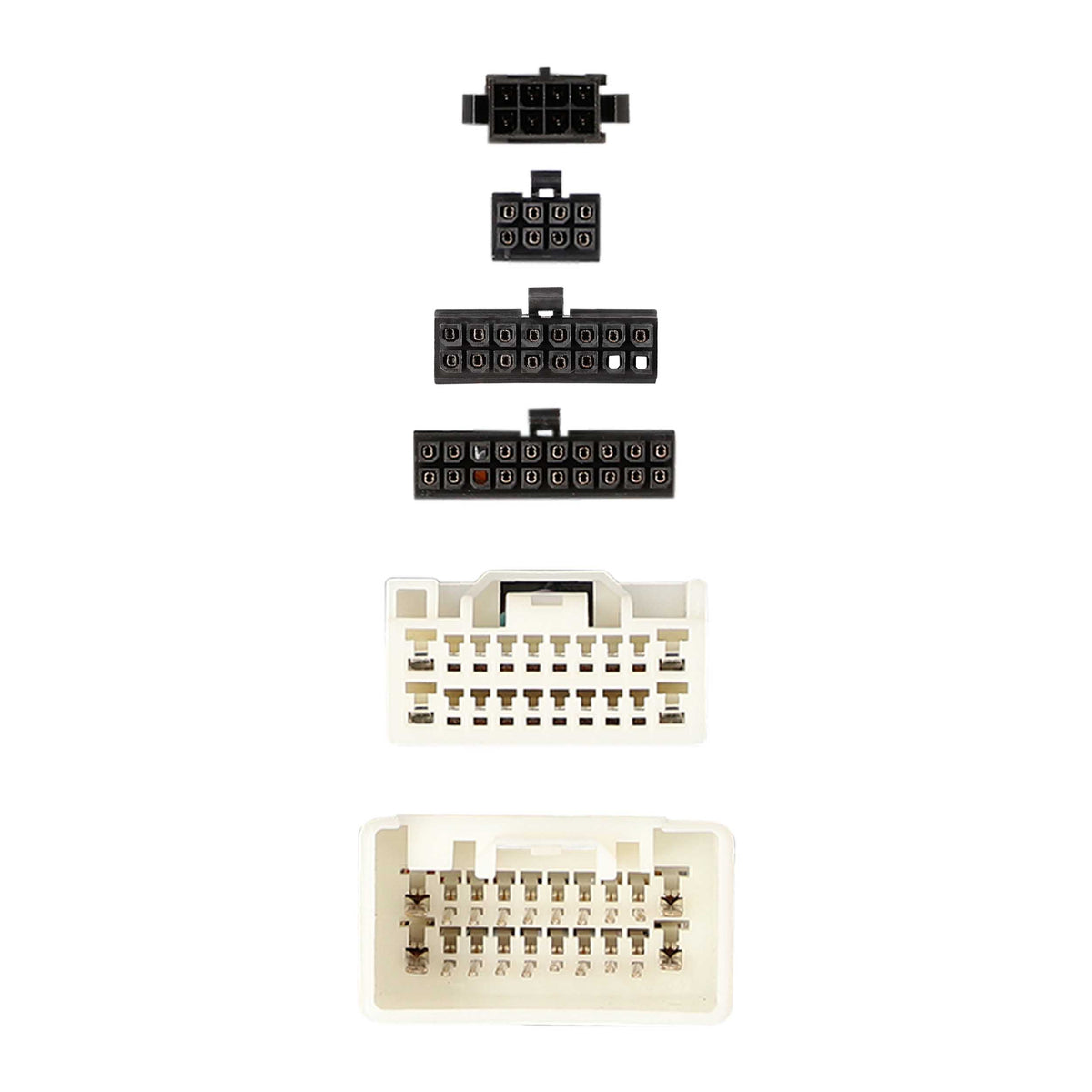

- Vehicle-specific T-harness: The included harness is designed for the Mitsubishi application stated for this interface.
- Flexible sound shaping: Choose graphic or parametric equalization to tailor the sound across the system’s outputs.
- Wireless adjustments: Change settings in the free AX-DSP-XL app on a smartphone or tablet.
- Configuration recall: Read, write, and store settings for future use.
- Compact installation location: The interface installs at the factory radio, behind the radio.
Technical Specifications
| Vehicle application | Mitsubishi 2007–2020; designed for non-amplified systems |
|---|---|

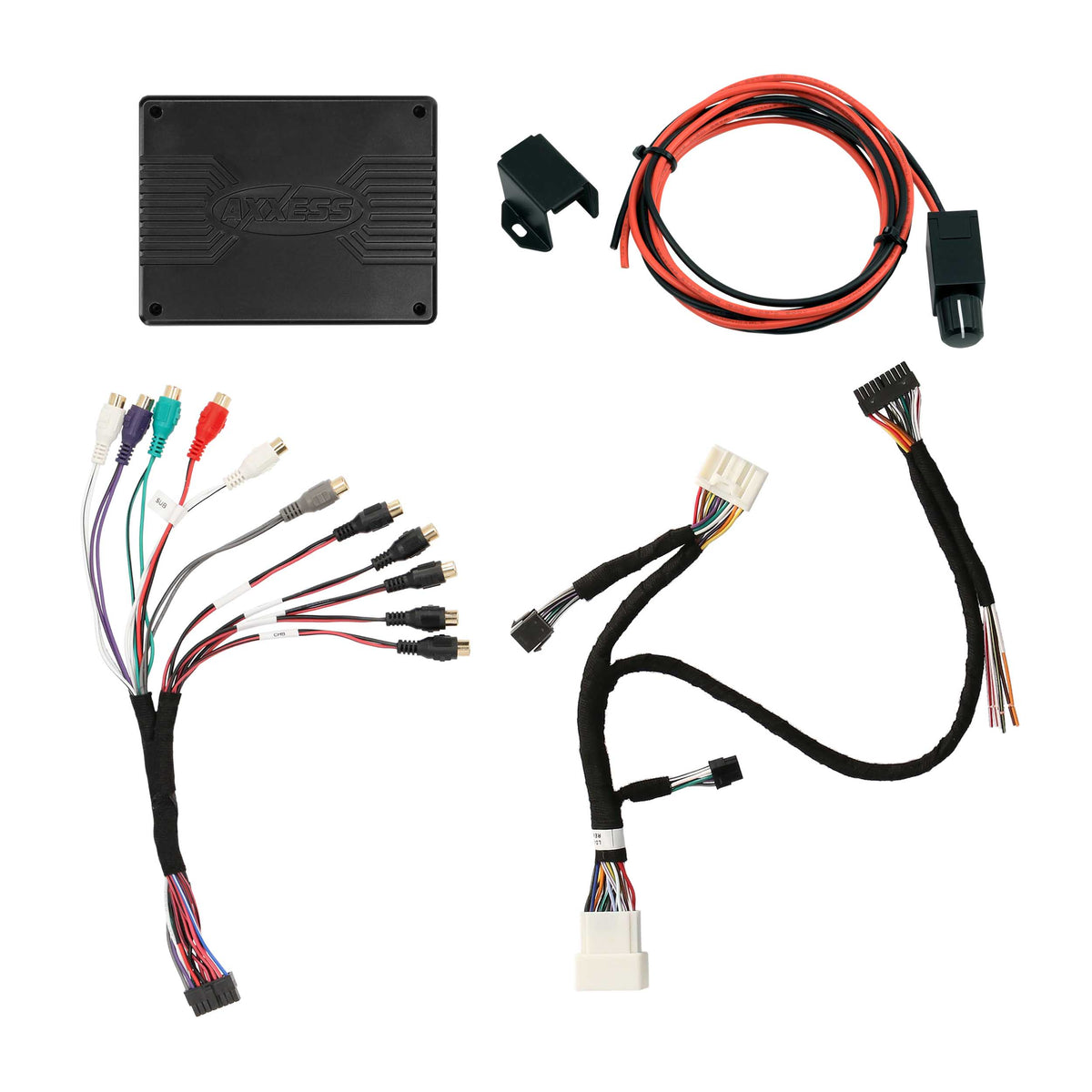

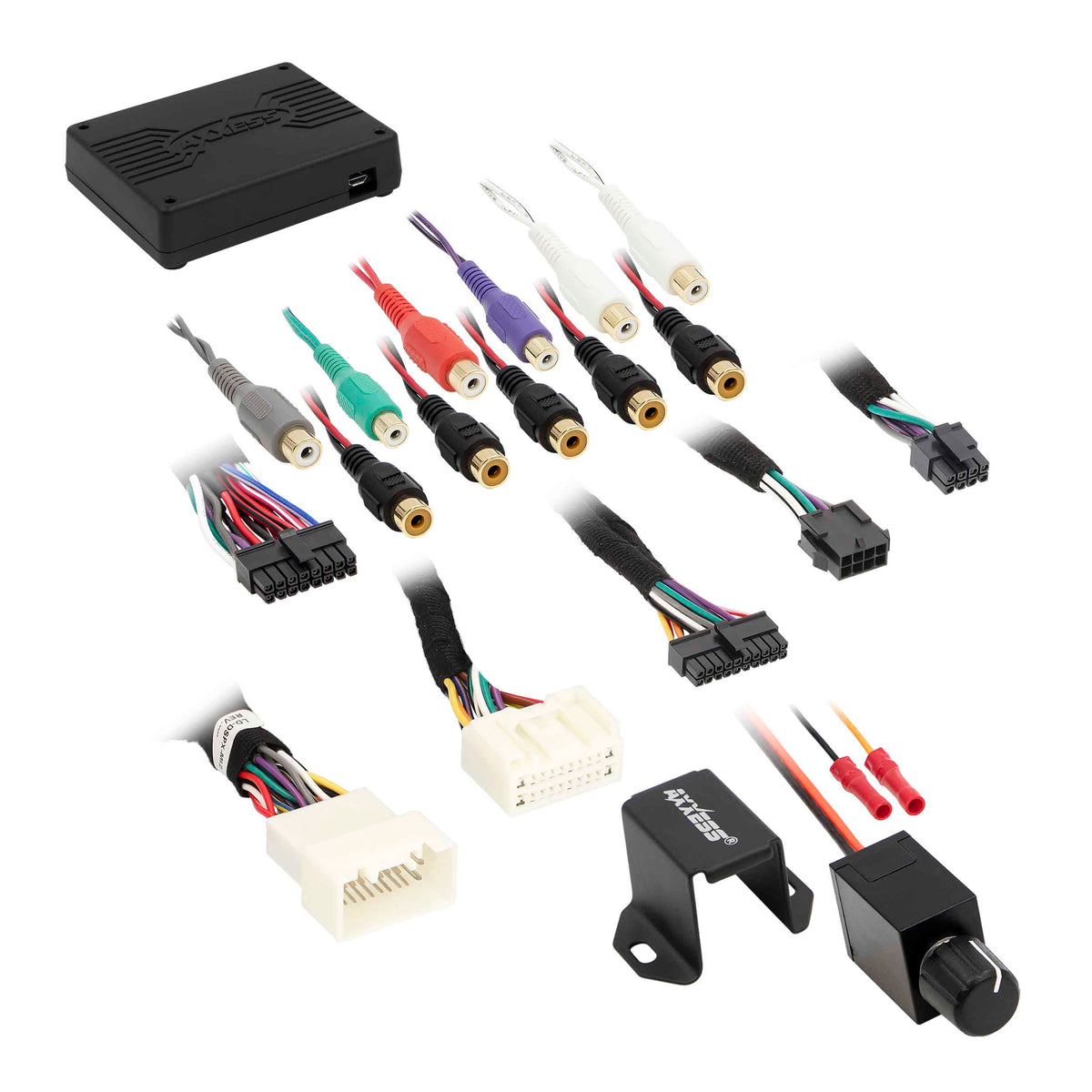

| Package includes | AXDSP-X interface and vehicle-specific T-harness |
| Install location | At the factory radio |
| Update connection | Micro “B” USB updatable |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| Included control | Bass knob included |
| App settings | Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets; password protect feature available in the app |
| Configuration storage | Read, write, and store configurations for future recall |
| Patent | U.S. Patent 9,875,078 |
| Warranty | 1-year limited warranty |
Why Choose This Product?
A factory radio may process sound for the original speaker system. When you upgrade speakers or add aftermarket audio equipment, that processing can limit how the new system sounds. The AXDSPX-MI2 provides adjustable equalization, filters, and channel delay to shape the signal for your audio setup.
Its 10 individually assignable outputs and independent output equalization give you control over multiple signal paths. Clipping detection and limiting circuits are also built into the processor.
Installation & Compatibility Notes
This interface is designed for Mitsubishi vehicles from 2007–2020 with non-amplified systems. It installs at the factory radio and includes the AXDSP-X interface and vehicle-specific T-harness.
Confirm that your vehicle and audio system match this application before purchase. The settings are adjusted wirelessly through the AX-DSP-XL app; the interface is also Micro “B” USB updatable.
Frequently Asked Questions
Which vehicles is the AXDSPX-MI2 designed for?
It is listed for Mitsubishi vehicles from 2007–2020 with non-amplified systems. Check that your vehicle’s audio configuration matches before ordering.
Can I use it with an aftermarket radio?
Yes. The product details state that it can be used with factory and aftermarket radios.
How do I adjust the DSP settings?
Settings are adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets.
What comes in the package?
The package includes the AXDSP-X interface and a vehicle-specific T-harness. A bass knob is also included.
