DSP Data Interface - Toyota 2018-2023 — AXDSPX-TY3
Key features
- For select Toyota 2018-2023
- Designed for amplified and non-amplified systems
- Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
- 6 inputs and 10 individually assignable outputs
- Selectable slope (12, 24, 36, or 48db per octave)
- Independent equalization on each of the 10 outputs
DSP Data Interface - Toyota 2018-2023 — AXDSPX-TY3 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get a signal-processing interface designed to help overcome factory radio sound processing when upgrading your Toyota audio system. The AXDSPX-TY3 DSP data interface is designed for Toyota vehicles from 2018–2023 and supports amplified and non-amplified systems.
Key Features & Benefits
- Flexible tuning: Choose graphic or parametric equalization and adjust each output independently.
- Multiple connections: Six inputs and ten assignable outputs offer options for configuring an audio system.
- Wireless adjustments: Use the free AX-DSP-XL app on a smartphone or tablet to change settings.
- Installation location: The interface installs behind the factory radio, keeping it at the radio location.
- Configuration storage: Read, write, and store settings for future recall in the app.
- Included bass knob: A bass knob is included with the interface.
Technical Specifications
| Vehicle application | Toyota 2018–2023 |
|---|---|
| System type | Designed for amplified and non-amplified systems |

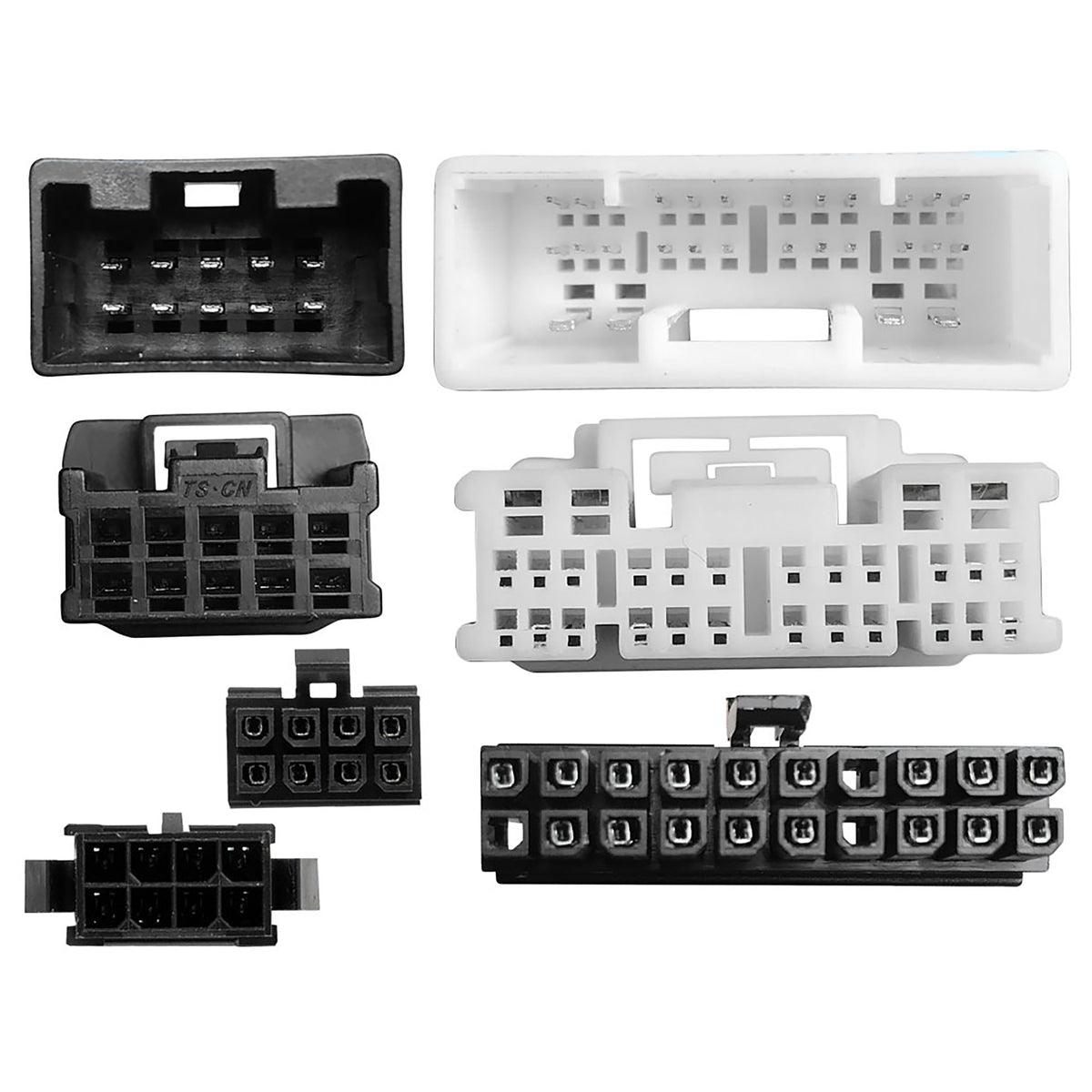

| Included components | AXDSP-X interface and vehicle-specific T-harness; bass knob |
| Installation location | At the factory radio; easy behind-the-radio installation |
| Radio compatibility | Can be used with factory and aftermarket radios |
| Inputs and outputs | 6 inputs and 10 individually assignable outputs |
| Equalization | Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel; selectable Graphic or Parametric EQ; independent equalization on each of the 10 outputs |
| Filters | High pass, low pass, and bandpass filters |
| Selectable slope | 12, 24, 36, or 48 db per octave |
| Channel delay | Each channel can be delayed independently up to 10 ms |
| Signal management | Clipping detection and limiting circuits |
| App control | Settings adjusted wirelessly in the free AX-DSP-XL app, available for smartphones and tablets; password protect feature available in the app |
| Configuration storage | Read, write, and store configurations for future recall |
| Update connection | Micro “B” USB updatable |
| Patent | U.S. Patent 9,875,078 |
| Warranty | 1-year limited warranty |
Why Choose This Product?
Factory radios can process sound to suit the original speakers. That processing may limit the signal when you replace or upgrade audio components. The AXDSPX-TY3 is designed to help address that limitation and provide a signal for aftermarket audio gear.
Its adjustable equalization, filters, and independent channel delay give you multiple ways to tailor system settings. Clipping detection and limiting circuits are also part of the interface.
Installation & Compatibility Notes

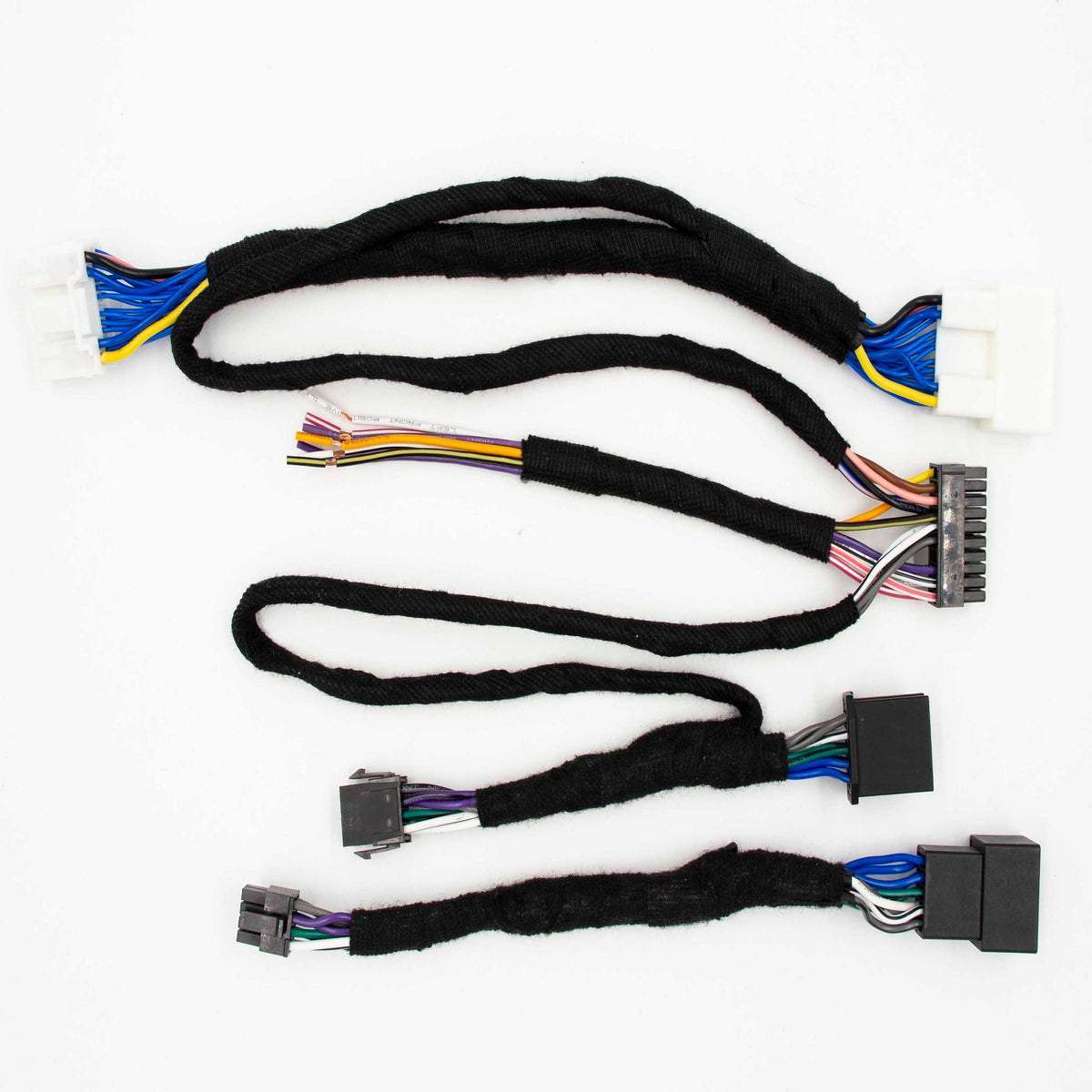

This interface is designed for Toyota vehicles from 2018–2023 and for amplified and non-amplified systems. It installs at the factory radio using the included vehicle-specific T-harness.
Confirm the exact vehicle fitment and audio-system configuration before purchase. The interface can be used with factory or aftermarket radios.
Frequently Asked Questions
Does the AXDSPX-TY3 work with amplified and non-amplified systems?
It is designed for both system types.
What equalization options does it offer?
It offers a selectable 31-band Graphic EQ or 5-band parametric EQ on each channel, plus independent equalization on all 10 outputs.
Can I adjust settings from a phone or tablet?
Yes. Settings are adjusted wirelessly using the free AX-DSP-XL app, available for smartphones and tablets.
What comes in the package?

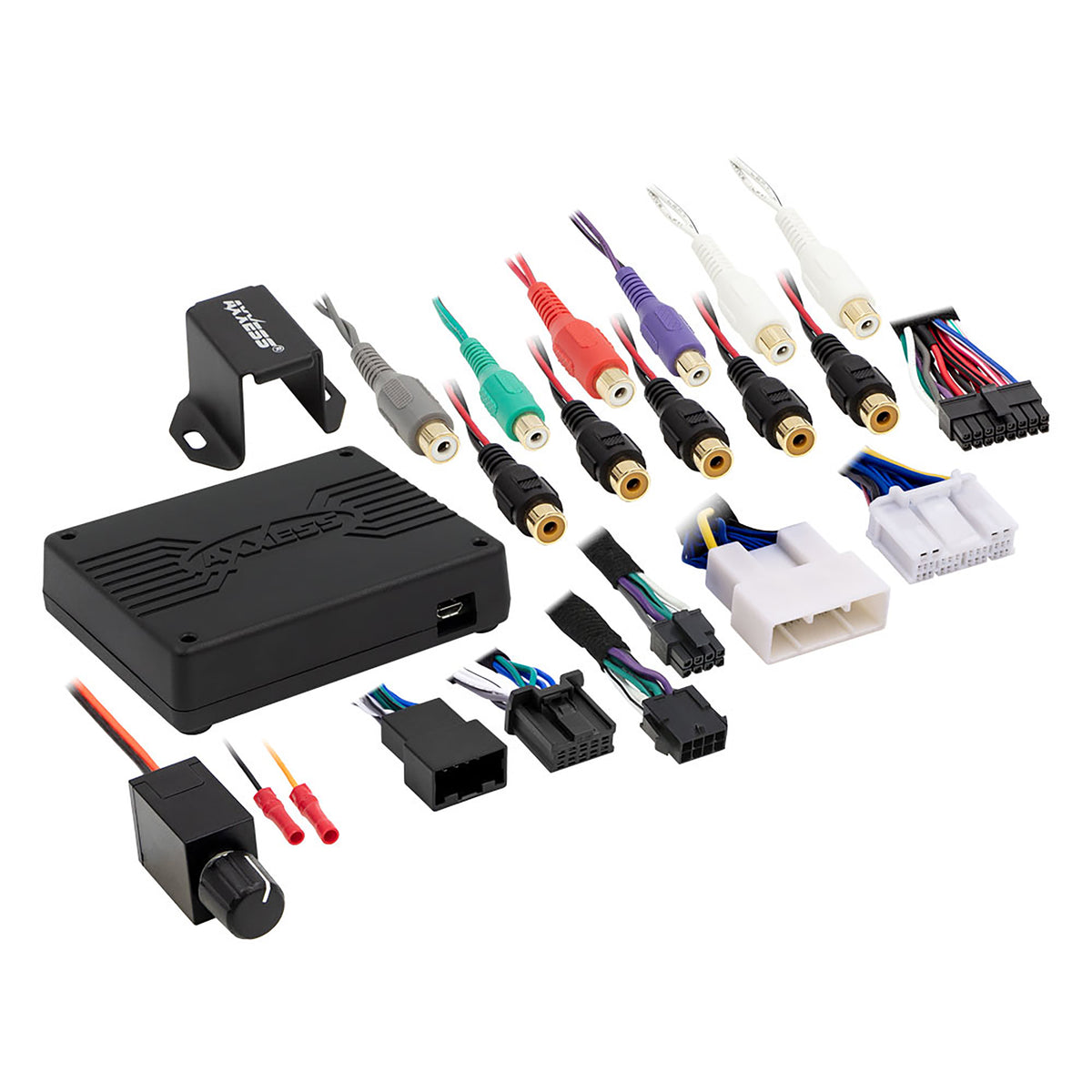

The package includes the AXDSP-X interface, a vehicle-specific T-harness, and a bass knob.
Can I use it with an aftermarket radio?
Yes. It can be used with factory and aftermarket radios.
