Data Interface - Cadillac 1996-2007 — AXGM-16
Key features
- For select Cadillac 1996-2007
- Designed for amplified systems
- Pre-wired for Axxess SWC interface (sold separately)
- Retains R.A.P. (Retained Accessory Power); Retains OnStar®/OE Bluetooth® and chimes; Retains balance & fade
- Provides accessory power (12-volt 10-amp)

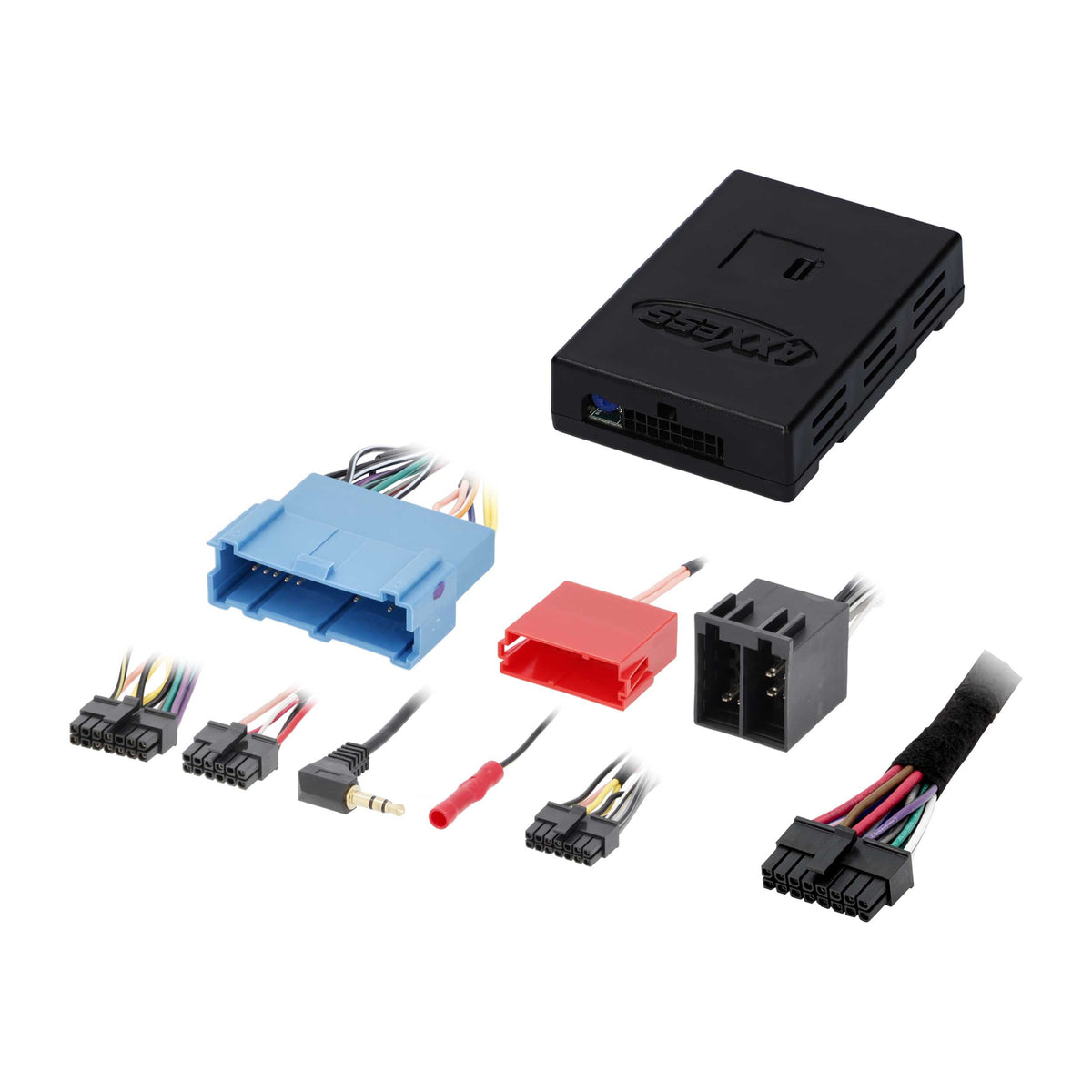

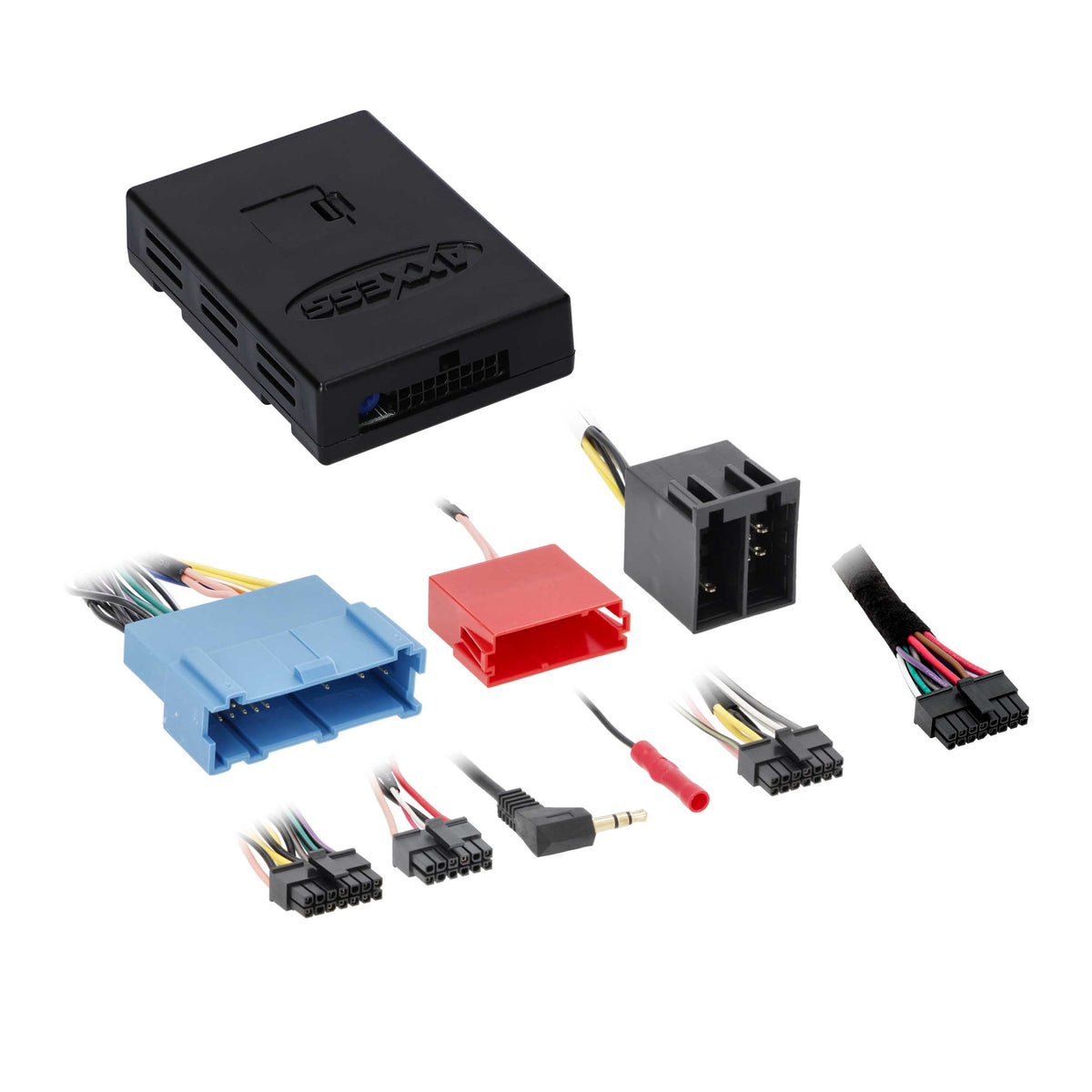

- Includes: Interface; (3) Harnesses
Data Interface - Cadillac 1996-2007 — AXGM-16 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Retain key factory functions when replacing the radio in a compatible amplified GM vehicle with the AXGM-16 data interface. It is designed for select Cadillac applications from 1996–2007 and supports OnStar® functionality, factory warning chimes, and aftermarket navigation radio connections.
Key Features & Benefits
- Factory function retention: Keep OnStar®, OE Bluetooth®, chimes, balance, and fade available after a radio replacement.
- Accessory power: The 12-volt, 10-amp output supports an aftermarket navigation radio.
- Navigation outputs: Parking brake, reverse, mute, and speed-sense outputs support navigation radio connections.
- Adjustable gain: Set the gain for the retained chimes and OnStar® audio.
- Streamlined installation: A vehicle-specific harness and three included harnesses simplify the connection process.
- USB updatable: The interface can be updated through USB.
Technical Specifications
| Model | AXGM-16 |
|---|---|
| Application | Select amplified GM vehicles; Cadillac 1996–2007 |
| Accessory output | 12-volt, 10-amp |
| Retained functions | R.A.P. (Retained Accessory Power), OnStar®/OE Bluetooth®, chimes, balance, and fade |
| NAV outputs | Parking brake, reverse, mute, and speed sense |
| Gain control | Adjustable for chimes and OnStar® |
| Steering wheel control preparation | Pre-wired for Axxess SWC interface (sold separately) |
| Updates | USB updatable |

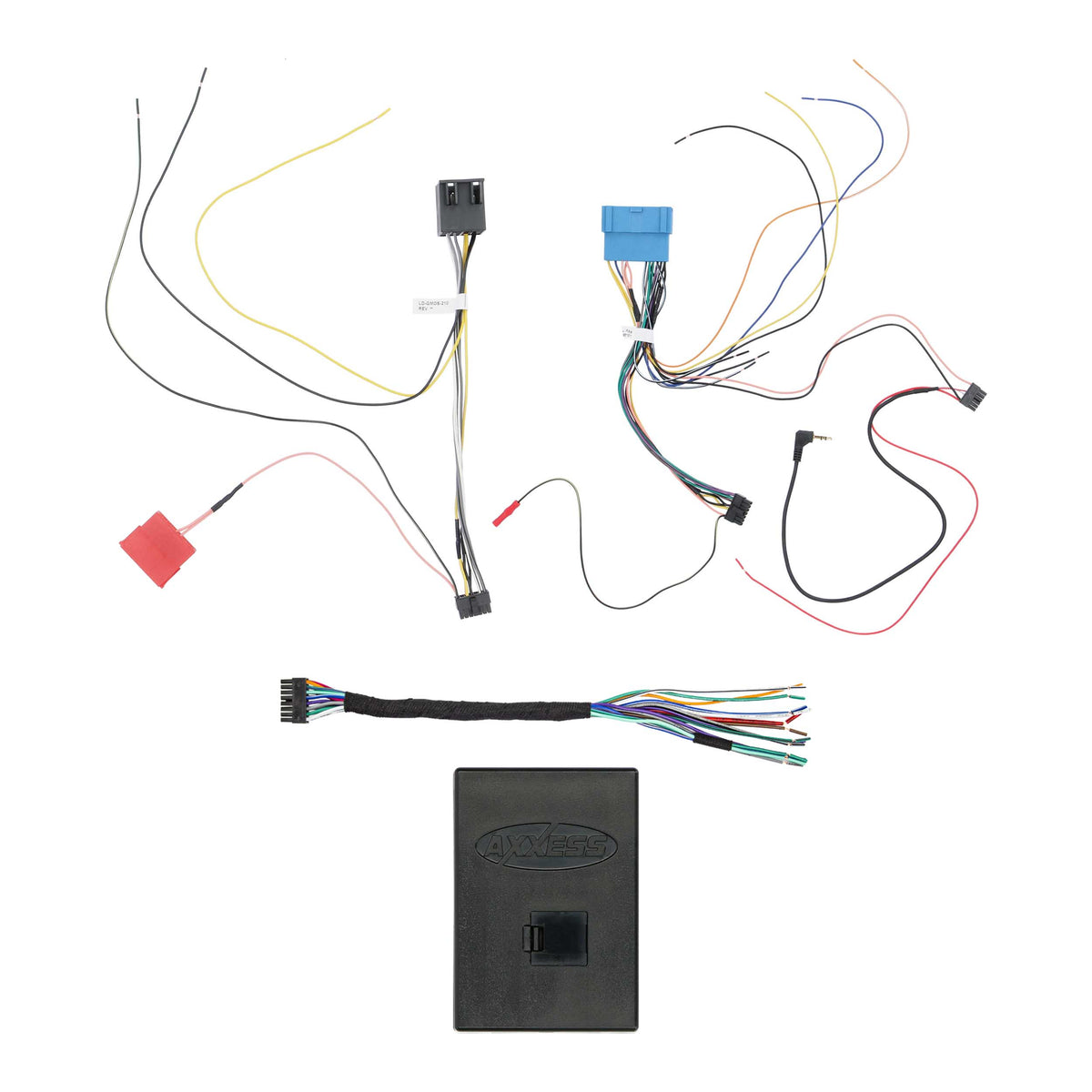

| Included items | Interface and (3) harnesses |
The Bluetooth® word mark, logos, and related marks are owned by Bluetooth SIG, Inc. Use of those marks by Metra Electronics is under license. Other trademarks and trade names belong to their respective owners.
Why Choose This Product?
Replacing a factory radio can affect vehicle functions beyond audio. The AXGM-16 is designed to retain several of those functions while providing the outputs and accessory power needed for an aftermarket navigation radio. Its adjustable gain control also lets you set the level for retained chimes and OnStar® audio.
Installation & Compatibility Notes
This interface is designed for select amplified GM vehicles, and the title identifies Cadillac applications from 1996–2007. Compatibility varies by application, so consult the Vehicle Fit Guide to confirm whether an AXGM integration solution is available for your vehicle. The Axxess SWC interface is sold separately.
Frequently Asked Questions
Will the AXGM-16 fit every Cadillac from 1996–2007?
No. It is designed for select amplified GM vehicles, and compatibility varies by application. Check the Vehicle Fit Guide for your specific vehicle.
What does the accessory output provide?
It provides 12-volt, 10-amp accessory power for an aftermarket navigation radio.
Does this interface retain OnStar® and factory chimes?
It is designed to retain OnStar® functionality and factory warning chimes. The chime and OnStar® gain is adjustable.
Is a steering wheel control interface included?
No. The AXGM-16 is pre-wired for an Axxess SWC interface, which is sold separately.
What comes in the package?
The listed contents are one interface and three harnesses.
